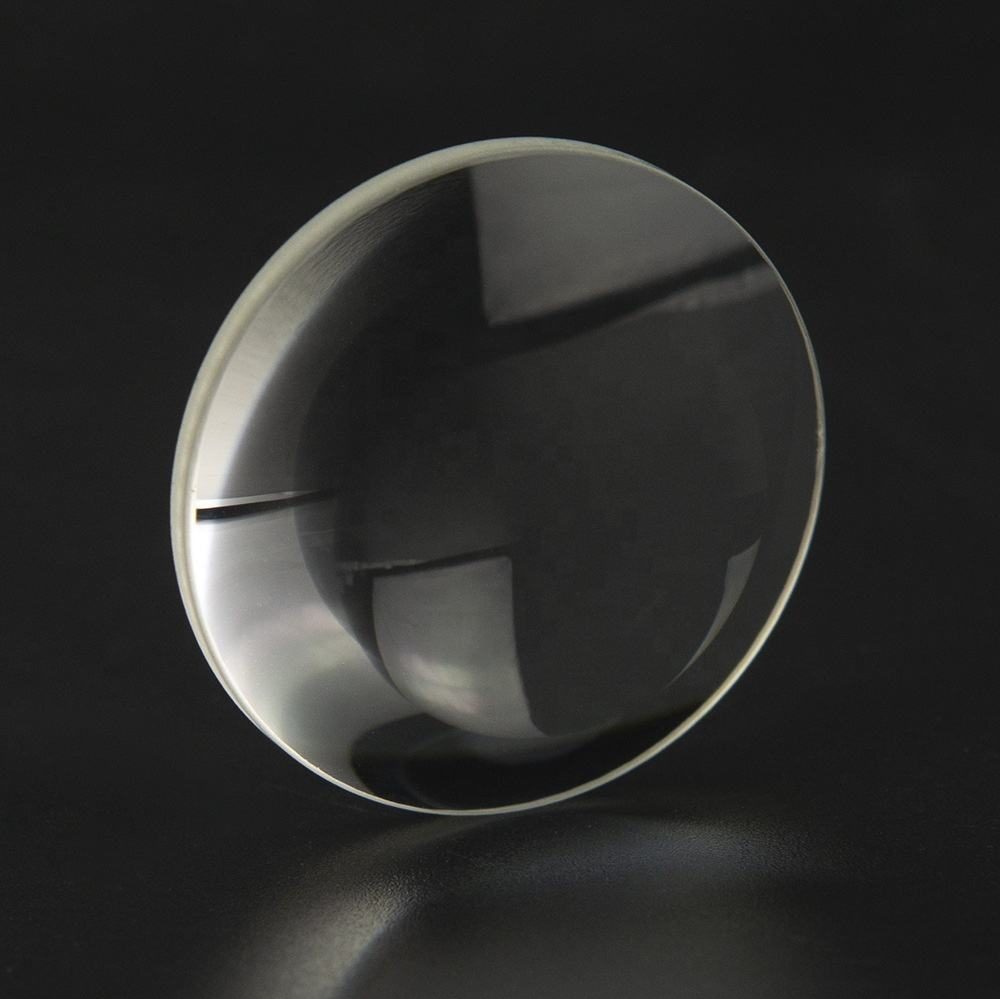

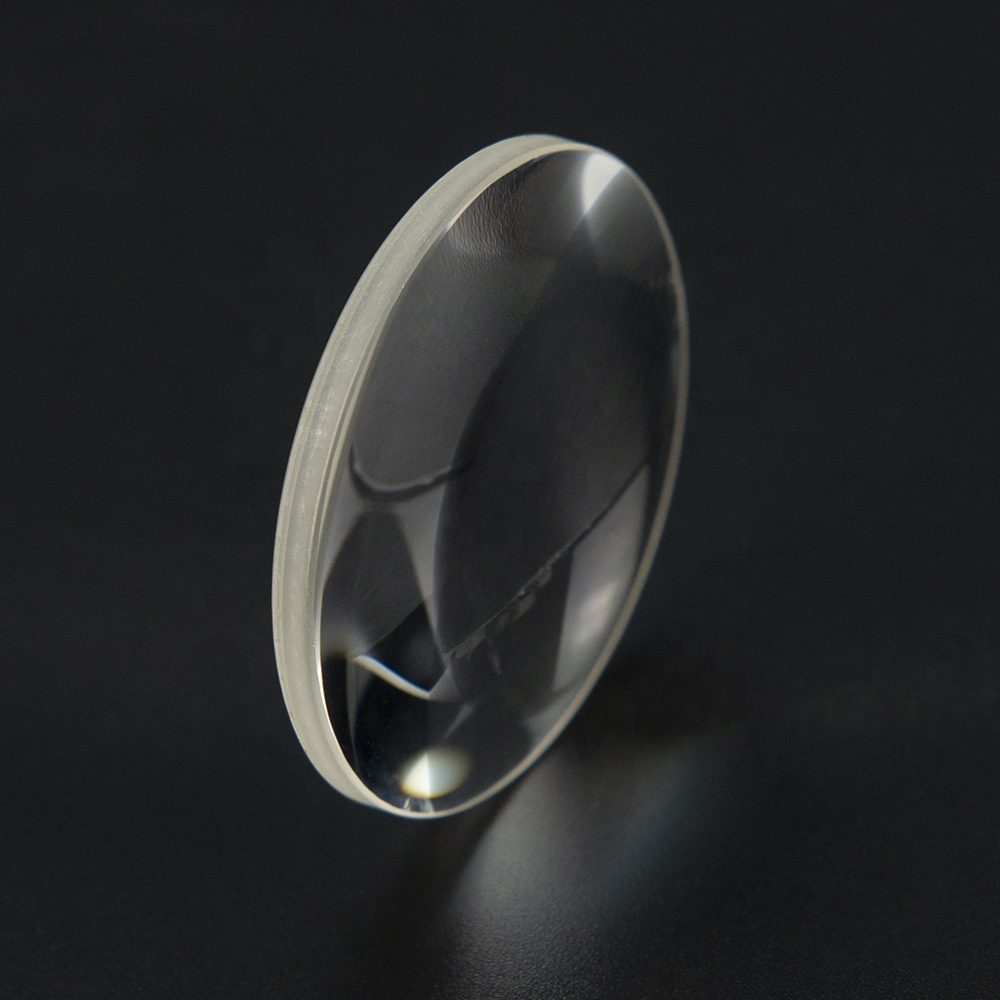

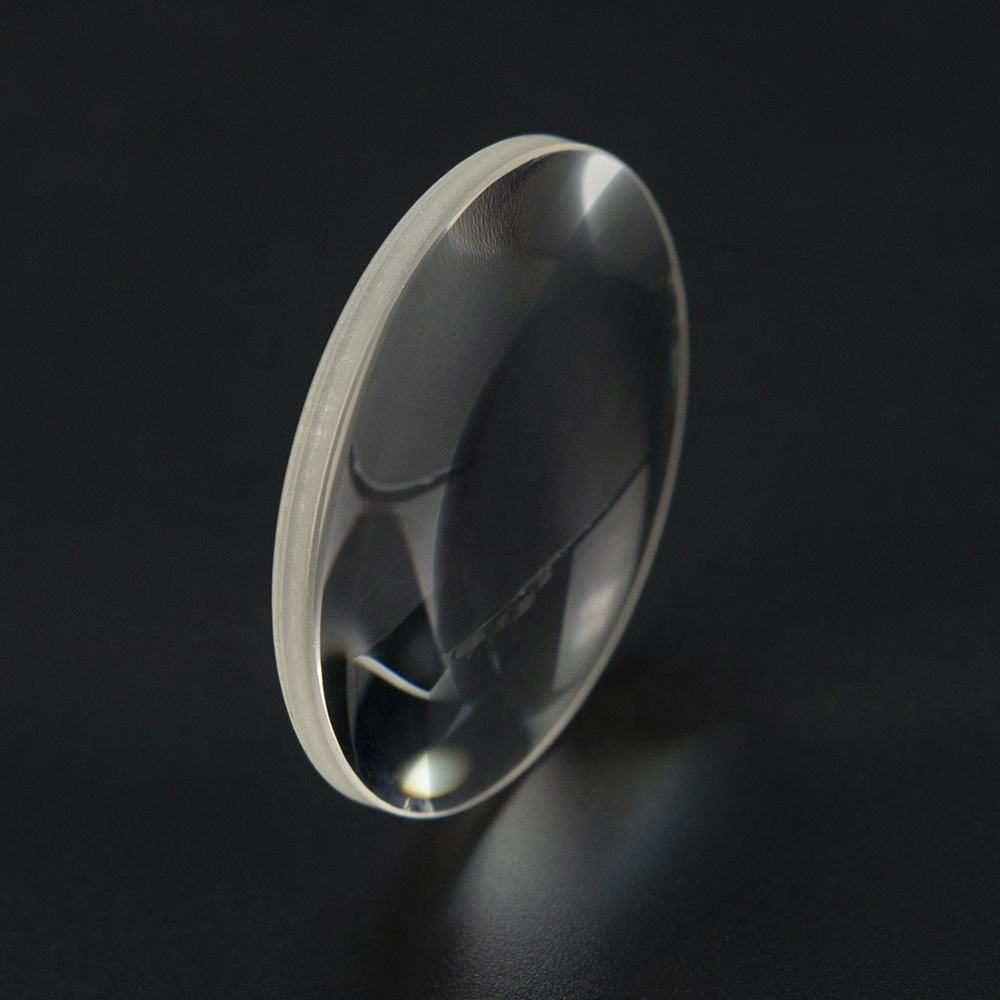

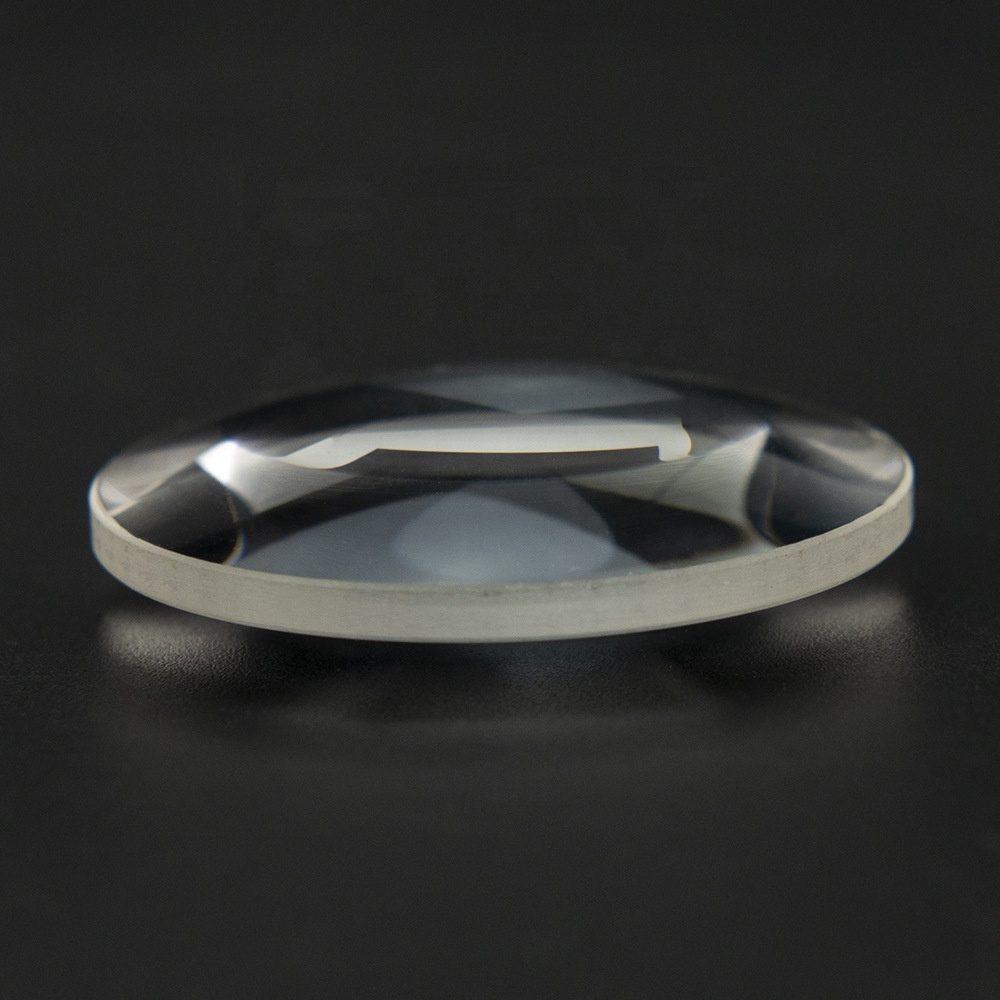

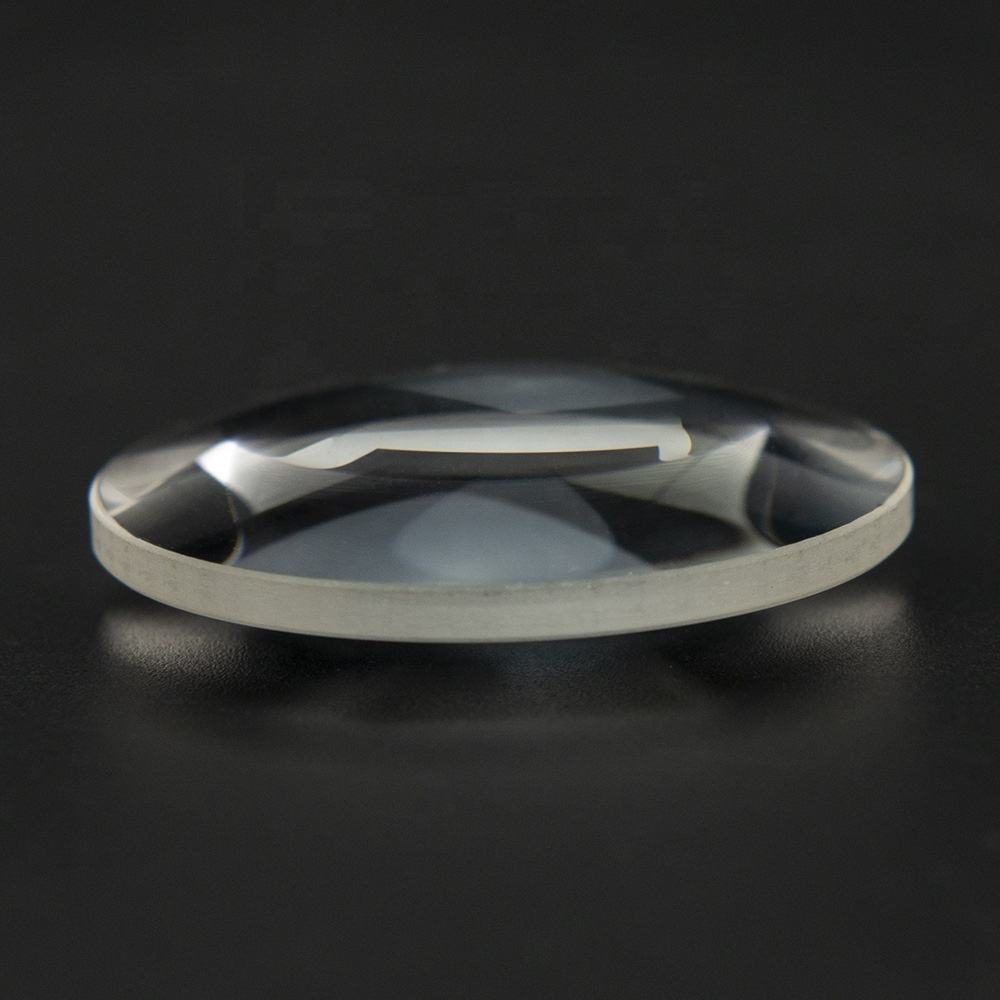

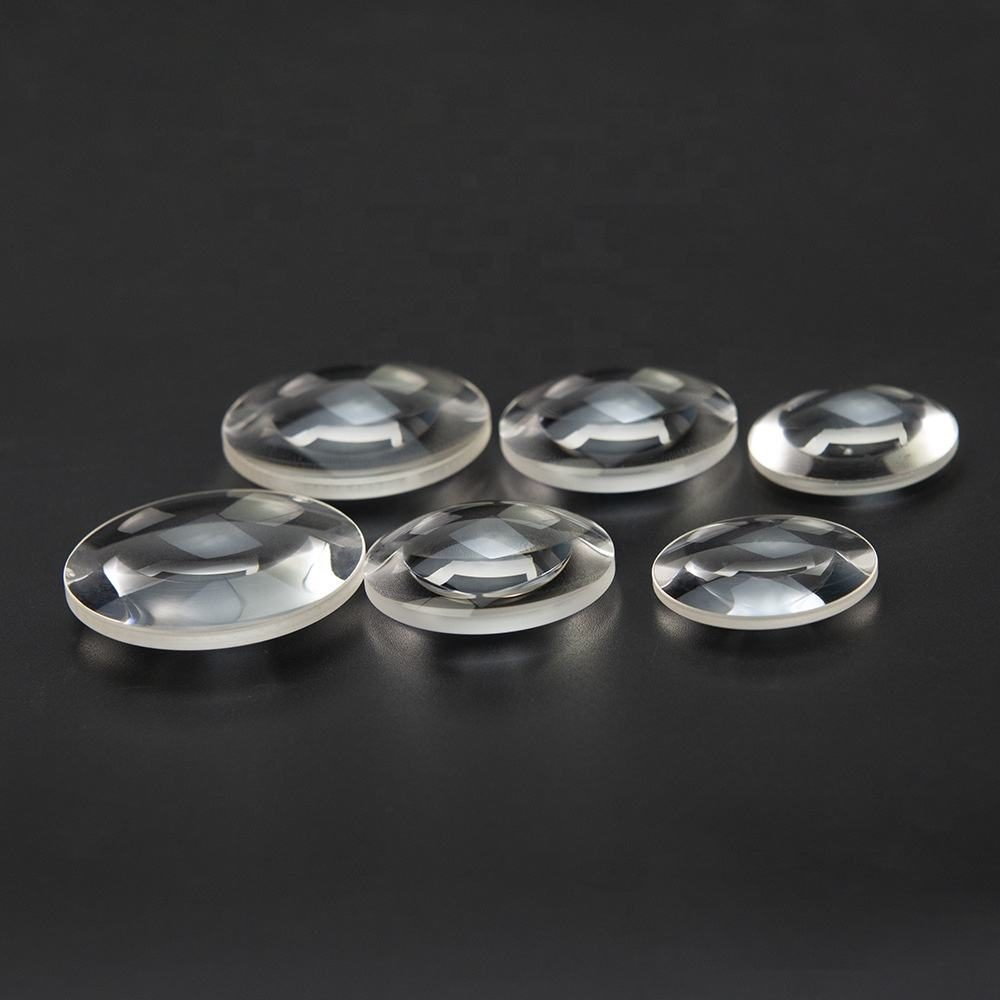

6 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The plano-convex lens made from N-BK7 material is ideal for imaging applications within the 400-700 nm wavelength range. Its design features a positive focal length, making it suitable for focusing parallel light or simple imaging tasks. With a diameter of 6.0 mm and a surface quality of 60/40, this lens ensures reliable performance in various optical systems, providing consistent imaging results.

Key Features

Diameter of 6.0 mm ensures compatibility with standard optical setups.
Surface quality of 60/40 for reliable imaging performance.
Clear aperture of 90% maximizes light transmission for enhanced imaging.
Center thickness tolerance of +/-0.1 mm ensures precision in optical alignment.
Customizable options available for OEM, ODM, and OBM needs.

Applications

Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	6 mm
Surface Quality	60/40
Coating	anti-reflective (AR), mgf2
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.5
Center Thickness Tolerance	+/-0.1mm
Clear Aperture	90%
Diameter Tolerance	+/-0.05mm
Bevel	0.2* 45 DEGREE

FAQ

What are the tolerances for diameter and center thickness?

Diameter tolerance is +/-0.05 mm and center thickness tolerance is +/-0.1 mm.

Can I get custom sizes for this lens?

Yes, custom sizes can be accommodated based on your specific requirements.
