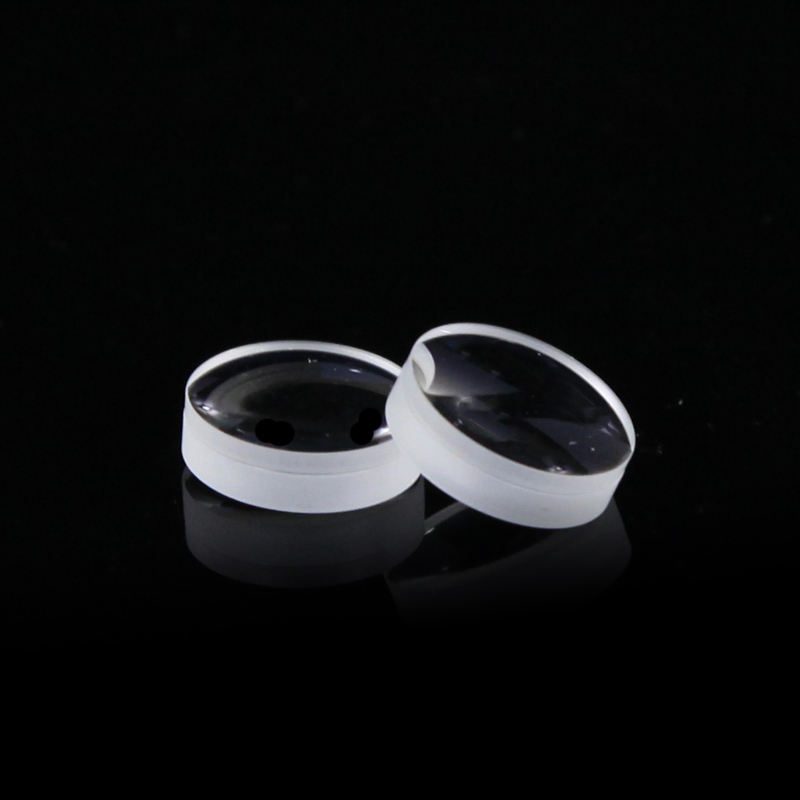

74 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The plano-convex achromatic lens made from N-BK7 glass is ideal for applications in collimation and imaging within the 400-700 nm wavelength range. Its anti-reflective coatings enhance clarity by reducing glare, making it suitable for precision optical systems. With a diameter of 74 mm and a surface quality rating of 60/40, this lens is designed for durability and optimal performance in demanding environments.

Key Features

Wavelength Range: 400-700 nm for versatile application in imaging and collimation.
Surface Quality: 60/40 ensures high clarity and minimal optical distortion.
Customizable Sizes: Available in diameters from 0.5 to 300 mm to fit specific project needs.
Coatings: Anti-reflective coatings enhance visibility and reduce glare.
Certification: CE and ISO9001 certified for quality assurance.

Applications

Collimation, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	74 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM, ODM, OBM
Weight	0.3
Color	transparent/customize
Certification	CE,ISO9001
Package	safe

FAQ

Can I get custom sizes for this lens?

Yes, customizable sizes are available from 0.5 to 300 mm in diameter.

What is the minimum order quantity (MOQ)?

The MOQ is not specified; please inquire for specific requirements.
