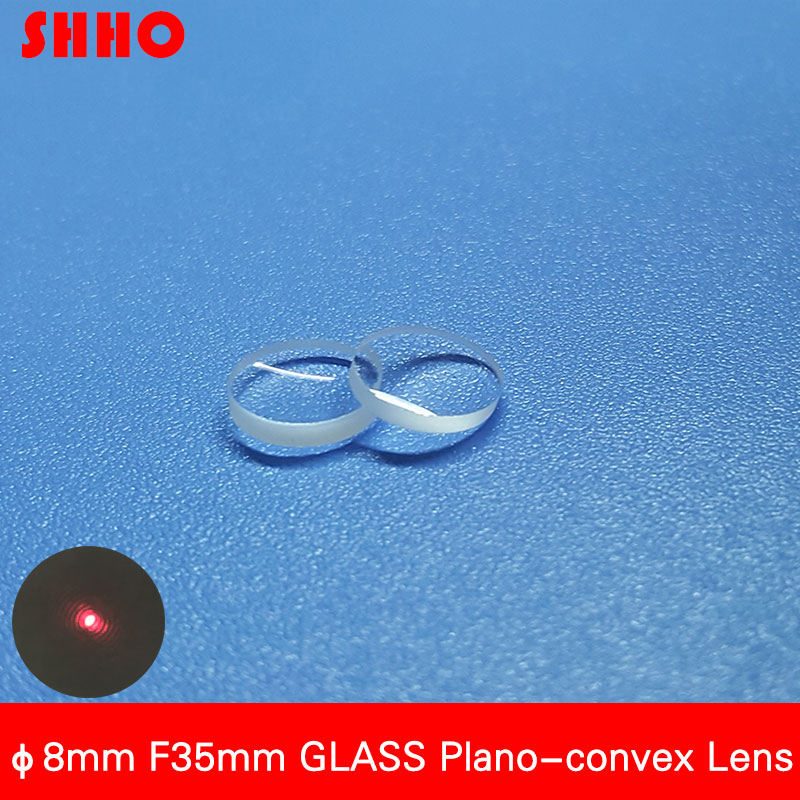

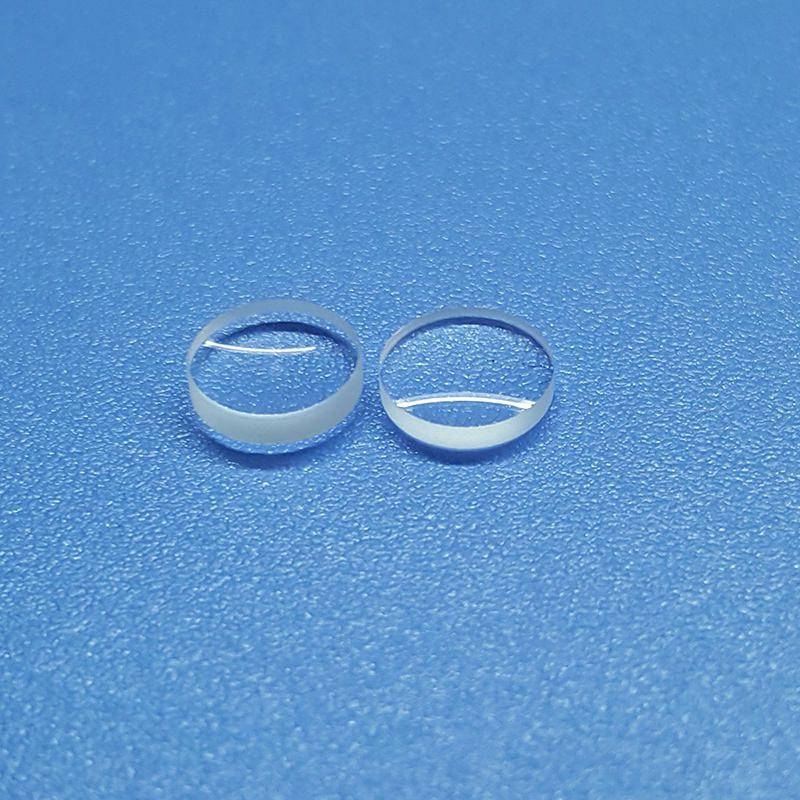

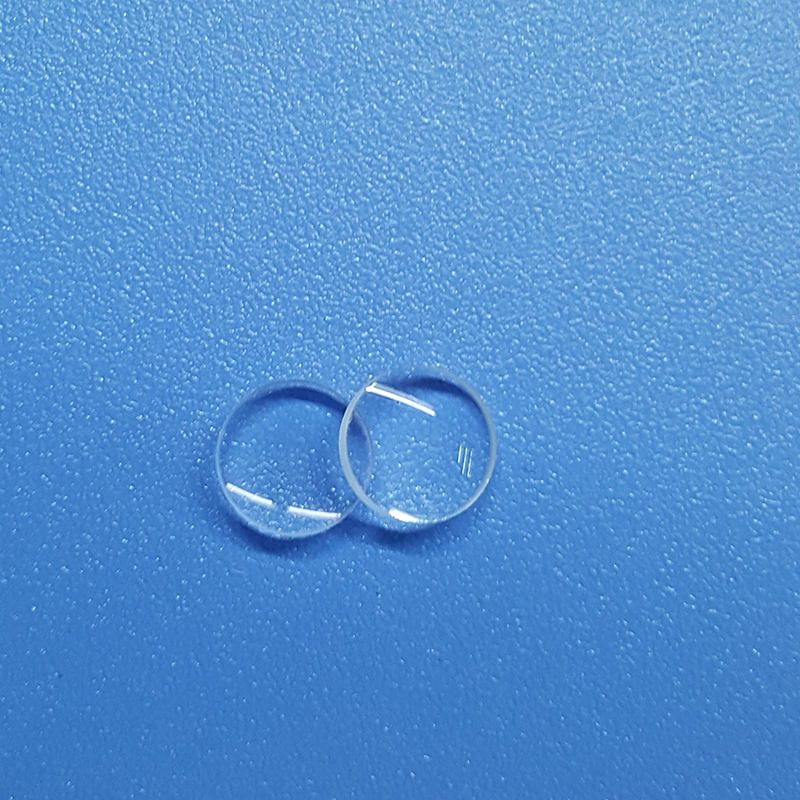

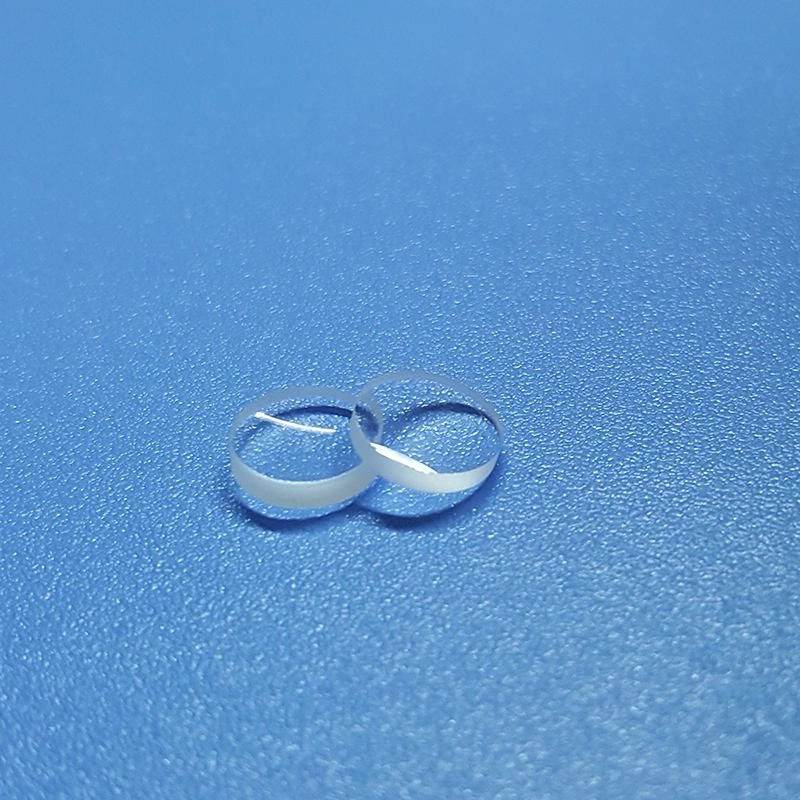

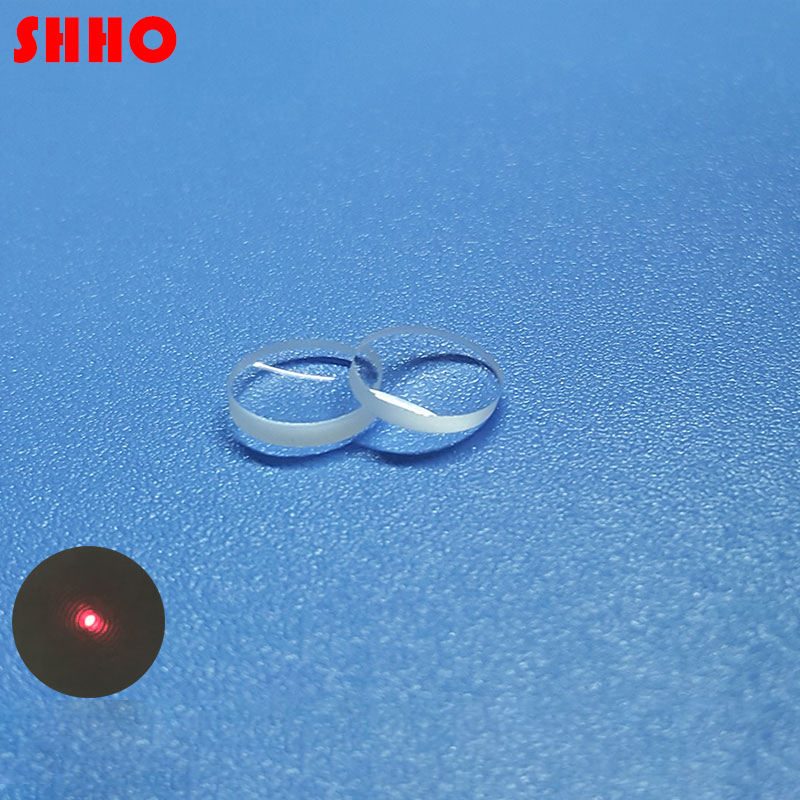

8x35 mm N-BK7 Plano-convex Lens, AR Coated

Explore our N-BK7 plano-convex lens for collimation across multiple wavelengths, ideal for laser and medical applications.

Core attributes

Material: N-BK7
Shape: Plano-convex
Diameter: 8 mm
Focal Length: 35 mm
Coating: anti-reflective (AR), uncoated
Transmission bands: NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Product description

The plano-convex lens made from N-BK7 material is designed for effective collimation across multiple wavelength bands, including 0.7-1.7 μm and 400-700 nm. With a focal length of 35 mm and a diameter of 8 mm, this lens is ideal for applications in laser systems, LIDAR, and medical devices. Its compatibility with various coatings allows for flexibility in meeting specific optical requirements, making it suitable for diverse applications in research and industry.

Key Features

Focal length of 35 mm enables precise collimation for laser applications.
Diameter of 8 mm fits standard optical setups, ensuring compatibility.
Available in multiple sizes (e.g., 7.9 mm, 12.7 mm) for custom applications.
Material N-BK7 provides excellent optical clarity for wavelengths up to 1.7 μm.
Supports ODM and OBM for tailored solutions to meet specific project needs.

Available Sizes

Diameter x Focal Length (mm)
7.9 x 45
8 x 35
12.7 x 25
12.7 x 30

Applications

Collimation

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	8 mm
Focal Length	35 mm
Coating	anti-reflective (AR), uncoated
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Aspherical Lens
Customized Support	ODM, OBM
Warranty	no
Weight	0.05
Center Thickness	2mm

FAQ

Can I get custom sizes?

Yes, custom sizes are available, including variants like 7.9 mm and 12.7 mm.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, but custom coatings require a minimum purchase of 1000 units.
