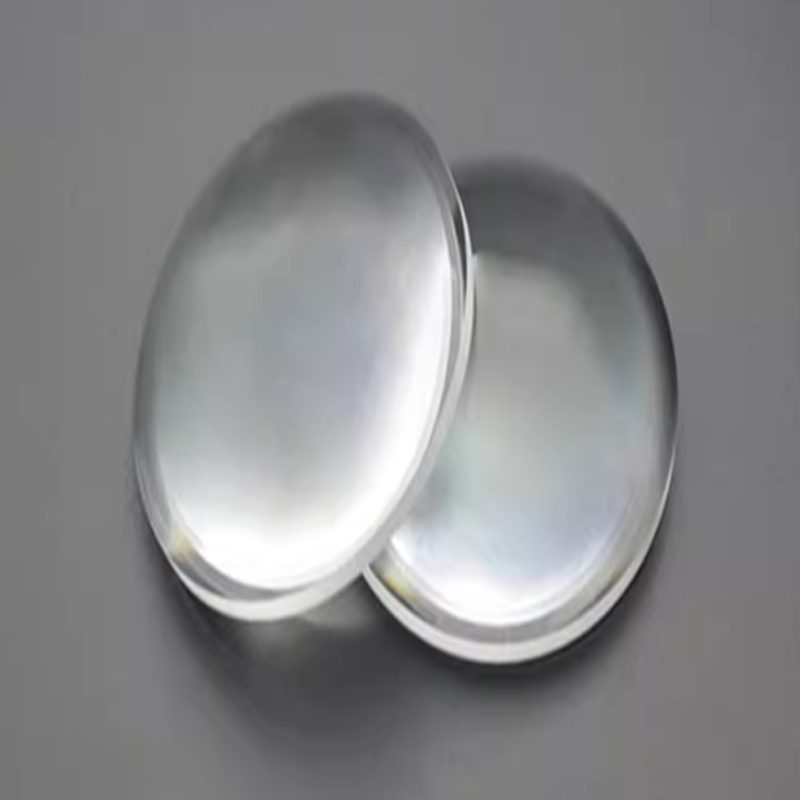

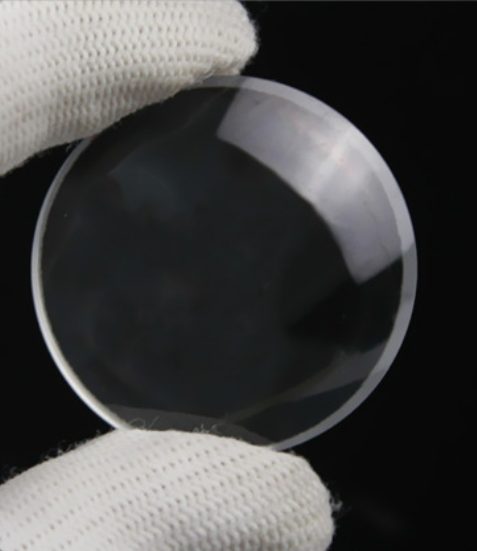

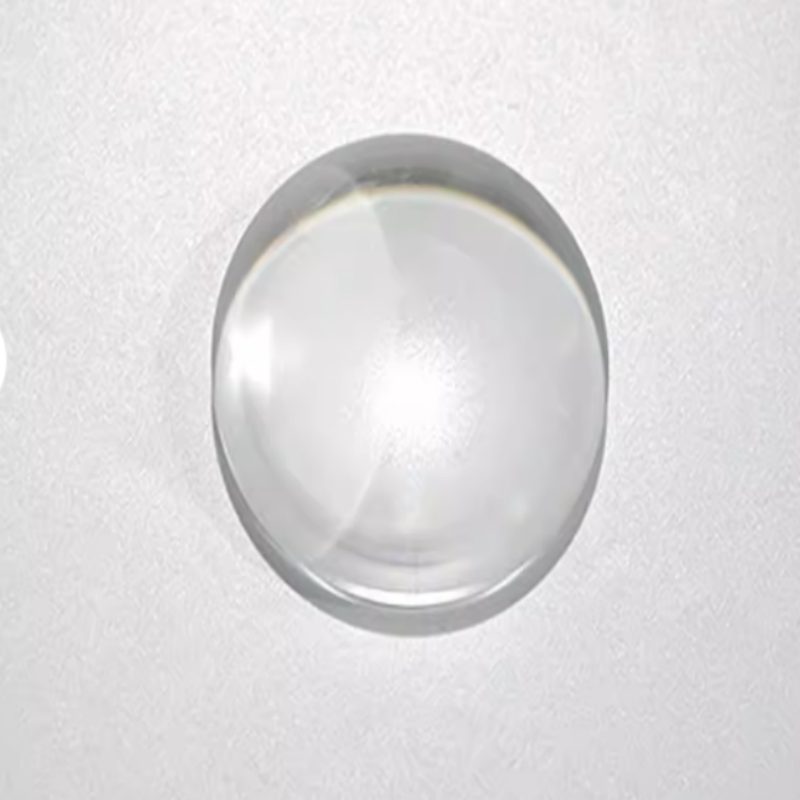

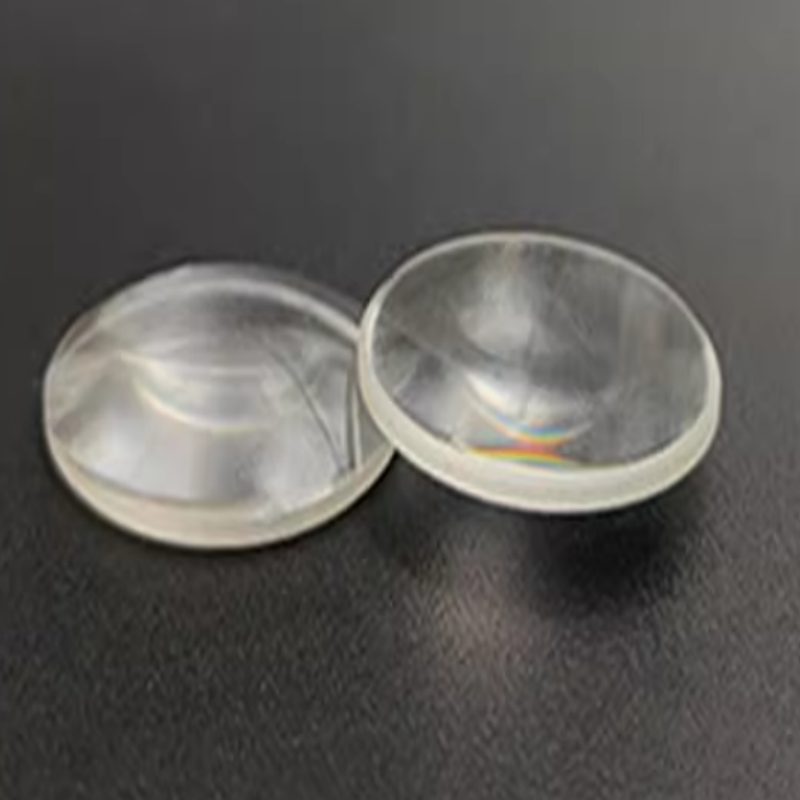

9 mm N-BK7 Plano-convex Lens, AR Coated

Product description

This plano-convex lens made from N-BK7 glass is ideal for applications in thermal imaging, machine vision, and medical devices, operating effectively across the 400-700 nm and <400 nm bands. With a high transmittance of 90%, it ensures optimal light transmission for imaging applications. Its customizable options and precise tolerances make it suitable for various optical systems, while its reliable manufacturing from Beijing guarantees consistency for your projects.

Key Features

High transmittance of 90% enhances imaging quality.
Diameter of 9.0 mm with a tolerance of +/-0.1 mm ensures precise fitting.
Customizable through OEM/ODM services to meet specific application needs.
Surface quality options of 60/40 or better for superior optical performance.
Stable supply capacity with a monthly output of 2 million units.

Applications

Thermal Imaging, Machine Vision, Security, Medical, Microscopy, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	9 mm
Transmittance	90%
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Convex Lens; concave lenses Plano-convex lens
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.3
Transmittance	90%
Surface	20/10

FAQ

What are the tolerances for diameter and center thickness?

Diameter tolerance is +/-0.1 mm, and center thickness tolerance is +/-0.1 mm.

Can I get a custom size for this lens?

Yes, custom sizes can be accommodated through OEM/ODM services.
