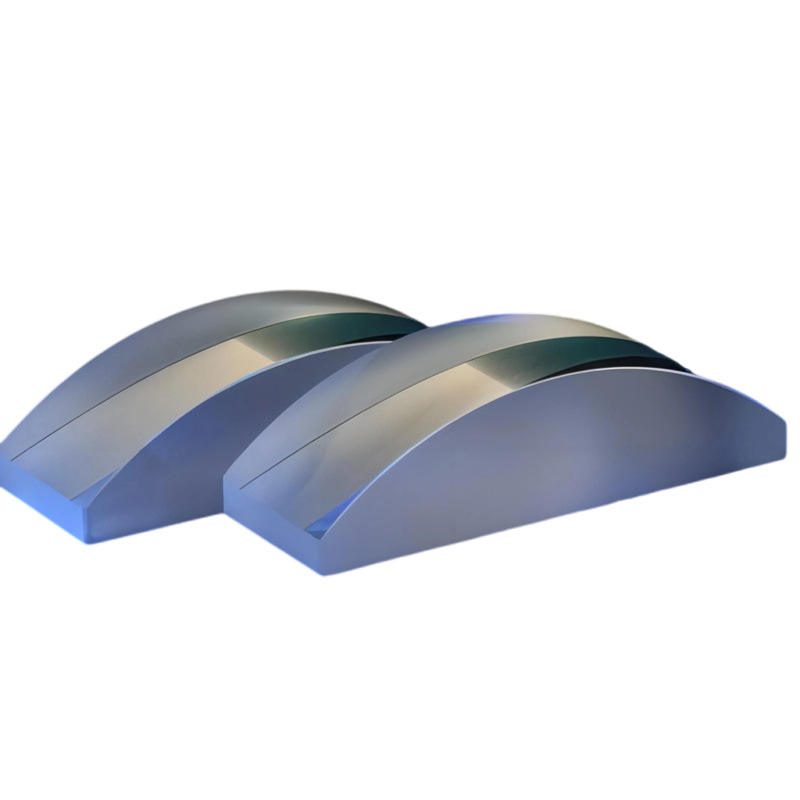

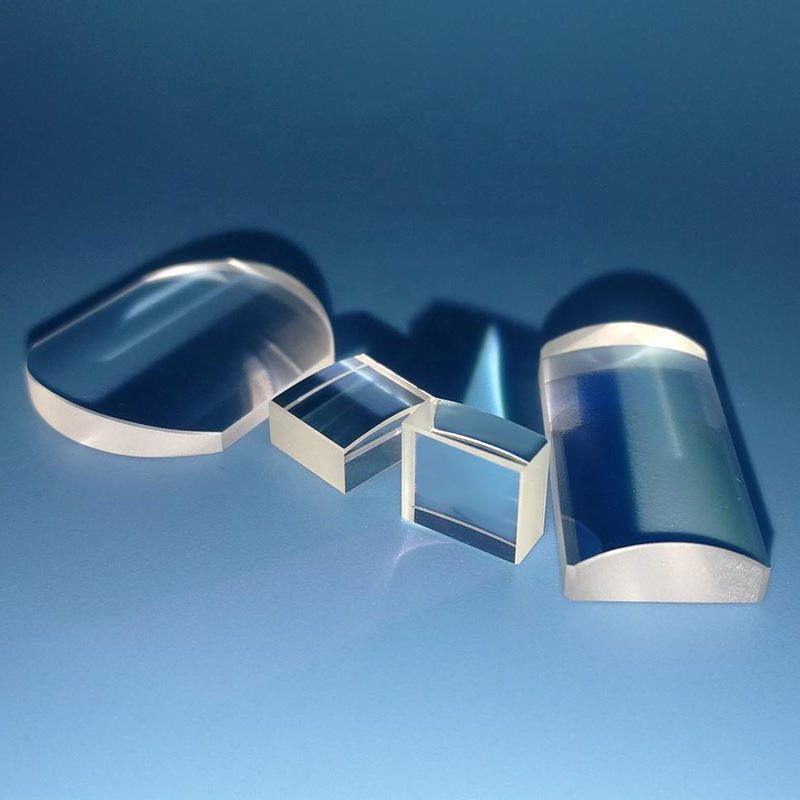

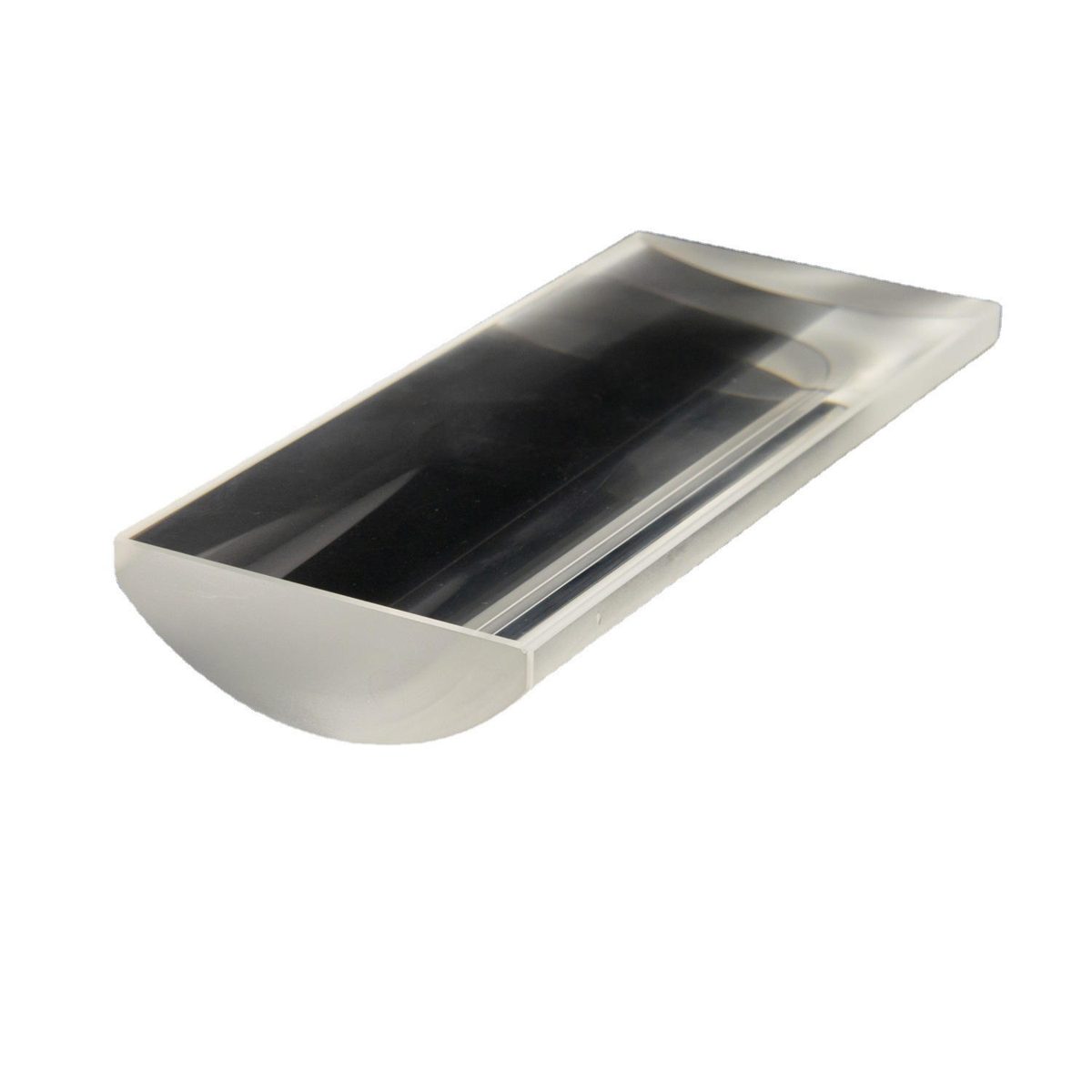

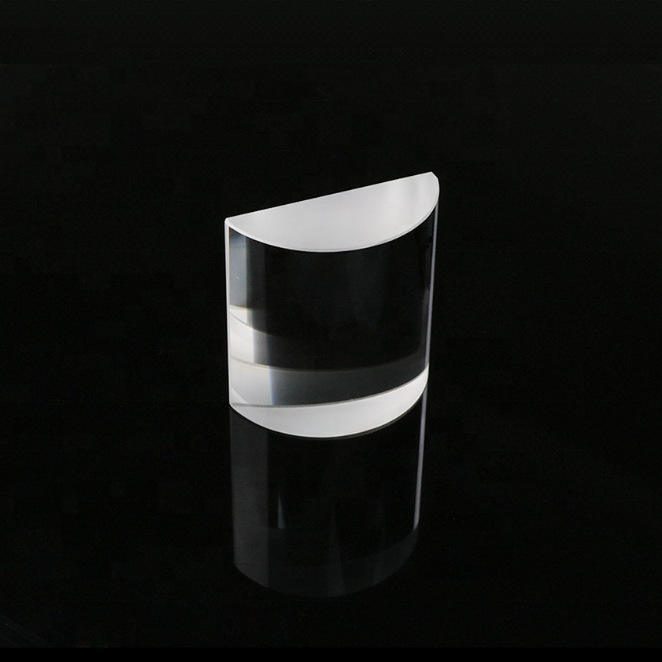

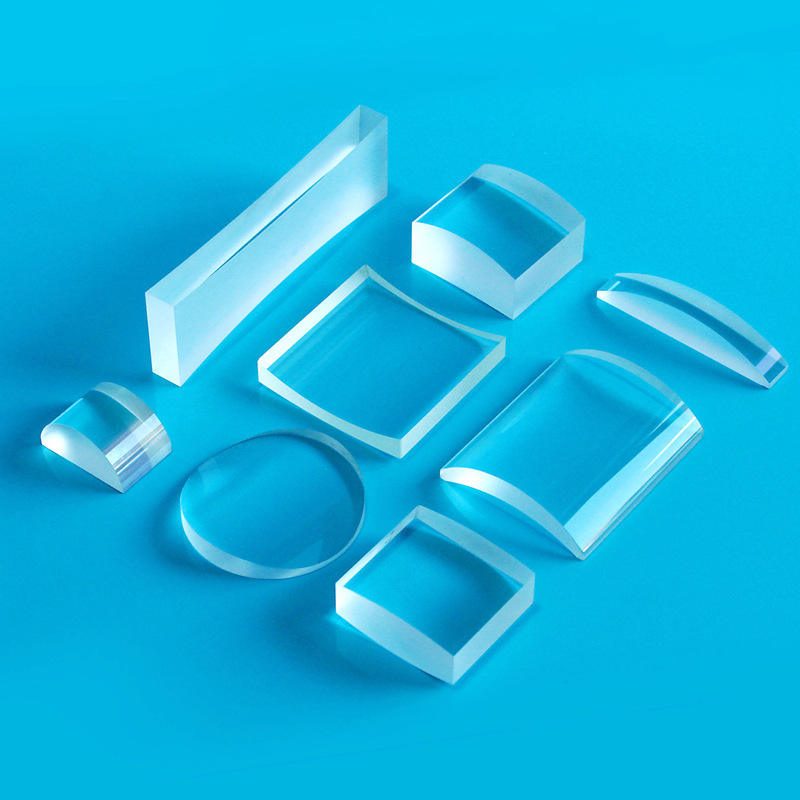

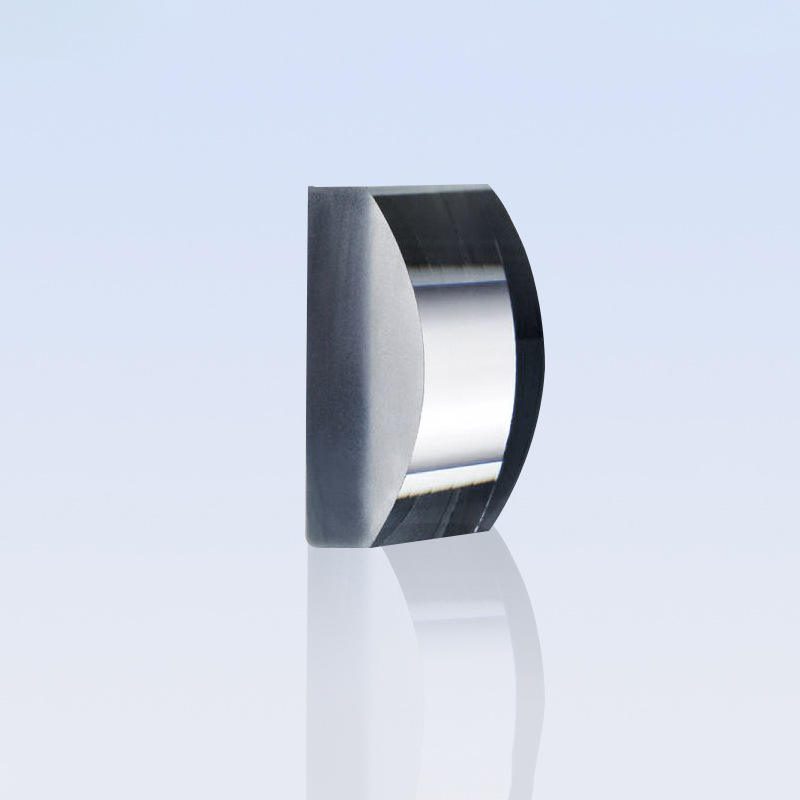

Custom Size N-BK7 Plano-convex Lens
Plano-convex cylindrical lens made from N-BK7 for projection and imaging, customizable in size and focal length.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Focal Length
- 27.9 mm
- Surface Quality
- 60/40
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Focal Length
- 27.9 mm
- Surface Quality
- 60/40
- Transmission bands
- VIS (400-700 nm)
Product description
This plano-convex cylindrical lens is designed for applications in projection and imaging, providing effective 1D focusing with minimal spherical aberration. Made from optical-grade N-BK7, it operates within the 400-700 nm wavelength range, ensuring high transmittance and surface quality for reliable performance in various optical systems. Its customizable focal length and size make it suitable for specific project requirements.
Key Features
- Focal length of 27.91 mm for precise imaging and projection applications.
- Surface quality of 60/40 ensures minimal distortion and high clarity.
- Customizable in size and focal length to meet specific project needs.
- Transmittance exceeding 98% for optimal light transmission.
- Lightweight at 0.5 grams, facilitating easy integration into devices.
Applications
Projection, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Focal Length | 27.9 mm |
| Surface Quality | 60/40 |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | plano convex cylindrical lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | None |
| Weight | 0.5 |
| Length | 4mm(We can also make 5/8/10/15/20/28mm) |
| Center Thickness | 4mm |
FAQ
Is custom sizing available?
Yes, the lens can be customized in focal length and size.
What is the minimum order quantity (MOQ)?
There is no minimum order quantity; the lens is ready to ship.
