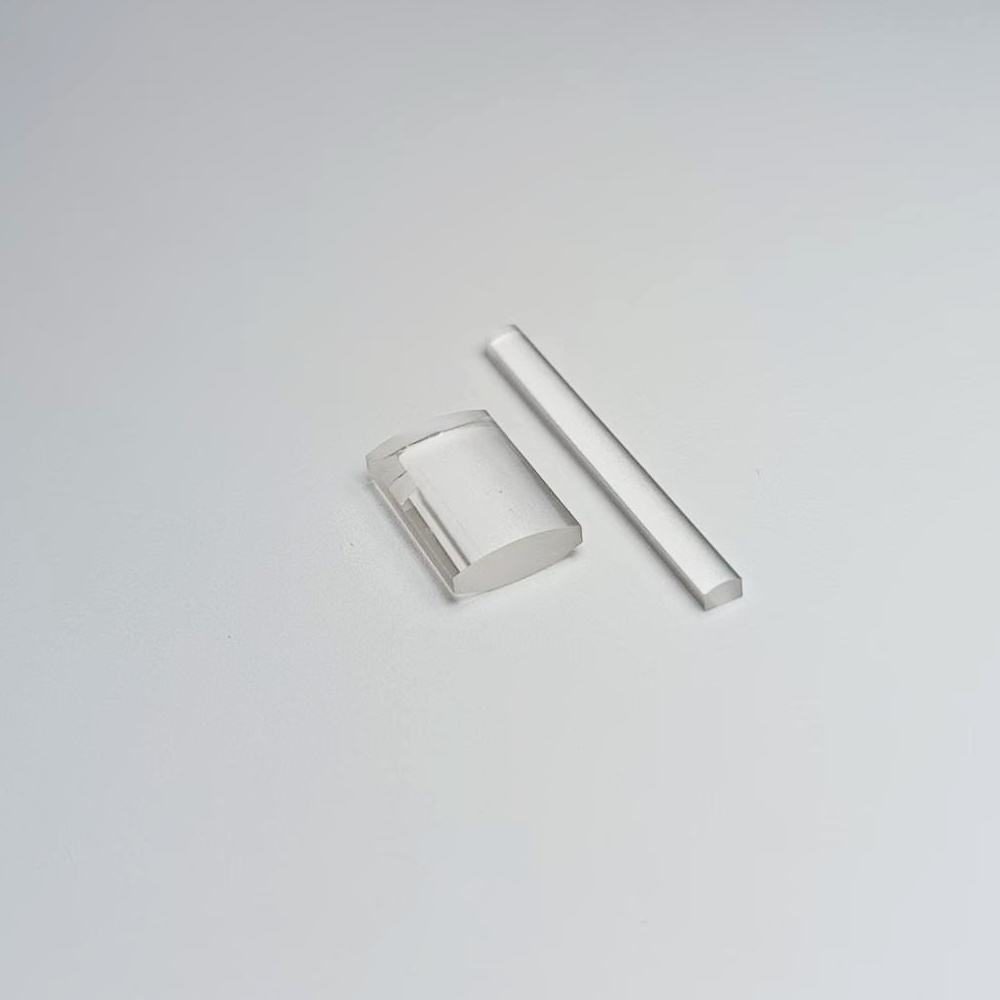

Custom Size N-BK7 Plano-convex Lens, AR Coated
High-quality plano-convex lens with customizable dimensions, ideal for laser applications.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Focal Length
- 5 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Focal Length
- 5 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
Product description
The plano-convex lens made from N-BK7 material is ideal for applications requiring precise alignment and focusing, particularly in laser systems. With a focal length of 5.0 mm and a surface quality of 20/10, this lens ensures minimal distortion and enhanced clarity. The anti-reflective coating reduces glare, making it suitable for optical equipment. Custom dimensions and OEM/ODM support are available, ensuring flexibility for various projects.
Key Features
- Focal length of 5.0 mm for precise focusing capabilities.
- Surface quality rating of 20/10 for minimal distortion.
- Anti-reflective coating enhances clarity and reduces glare.
- Customizable dimensions from 1 mm to 300 mm with ±0.03 mm tolerance.
- Manufactured in Jilin, ensuring high-quality production standards.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Focal Length | 5 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 months |
| Weight | 0.01 |
| Dimension | 1mm-300mm |
| Dimension Tolerance | ±0.03 |
FAQ
What are the available custom sizes for this lens?
Customizable dimensions range from 1 mm to 300 mm.
What is the tolerance for the dimensions?
The dimension tolerance is ±0.03 mm.
