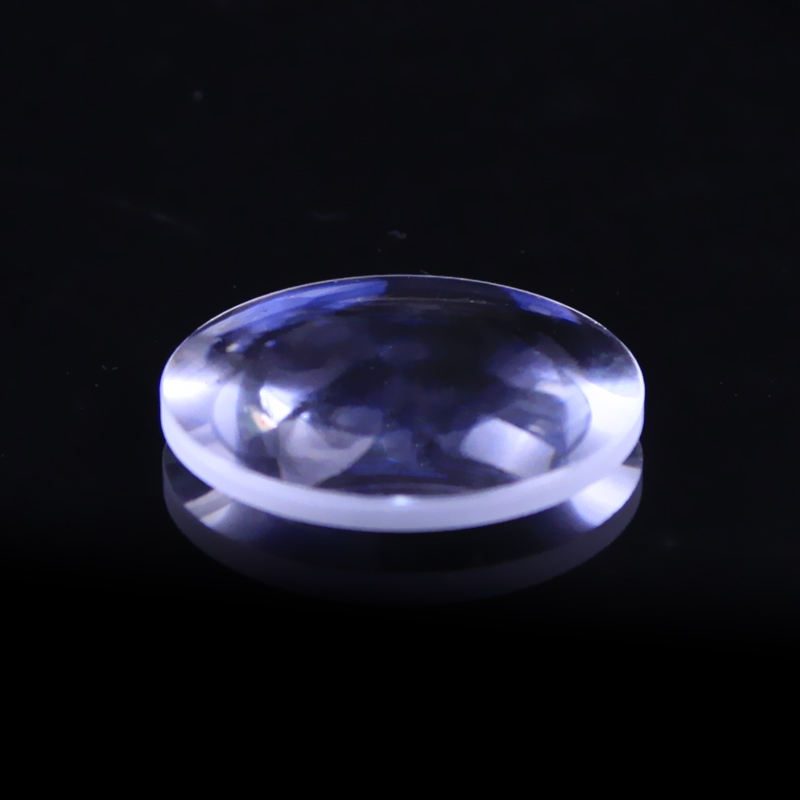

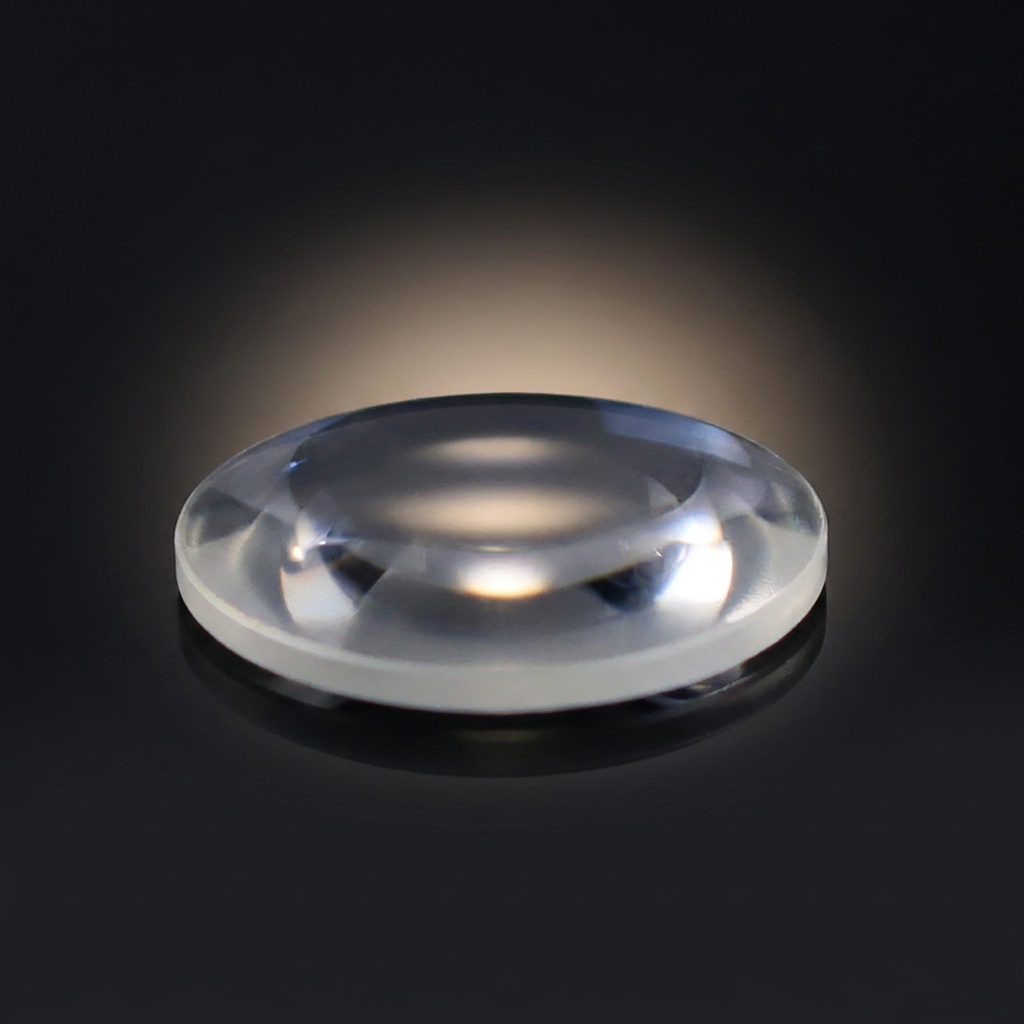

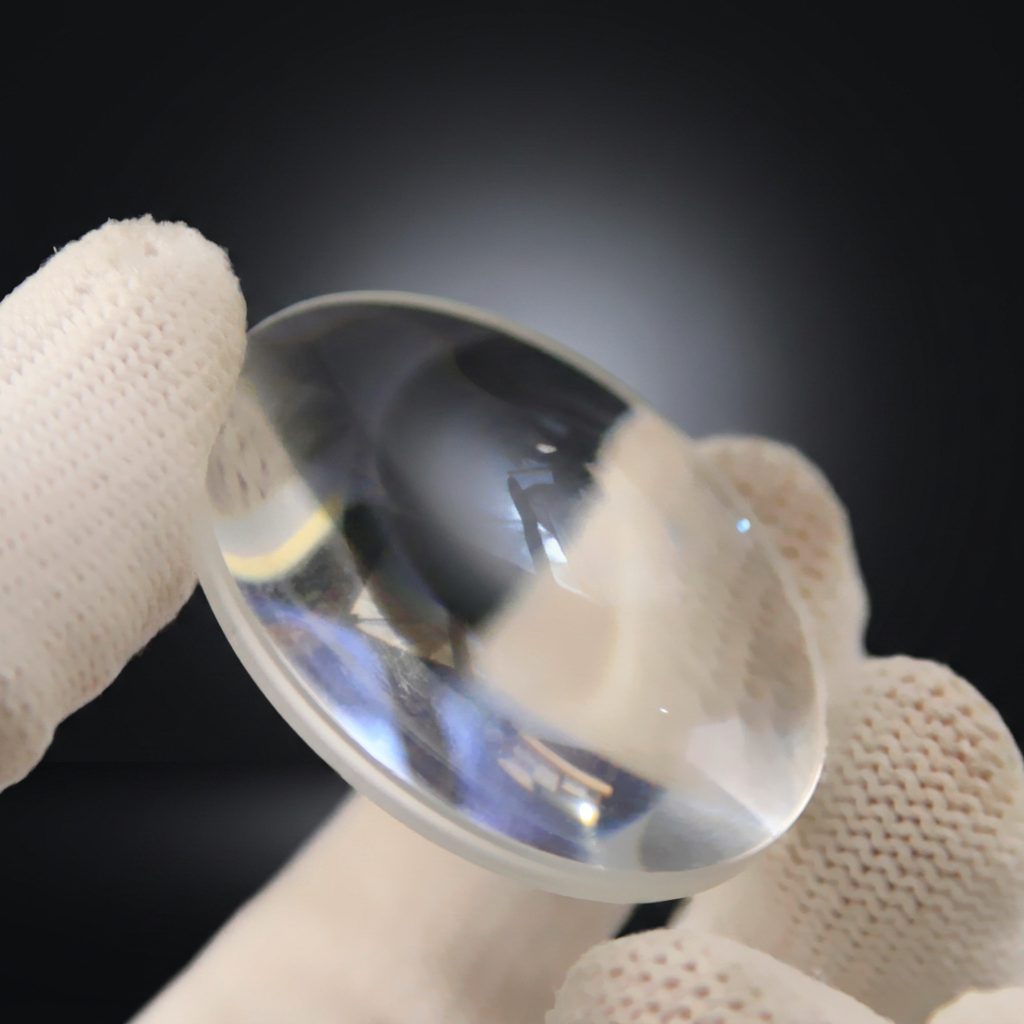

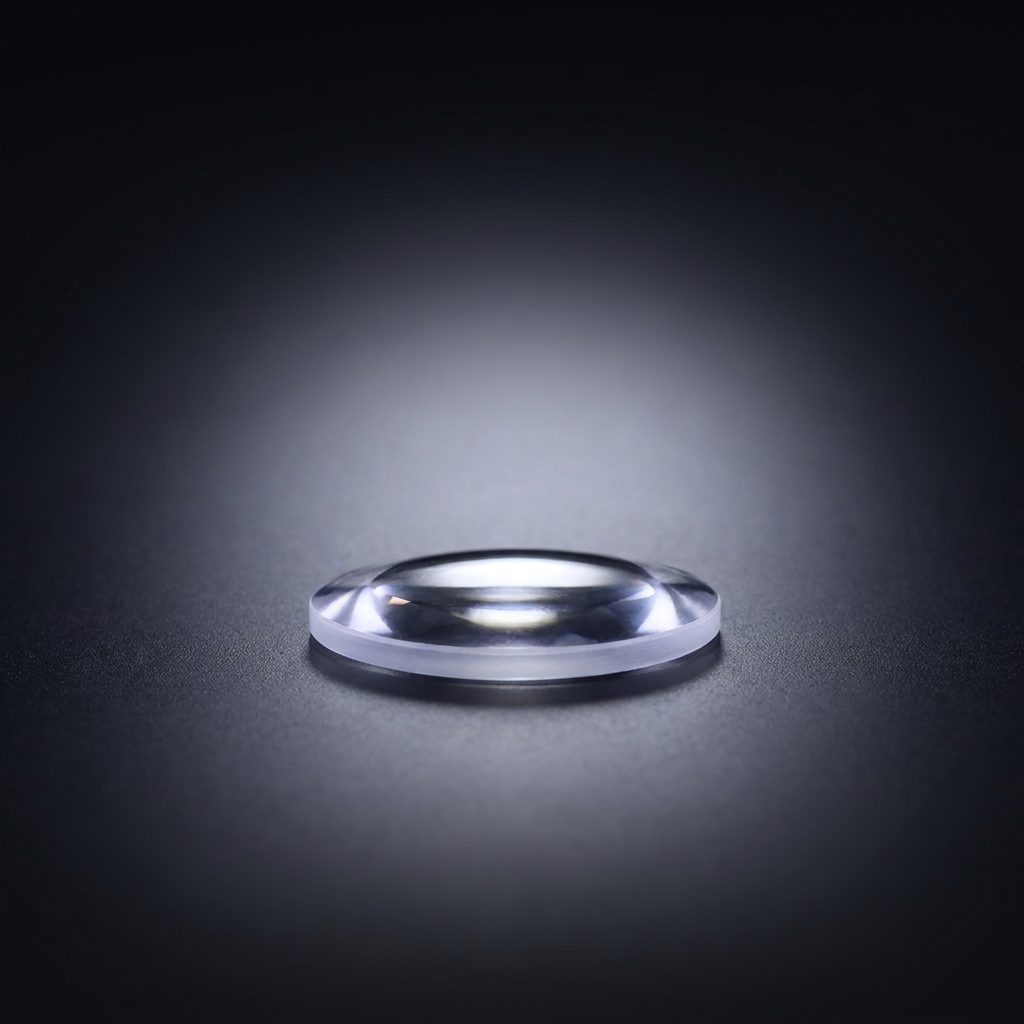

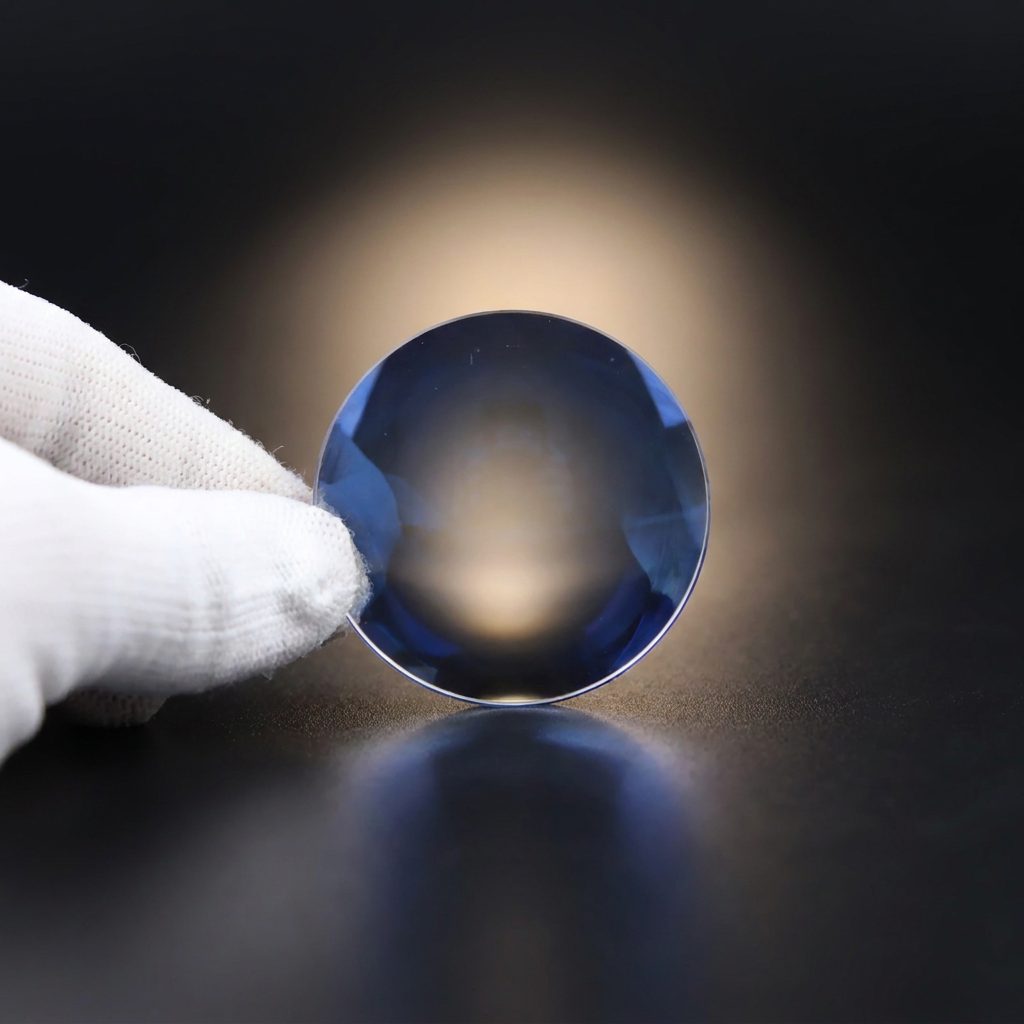

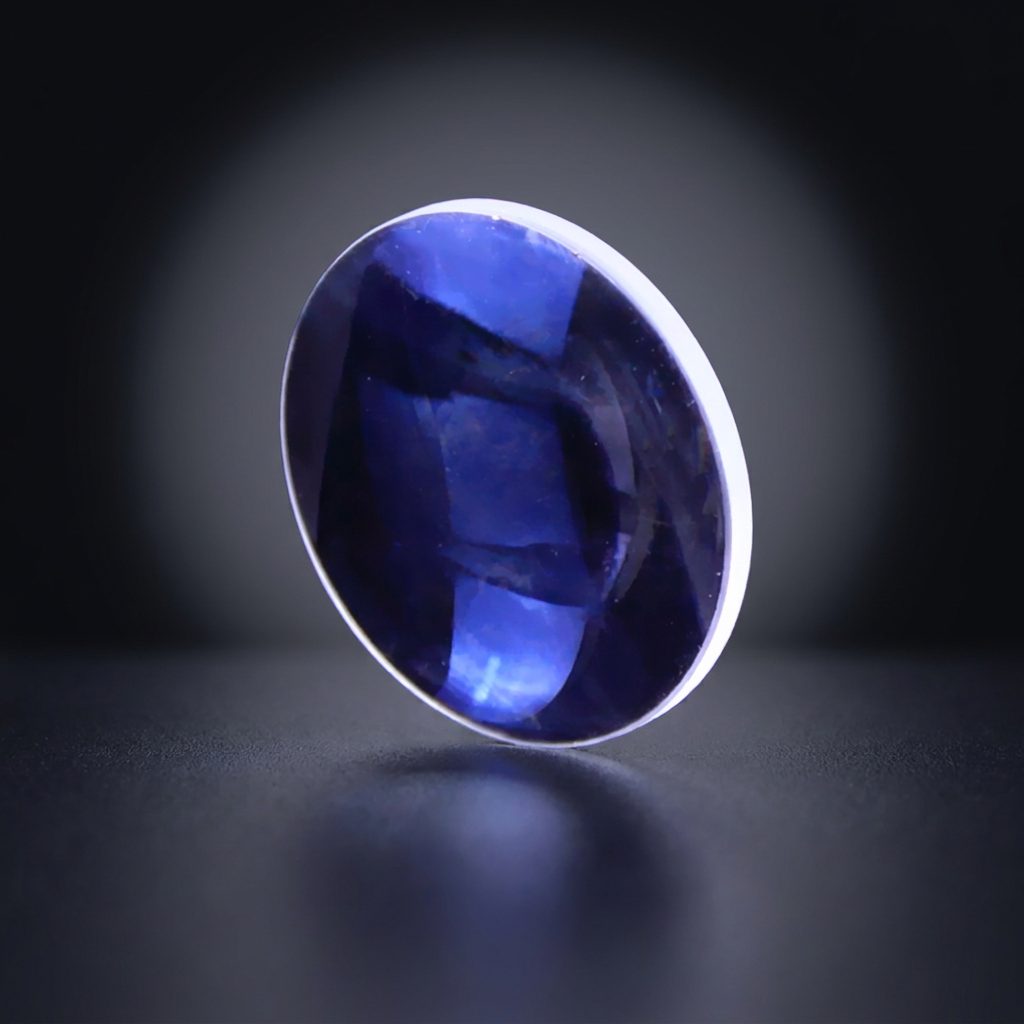

Custom Size N-BK7 Plano-convex Lens, AR Coated

Explore high-performance plano-convex lenses made from N-BK7 for imaging applications across multiple wavelengths.

Core attributes

Material: N-BK7
Shape: Plano-convex
Thickness: 0.1 mm
Surface Quality: 60/40
Coating: anti-reflective (AR)
Transmission bands: LWIR (8-14 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Product description

This plano-convex lens made from N-BK7 is ideal for imaging applications across a wide range of wavelengths, including 0.4-14 μm. Its high precision polishing ensures clear imaging without distortion, while the anti-reflection coatings enhance transmittance. With customizable options for diameter, thickness, and focal length, this lens meets the specific needs of R&D and procurement engineers in various fields, ensuring reliable performance and batch consistency.

Key Features

Material: N-BK7 for high light transmittance and low impurity.
Surface quality of 60/40 ensures minimal distortion for clear imaging.
Customizable diameter and thickness (0.1-100 mm) for tailored applications.
High precision with a flatness of 1/4 lambda for superior optical performance.
OEM, ODM, and OBM support for flexible sourcing options.

Applications

Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Thickness	0.1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Biconvex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.3
Diameter Tolerance	0.1mm
Clear Aperture	95%
Flatness	1/4lambda

FAQ

What are the options for custom sizes?

Custom diameter, focal length, and thickness are available to meet specific requirements.

What is the minimum order quantity?

The minimum order quantity is not specified, allowing for flexibility in ordering.
