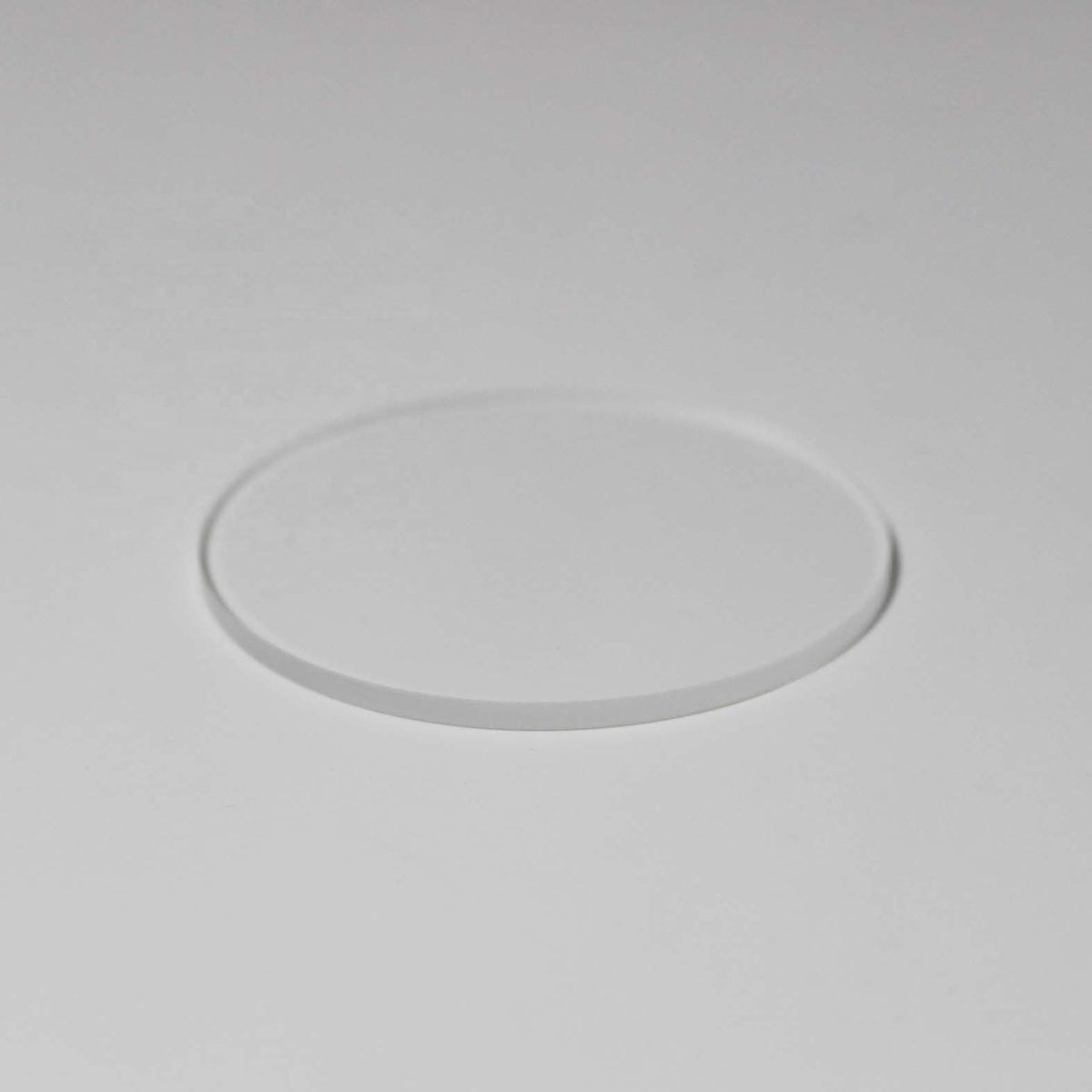

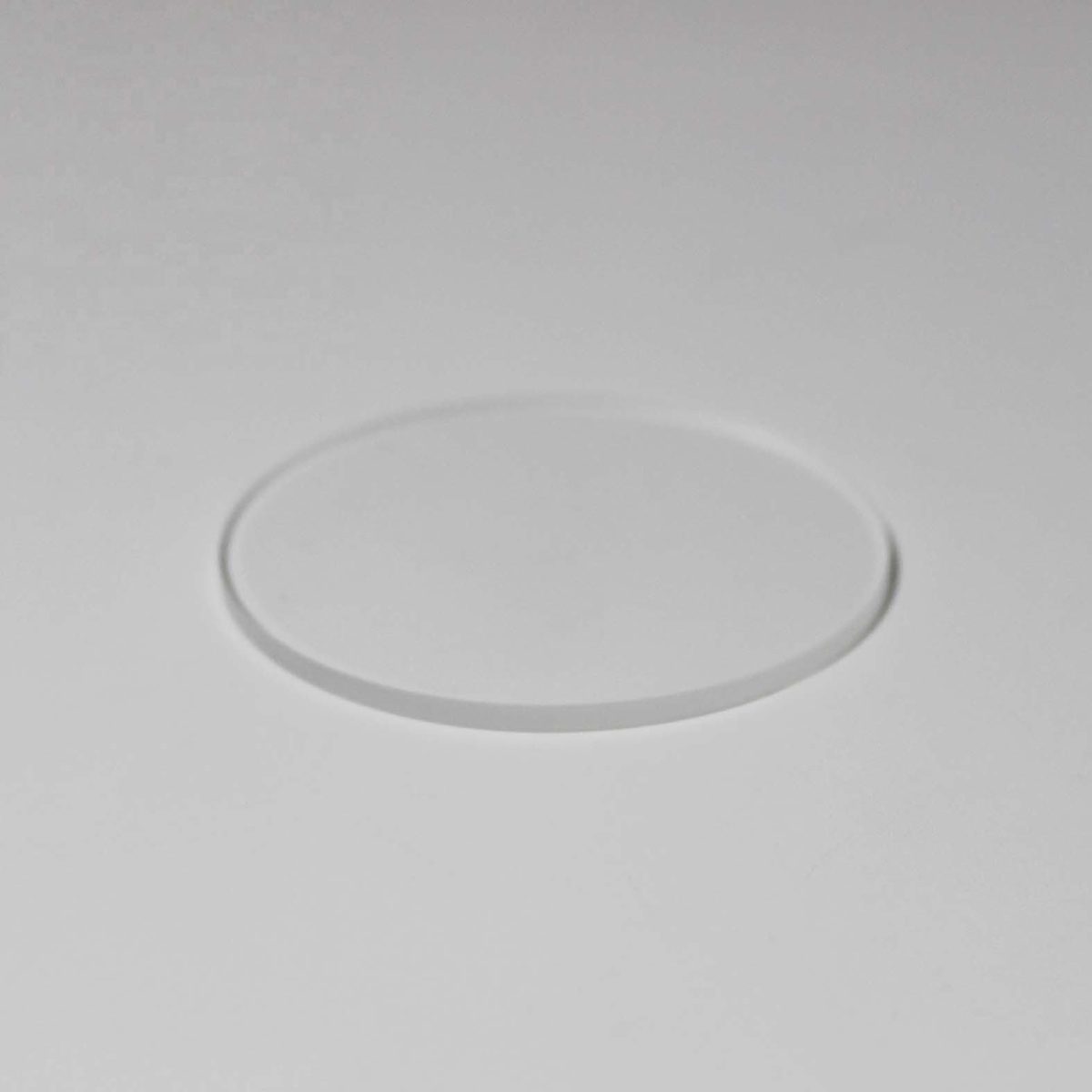

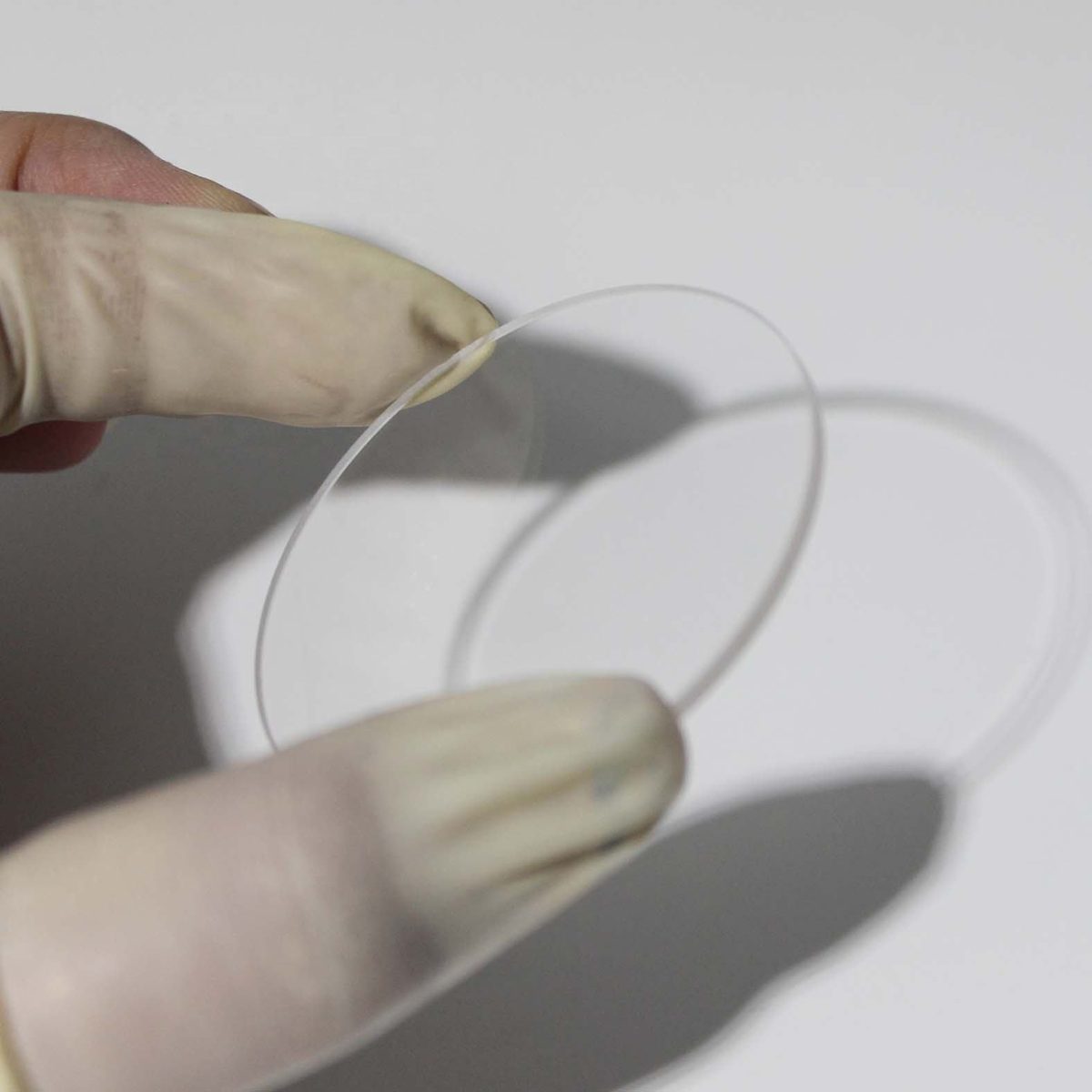

3x0.1 mm N-BK7 Rectangle Optical Window, AR Coated

Product description

The N-BK7 rectangular optical window is designed for security applications, providing reliable protection for sensitive optical systems. With a diameter of 3.0 mm and a thickness of 0.15 mm, this window features anti-reflective coatings to enhance transmittance. It is customizable for specific needs, making it suitable for various optical environments. Its high surface quality of 10/5 ensures minimal distortion, crucial for accurate imaging.

Key Features

Surface quality of 10/5 ensures high clarity and minimal distortion for critical applications.
Custom sizes available, including a variant size of 3.0 mm diameter and 0.1 mm thickness.
Diameter tolerance of +/-0.01 mm guarantees precise fitting in optical systems.
Thickness tolerance of +/-0.1 mm allows for flexibility in design specifications.
OEM and ODM support for tailored solutions to meet specific project requirements.

Available Sizes

Diameter x Thickness (mm)
3 x 0.1

Applications

Security

Specification Summary

Item	Value
Material	N-BK7
Shape	Rectangle
Diameter	3 mm
Thickness	0.1 mm
Surface Quality	10/5
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Custom; optical window
Customized Support	OEM, ODM
Weight	as request
Name	Camera Protective Window
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+/-0.1mm
Surface Figure	lamda/10(PV flat surface can achieve 0.03um per 150mm)

FAQ

Can I get custom sizes for this optical window?

Yes, custom sizes are available, including a variant size of 3.0 mm diameter and 0.1 mm thickness.

What are the tolerances for diameter and thickness?

The diameter tolerance is +/-0.01 mm, and the thickness tolerance is +/-0.1 mm.
