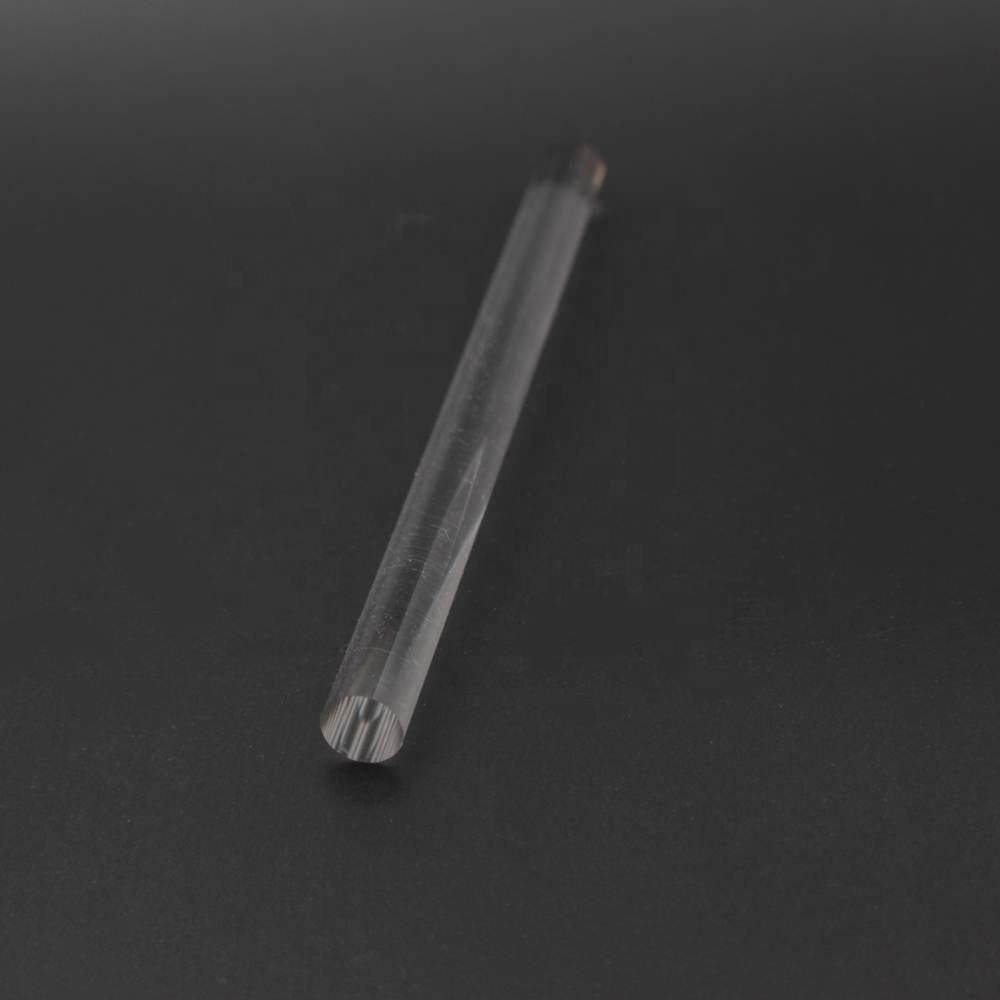

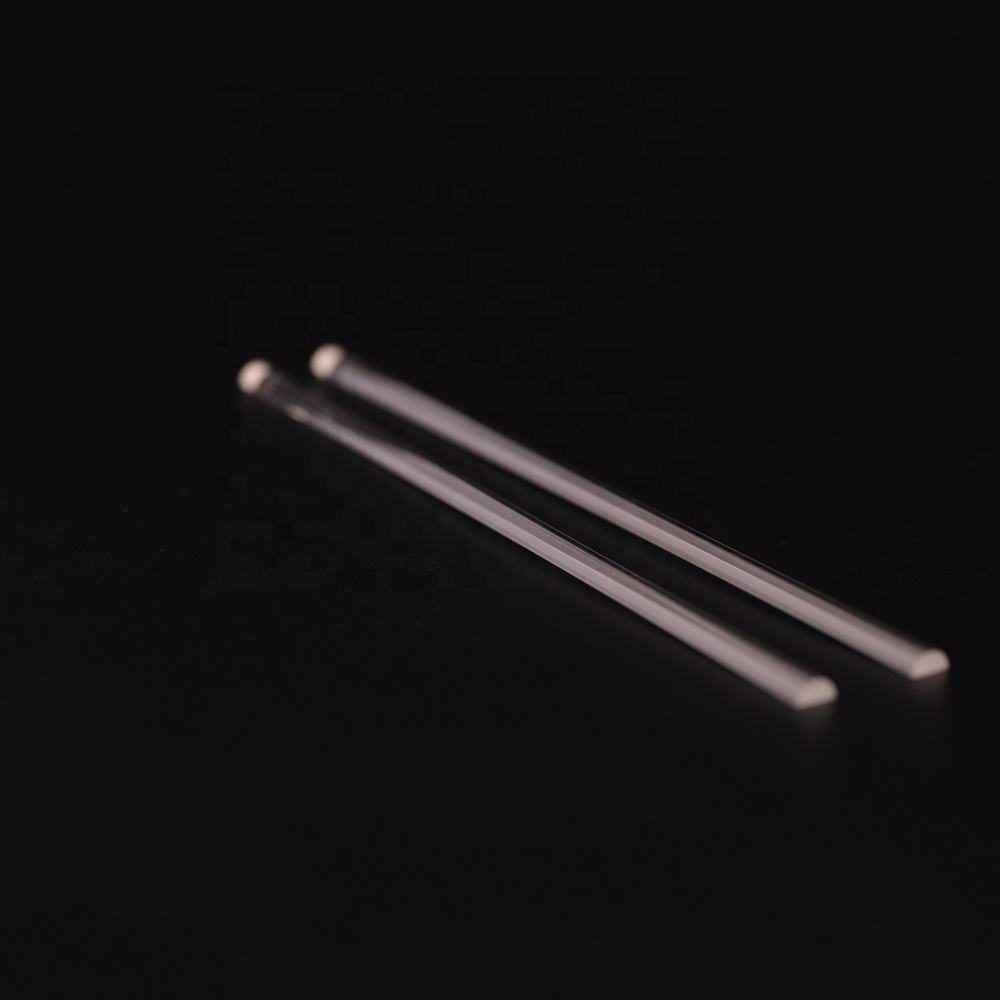

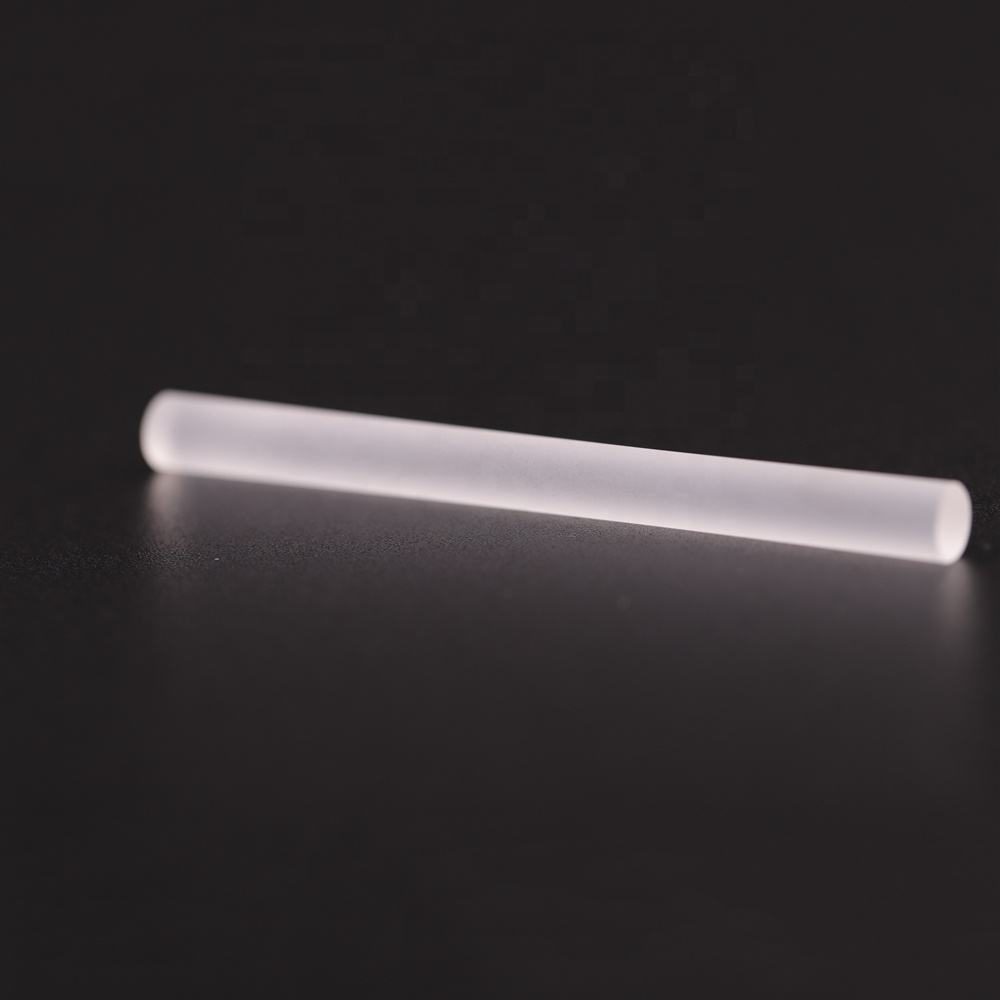

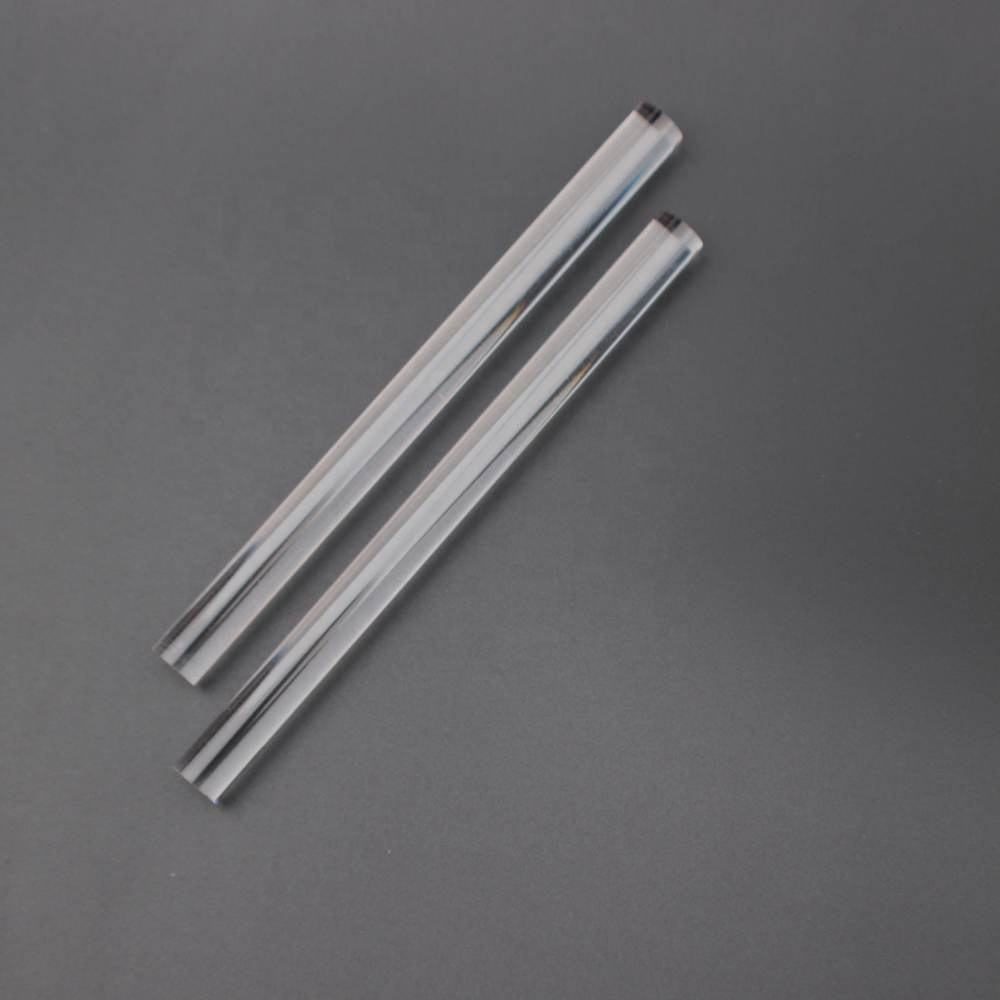

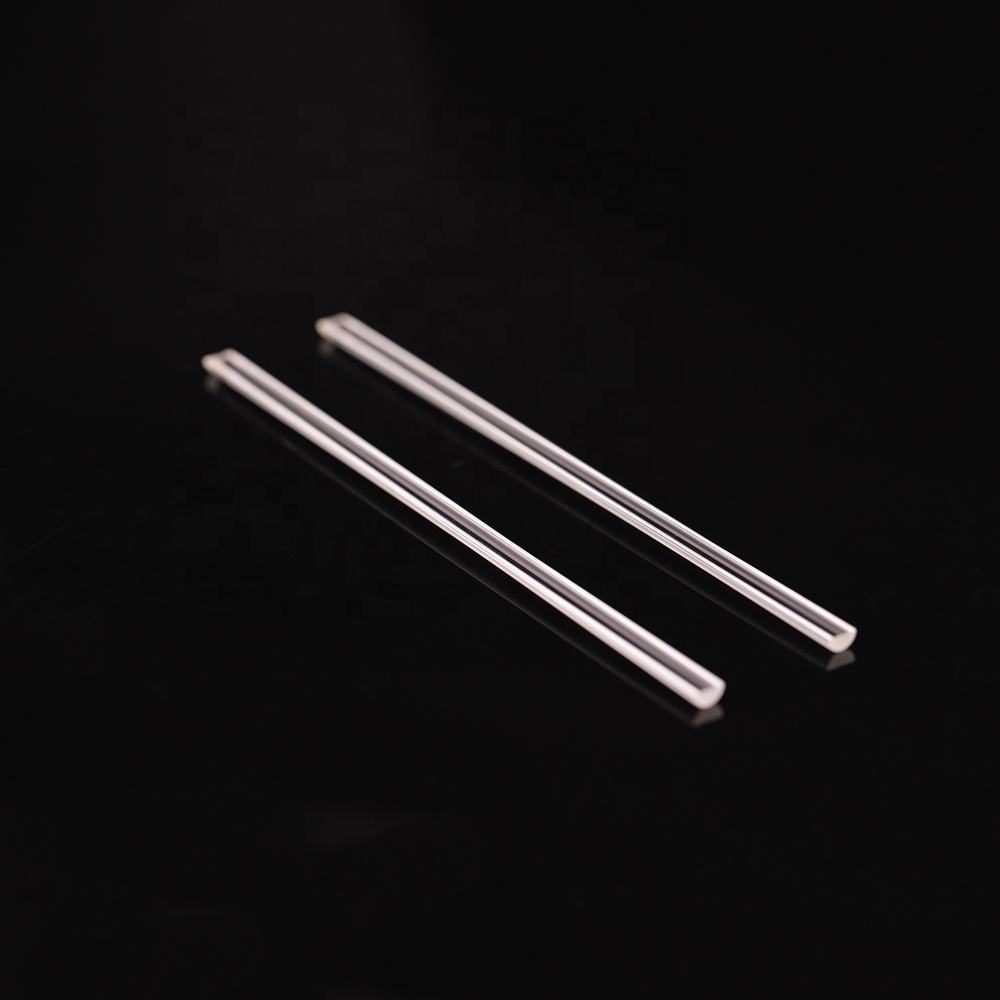

0.5 mm N-BK7 Rod Lens
N-BK7 rod lens for collimation and imaging with 0.5 mm diameter, OEM customization available.
Core attributes
- Material
- N-BK7
- Shape
- Rod
- Diameter
- 0.5 mm
- Surface Quality
- 80/50
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Rod
- Diameter
- 0.5 mm
- Surface Quality
- 80/50
Product description
The N-BK7 rod lens is designed for applications in collimation and imaging, providing precise optical performance for laser and imaging systems. With a diameter of 0.5 mm and a polished cylindrical shape, it effectively focuses light into a line, making it ideal for use as a fast-axis collimator in diode bars. Its construction ensures reliable performance in various optical setups.
Key Features
- Diameter: 0.5 mm for compact integration in optical systems.
- Surface quality of 80/50 ensures minimal light distortion.
- OEM customization available for tailored solutions.
- Diameter tolerance of +0,-0.01 mm for precise fitting.
- Lightweight at 0.1 g, facilitating easy handling and installation.
Applications
Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Rod |
| Diameter | 0.5 mm |
| Surface Quality | 80/50 |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Rod |
| Customized Support | OEM |
| Weight | 0.1 |
| Diameter Tolerance | +0,-0.01mm |
FAQ
Can I get custom sizes for the rod lens?
OEM customization is available for tailored solutions.
What is the diameter tolerance of this lens?
The diameter tolerance is +0,-0.01 mm.
