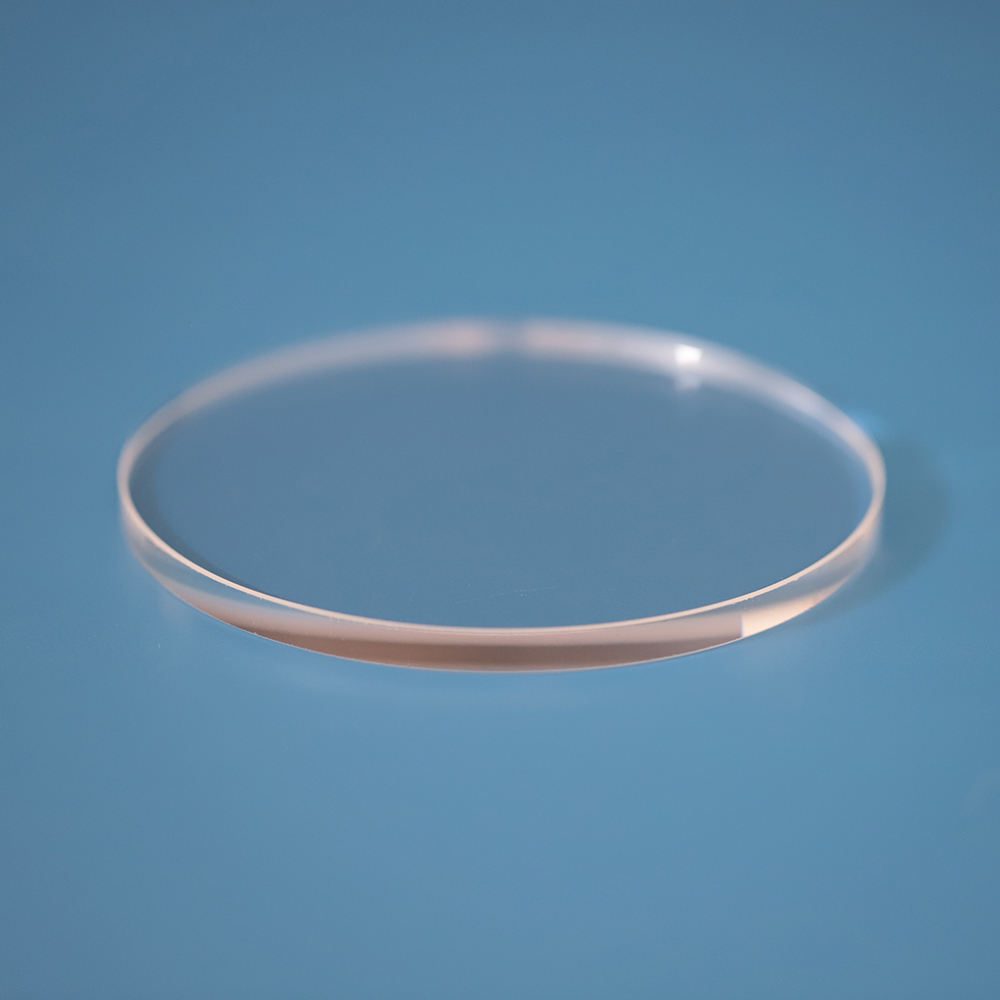

100x6 mm N-BK7 Round Optical Window

Product description

This N-BK7 optical window is designed to protect sensitive optical components while allowing light transmission. With a diameter of 100 mm and a thickness of 6 mm, it is suitable for various optical applications where durability and clarity are essential. Its surface quality of 60/40 ensures adequate performance for many imaging and sensing applications. The window’s protective bevel enhances its longevity and usability in demanding environments.

Key Features

Diameter of 100 mm ensures compatibility with standard optical systems.
Thickness of 6 mm provides robust protection for internal components.
Surface quality of 60/40 allows for effective light transmission.
Diameter tolerance of +0.0, -0.1 mm ensures precise fit in assemblies.
Customizable options available for OEM, ODM, and OBM support.

Available Sizes

Diameter x Thickness (mm)
100 x 6

Specification Summary

Item	Value
Material	N-BK7
Shape	Round
Diameter	100 mm
Thickness	6 mm
Surface Quality	60/40
MOQ	—

Full Specifications

Parameter	Value
Type	Optical Window
Customized Support	OEM, ODM, OBM
Warranty	1 year
Weight	0.3
Diameter Tolerance	+0.0, -0.1mm
Thickness Tolerance	±0.1mm
Chamfer	Protective Bevel

FAQ

What are the available custom sizes for this optical window?

This optical window is available in a standard size of 100 mm diameter and 6 mm thickness, with potential for custom sizes upon request.

What are the tolerances for diameter and thickness?

The diameter tolerance is +0.0, -0.1 mm, and the thickness tolerance is ±0.1 mm.
