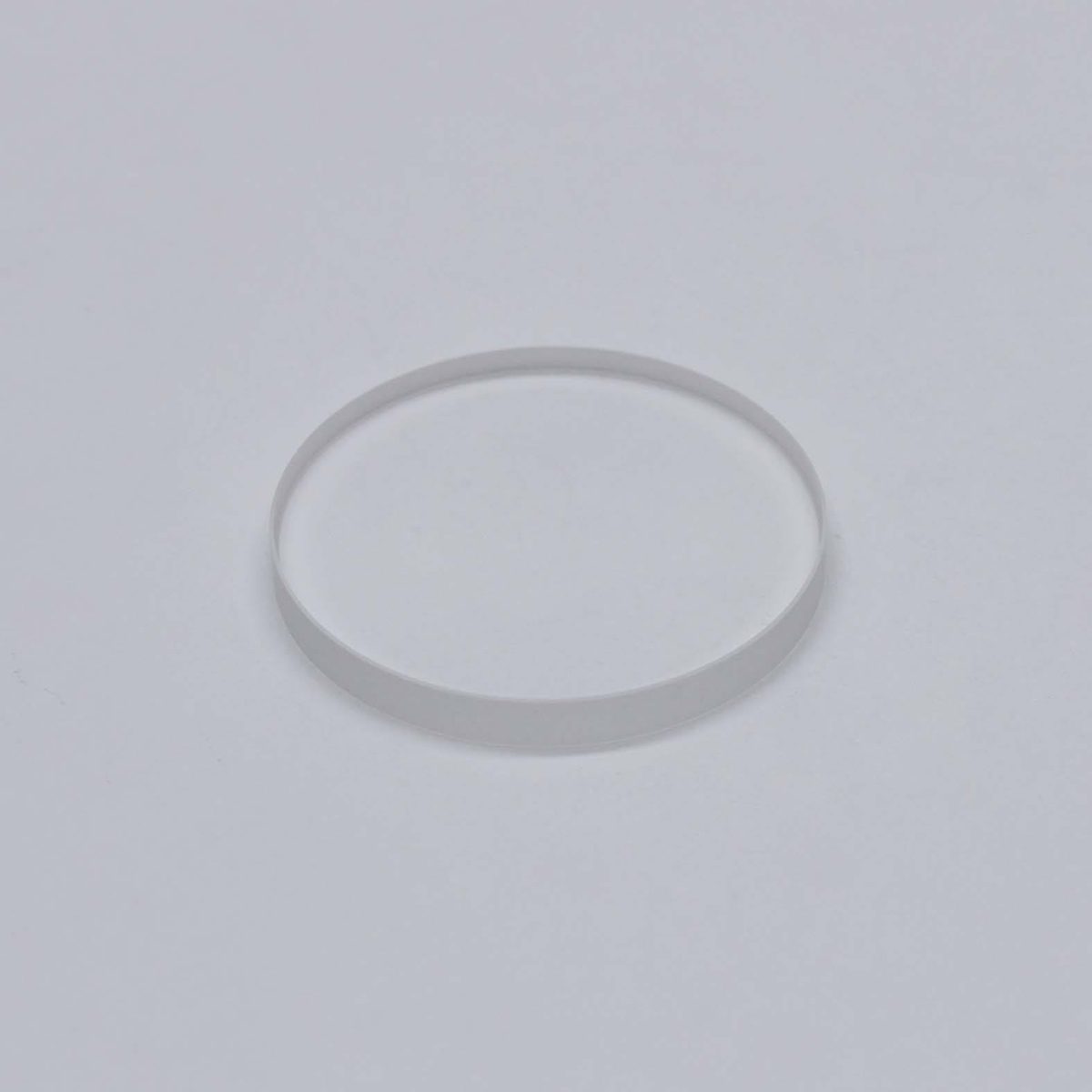

0.9 mm N-BK7 Round Optical Window, AR Coated

Product description

This N-BK7 convex spherical lens is designed for security applications, providing high-quality optical performance. With a diameter of 0.9 mm and a surface quality rating of 40/20, it ensures reliable transmission and clarity. The lens features anti-reflective coatings, enhancing its effectiveness in various environments. Ideal for integration into advanced optical systems, it meets the demands of precision optics.

Key Features

Diameter of 0.9 mm ensures compact integration in tight spaces.
Surface quality of 40/20 guarantees minimal optical distortion.
Clear aperture range of 80% to 95% maximizes light transmission.
Diameter tolerance of +/- 0-0.005 mm ensures precise fitting.
Customized support available for OEM projects to meet specific needs.

Applications

Security

Specification Summary

Item	Value
Material	N-BK7
Shape	Round
Diameter	0.9 mm
Thickness	Custom
Surface Quality	40/20
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Convex Lens; Spherical Lens
Customized Support	OEM
Weight	0.5
Diameter Tolerance	+/- 0-0.005mm
Length	60mm
Surface Figure	Lamda/2
Clear Aperture	80%~95%

FAQ

What are the available custom sizes for this lens?

Custom sizes range from 0.9 mm to 200 mm in diameter.

What is the minimum order quantity (MOQ) for this lens?

The minimum order quantity is not specified.
