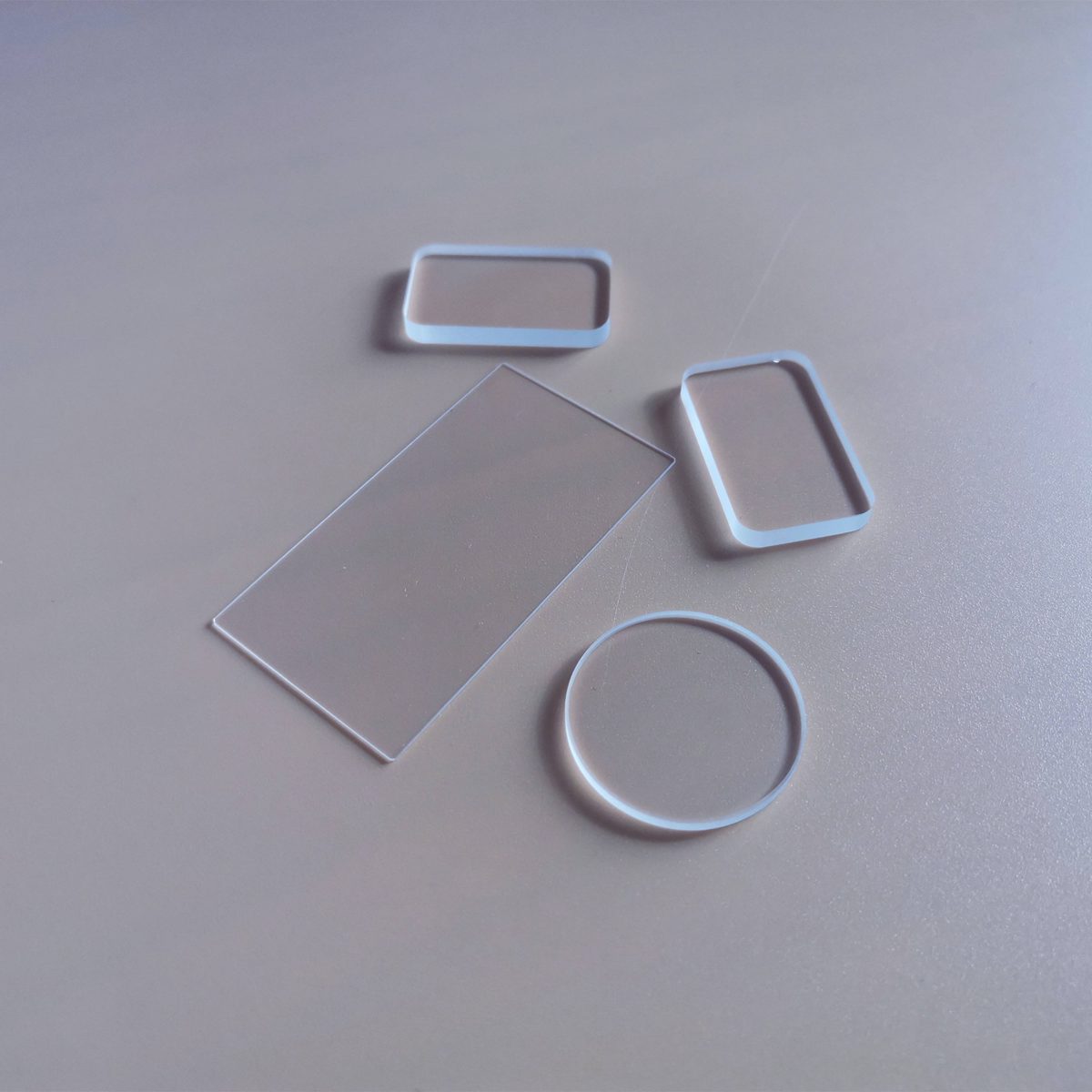

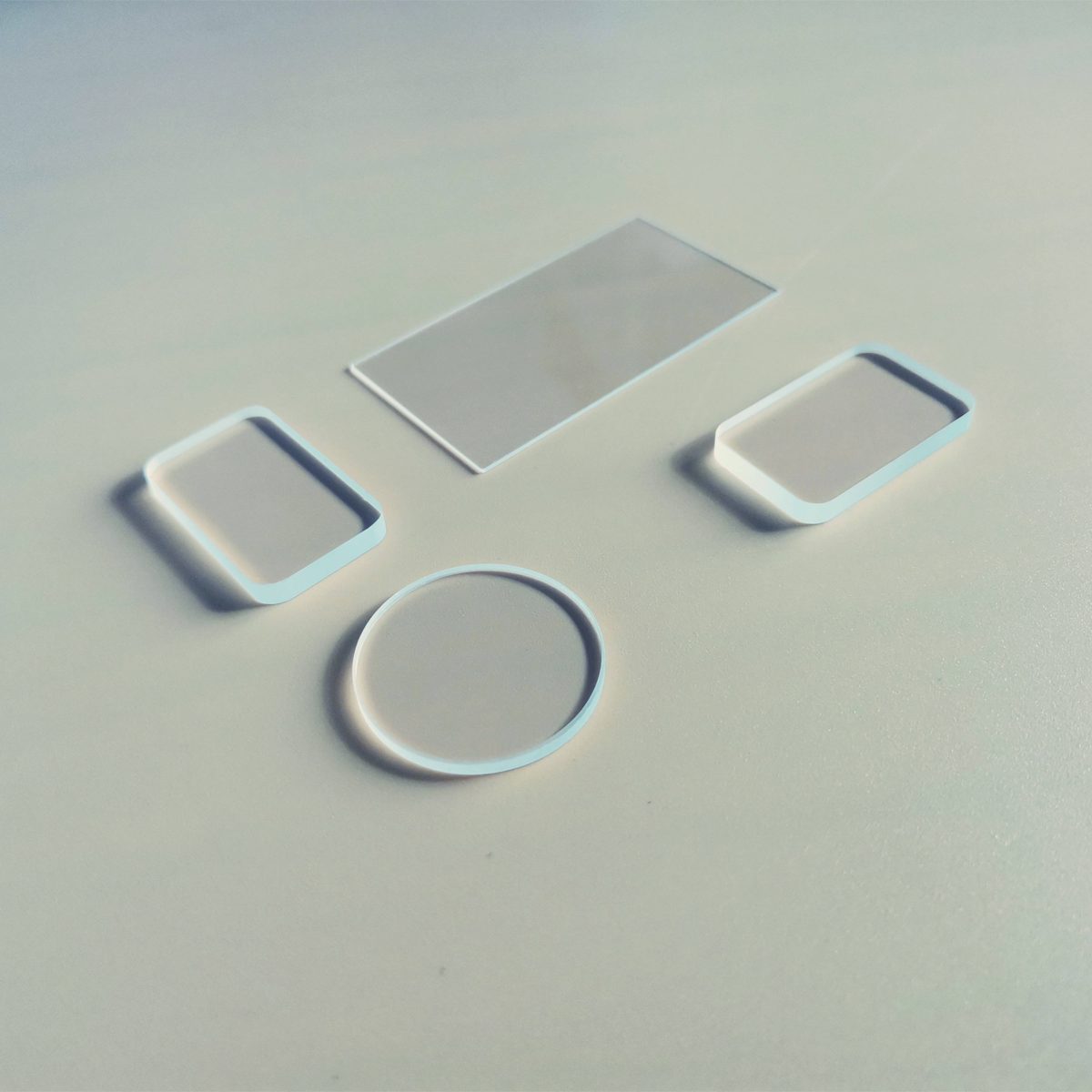

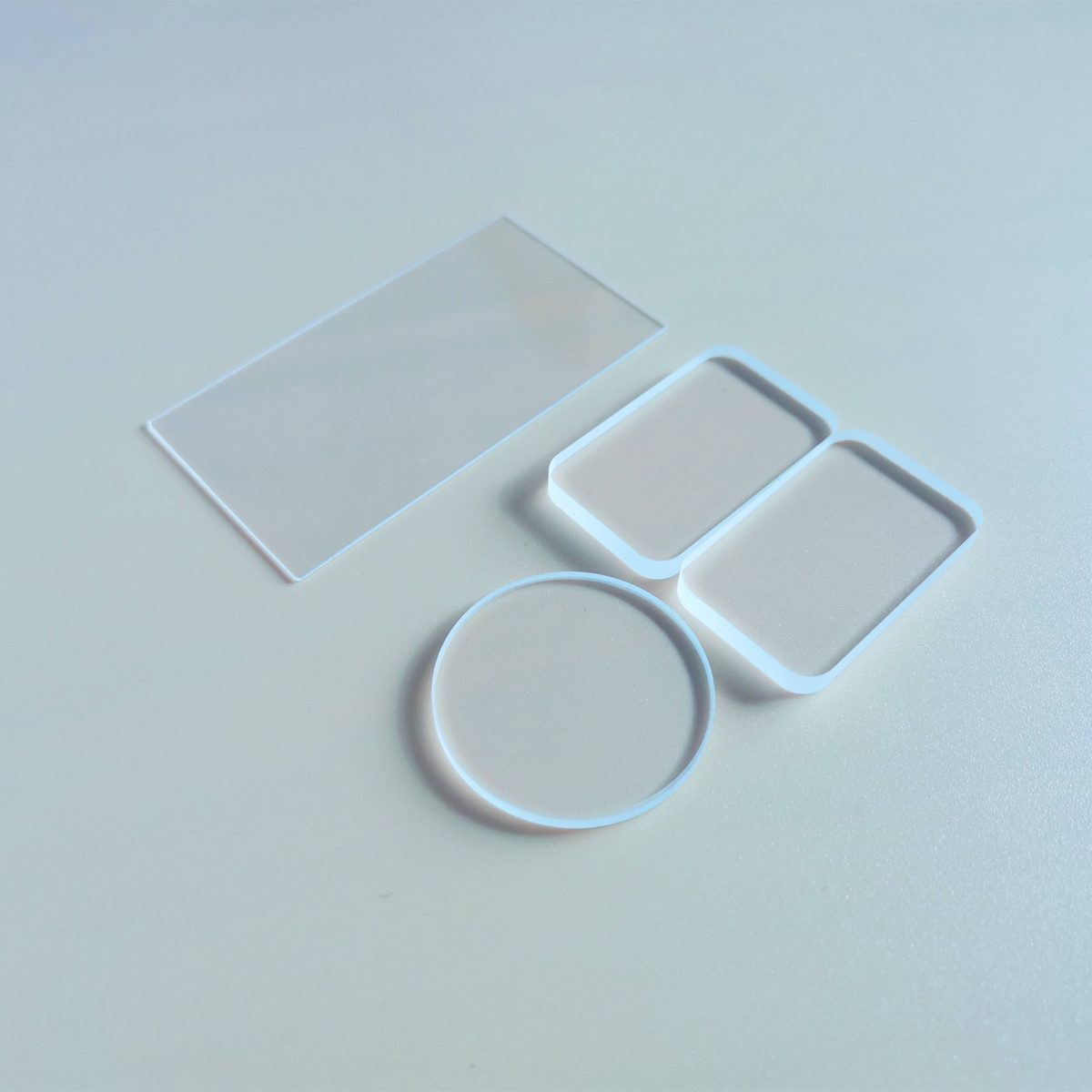

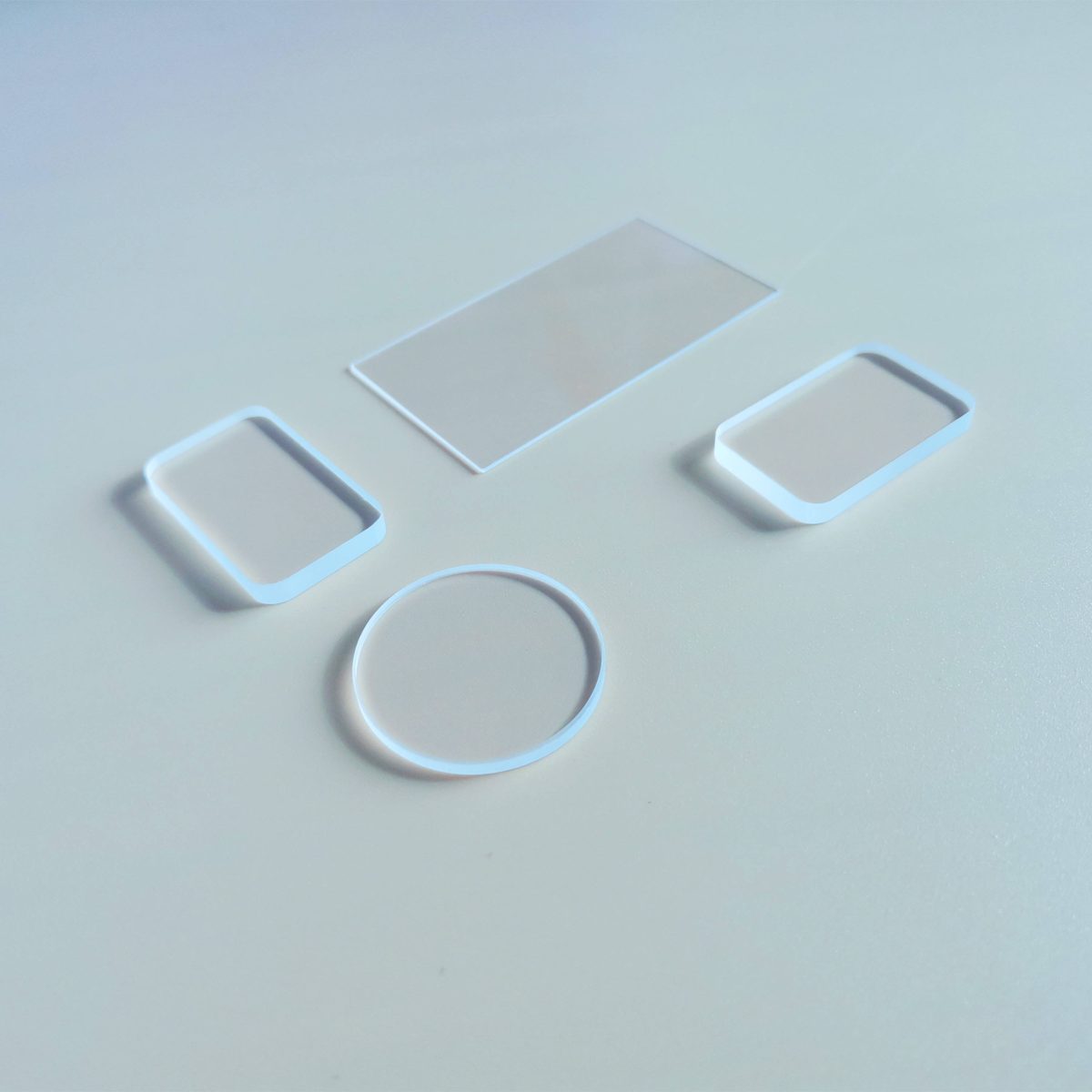

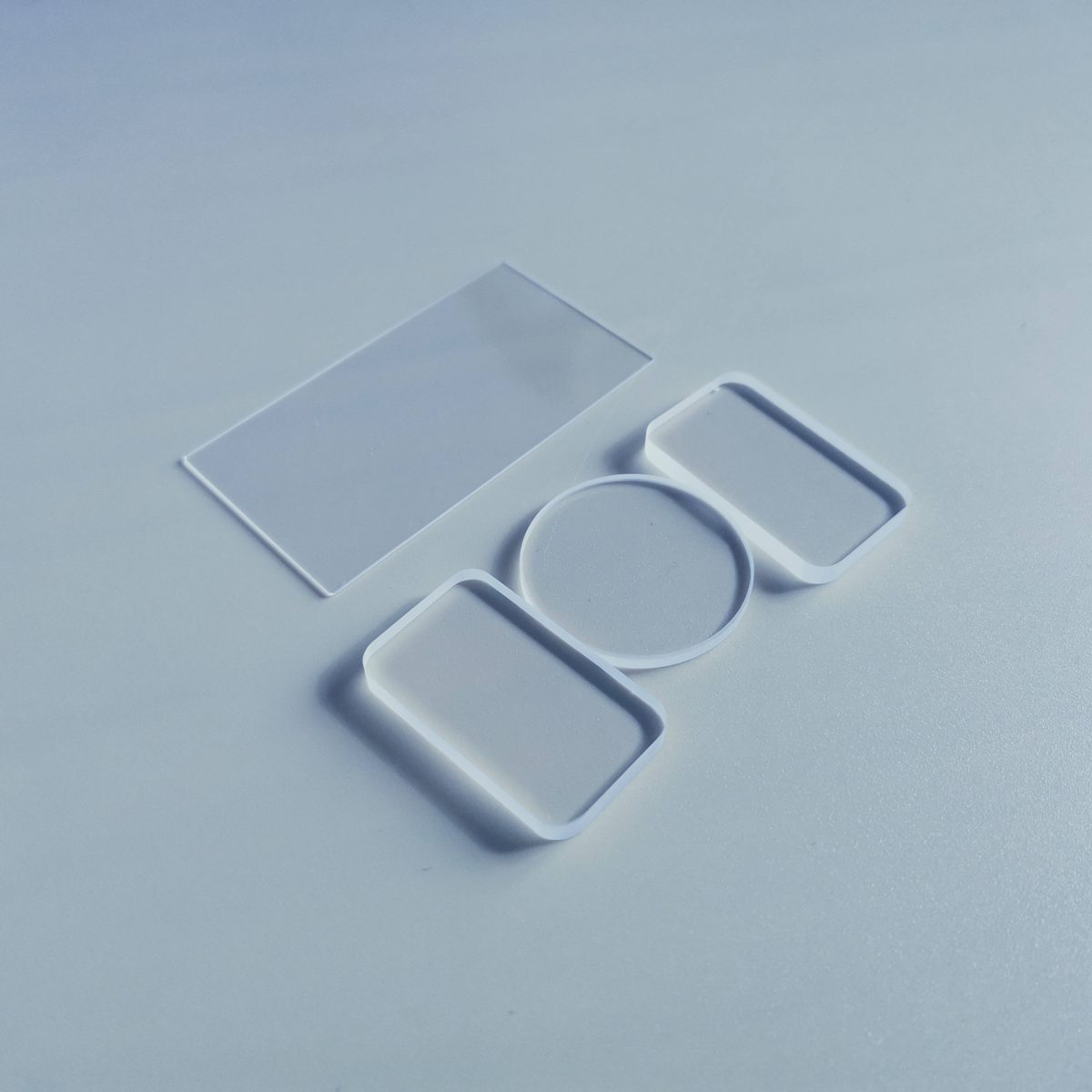

3 mm N-BK7 Round Optical Window, AR Coated
Explore N-BK7 plano windows for medical applications with customizable sizes and high optical performance.
Core attributes
- Material
- N-BK7
- Shape
- round
- Diameter range
- 3–300 mm
- Coating
- ar, uncoated, hr
Product facts
Key attributes
- Material
- N-BK7
- Shape
- round
- Diameter range
- 3–300 mm
- Coating
- ar, uncoated, hr
Product description
N-BK7 plano windows are ideal for applications in the medical field, operating effectively across multiple bands, including 0.7-1.7 μm and 400-700 nm. These windows are designed to provide high optical performance with a surface quality of 60/40 and a clear aperture of ≥90%. The product is suitable for use in low-power laser applications and can be customized to fit specific requirements, ensuring reliable performance in critical environments.
Key Features
- Diameter options from 3.0 mm to 300.0 mm for versatile applications.
- Surface quality of 60/40 ensures minimal distortion for high precision.
- Clear aperture of ≥90% maximizes light transmission for enhanced performance.
- Parallelism of 3’ minimizes beam deviation, ensuring accuracy.
- Available coatings include uncoated, AR, and HR for tailored optical performance.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Round |
| Diameter | 3 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated, high-reflective (HR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | /; Plano Windows |
| Customized Support | OEM |
| Warranty | / |
| Weight | / |
| Substrate | N-BK7(H-K9L) |
| Parallelism | 3' |
| Surface Flatness | L/2 |
| Bevel | Protective bevel as needed |
| Clear Aperture | ≥90% |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
Can I get custom sizes for the N-BK7 windows?
Custom sizes are available, supporting OEM options.
