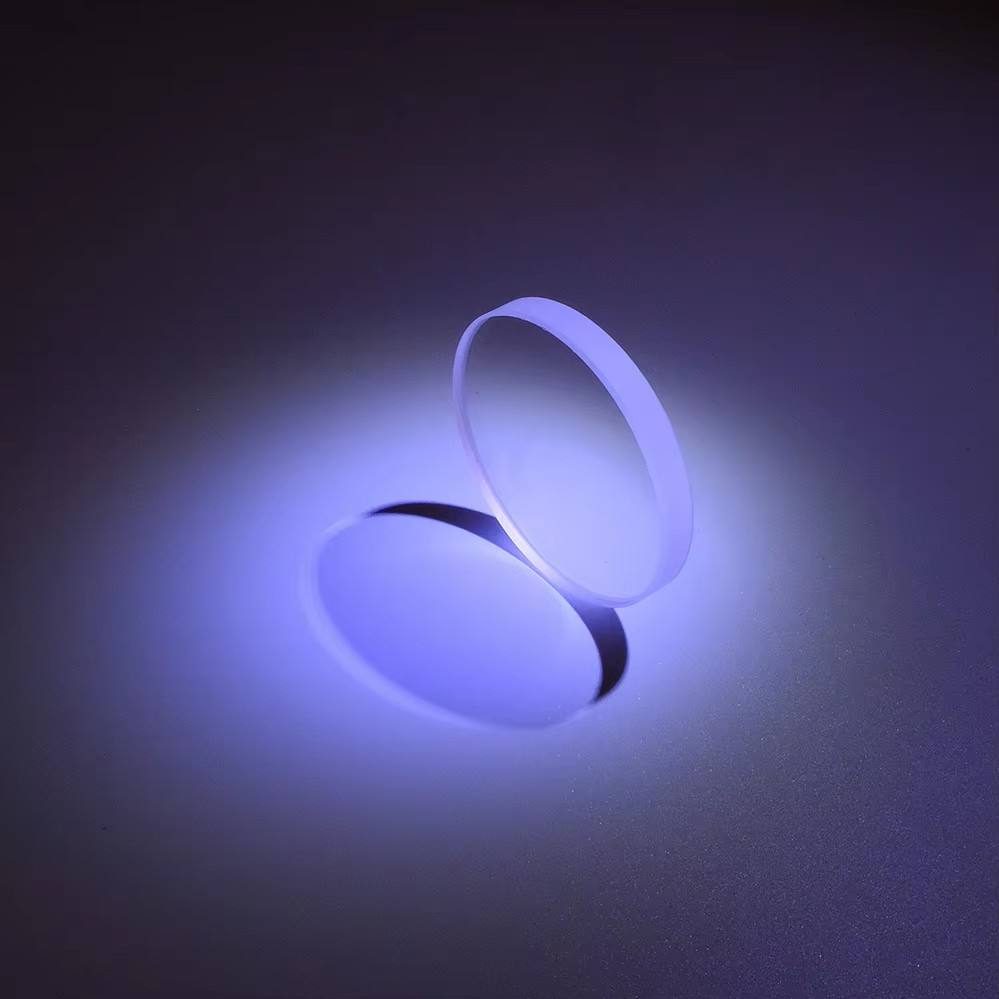

3 mm N-BK7 Round Optical Window, AR Coated

Product description

The N-BK7 Plano Convex Lens is designed for applications in the medical field and other industries requiring high precision in the visible and near-infrared spectrum (400-700 nm and <400 nm). This lens offers a variety of coatings, including anti-reflective options, ensuring optimal transmittance and minimal beam deviation. With a wide diameter range from 3.0 mm to 300.0 mm, it caters to diverse application needs while maintaining high quality and reliability.

Key Features

Diameter range: 3.0 mm to 300.0 mm for versatile applications.
Coating options: uncoated, AR, and HR for tailored performance.
Material: N-BK7 for excellent optical clarity and durability.
High-quality surface flatness and parallelism minimize beam deviation.
OEM support available for custom designs and specifications.

Applications

Medical

Specification Summary

Item	Value
Material	N-BK7
Shape	Round
Diameter	3 mm
Thickness	Custom
Coating	anti-reflective (AR), uncoated, high-reflective (HR)
Transmission bands	VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM
Warranty	1 Year
Weight	10-500g

FAQ

What are the available custom sizes?

The N-BK7 Plano Convex Lens is available in diameters ranging from 3.0 mm to 300.0 mm.

Is there a minimum order quantity?

The minimum order quantity (MOQ) is not specified in the provided data.
