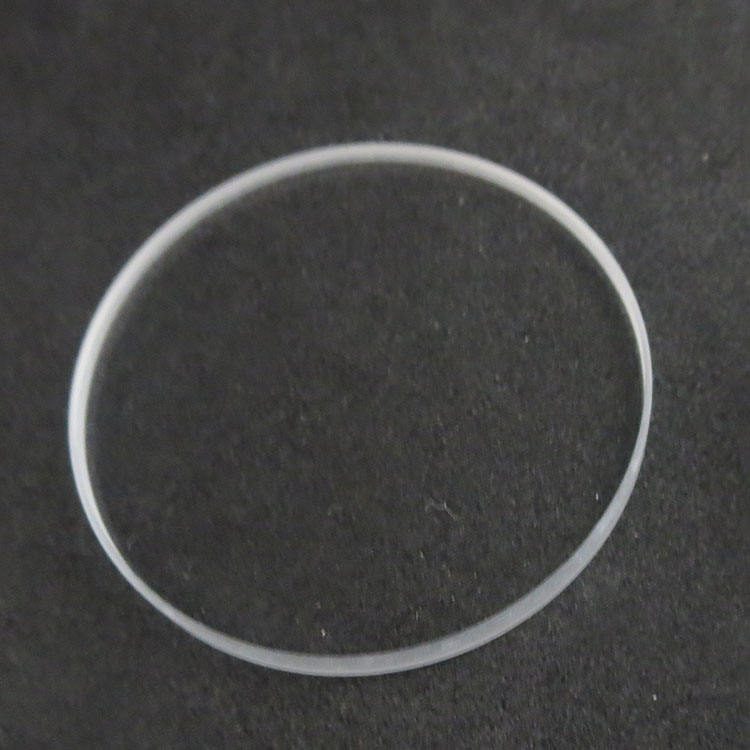

40 mm N-BK7 Round Optical Window, AR Coated
Explore the H-K9L/BK7 Glass Window, ideal for medical applications with high clarity and AR coating.
Core attributes
- Material
- N-BK7
- Shape
- round
- Diameter range
- 40 mm
- Coating
- ar
Product facts
Key attributes
- Material
- N-BK7
- Shape
- round
- Diameter range
- 40 mm
- Coating
- ar
Product description

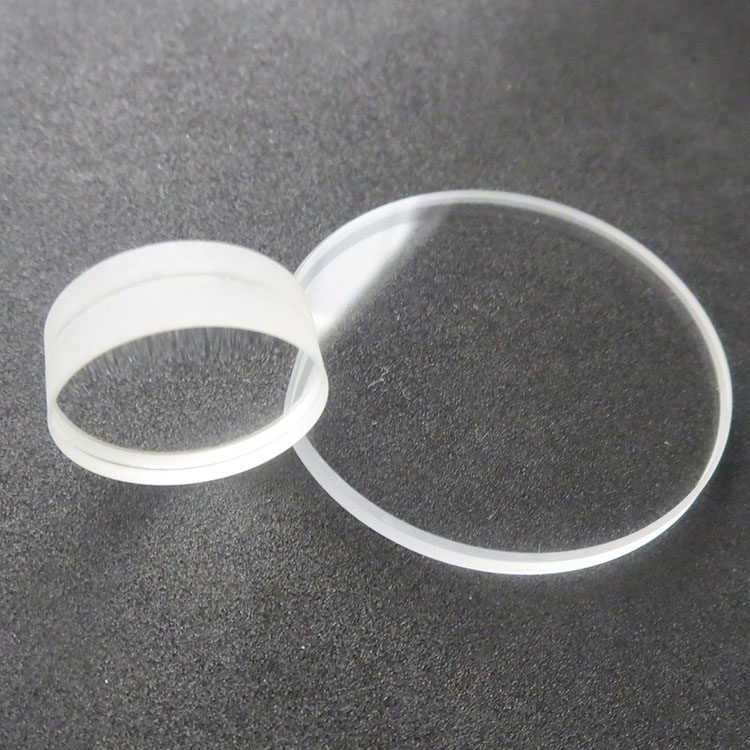

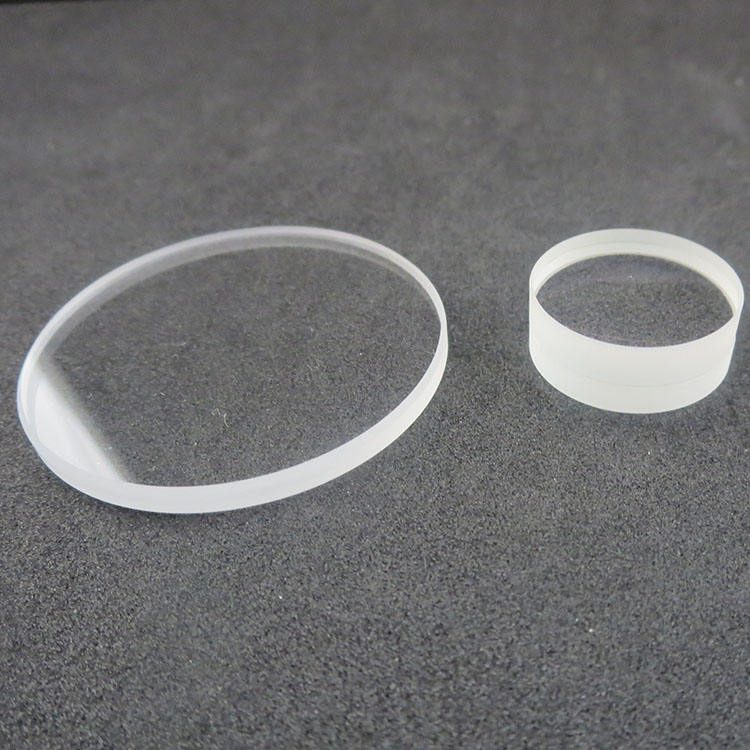

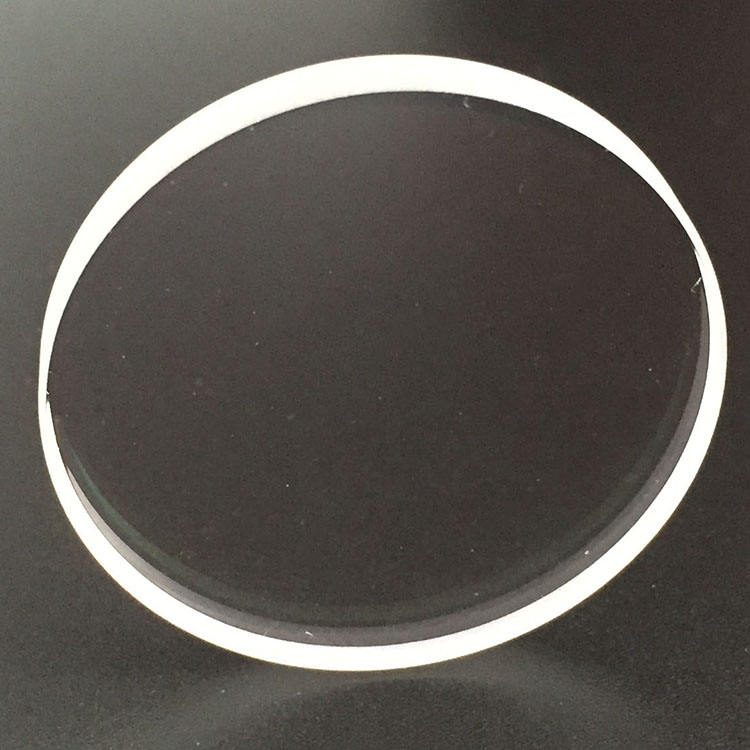

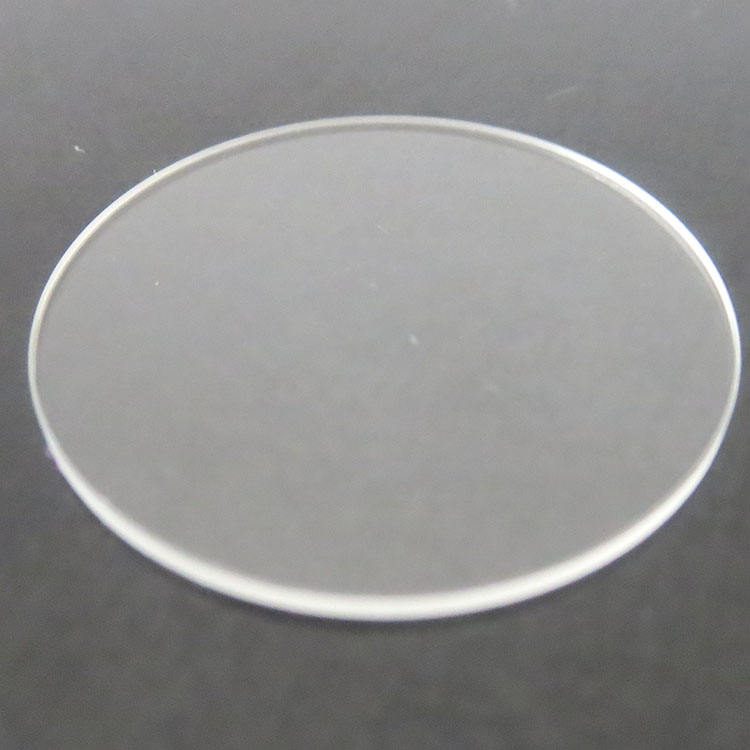

The H-K9L/BK7 Glass Window is designed for medical applications, providing a protective barrier while allowing for high optical clarity. With a diameter of 40mm and a clear aperture exceeding 95%, this window ensures minimal distortion and excellent transmission of light. The double-sided anti-reflective (AR) coating enhances performance in visible light applications, making it suitable for a variety of optical systems. Manufactured from high-quality N-BK7 glass, this window meets the demands of precision optics in critical environments.
Key Features
- Diameter of 40mm for versatile integration into optical systems.
- Surface quality rating of 60/40 ensures clarity and minimal distortion.
- Clear aperture greater than 95% maximizes light transmission.
- Double-sided AR coating enhances performance and reduces reflections.
- Tolerance of +0/-0.1mm for precise fitting in applications.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Round |
| Diameter | 40 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Window |
| Customized Support | OEM |
| Warranty | 2 Months |
| Weight | 0.1 |
| Name | H-K9L/BK7 Glass Diameter 40mm Thickness 2mm Window |
| Substrate | H-K9L glass |
| Tolerance | +0/-0.1mm |
| Clear Aperture | > 95% |
| Flatness | 60/40 |
| Parallelism | 30" |
FAQ
Can I get custom sizes?
Currently, there are no variant sizes listed for this product.
What is the minimum order quantity (MOQ)?
The MOQ is not specified for this product.
