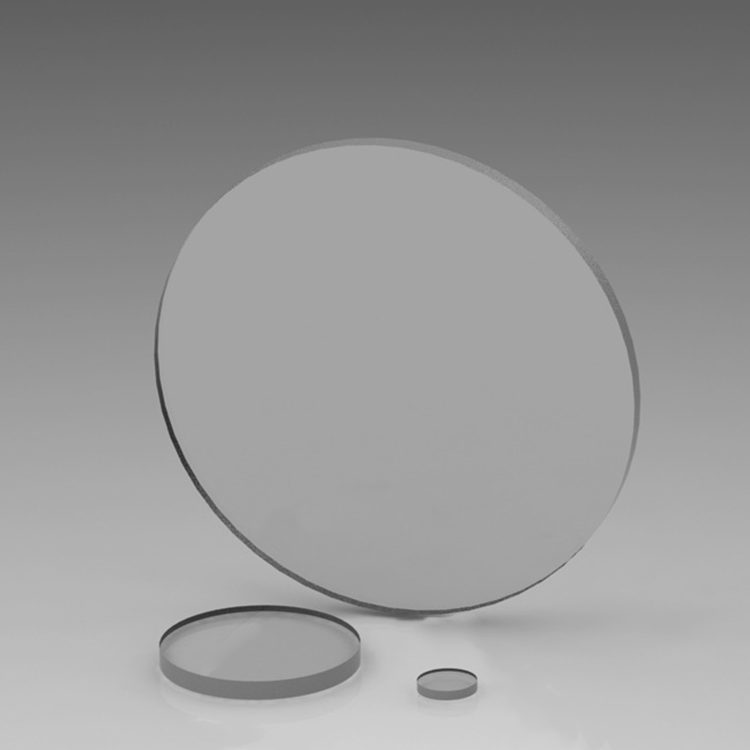

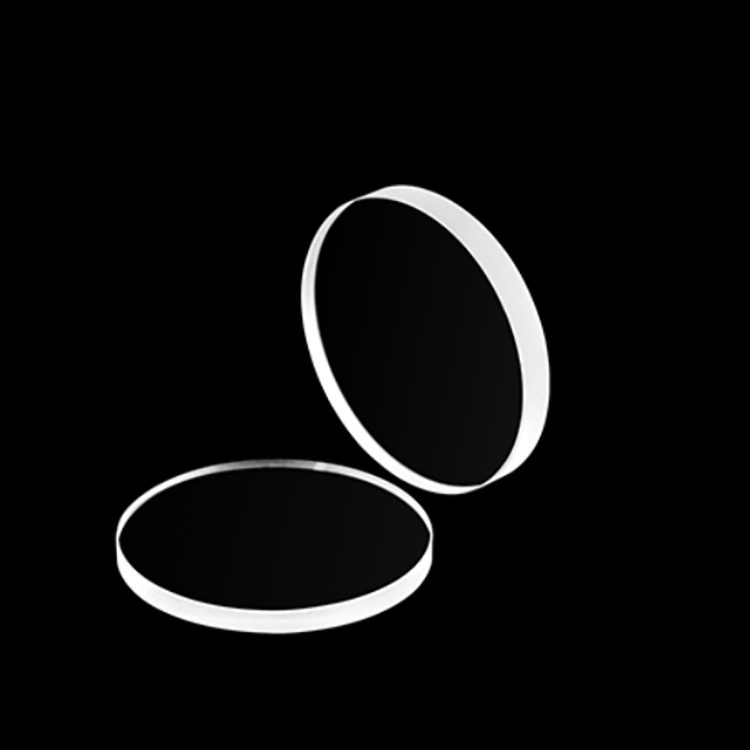

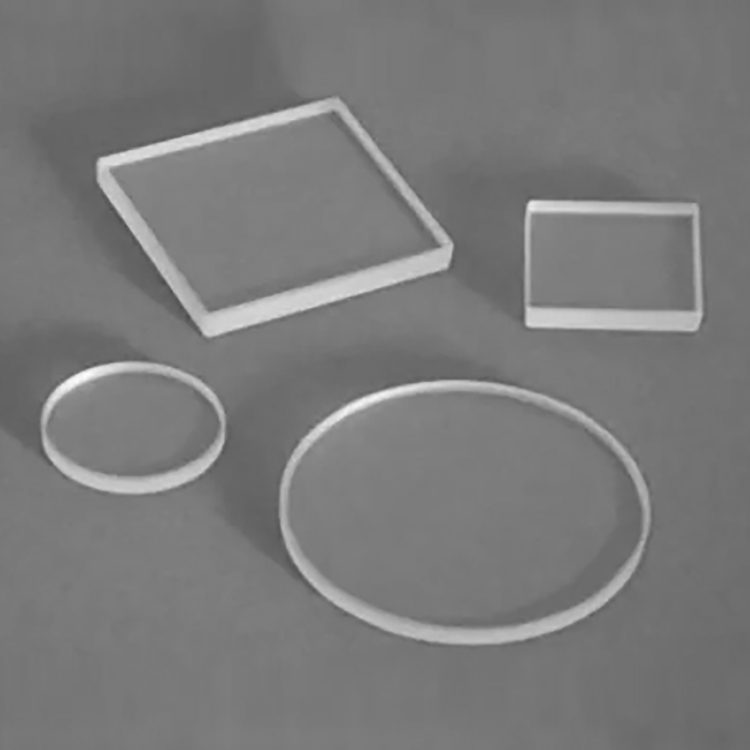

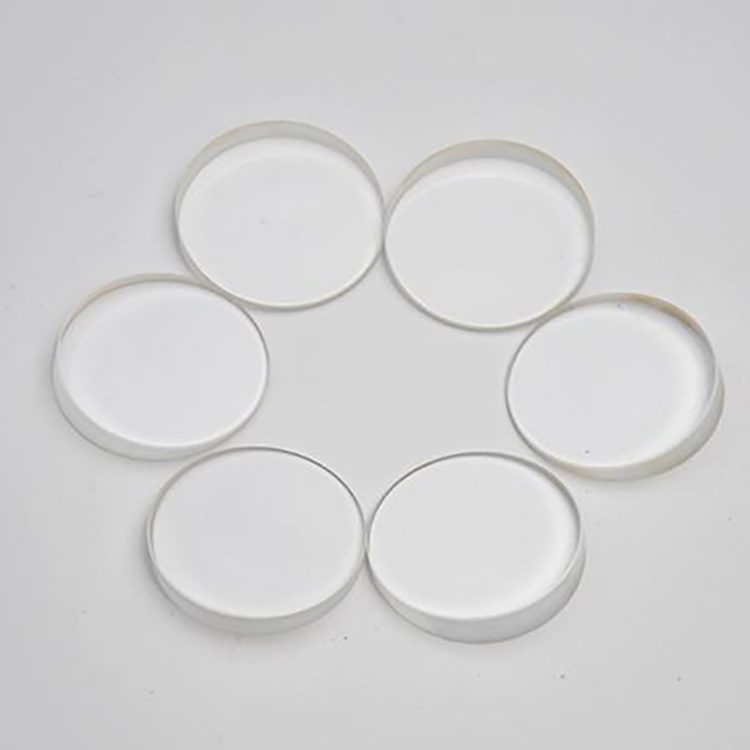

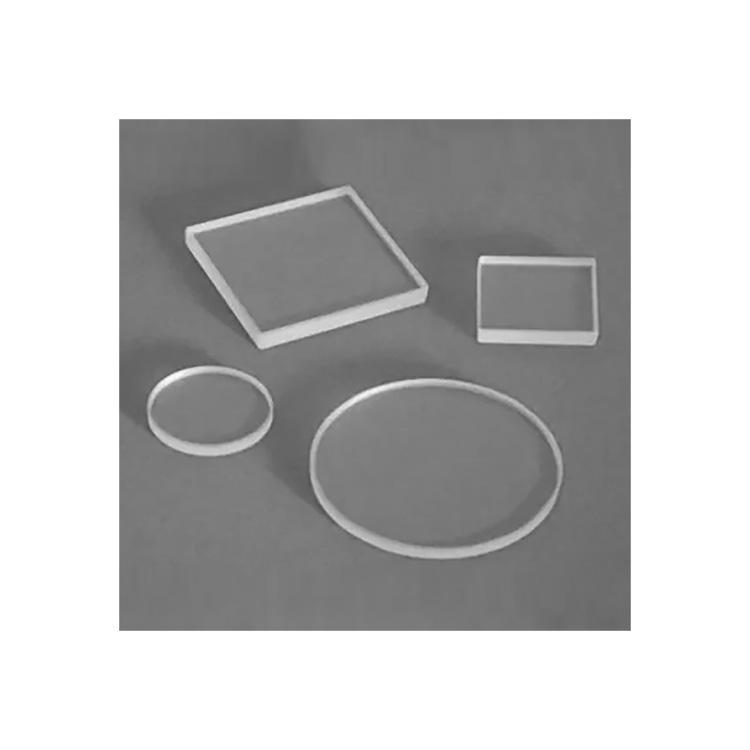

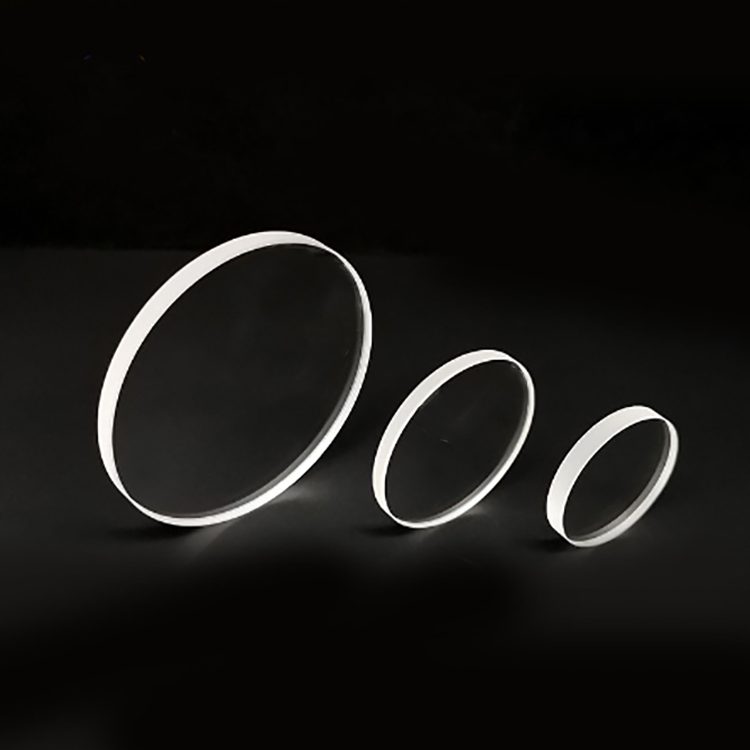

5 mm N-BK7 Round Optical Window, AR Coated
N-BK7 optical windows for 400-700 nm and <400 nm applications, customizable sizes, and high surface quality.
Core attributes
- Material
- N-BK7
- Shape
- round
- Diameter range
- 5–300 mm
- Coating
- ar, uncoated
Product facts
Key attributes
- Material
- N-BK7
- Shape
- round
- Diameter range
- 5–300 mm
- Coating
- ar, uncoated
Product description
These N-BK7 optical windows are designed for applications in the 400-700 nm and <400 nm wavelength ranges, providing reliable performance for various optical systems. With a diameter range of 5.0 mm to 300.0 mm, these windows are suitable for diverse applications including imaging and laser systems. The surface quality of 60/40 ensures adequate clarity and performance in demanding environments.
Key Features
- Diameter range: 5.0 mm to 300.0 mm for versatile application fit.
- Surface quality of 60/40 for reliable optical performance.
- Clear aperture of >95% maximizes light transmission.
- Customizable options available, including OEM and ODM support.
- Diameter tolerance of ±0.1 mm ensures precision in fit.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Round |
| Diameter | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical Windows |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg |
| Diameter Tolerance | 0.01mm |
| Color | Transparent |
| Clear Aperture | 95% |
FAQ
What are the available custom sizes?
Optical windows are available in diameters ranging from 5.0 mm to 300.0 mm.
What is the diameter tolerance?
The diameter tolerance for these windows is ±0.1 mm.
