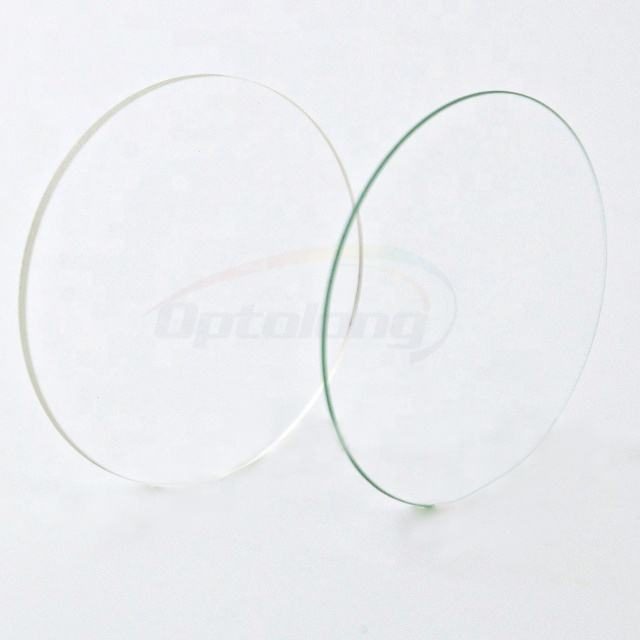

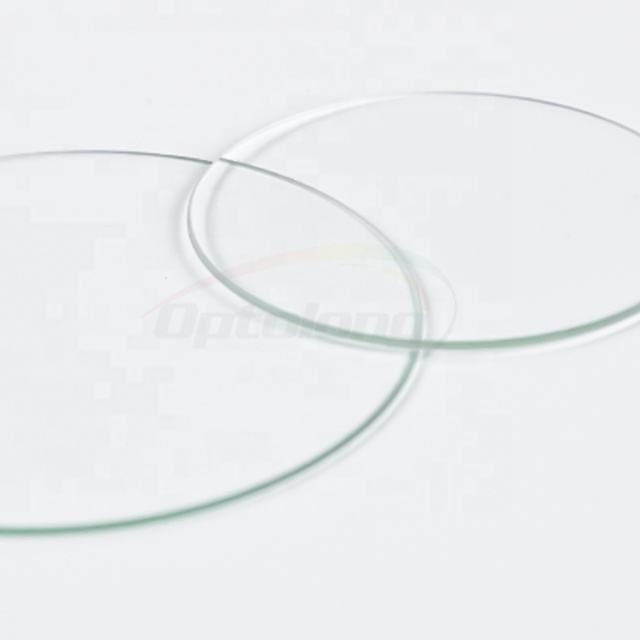

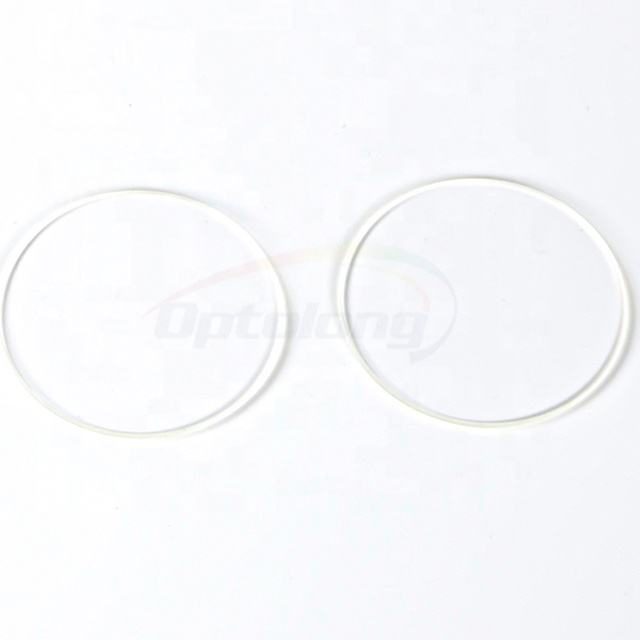

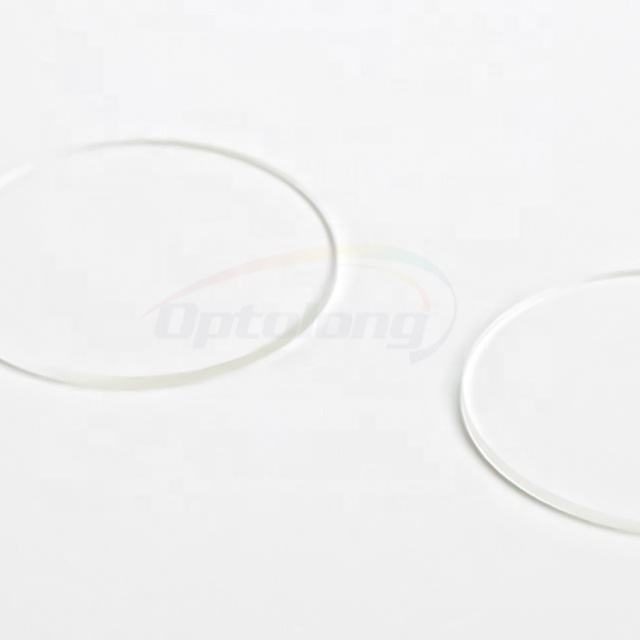

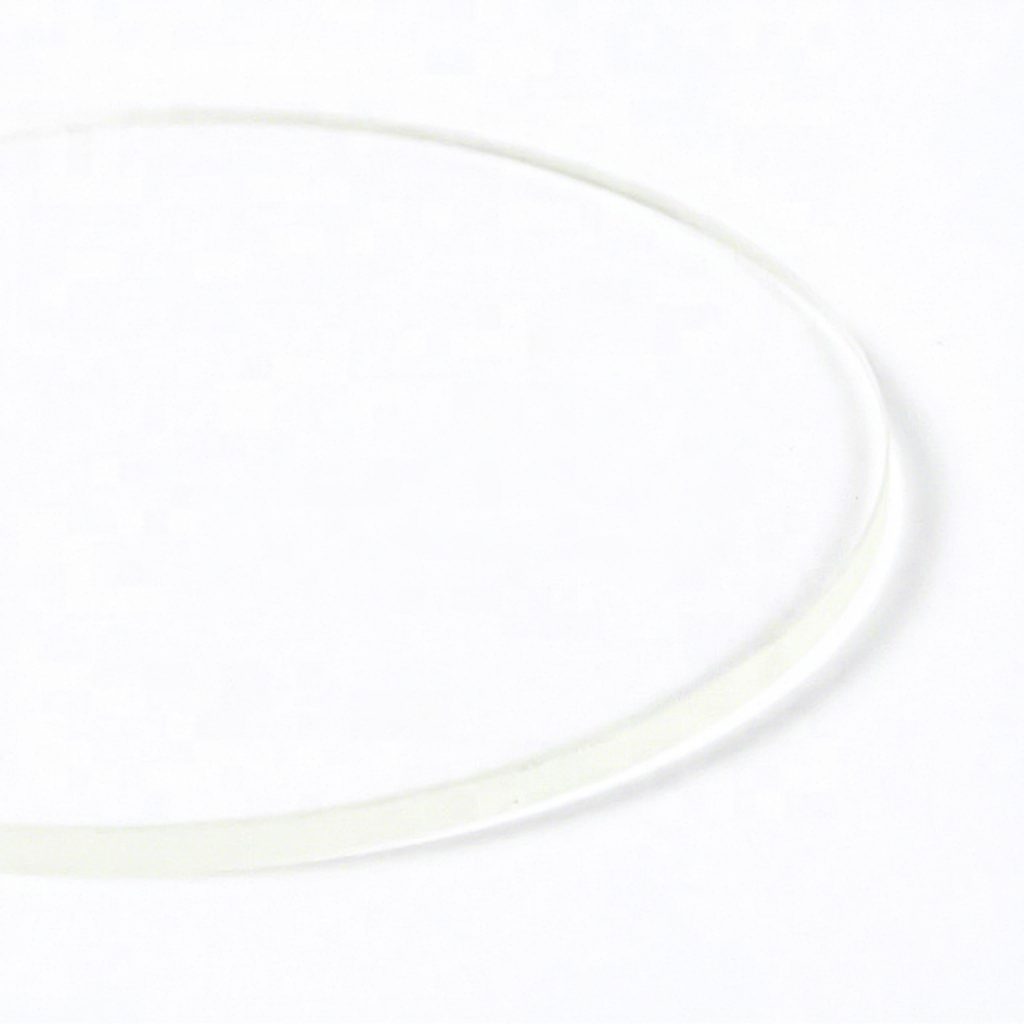

Custom Size N-BK7 Round Optical Window, AR Coated
N-BK7 optical window with 85% transmittance, customizable thickness, ideal for laser cutting and various optical applications.
Core attributes
- Material
- N-BK7
- Shape
- round
- Thickness
- 0.3–5 mm
- Coating
- ar
Product facts
Key attributes
- Material
- N-BK7
- Shape
- round
- Thickness
- 0.3–5 mm
- Coating
- ar
Product description
The N-BK7 optical window is designed for applications such as laser cutting, effectively isolating environments while maintaining high transmittance. With a broad spectral range from <400 nm to 3 μm, this window is ideal for various optical setups. Its surface quality of 40/20 ensures minimal distortion, making it suitable for precision applications. The optical window can be customized in thickness from 0.3 mm to 5 mm, accommodating diverse project requirements.
Key Features
- High transmittance of 85%Ensures maximum light transmission for effective performance in optical applications.
- Surface quality of 40/20Provides minimal distortion, enhancing the clarity and accuracy of optical systems.
- Custom thickness options (0.3 mm to 5 mm)Allows for tailored solutions to meet specific application needs.
- Compatible with multiple coatingsVersatility for various spectral ranges enhances application flexibility.
Applications
Laser Cutting
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Round |
| Diameter | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |

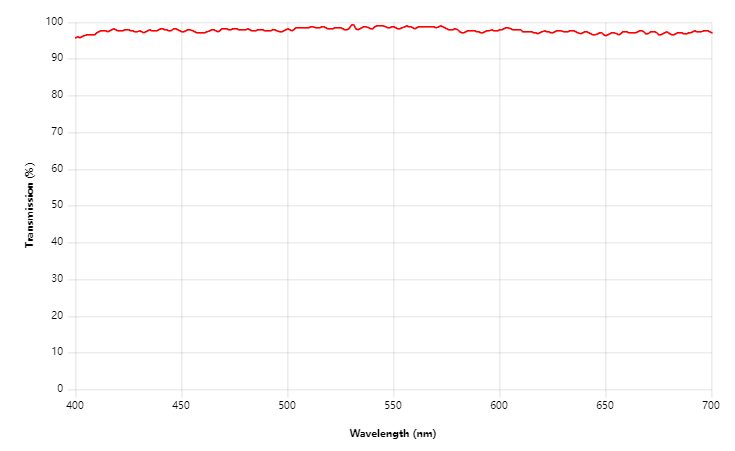

| Transmittance | 85% |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Materials | BK7,B270,JGS1,D263T,N-BK7,H-K9 |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
FAQ
What thickness options are available?
Thickness options range from 0.3 mm to 5 mm.
What is the surface quality specification?
The surface quality is specified as 40/20.
