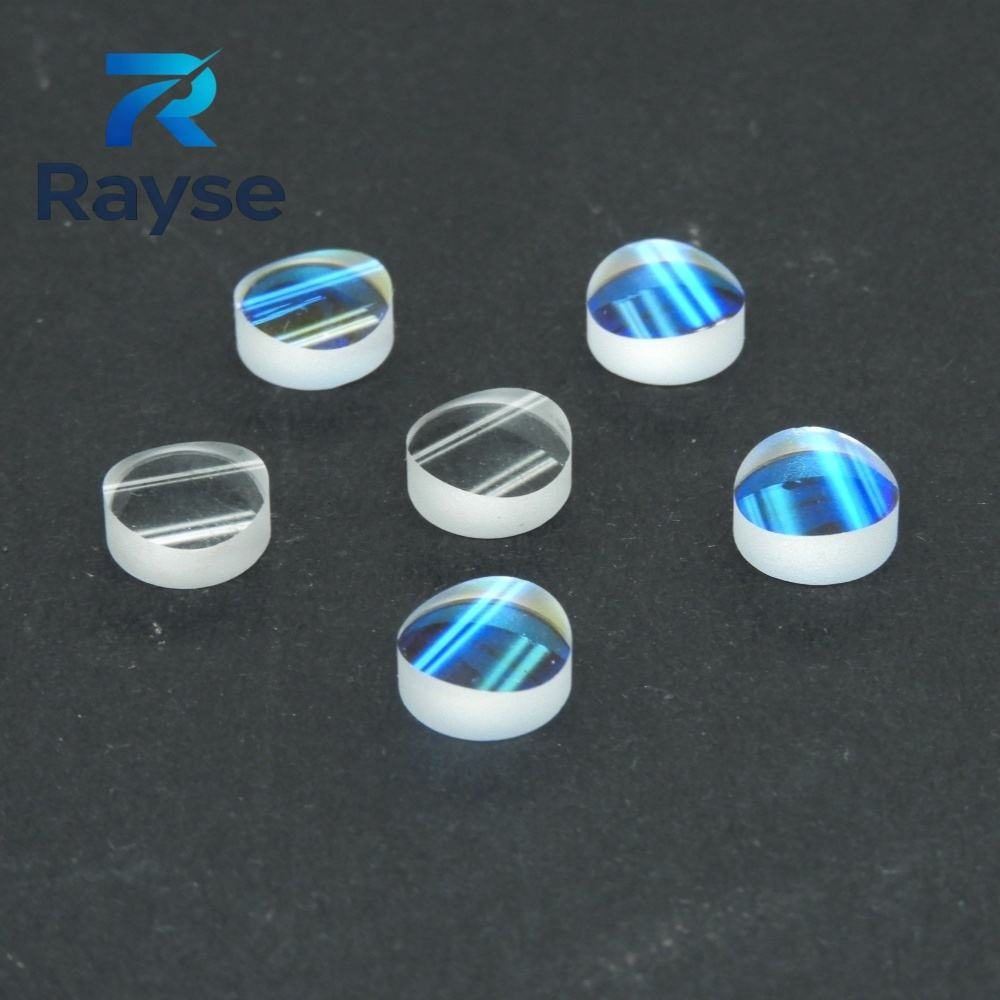

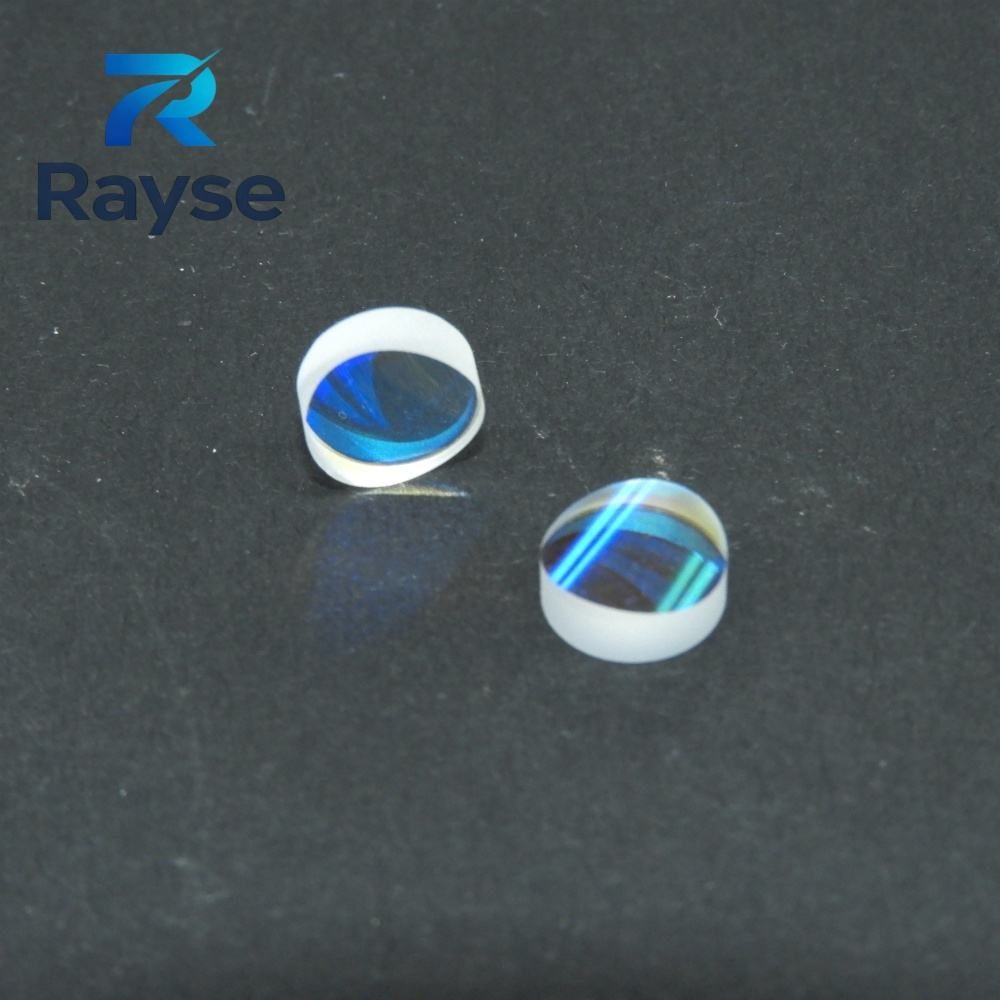

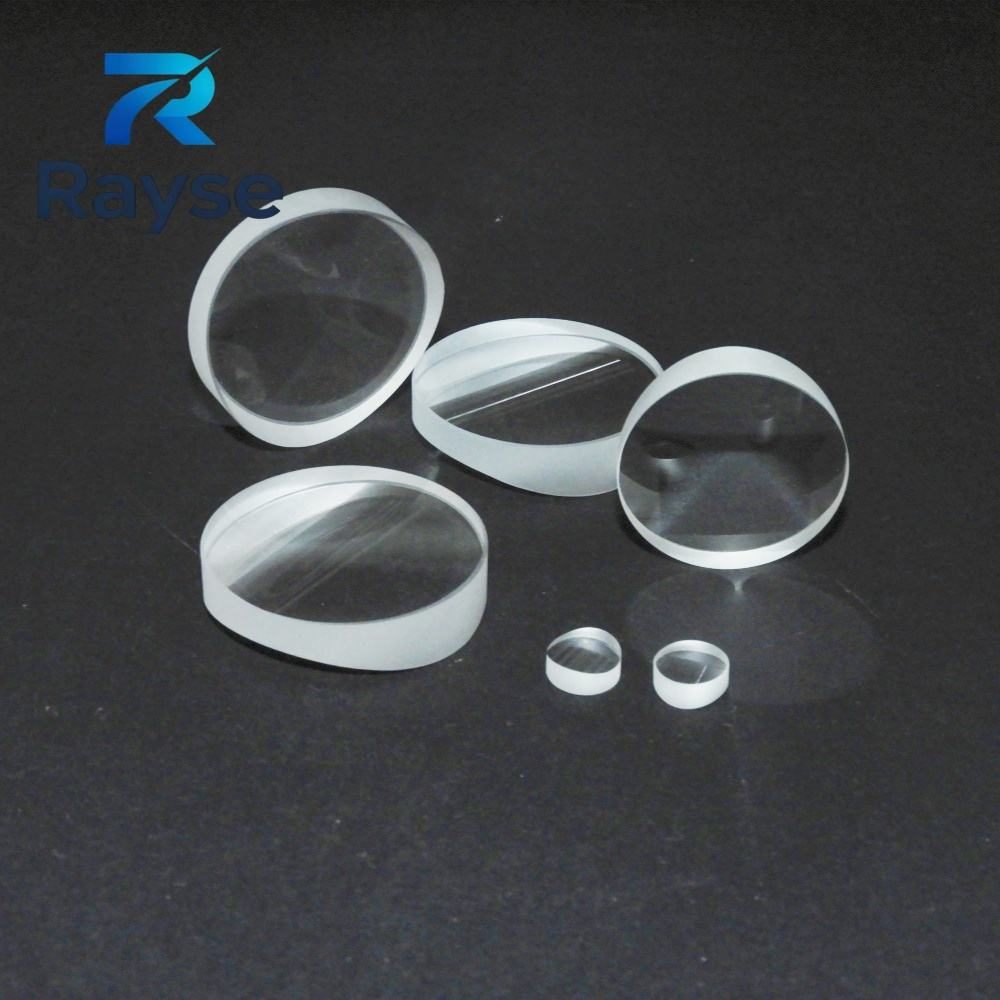

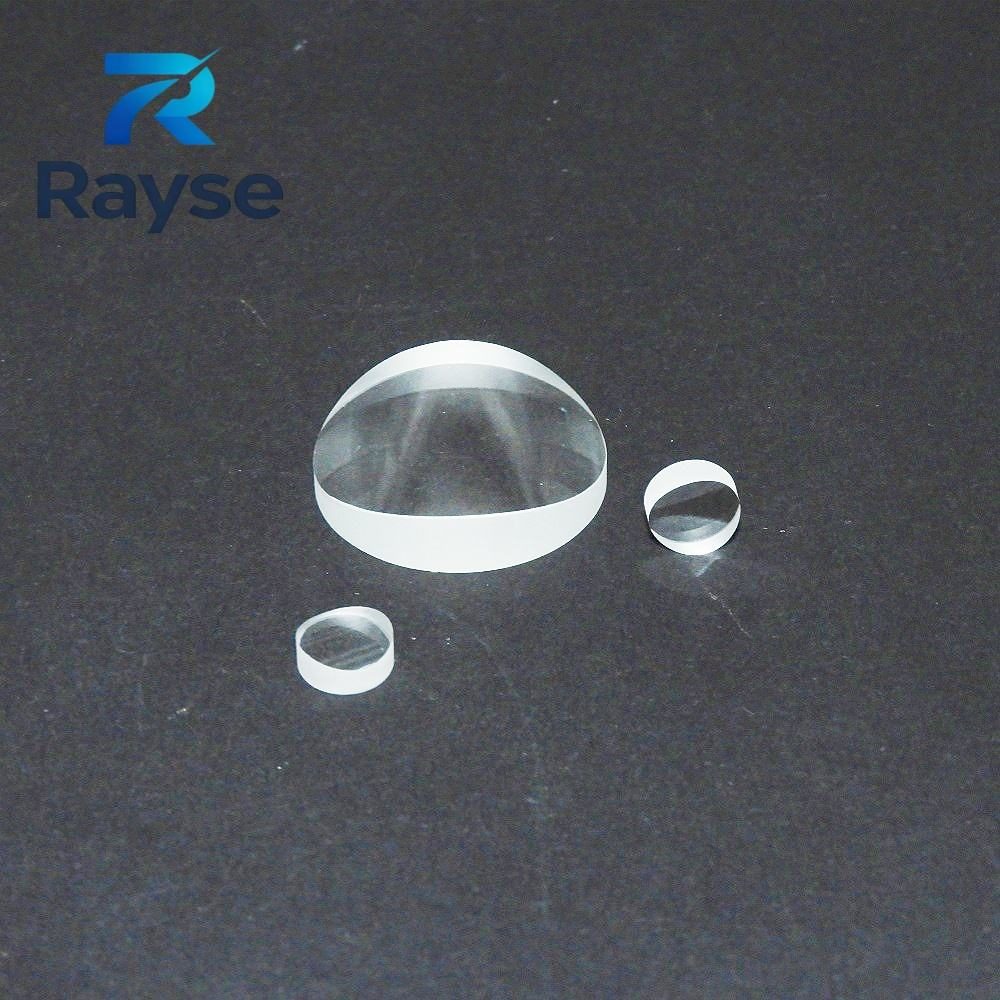

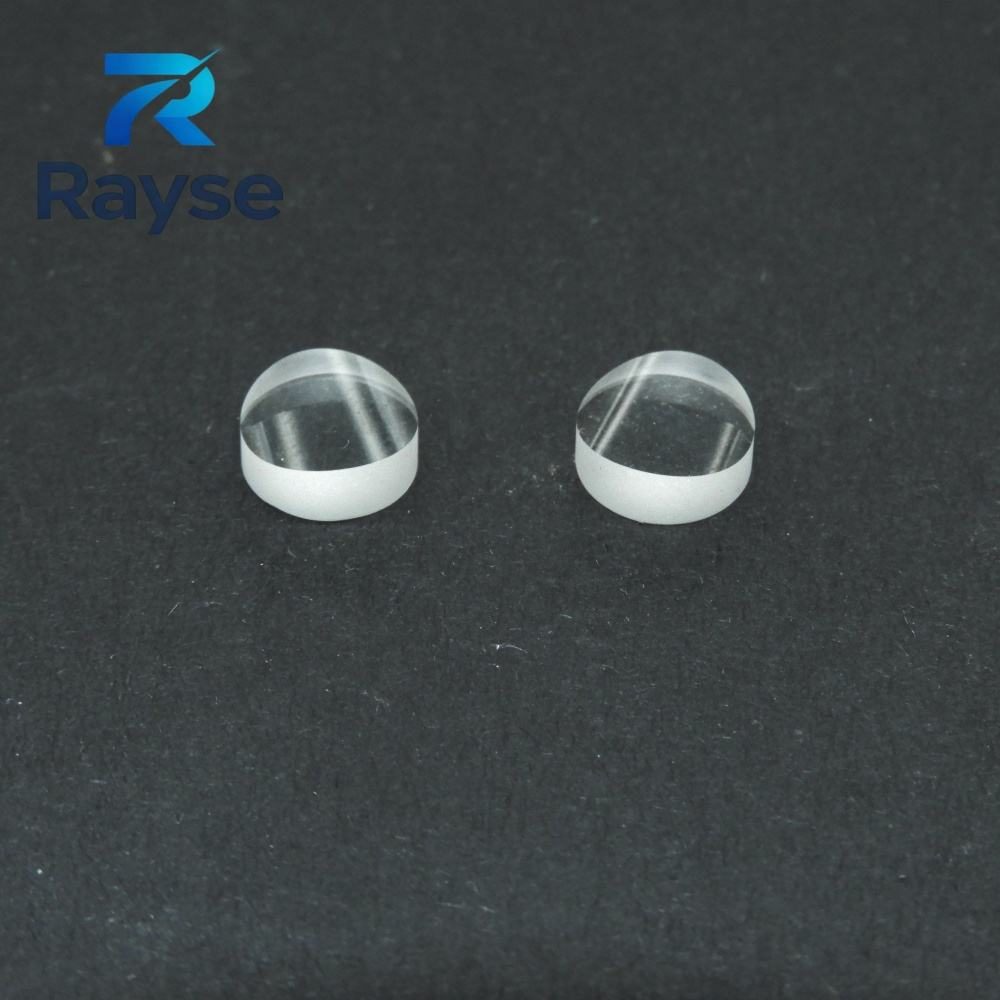

3x5 mm N-BK7 Spherical Lens

Product description

This N-BK7 concave lens is engineered for high-precision applications in medical and imaging fields. With a focal length of 5.0 mm and a diameter range from 3.0 mm to 300.0 mm, it offers exceptional clarity and optimal light transmission. The lens features a surface quality of 20/10 and a clear aperture of 90%, ensuring reliable performance in critical optical applications. Its customizable dimensions and precision crafting make it suitable for various project needs.

Key Features

Focal length of 5.0 mm for precise imaging applications.
Diameter range from 3.0 mm to 300.0 mm for versatile integration.
Surface quality of 20/10 ensures high clarity and performance.
Clear aperture of 90% maximizes light transmission.
Custom sizes available, supporting OEM, ODM, and OBM requests.

Available Sizes

Diameter x Focal Length (mm)
151.5 x 5

Applications

Medical, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Spherical
Diameter	3 mm
Focal Length	5 mm
Thickness	0.1 mm
Surface Quality	20/10

Full Specifications

Parameter	Value
Type	Concave Lens
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.3
Clear Aperture	90%
Dimension	5-200mm
Flatness	1/2 Lambda~ 1/10 Lambda
Bevel	0.1-0.5*45

FAQ

What are the available custom sizes?

The lens can be customized within a diameter range of 3.0 mm to 300.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement.
