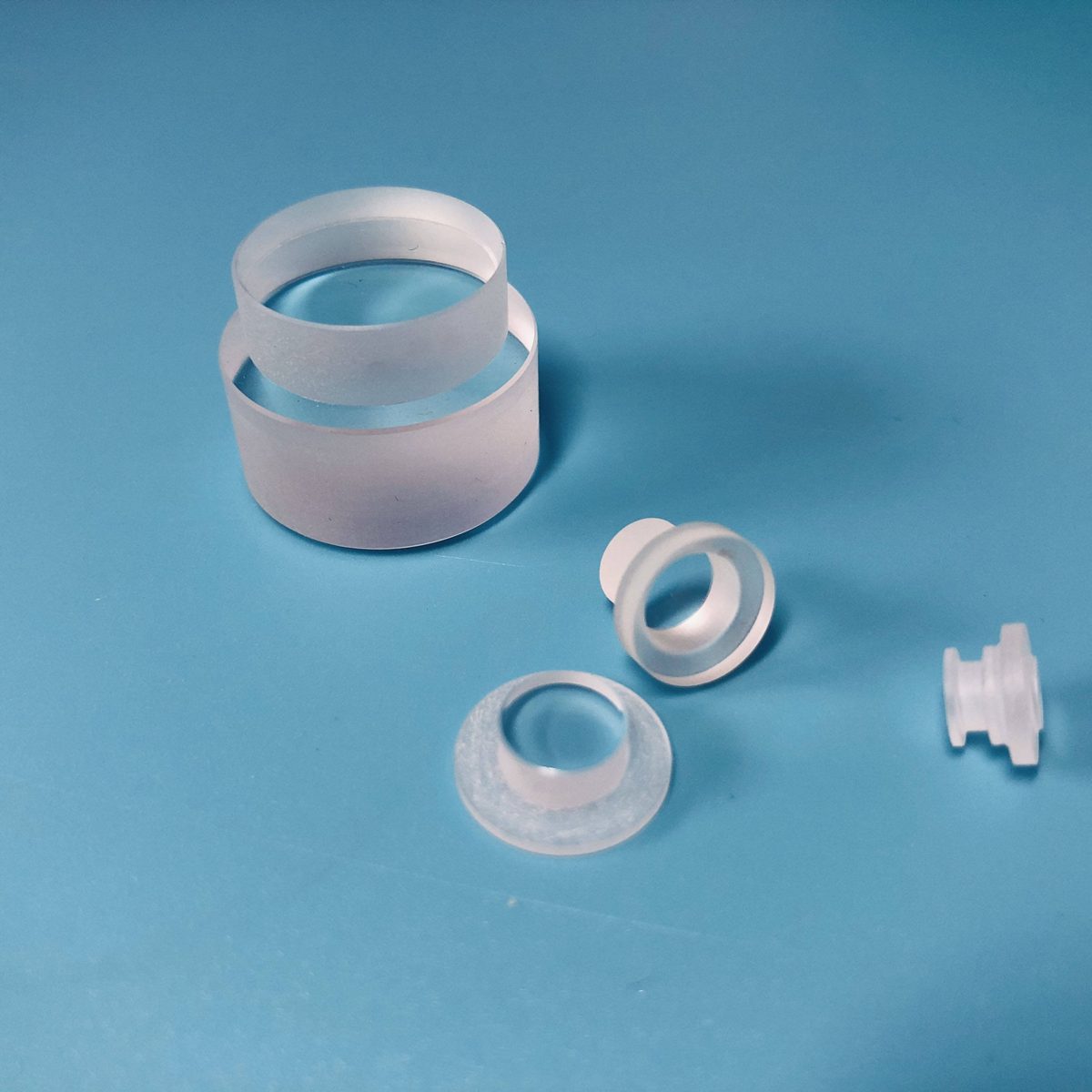

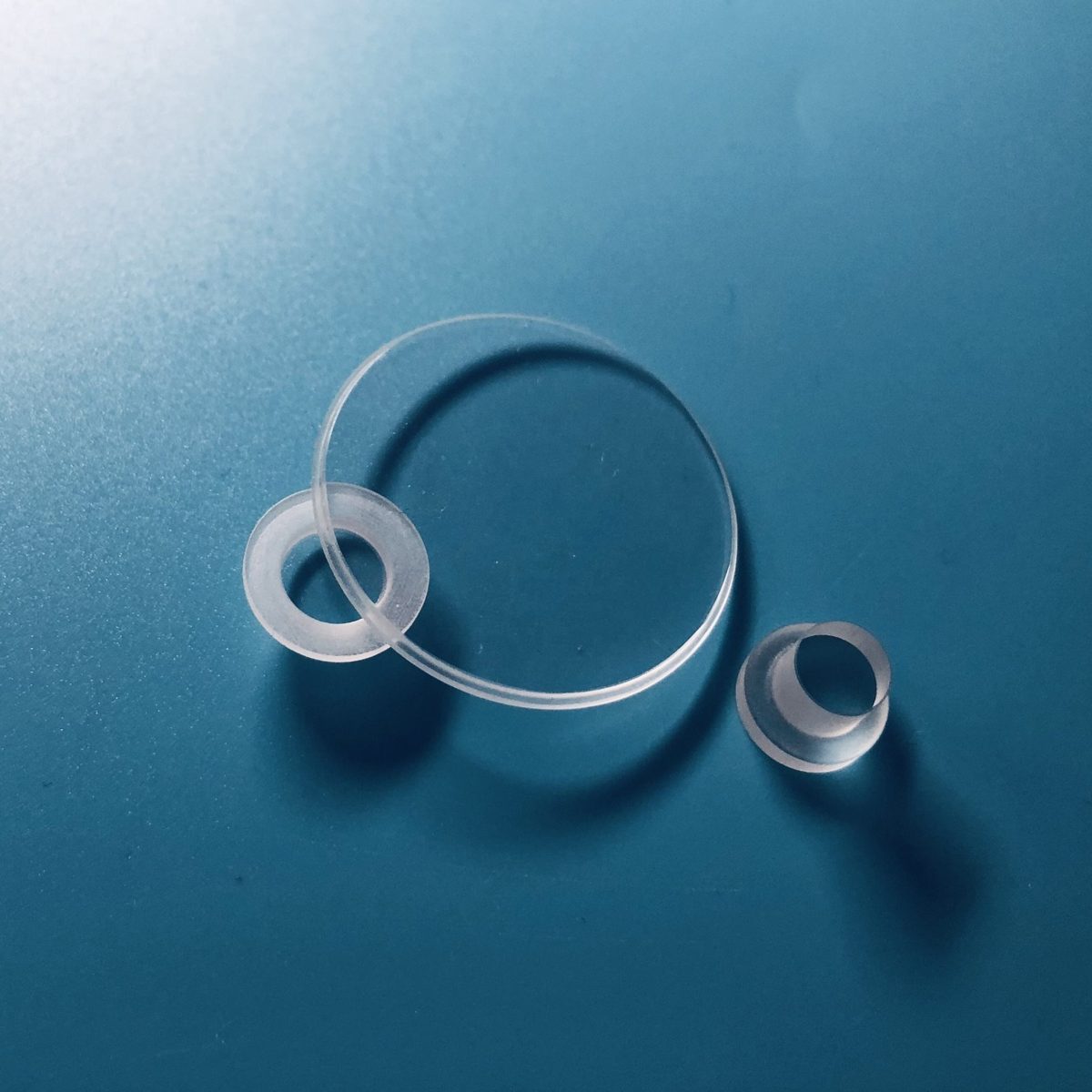

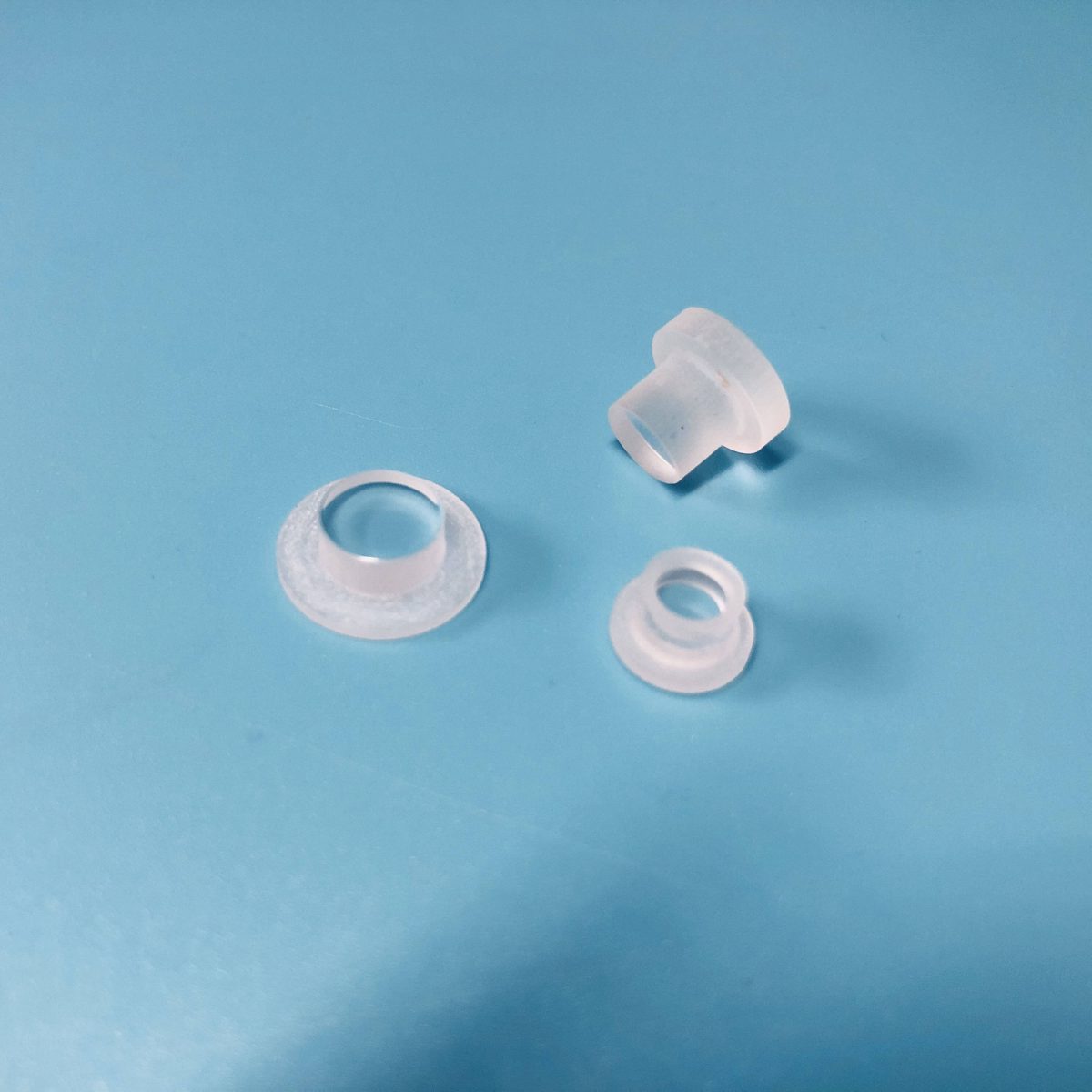

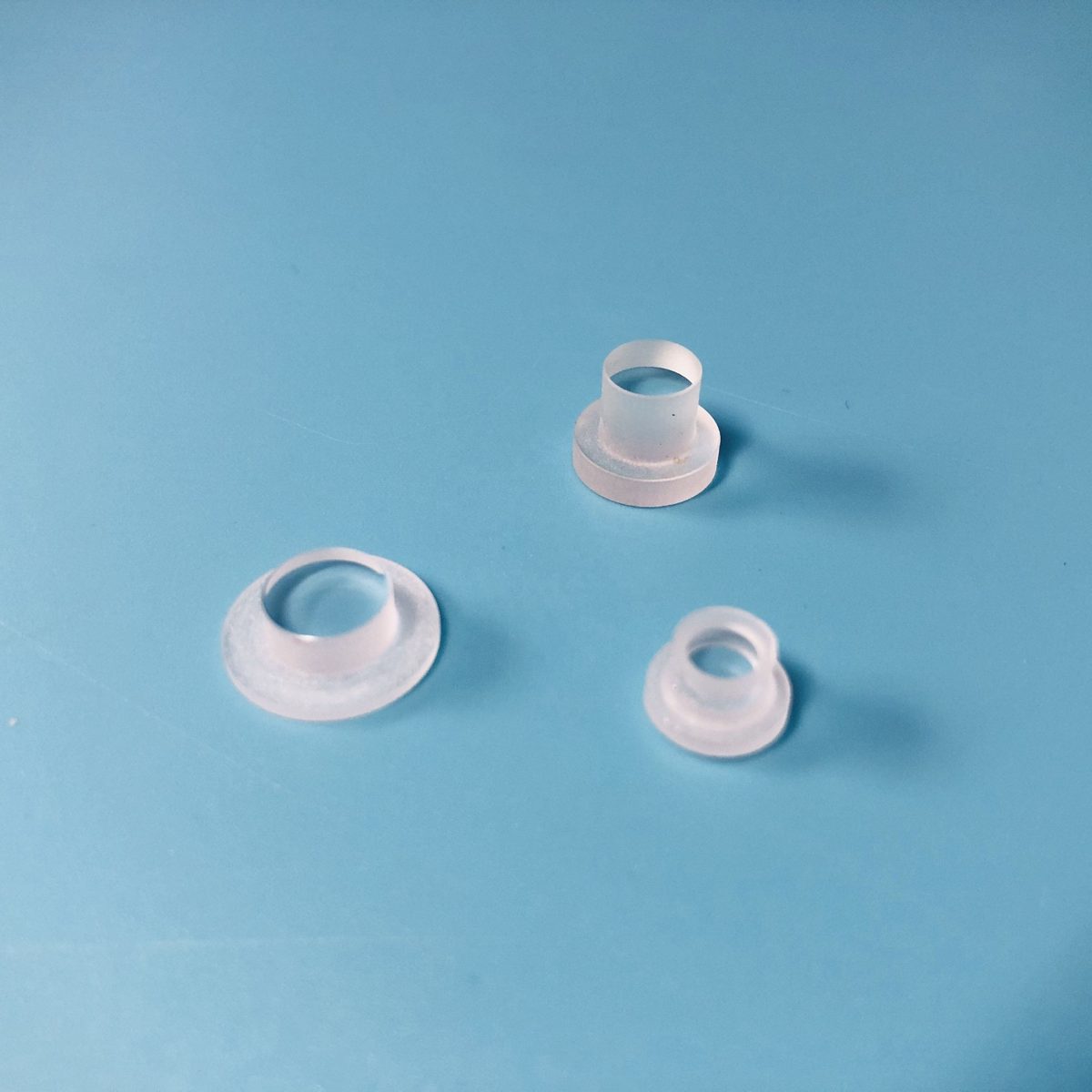

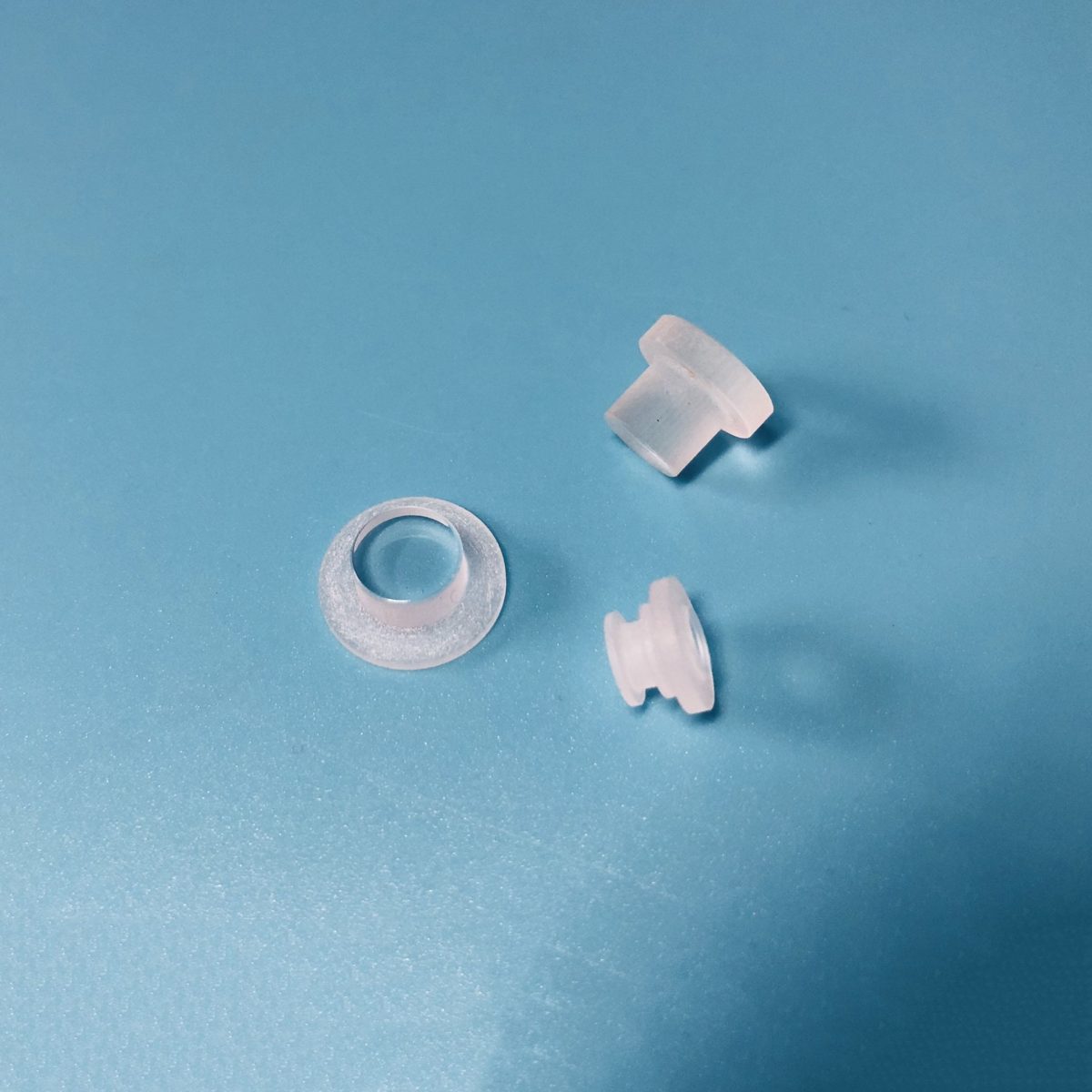

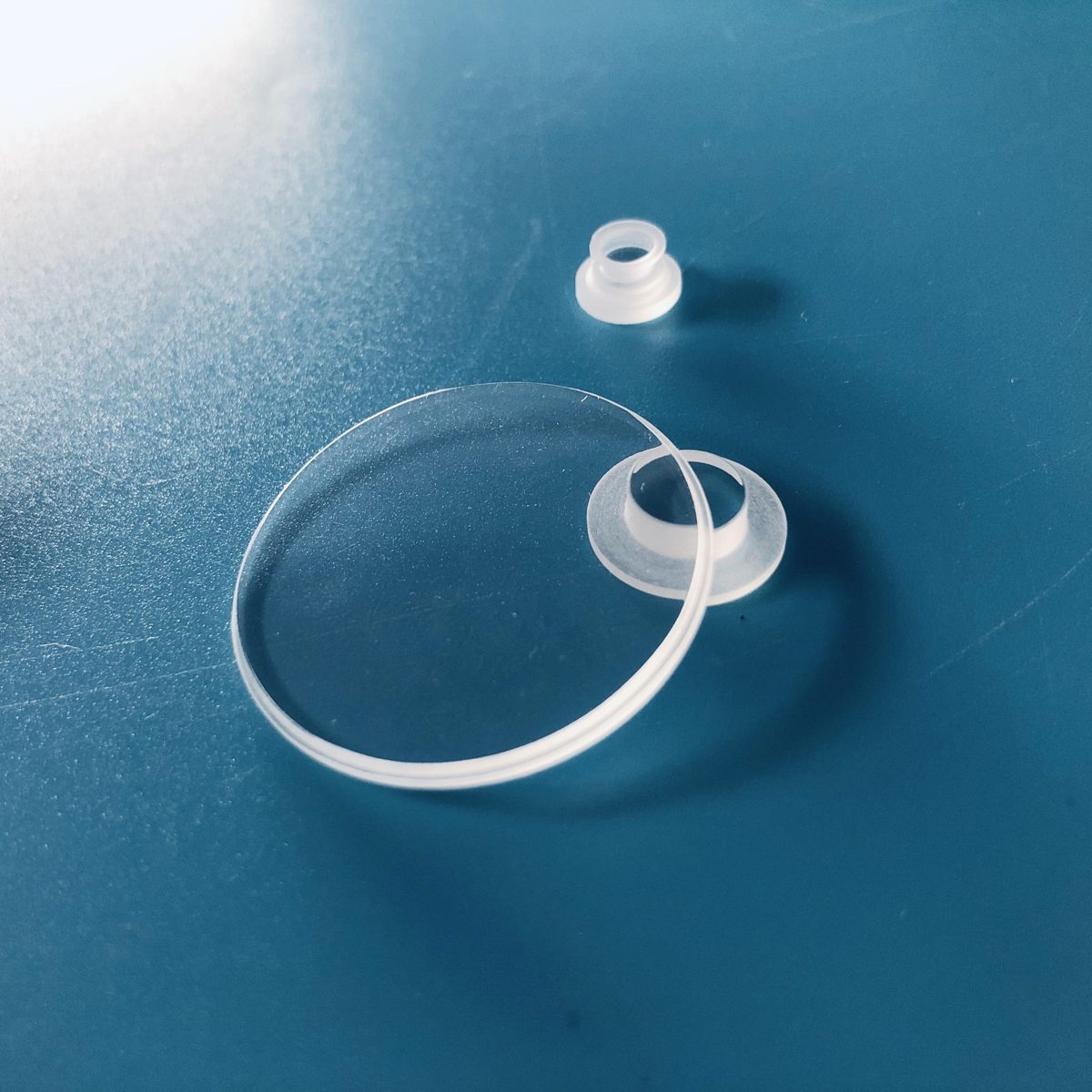

1.5x1 mm N-BK7 Step Optical Window
N-BK7 step window for medical applications with customizable sizes and high optical performance.
Core attributes
- Material
- N-BK7
- Shape
- step
- Diameter range
- 1.5–250 mm
- Thickness
- 1–50 mm
Product facts
Key attributes
- Material
- N-BK7
- Shape
- step
- Diameter range
- 1.5–250 mm
- Thickness
- 1–50 mm
Product description
This N-BK7 step window is ideal for medical applications, providing reliable optical performance. With a diameter range of 1.5 mm to 250 mm and thickness options from 1 mm to 50 mm, it accommodates various system requirements. The window features a surface quality of 60/40 and a clear aperture greater than 95%, ensuring effective light transmission and minimal distortion for precise imaging and diagnostics.
Key Features
- Diameter range: 1.5 mm to 250 mm for versatile application fit.
- Thickness range: 1 mm to 50 mm to meet specific design needs.
- Surface quality of 60/40 ensures minimal optical distortion.
- Clear aperture greater than 95% for optimal light transmission.
- Diameter and thickness tolerances of ±0.1 mm for precision.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 125.8 x 25.5 |
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Step |
| Diameter | 1.5 mm |
| Thickness | 1 mm |
| Surface Quality | 60/40 |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Diameter Tolerance | ±0.1mm |
| Thickness Tolerance | ±0.1mm |
| Parallelism | <10 arc min |
| Clear Aperture | >95% |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
Can I get custom sizes?
Custom sizes are available, including variant sizes like 125.8 mm by 25.5 mm.
What are the tolerances for diameter and thickness?
Diameter and thickness tolerances are both ±0.1 mm.
