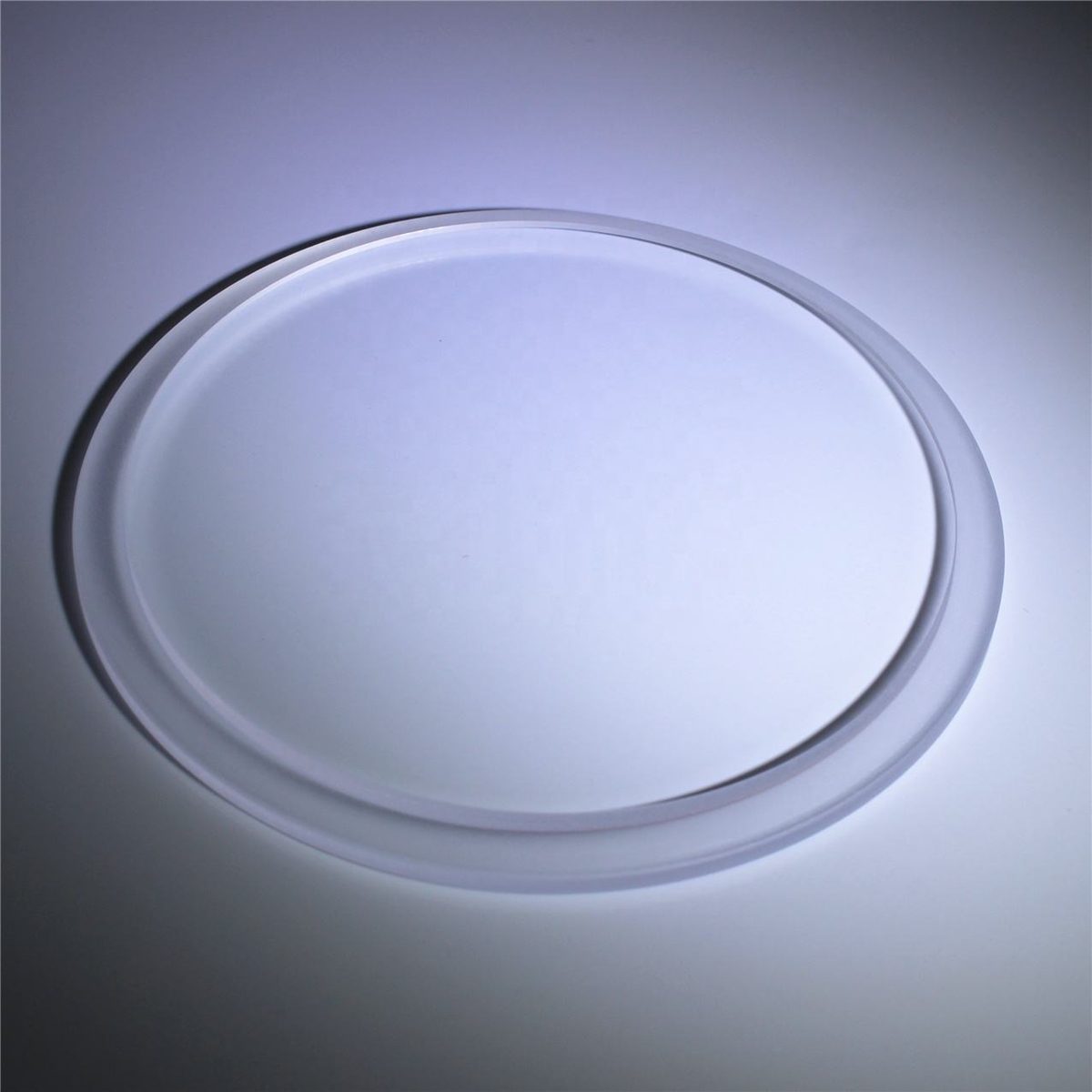

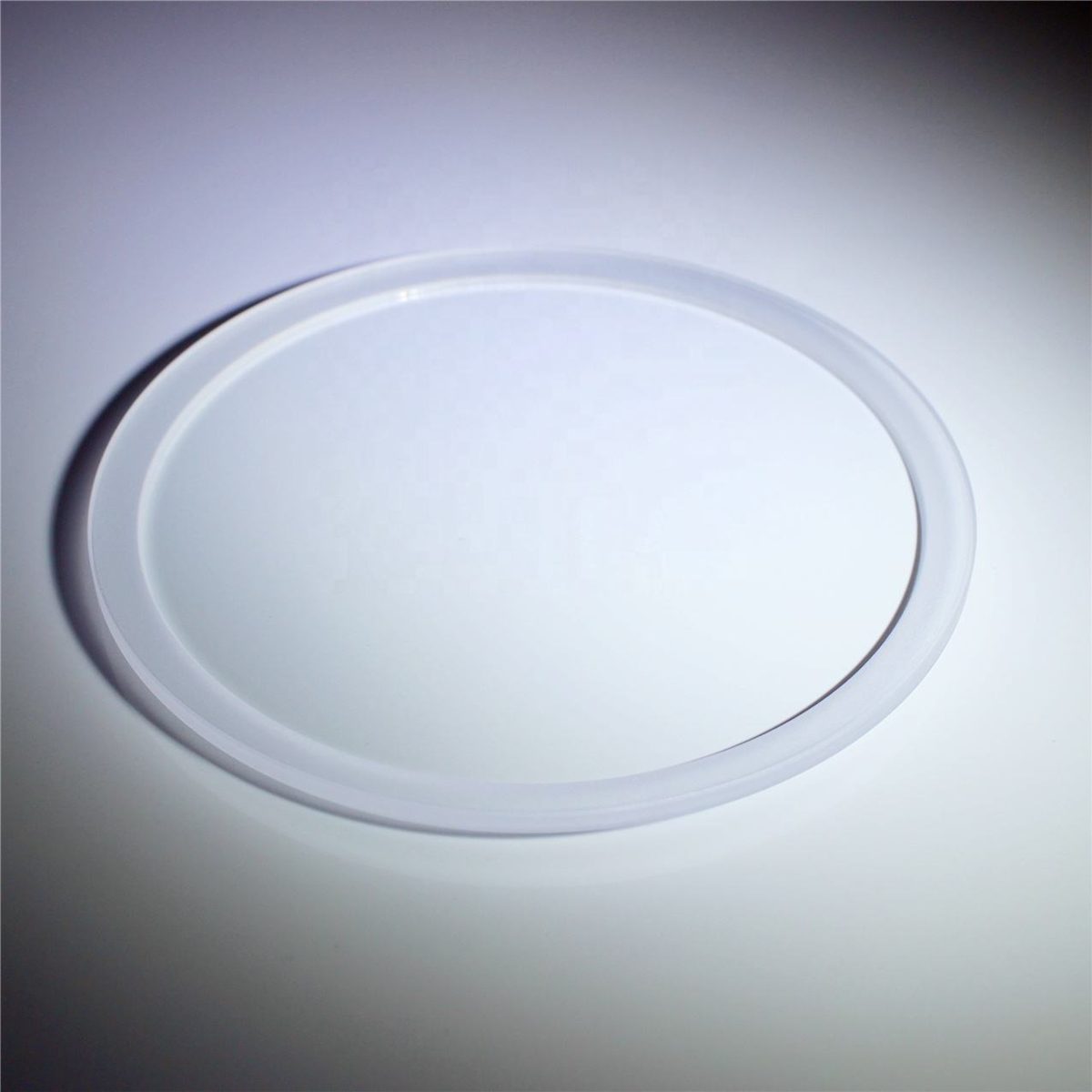

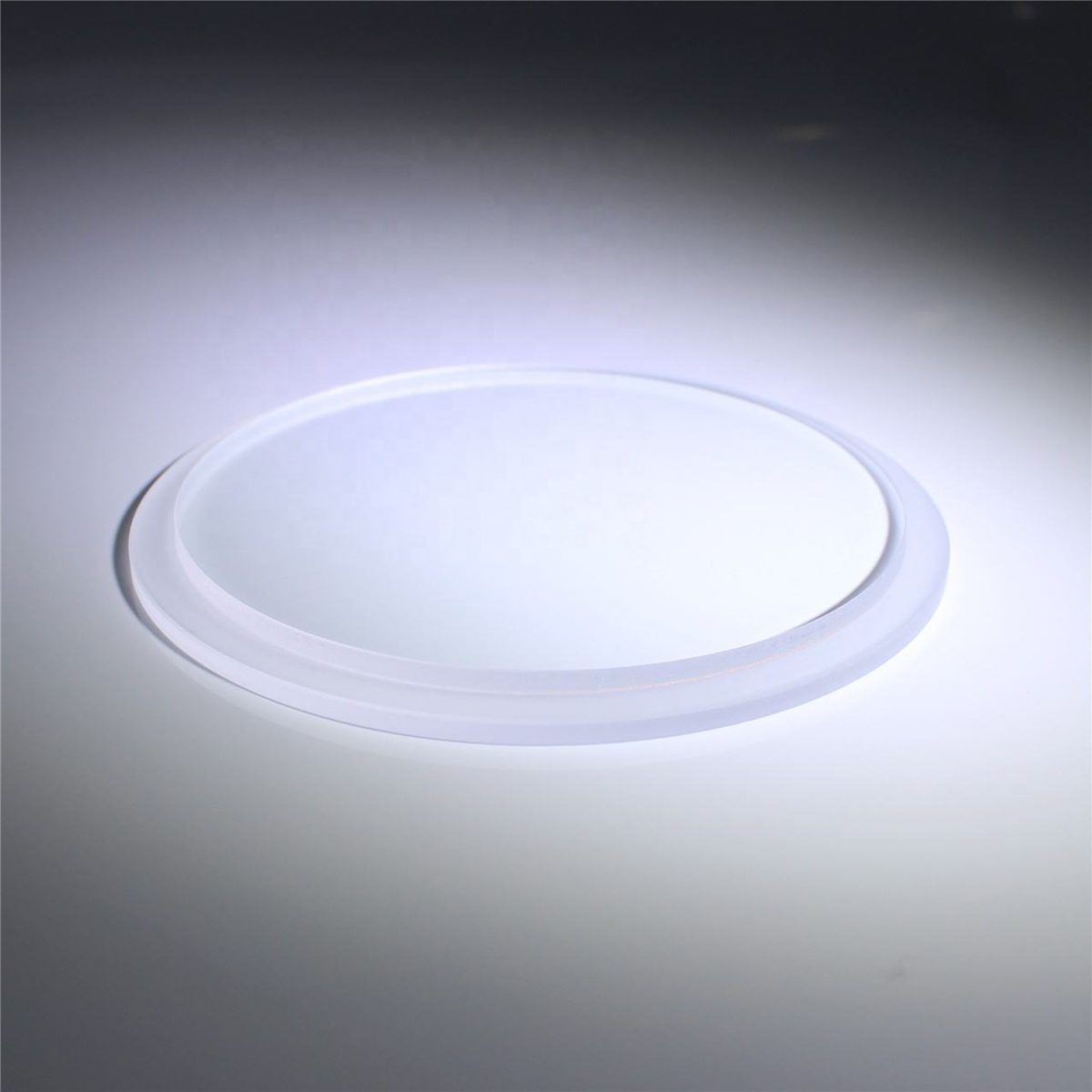

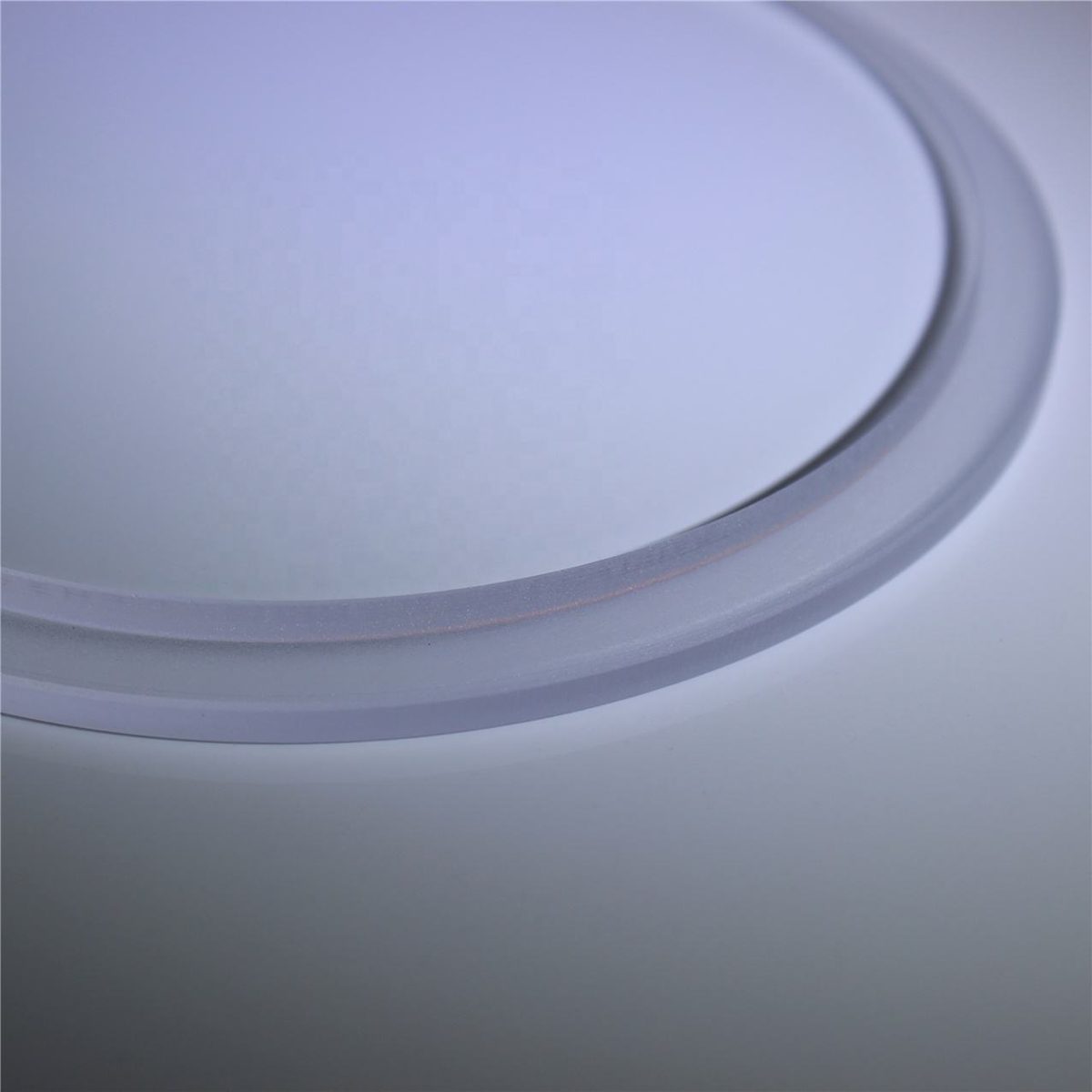

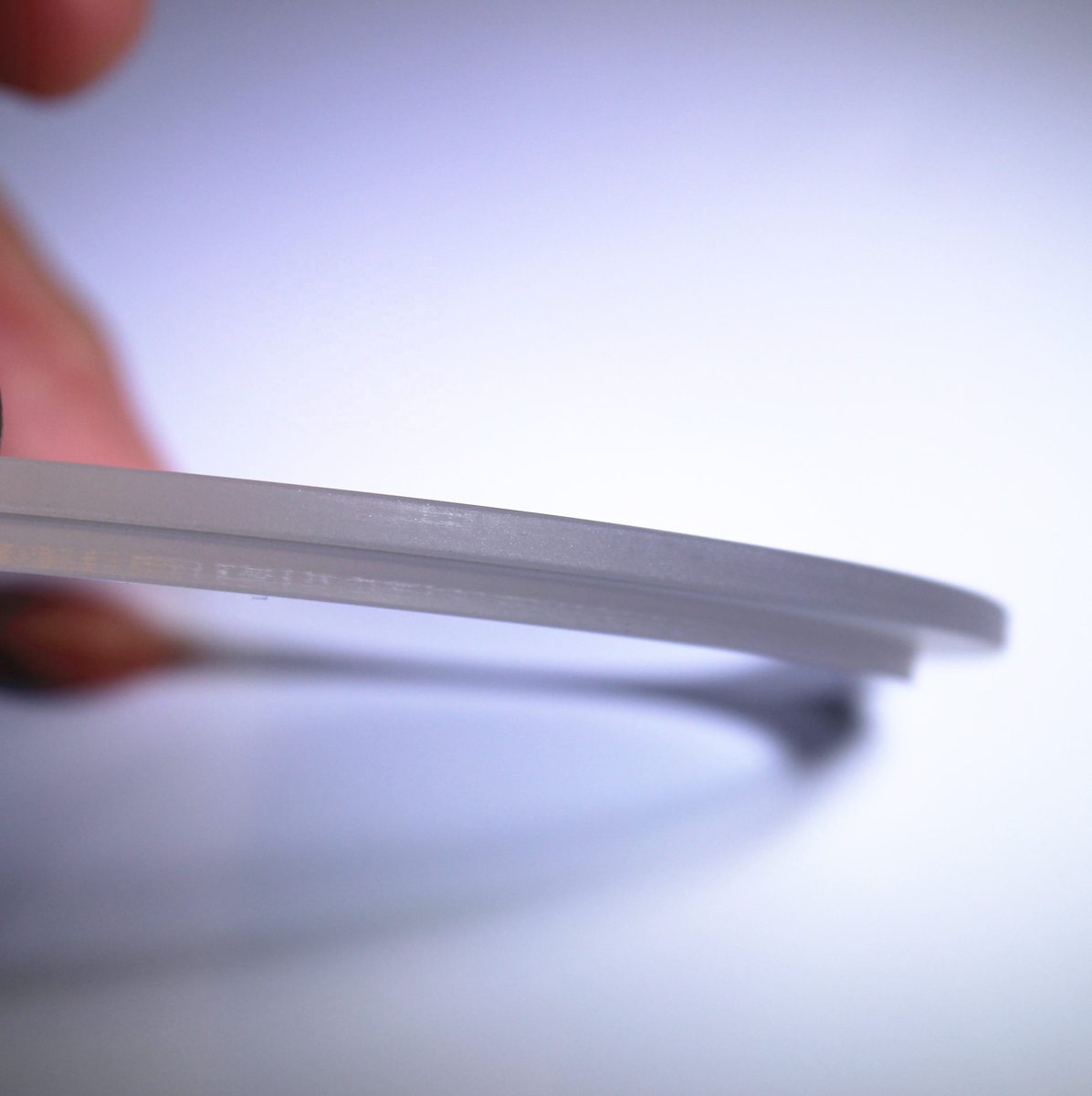

3x0.1 mm N-BK7 Step Optical Window, AR Coated

Product description

This N-BK7 optical glass lens is designed for security applications, providing high performance with a surface quality of 10/5. With a diameter of 3.0 mm and a thickness of 0.15 mm, it ensures optimal light transmission and durability. The lens features anti-reflective coatings, enhancing its suitability for precision optical systems. Custom sizes and prototypes are available, making it adaptable for various project requirements.

Key Features

High surface quality (10/5) ensures minimal distortion for clear imaging.
Diameter tolerance of +/-0.01 mm allows for precise fitting in optical assemblies.
Thickness tolerance of +/-0.1 mm supports consistent performance across batches.
Customizable sizes available, accommodating specific project needs.
OEM and ODM support for tailored solutions and rapid prototyping.

Available Sizes

Diameter x Thickness (mm)
3 x 0.1

Applications

Security

Specification Summary

Item	Value
Material	N-BK7
Shape	Step
Diameter	3 mm
Thickness	0.1 mm
Surface Quality	10/5
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Warranty	1 year
Customized Support	OEM, ODM
Power	as request
Voltage	as request
Type	Optical Glass Lens
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+/-0.1mm
Surface Figure	lamda/10(PV flat surface can achieve 0.03um per 150mm)

FAQ

What custom sizes are available?

Custom sizes range from 3.0 mm to 460 mm in diameter and 0.15 mm to 30 mm in thickness.

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.01 mm and thickness tolerance is +/-0.1 mm.
