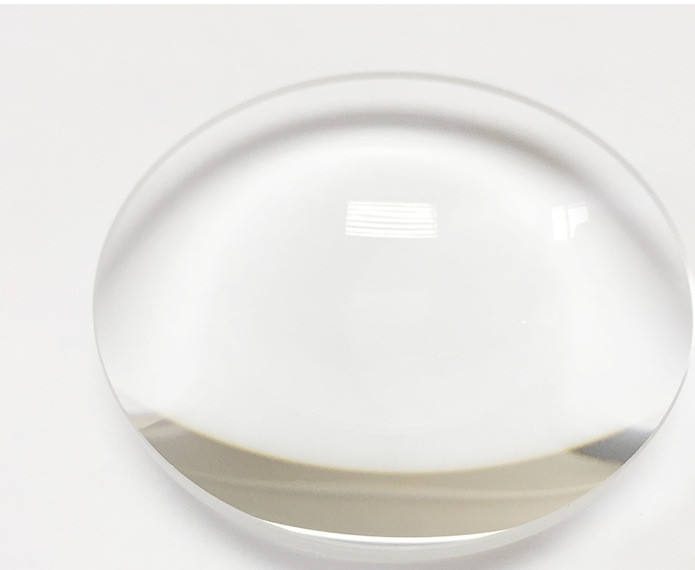

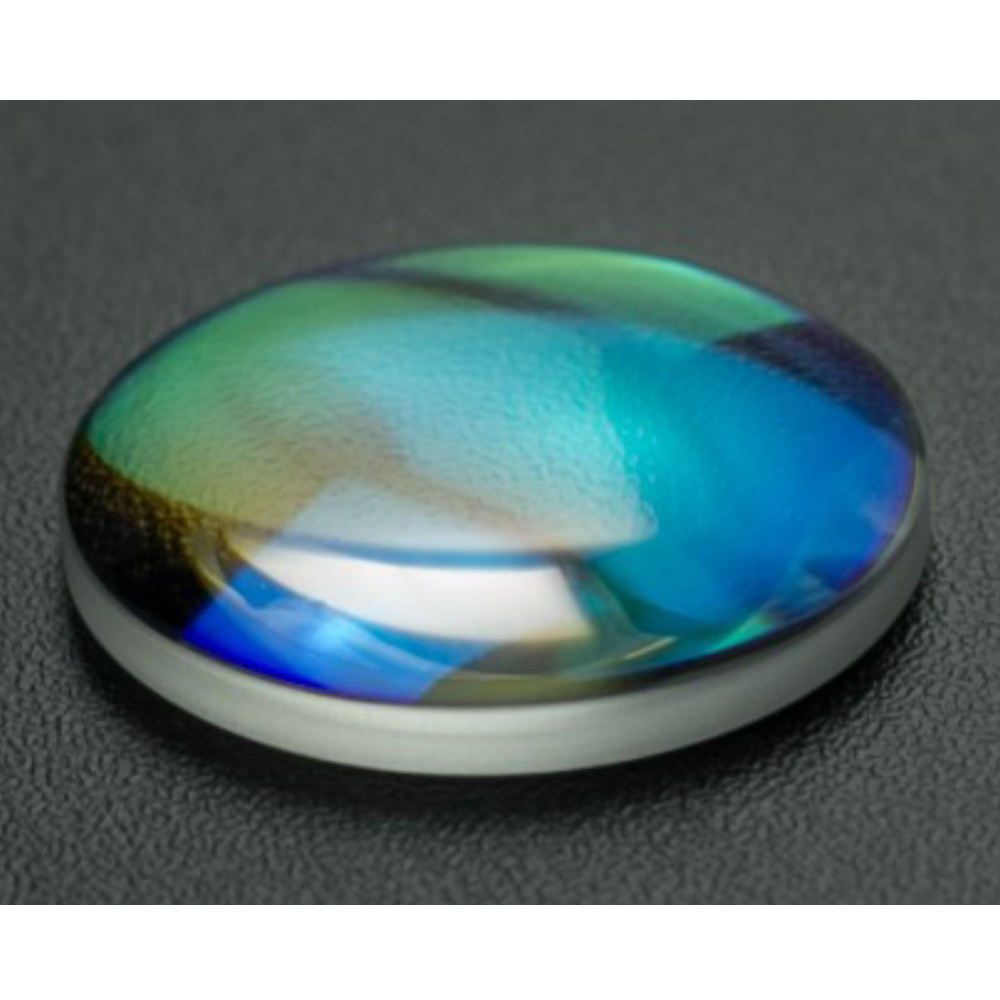

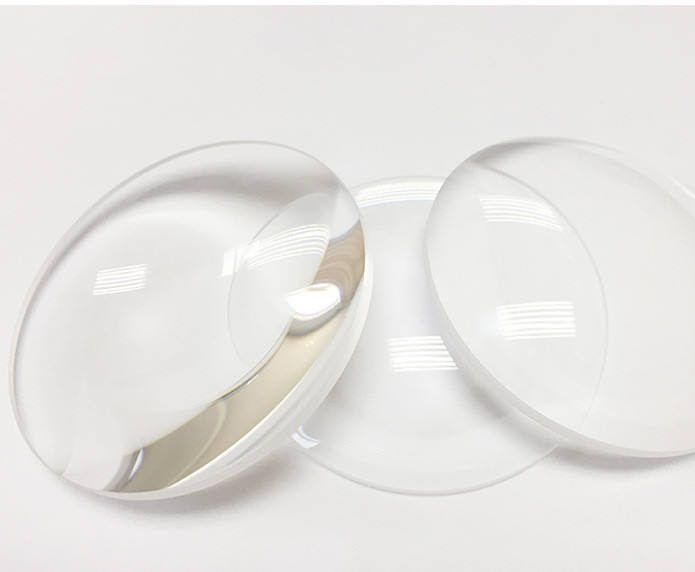

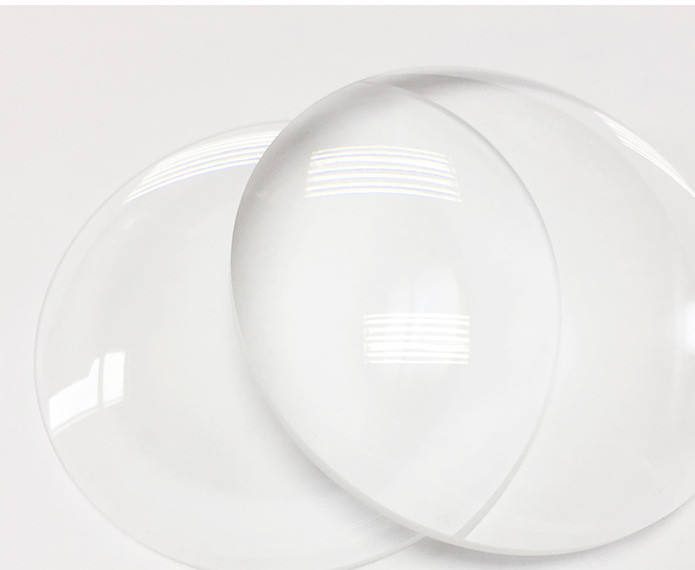

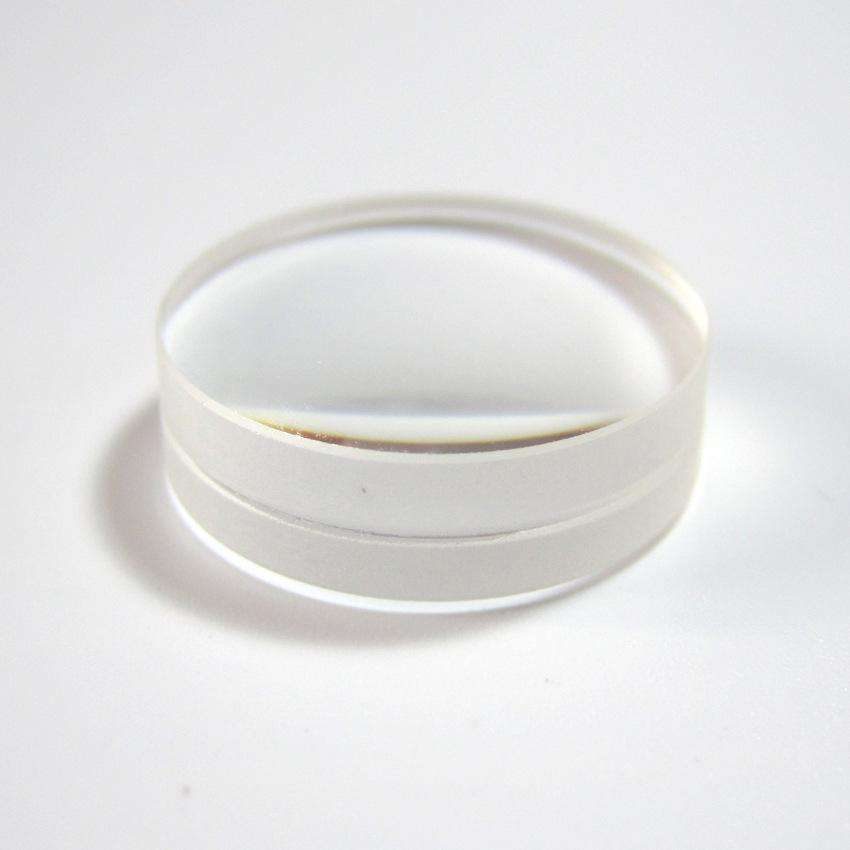

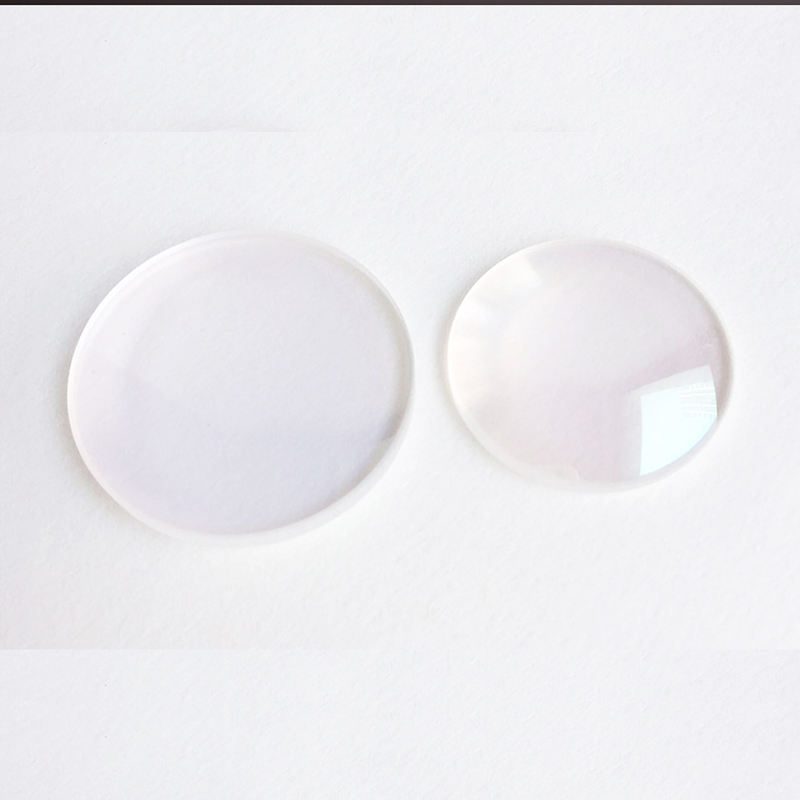

10 mm Optical Glass Achromatic Lens, AR Coated
High-performance achromatic lens for IR imaging and LIDAR applications, customizable for specific wavelengths.
Core attributes
- Material
- Optical Glass
- Shape
- Achromatic
- Diameter
- 10 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Achromatic
- Diameter
- 10 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The Achromatic Lens is designed for applications requiring high optical performance across multiple wavelengths, specifically in the 0.7-1.7 μm and 400-700 nm bands. Its anti-reflective coating minimizes glare and maximizes light transmission, making it ideal for IR imaging, LIDAR, and laser applications. With a diameter of 10 mm, this lens is suitable for compact systems while providing reliable performance in demanding environments.
Key Features
- Achromatic design ensures minimal chromatic aberration, enhancing image clarity.
- Anti-reflective coating improves light transmission, optimizing performance in various applications.
- Custom wavelength support available (1064 nm and 450-750 nm), catering to specific project needs.
- Lightweight at 0.5 kg (1.10 lb), facilitating easy integration into existing systems.
- OEM, OBM, and ODM customization options available for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Achromatic |
| Diameter | 10 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM, OBM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg(1.10lb) |
| Wavelength | 1064&450-750 (Customized Supported) |
FAQ
Is custom sizing available?
Custom sizes are supported through OEM, OBM, and ODM services.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
