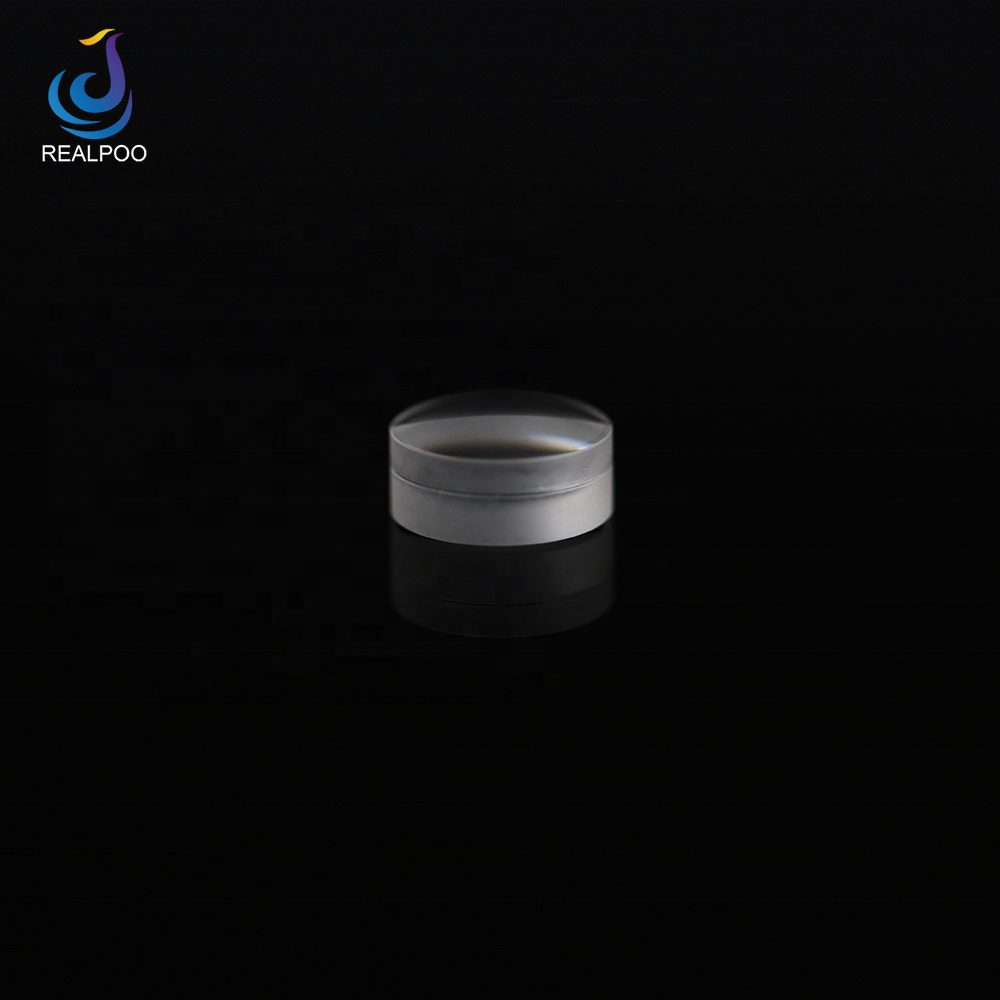

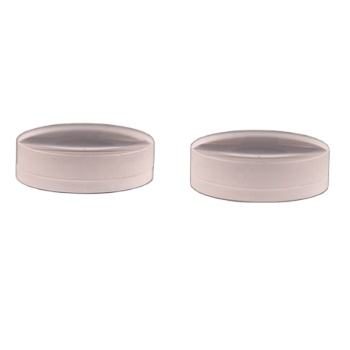

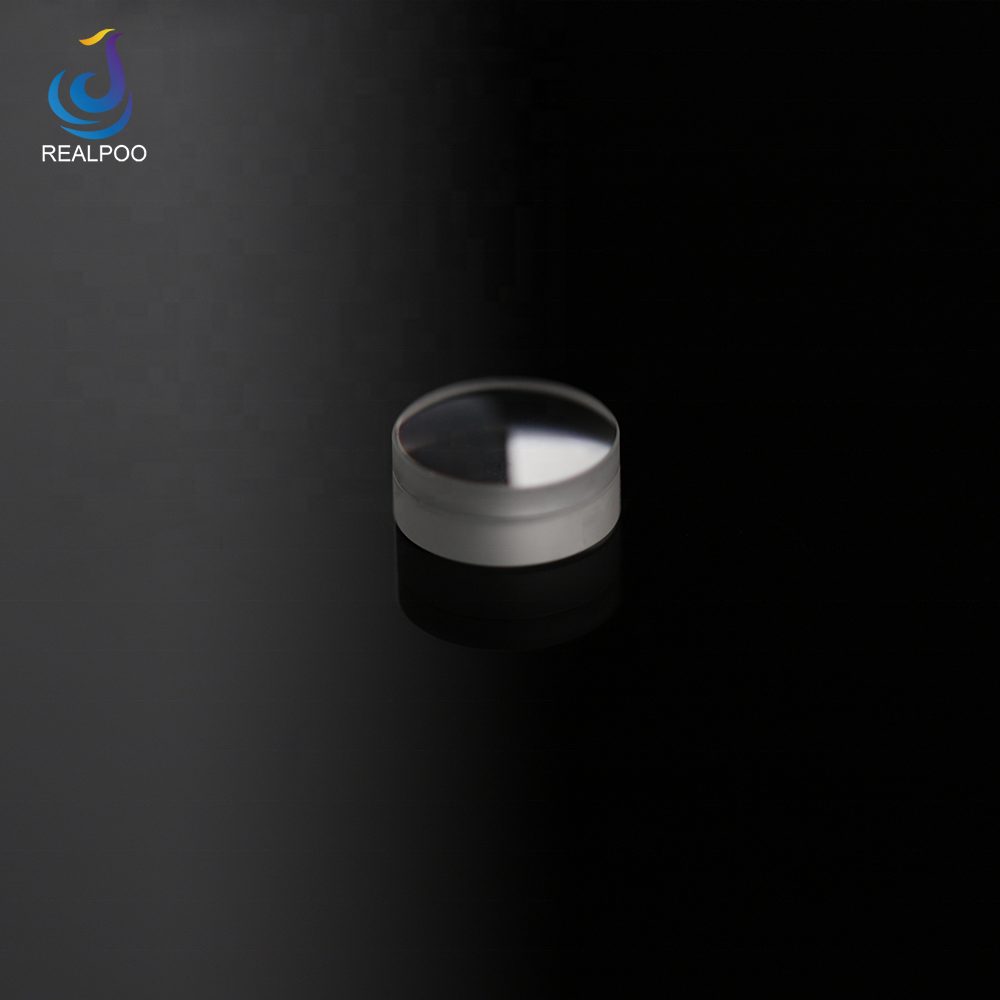

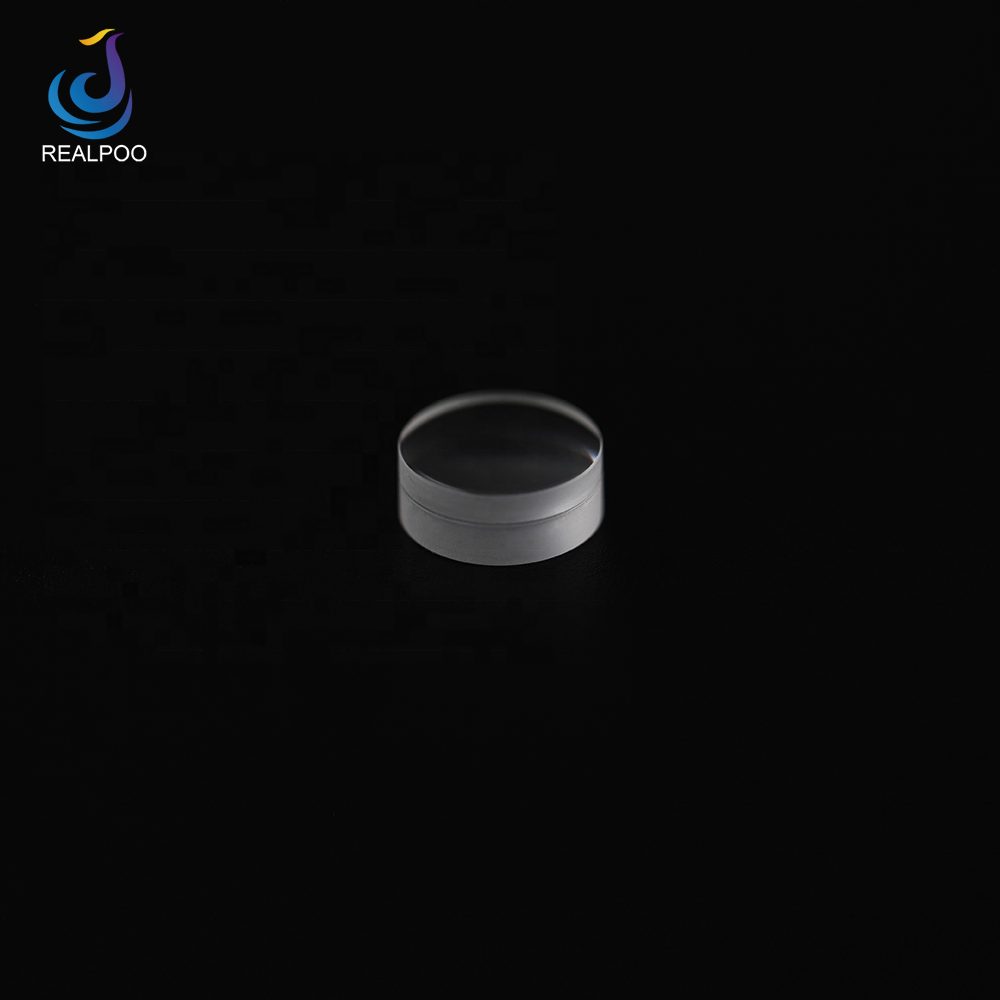

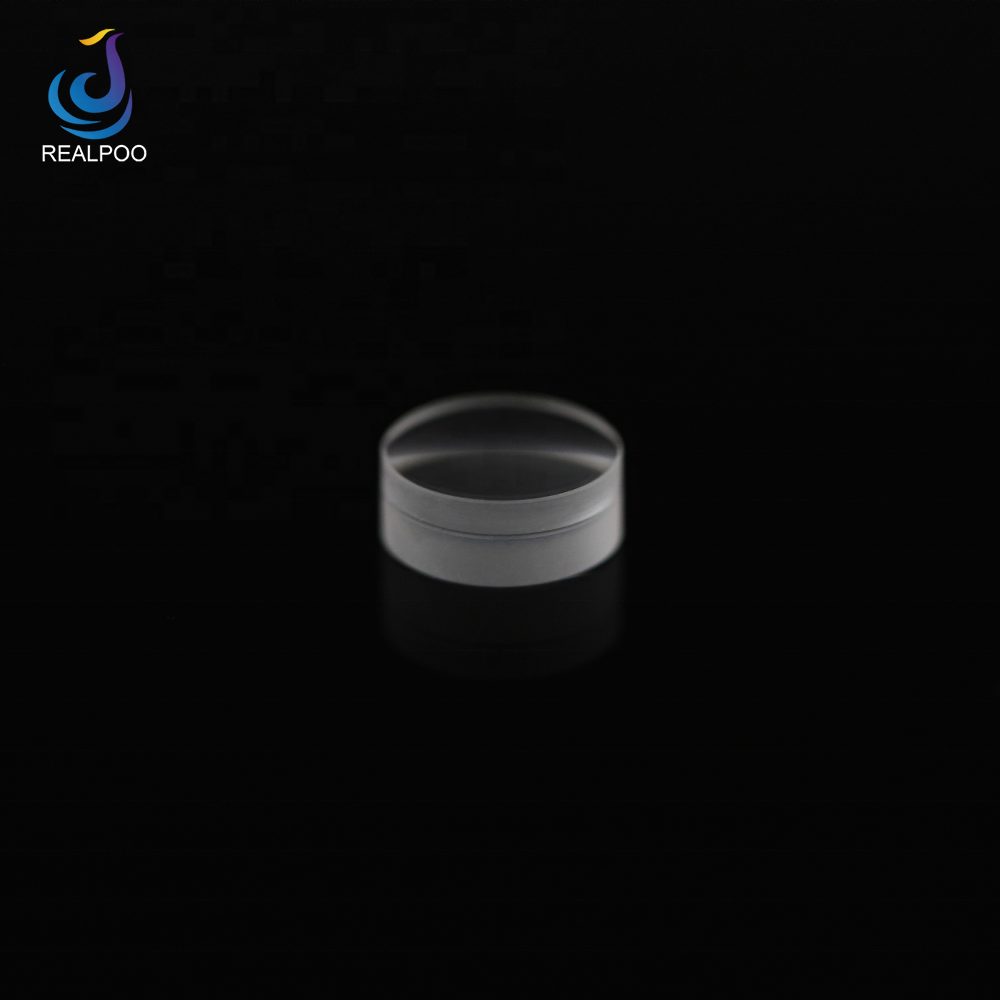

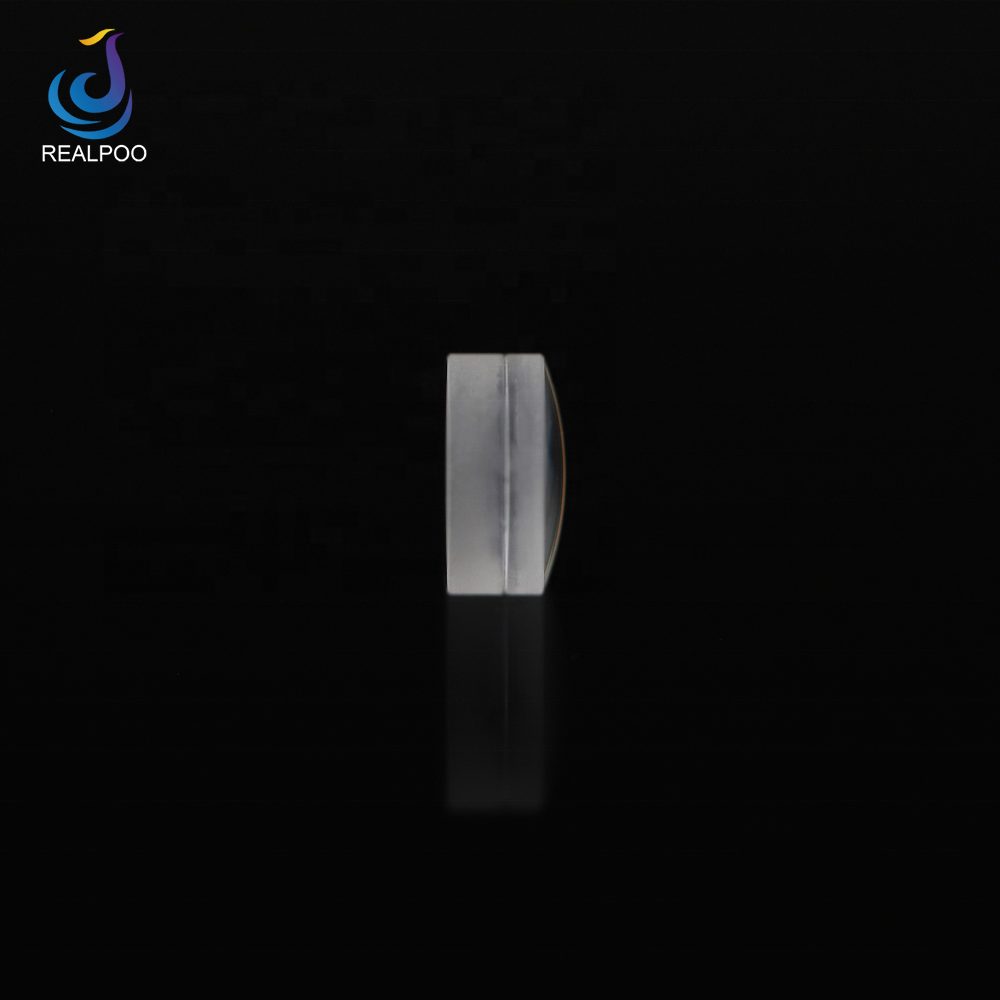

1 mm Optical Glass Achromatic Lens, AR Coated
Achromatic lens minimizes aberrations with high precision and customizable options for enhanced optical performance.
Core attributes
- Material
- Optical Glass
- Shape
- Achromatic
- Diameter
- 1 mm
- Thickness
- 0.1 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Achromatic
- Diameter
- 1 mm
- Thickness
- 0.1 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
Product description
The achromatic lens is designed to minimize chromatic and spherical aberrations, ensuring superior image quality for various optical applications. With a diameter of 1.0 mm and a thickness of 0.1 mm, this lens is suitable for compact optical systems. Its high precision tolerances and surface quality of 40/20 make it ideal for demanding applications in fields such as IR imaging, LIDAR, and machine vision. Customizable configurations and OEM support enhance its adaptability to specific project requirements.
Key Features
- Achromatic design minimizes chromatic aberrations, enhancing image clarity.
- Centration within <3 arc minutes ensures precise optical alignment.
- Surface quality rated at 40/20 guarantees high optical performance.
- Clear aperture greater than 90% maximizes light transmission.
- Customizable configurations available for tailored optical solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Achromatic |
| Diameter | 1 mm |
| Thickness | 0.1 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM |
| Weight | 0.1 |
| Centration | <3 arc minutes |
| Clear Aperture | >90% |
| Bevel | <0.2*45degree |
FAQ
Is custom sizing available for this lens?
Yes, customizable configurations are offered, including various designs.
What are the tolerances for this lens?
The lens meets precise tolerances of +0.0, -0.025 mm.
