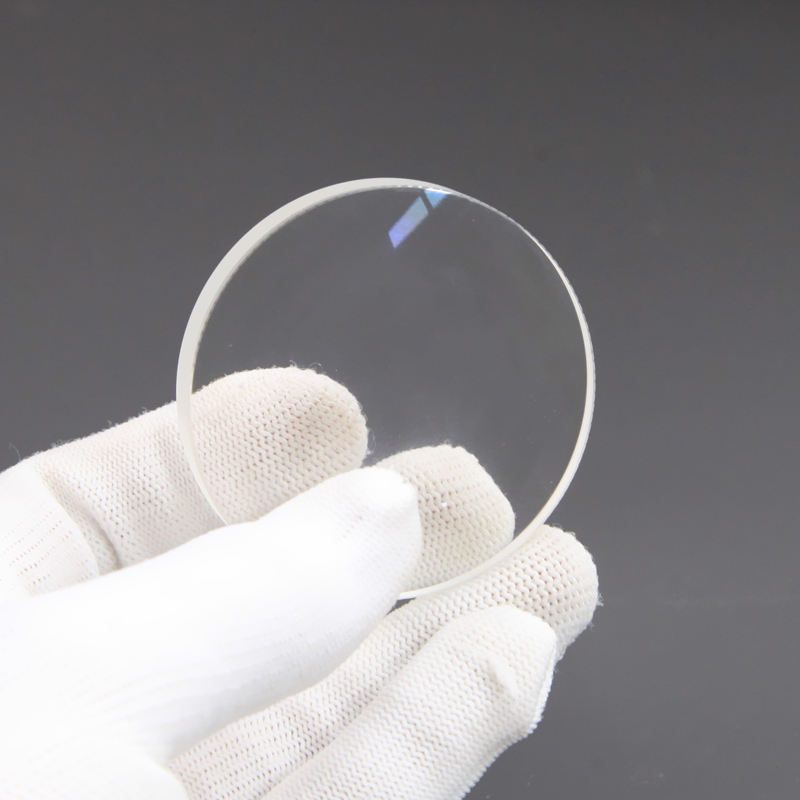

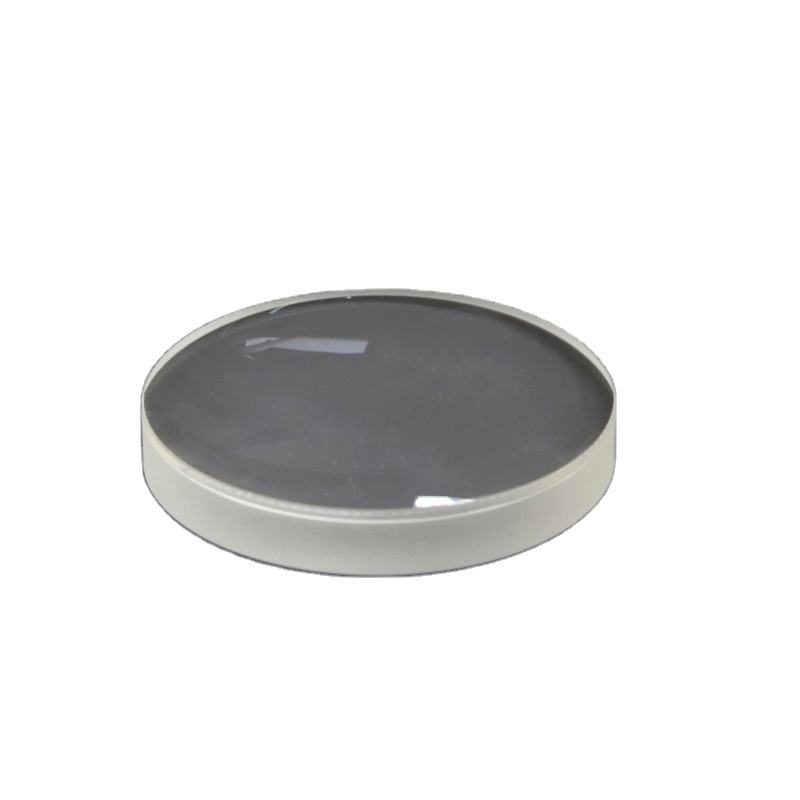

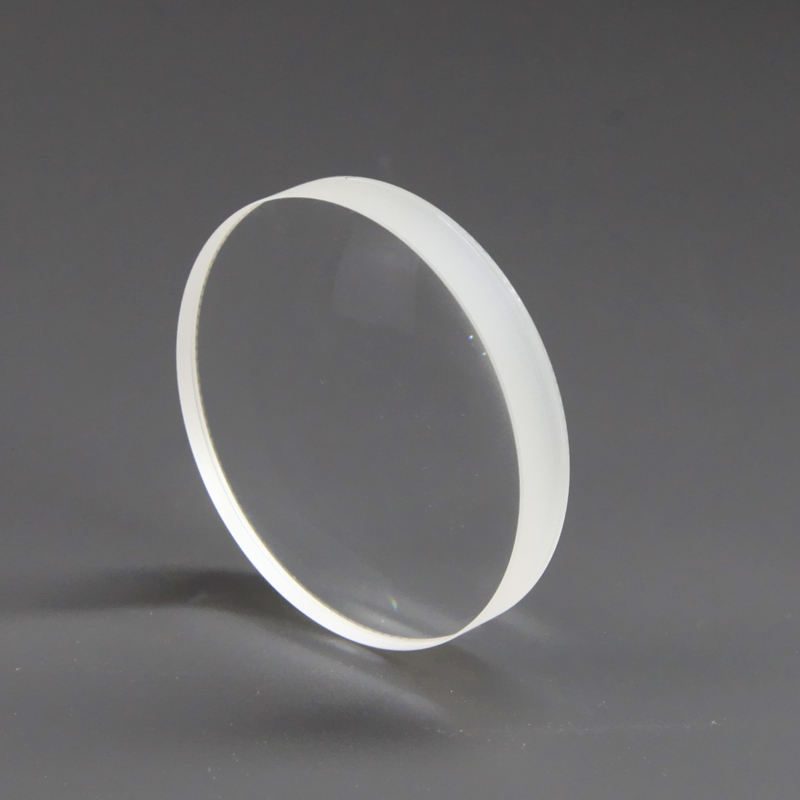

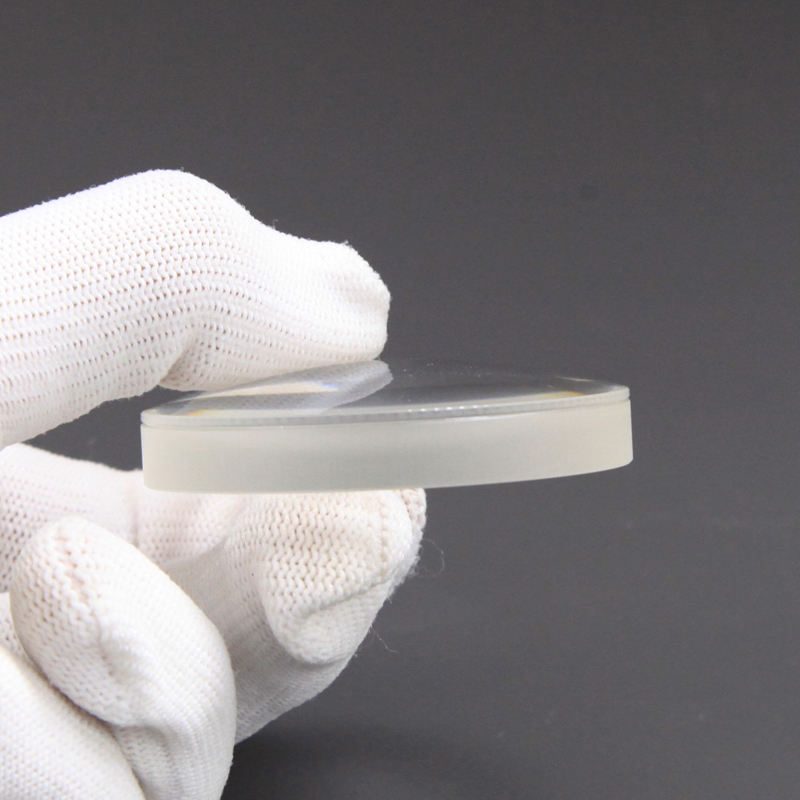

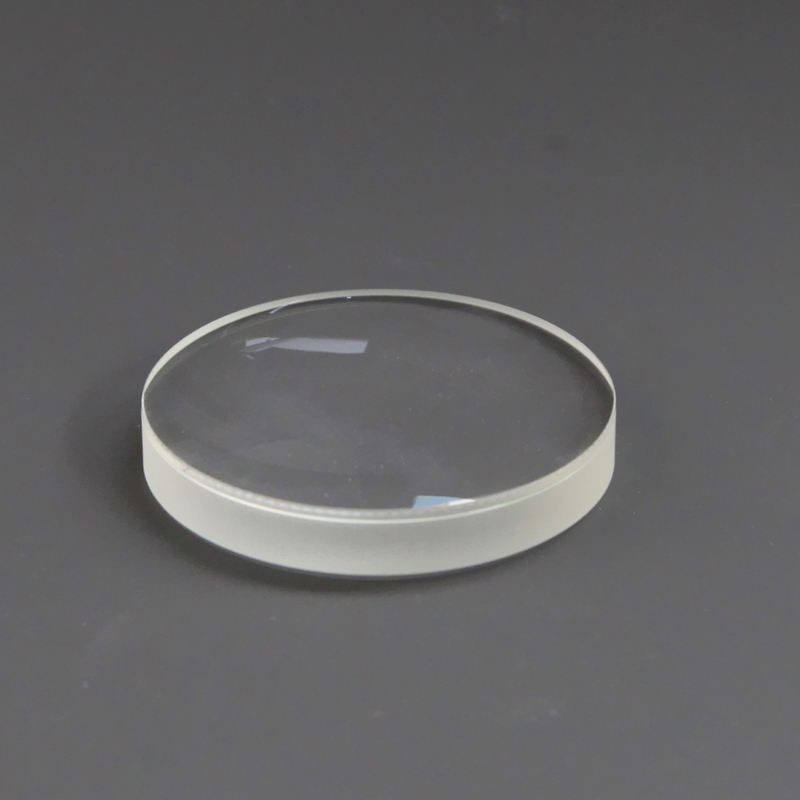

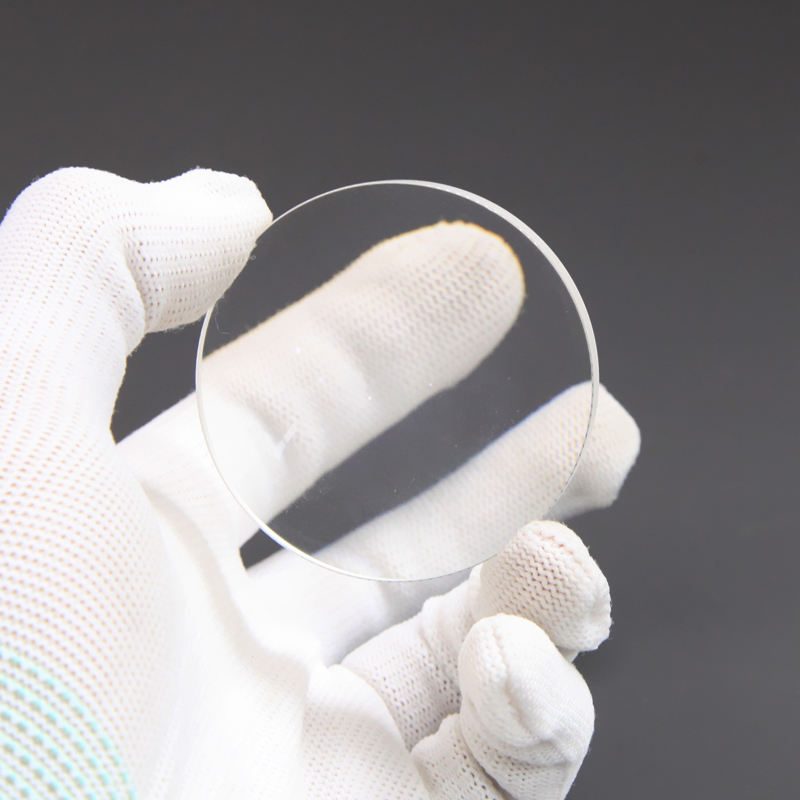

28x100 mm Optical Glass Achromatic Lens, AR Coated
Achromatic lens for imaging applications, 28 mm diameter, 100 mm focal length, custom sizes available.
Core attributes
- Material
- Optical Glass
- Shape
- Achromatic
- Diameter
- 28 mm
- Focal Length
- 100 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Achromatic
- Diameter
- 28 mm
- Focal Length
- 100 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This achromatic lens is designed for imaging applications across a broad spectrum, specifically within the 0.7-1.7 μm and 400-700 nm bands. Its construction minimizes chromatic and spherical aberrations, making it ideal for precision optical instruments. With a diameter of 28 mm and a focal length of 100 mm, this lens is suitable for various imaging tasks, ensuring high-quality performance in demanding environments.
Key Features
- Achromatic design reduces chromatic and spherical aberrations for clearer images.
- Coated with anti-reflective (AR) layers to enhance transmittance across specified bands.
- Diameter tolerance of +/-0.05 mm ensures consistent fit in optical systems.
- Clear aperture of 95% maximizes light transmission for improved imaging quality.
- Custom sizes available upon request, supporting diverse application needs.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 28 x 100 |
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Achromatic |
| Diameter | 28 mm |
| Focal Length | 100 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens; Achromatic Doublet Lenses |
| Customized Support | OEM |
| Warranty | 3 Years |
| Weight | 0.5 |
| Color | Transparent |
| Center Thickness | 8.4mm |
| Clear Aperture | 95% |
| Diameter Tolerance | +/-0.05mm |
FAQ
Can I get custom sizes for this lens?
Yes, a wide range of focal lengths and diameters are available upon request.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
