1 / 6Lenses

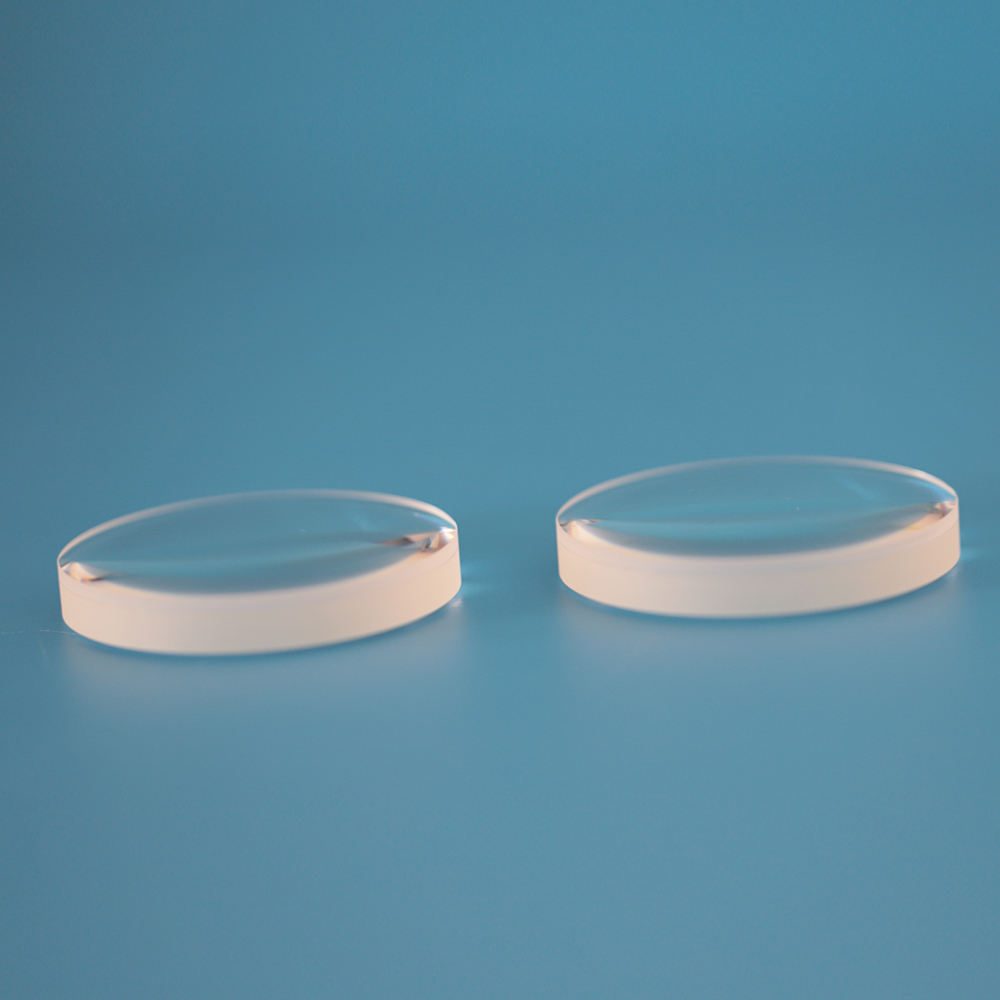

54x230 mm Optical Glass Achromatic Lens, AR Coated
Achromatic Lens for 400-700 nm applications, minimizing aberrations with OEM support and precise specifications.
Core attributes
- Material
- Optical Glass
- Shape
- Achromatic
- Diameter
- 54 mm
- Focal Length
- 230 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Achromatic
- Diameter
- 54 mm
- Focal Length
- 230 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
The Achromatic Lens is designed to minimize chromatic and spherical aberrations, providing superior image quality for applications in the 400-700 nm wavelength range. With a diameter of 54 mm and a focal length of 230 mm, this lens is ideal for use in optical systems requiring high precision. The lens features a single-layer anti-reflection coating, ensuring optimal performance in visible and near-infrared applications. Sourced from Jilin, this lens offers reliable quality and performance.
Key Features
- Achromatic design reduces chromatic aberration for clearer images.
- Diameter of 54.0 mm and focal length of 230.0 mm fit standard optical systems.
- Surface quality rated at 20/10 ensures high clarity and minimal distortion.
- OEM support available for customized solutions to meet specific project needs.
- Diameter tolerance of 0.04 to -0.01 mm ensures precision fitting.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 54 x 230 |
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Achromatic |
| Diameter | 54 mm |
| Focal Length | 230 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM |
| Warranty | A month |
| Weight | 0.2 |
| Product | achromatic lens |
| Diameter Tolerance | 0.04~-0.01 |
| Center Thickness Tolerance | ±0.1mm |
| Centration | 1 arc minutes |
FAQ
What is the minimum order quantity for this lens?
The minimum order quantity (MOQ) is not specified.
Can I get this lens in custom sizes?
Yes, the lens is available in various sizes, including custom options.
