1 / 6Lenses

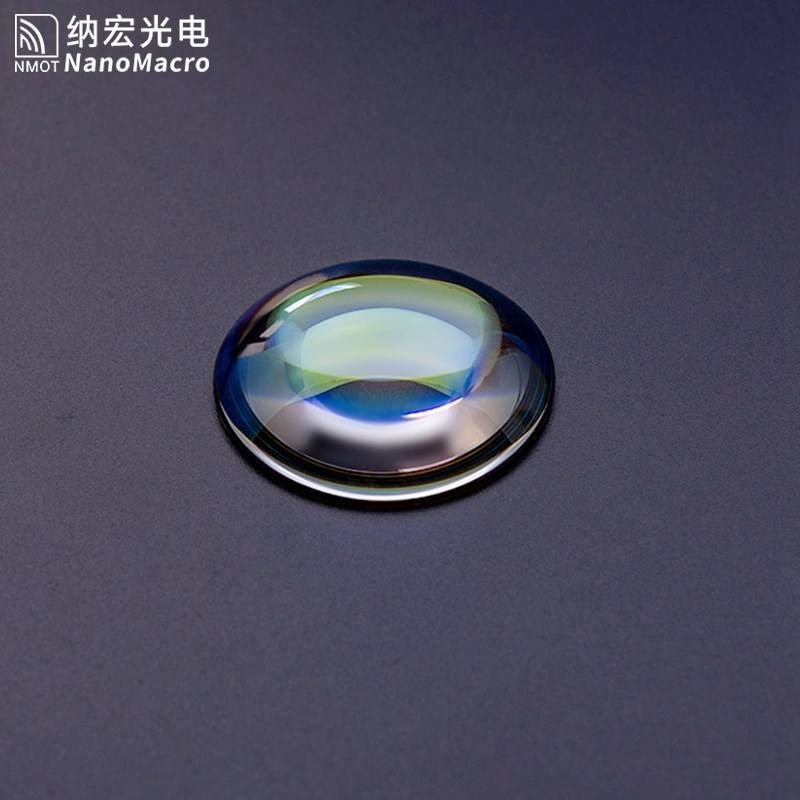

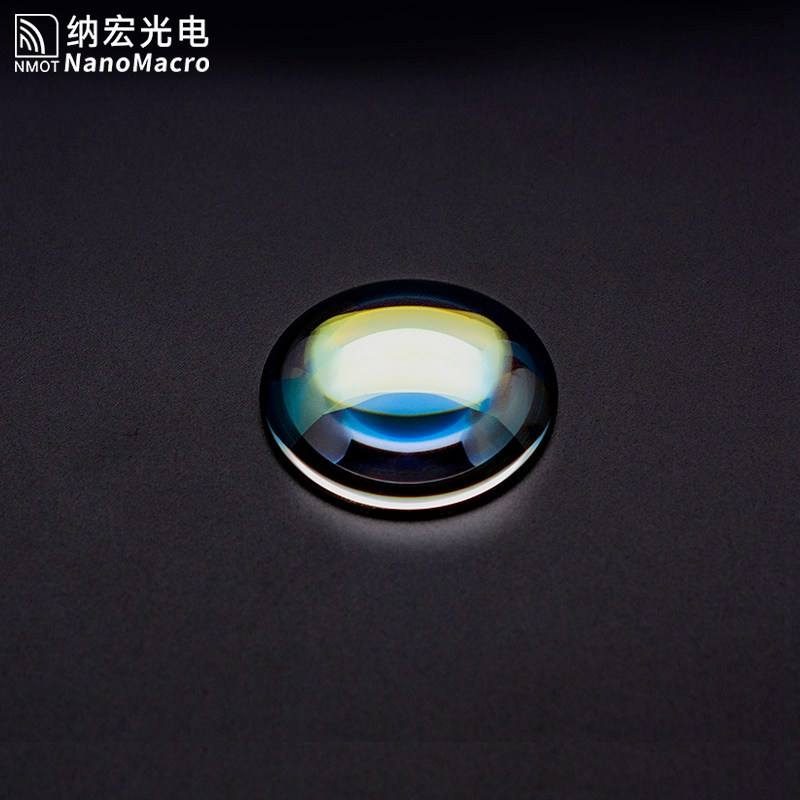

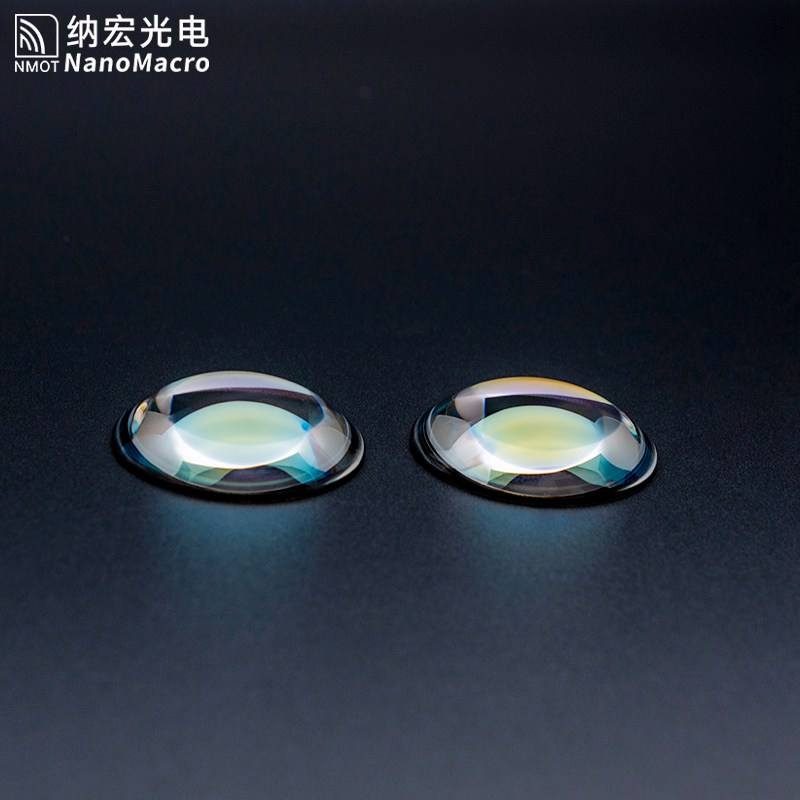

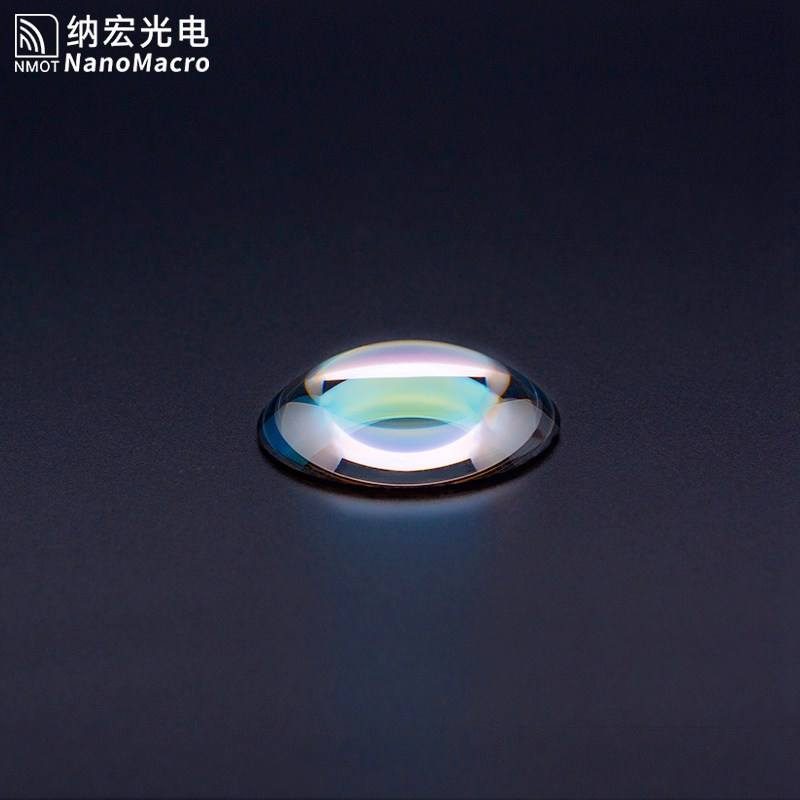

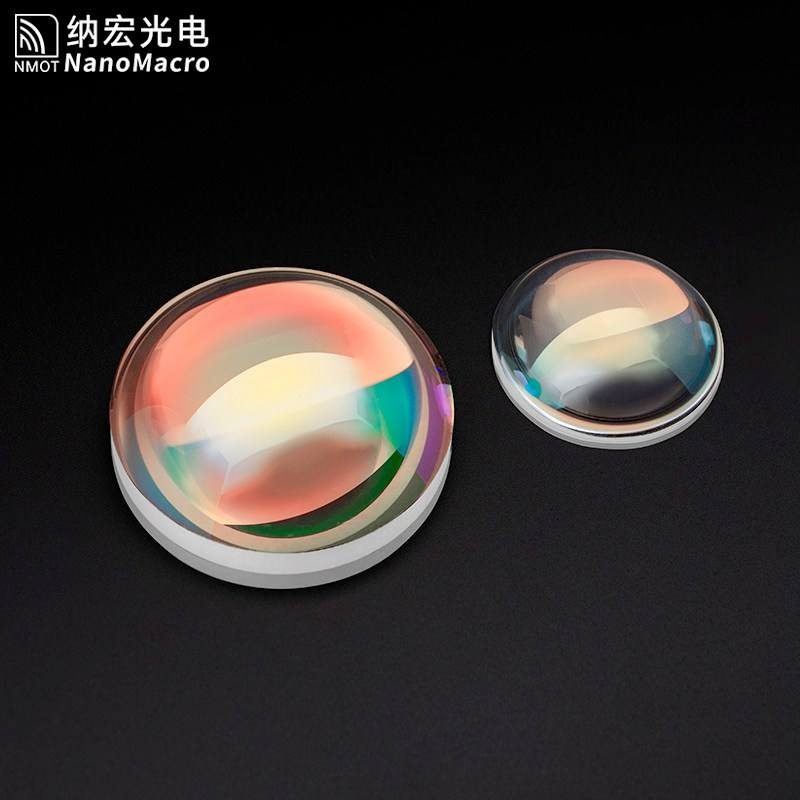

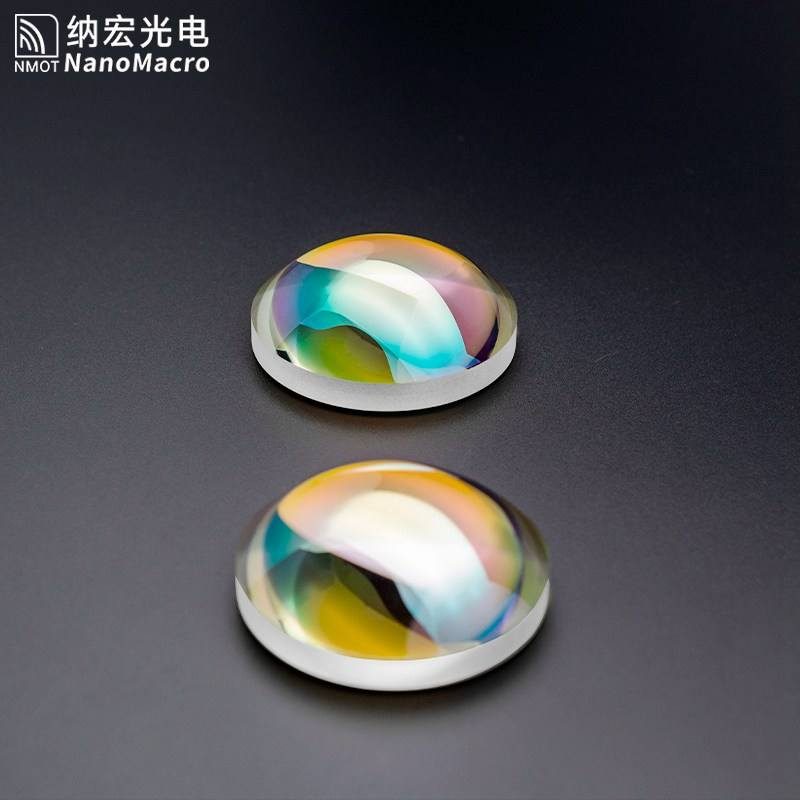

25x15 mm Optical Glass Aspheric Lens, AR Coated
Aspheric Optical Lens for medical applications, 25mm diameter, 15mm focal length, AR coated for high transmission.
Core attributes
- Material
- Optical Glass
- Shape
- Aspheric
- Diameter
- 25 mm
- Focal Length
- 15 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Aspheric
- Diameter
- 25 mm
- Focal Length
- 15 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The Aspheric Optical Lens is designed for medical and optical instruments, providing high precision and reduced optical aberrations. With a diameter of 25mm and a focal length of 15mm, it operates effectively within the 0.7-1.7 μm and 400-700 nm bands. The lens features anti-reflective coatings, ensuring over 99% transmission, making it ideal for applications requiring sharp images and compact designs. Its lightweight construction allows for seamless integration into various medical and optical devices.
Key Features
- Diameter of 25mm and focal length of 15mm for versatile application in medical instruments.
- AR coating for over 99% transmission in the 400-600nm range, enhancing image clarity.
- Surface quality rated at 60/40, ensuring reliable optical performance.
- Customizable options available for OEM and ODM projects to meet specific needs.
- Sample units offered for evaluation, facilitating prototyping and testing.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 25 x 15 |
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Aspheric |
| Diameter | 25 mm |
| Focal Length | 15 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Aspherical Lens; Aspheric Lenses |
| Customized Support | OEM, ODM |
| Weight | 0.1KG(0.22lb) |
| Sample | Offered |
FAQ
Can I get custom sizes for this lens?
Yes, customizable options are available for OEM and ODM projects.
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
