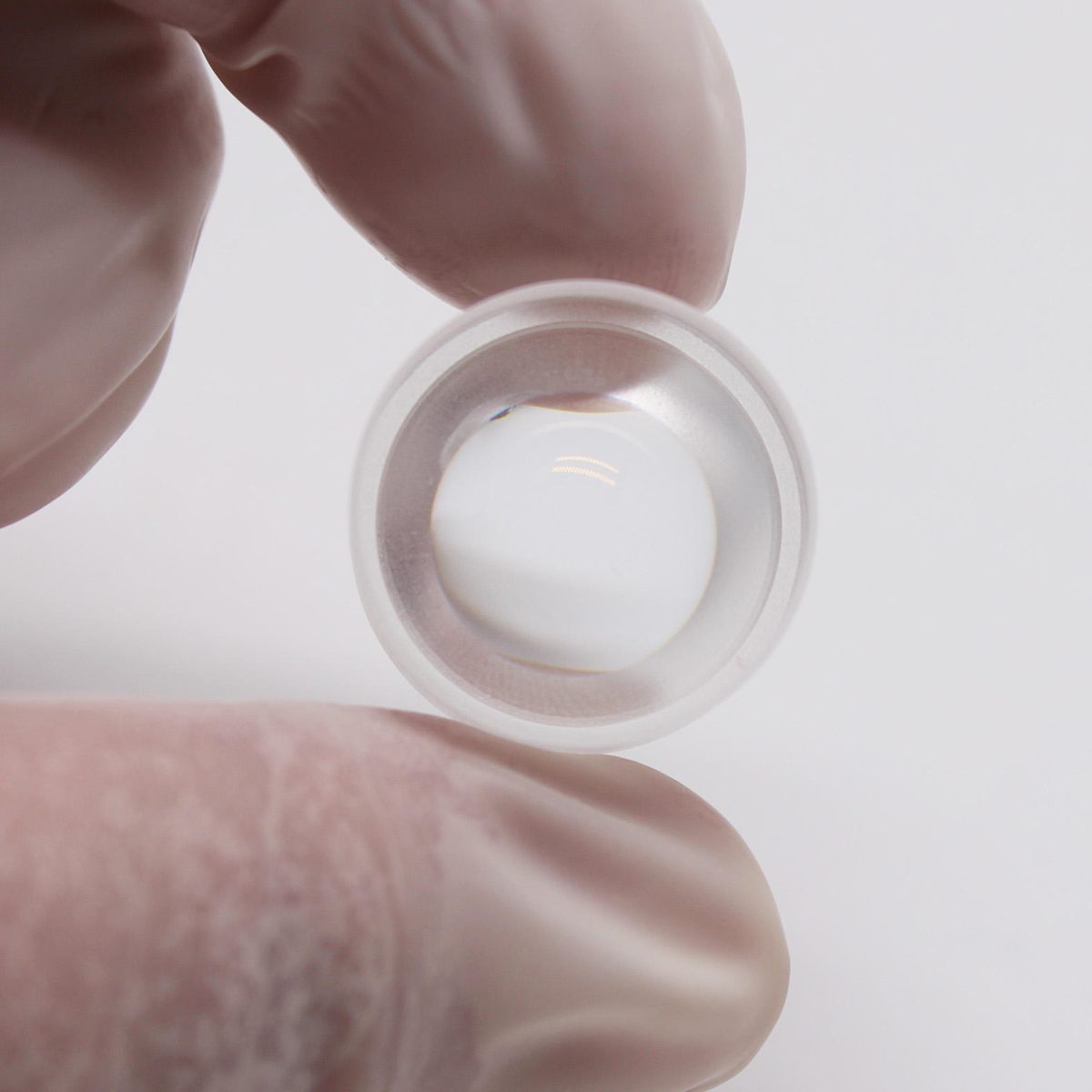

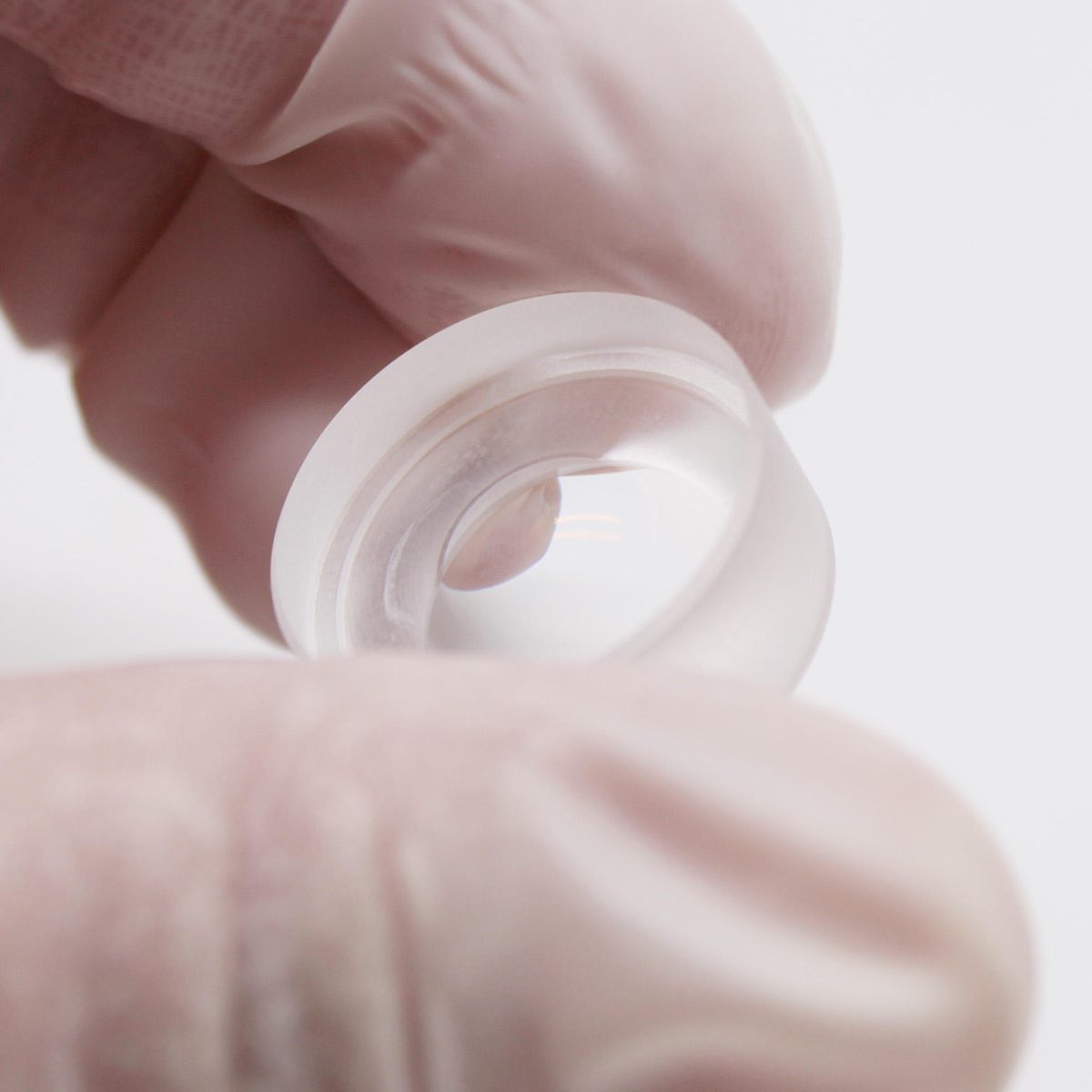

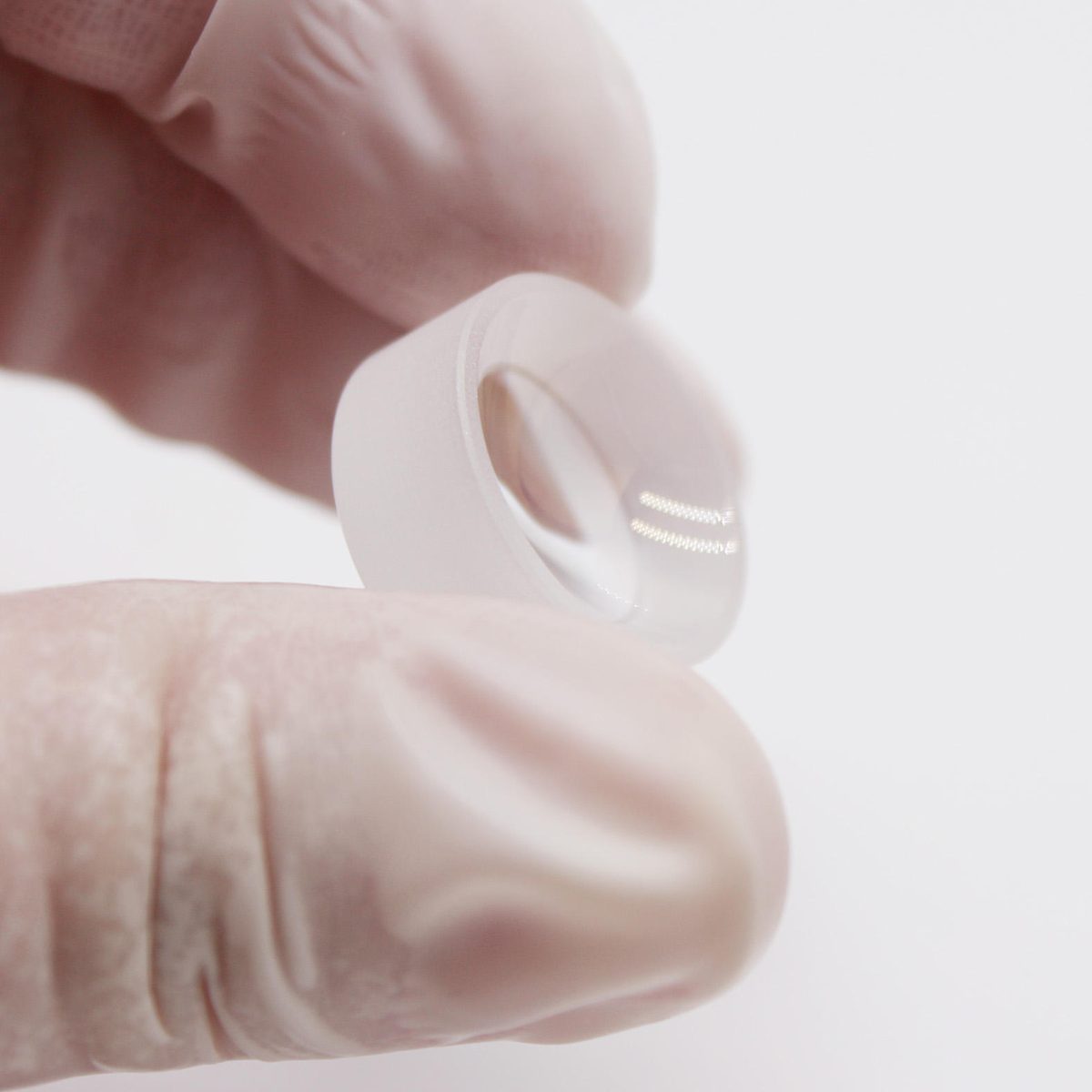

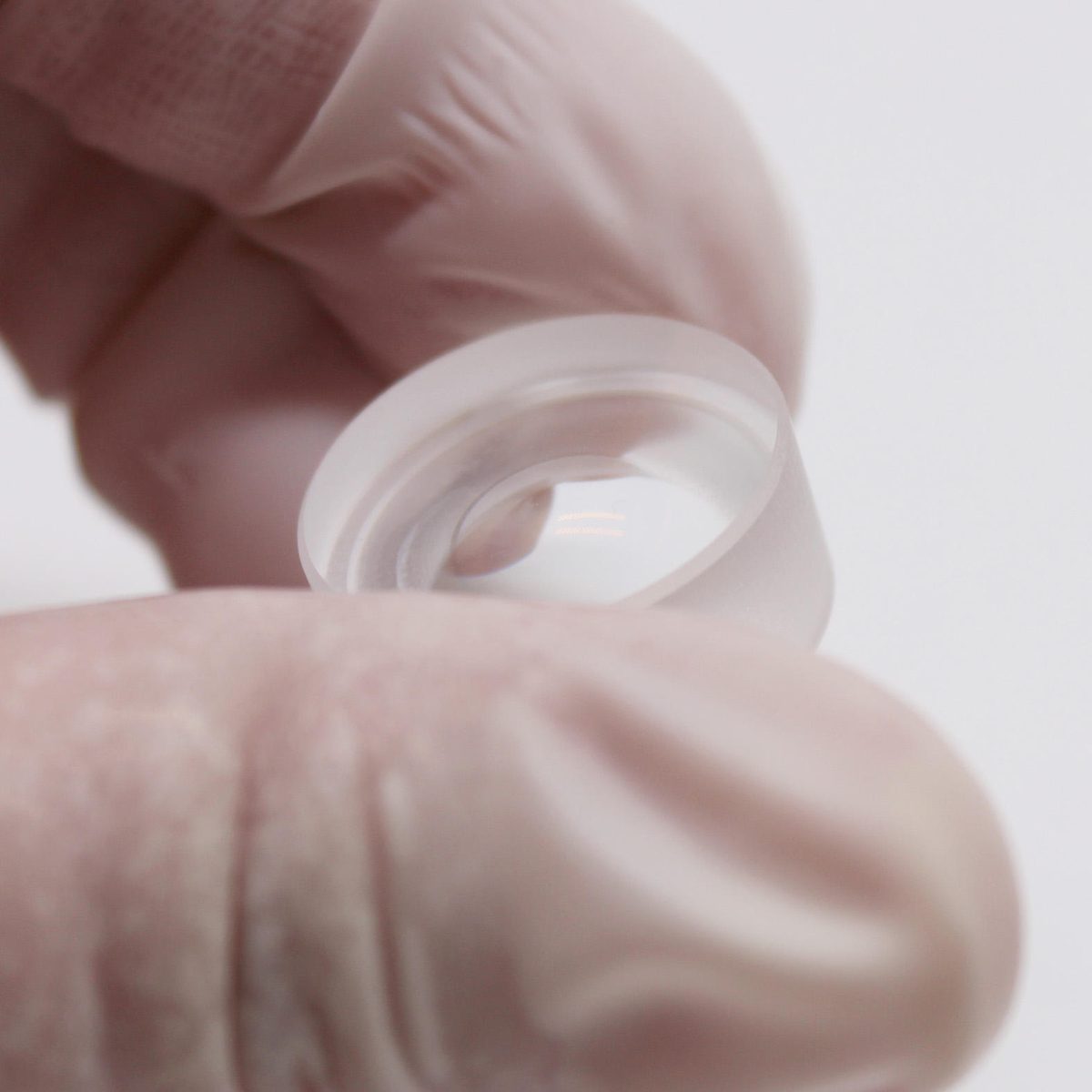

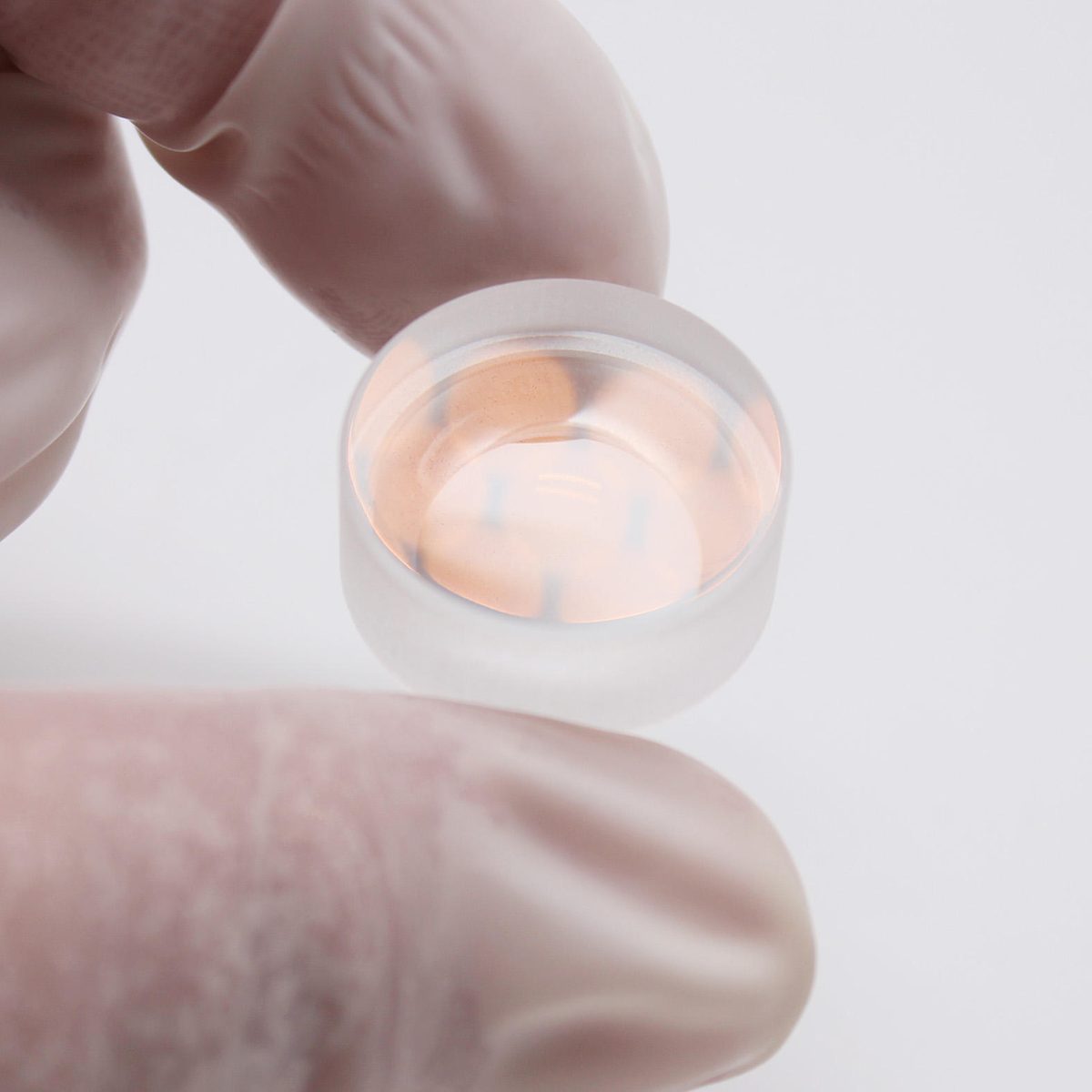

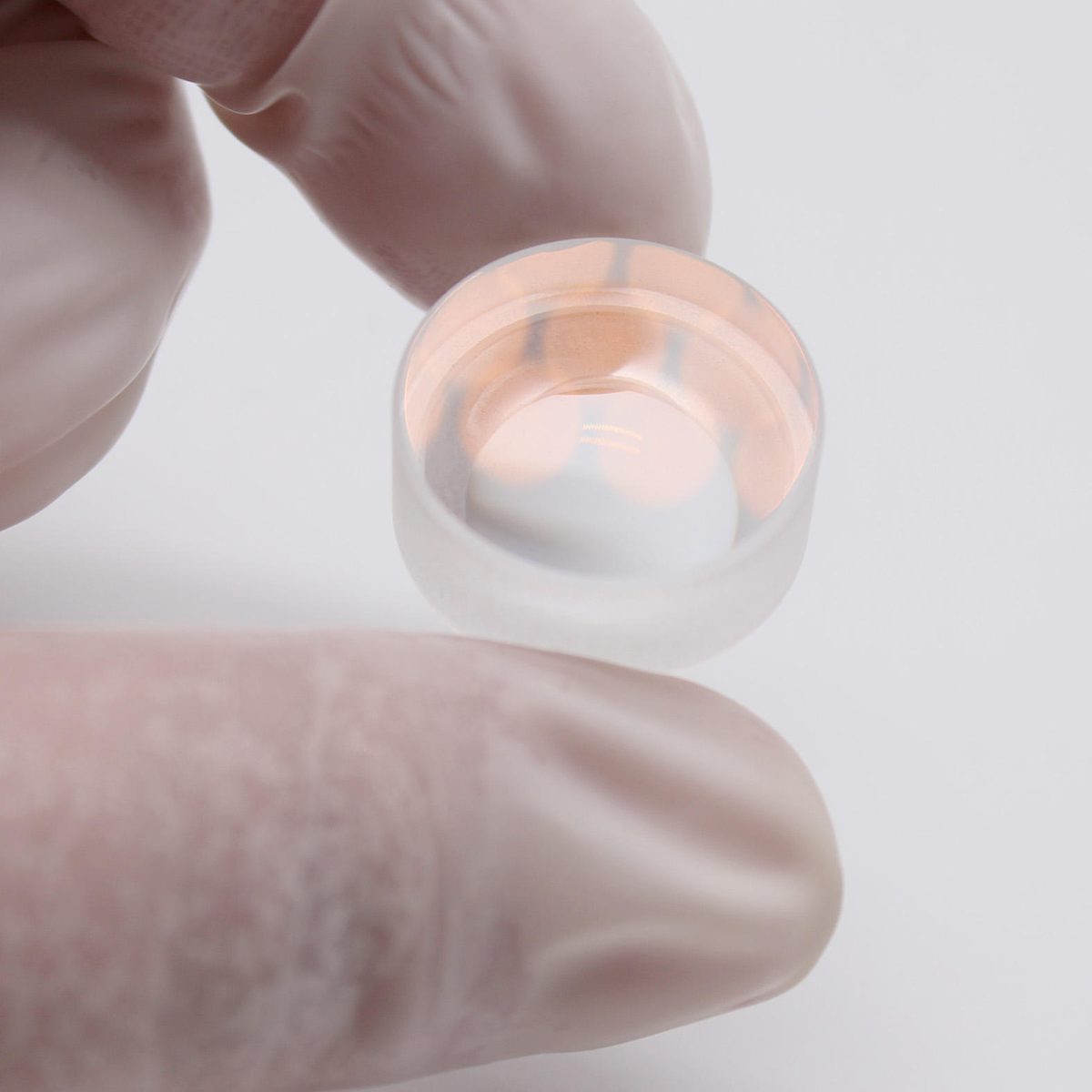

3 mm Optical Glass Aspheric Lens, AR Coated

Product description

The Optical Aspheric Lens is engineered to minimize spherical aberration, enhancing imaging quality for applications in machine vision, medical devices, and collimation. With a diameter of 3.0 mm and a surface quality of 20/10, this lens is ideal for precision optical systems that require high resolution and low distortion. Its aspheric design allows for a more compact optical system, making it suitable for both standard and custom solutions.

Key Features

Diameter of 3.0 mm with a tolerance of +/- 0.01 mm for precise fitting.
Surface quality rated at 20/10 ensures high clarity and minimal distortion.
Aspheric design reduces spherical aberration, improving image quality.
Customizable through OEM and ODM options for tailored applications.
Lightweight at 0.02 g, facilitating easy integration into various systems.

Applications

Machine Vision, Medical, Collimation, Imaging

Specification Summary

Item	Value
Material	Optical Glass
Shape	Aspheric
Diameter	3 mm
Surface Quality	20/10
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Plano Convex Lens; Glass
Customized Support	OEM, ODM
Warranty	None
Weight	0.02
Use	Optical
Diameter Tolerance	+/- 0.01mm
Thickness Tolerance	+/- 0.01mm
Sample	Yes

FAQ

Can I get custom sizes for this lens?

Yes, the lens can be customized through OEM and ODM options.

What are the tolerances for diameter and thickness?

Diameter tolerance is +/- 0.01 mm, and thickness tolerance is also +/- 0.01 mm.
