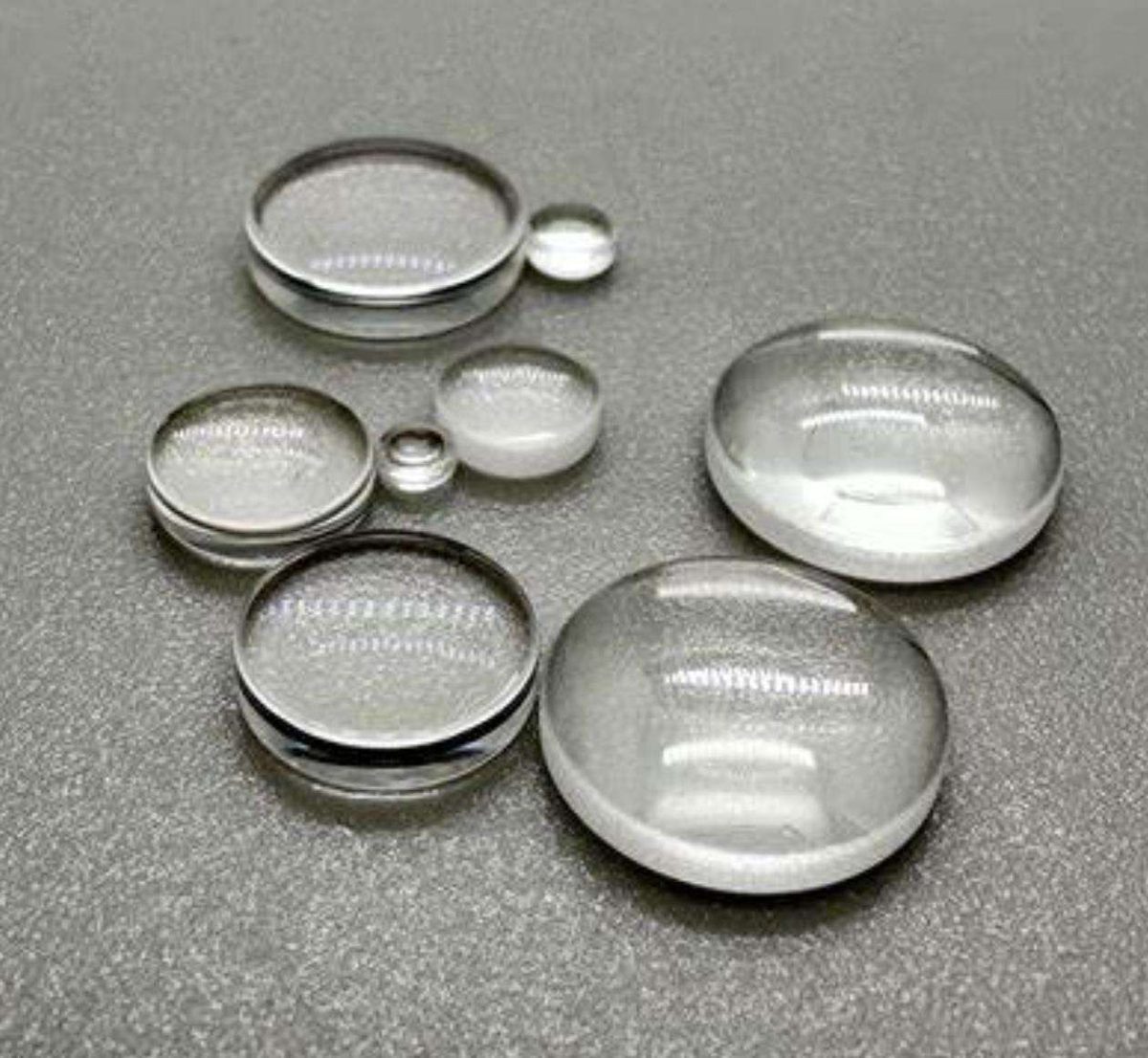

6.3x4 mm Optical Glass Aspheric Lens, AR Coated

Product description

This aspheric lens is designed for precise collimation across a wide range of wavelengths from UV to IR (0.4 - 1.7 μm). Its single-element design minimizes spherical aberration and enhances optical performance, making it ideal for applications in laser, medical devices, and machine vision. With a diameter of 6.33 mm and an effective focal length of 4.02 mm, this lens ensures efficient light management in compact assemblies. Custom sizes are available to meet specific project requirements.

Key Features

Diameter: 6.33 mm for compact integration in optical systems.
Effective focal length: 4.02 mm, optimizing light collimation.
AR coating for wavelengths 400-700 nm, enhancing transmittance.
Aspheric design minimizes spherical aberration for sharper images.
OEM customization available to fit specific application needs.

Available Sizes

Diameter x Focal Length (mm)
6.3 x 4

Applications

Collimation

Specification Summary

Item	Value
Material	Optical Glass
Shape	Aspheric
Diameter	6.3 mm
Focal Length	4 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Plano-convex
Customized Support	OEM
Warranty	A month
Weight	0.5
Edge Thickness	1.70mm

FAQ

Is custom sizing available?

Yes, custom sizes can be offered based on specific project requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
