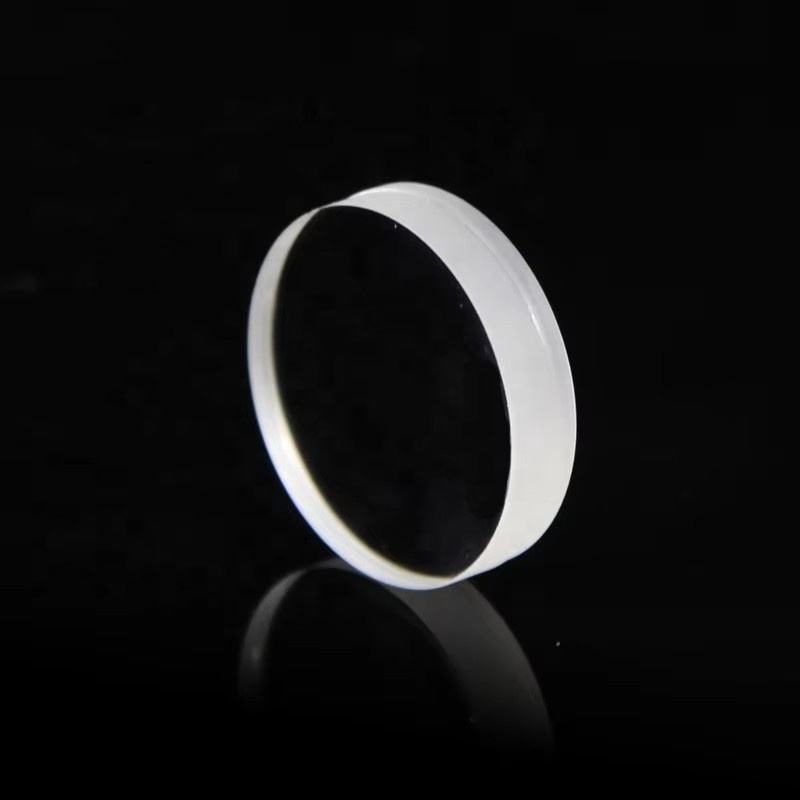

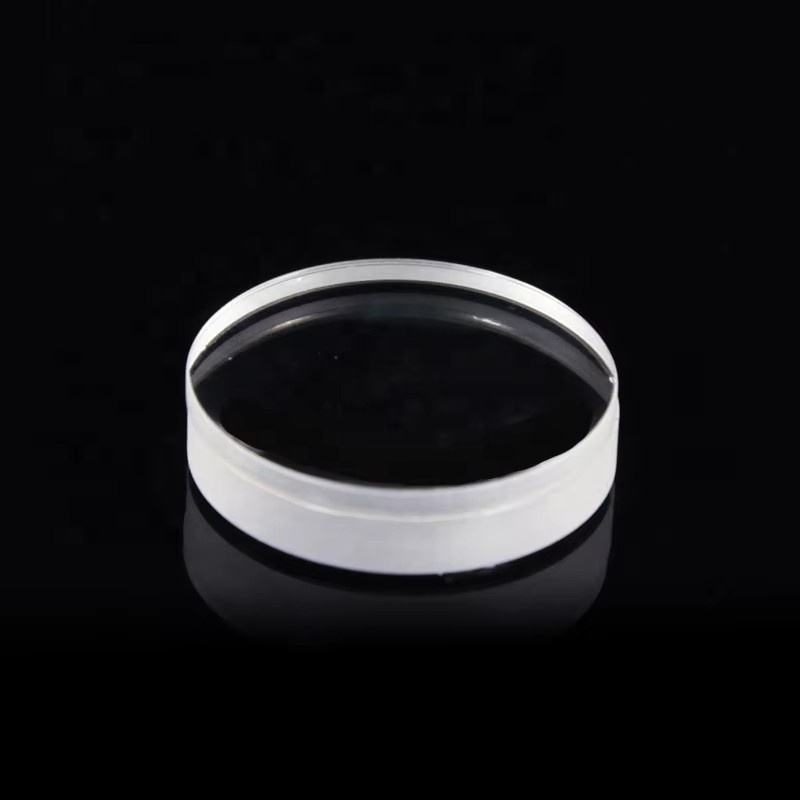

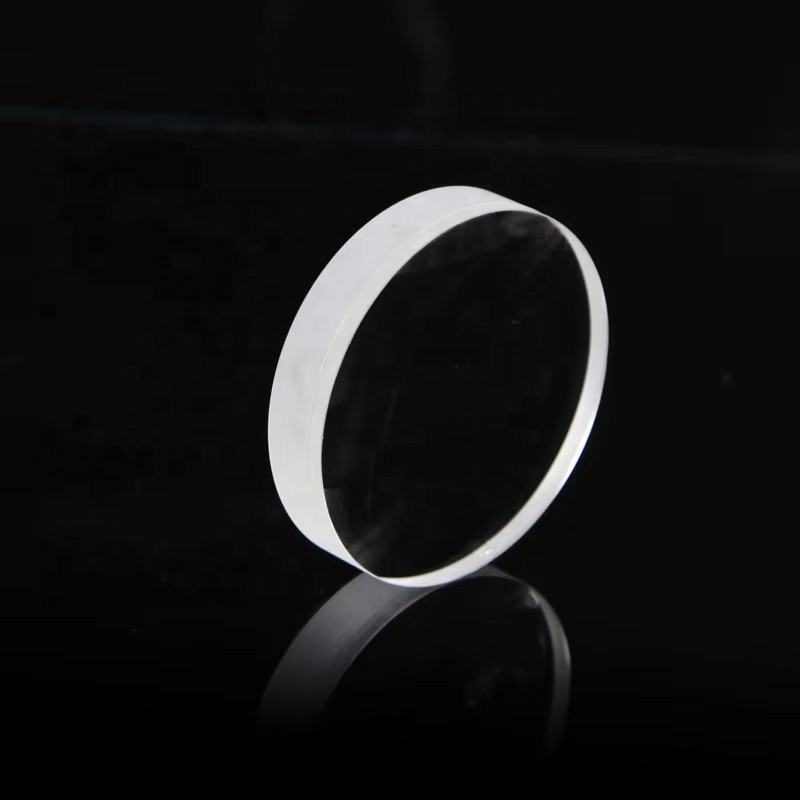

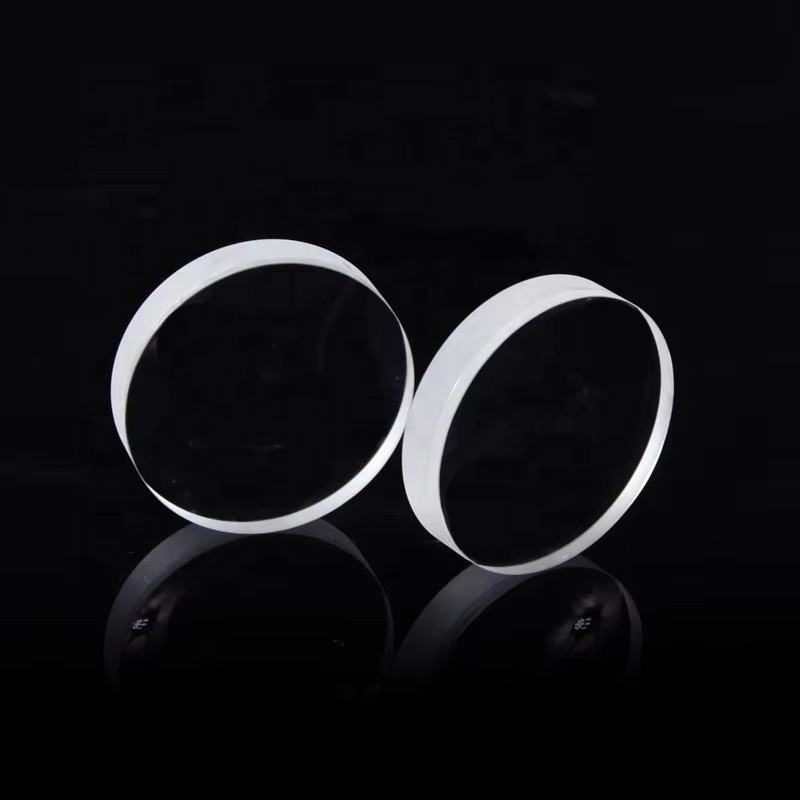

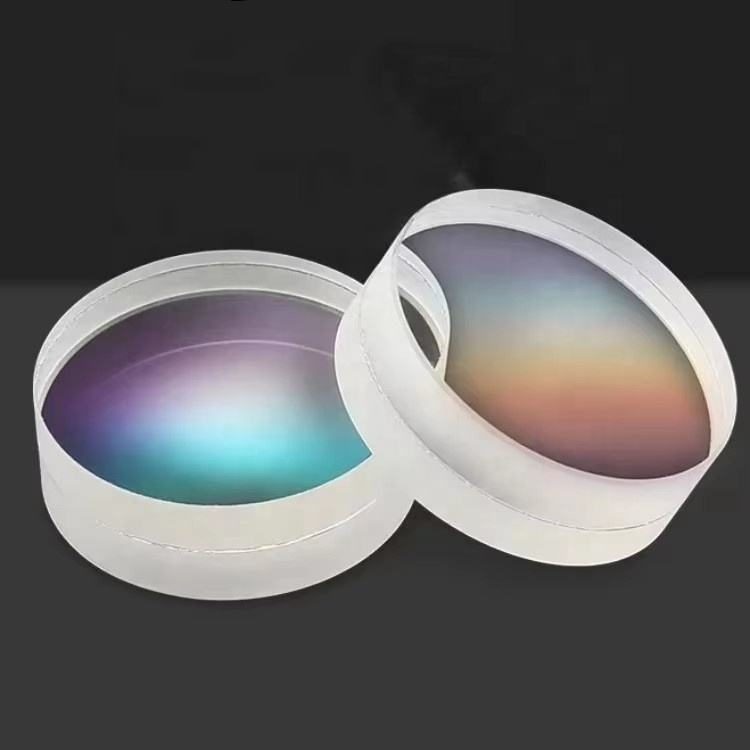

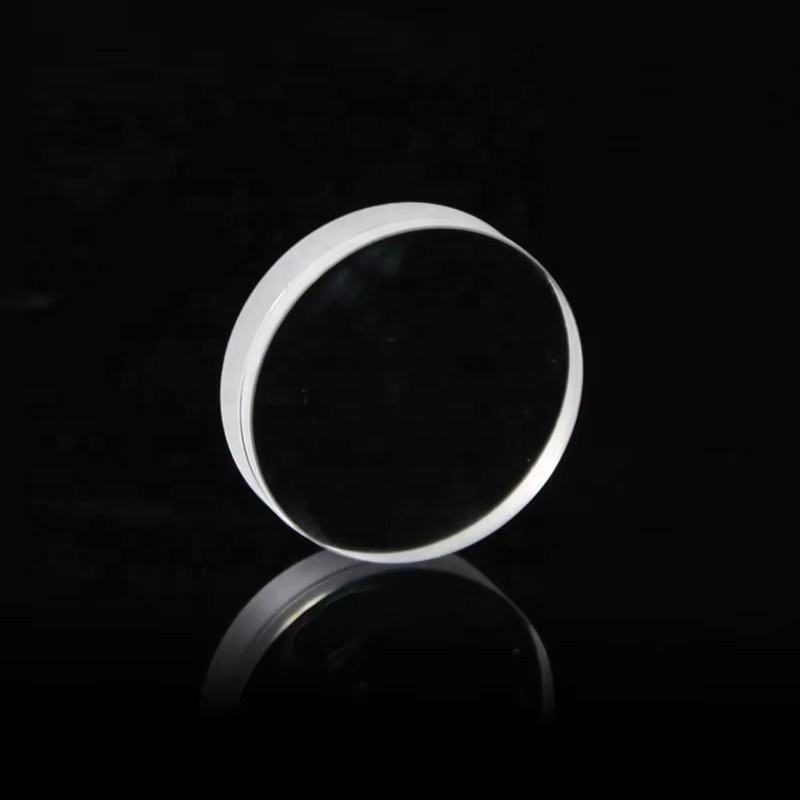

25.4x30 mm Optical Glass Biconvex Lens, AR Coated

Product description

This biconvex achromatic lens is designed for high-performance imaging applications across the 0.7-1.7 μm and 400-700 nm wavelength bands. With a focal length of 30 mm and a diameter of 25.4 mm, it minimizes chromatic aberration and improves off-axis performance, making it ideal for demanding optical systems. The lens features a smooth finish with a surface quality of 60/40 and broadband anti-reflection coatings, ensuring optimal light transmission and image clarity.

Key Features

Achromatic design reduces chromatic aberration, enhancing image quality.
Broadband anti-reflection coating for improved transmittance across specified bands.
Surface quality of 60/40 ensures minimal optical distortion.
Customizable sizes available, with options including 25.4 mm and 30.0 mm diameters.
Lightweight at 0.025 kg, facilitating easy integration into various systems.

Available Sizes

Diameter x Focal Length (mm)
25.4 x 30

Applications

Imaging

Specification Summary

Item	Value
Material	Optical Glass
Shape	Biconvex
Diameter	25.4 mm
Focal Length	30 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.025
Center Thickness	13.8mm
Surface Flatness	1/4@633nm
Clear Aperture	>=central 80% of diameter

FAQ

Is custom sizing available for this lens?

Yes, customizable sizes are available, including options of 25.4 mm and 30.0 mm diameters.

What is the minimum order quantity (MOQ) for this lens?

The minimum order quantity (MOQ) is not specified, allowing for flexible procurement.
