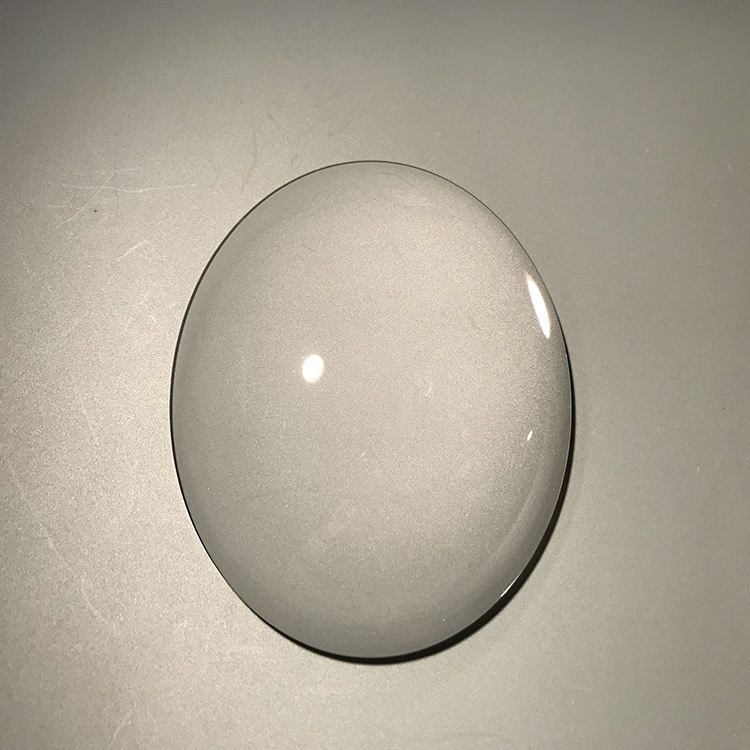

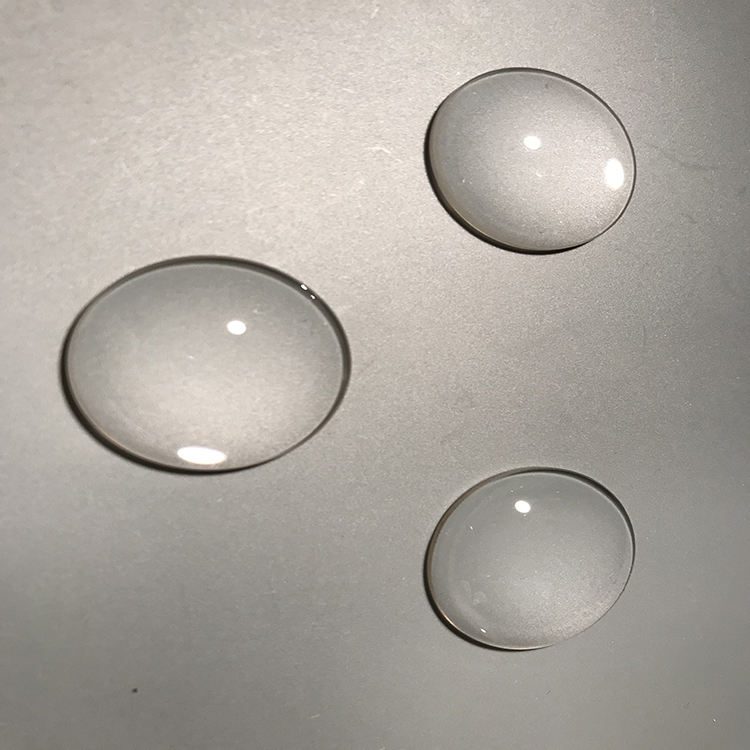

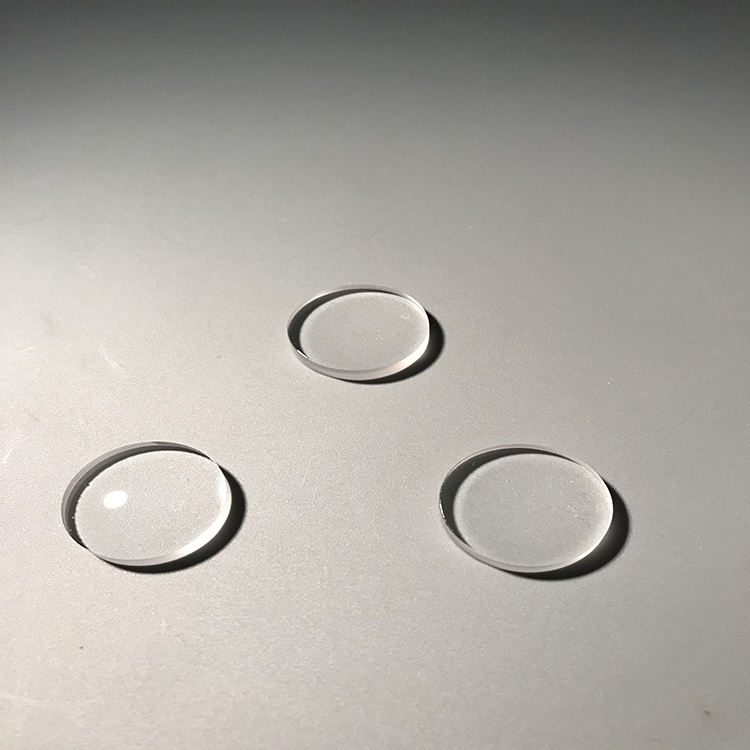

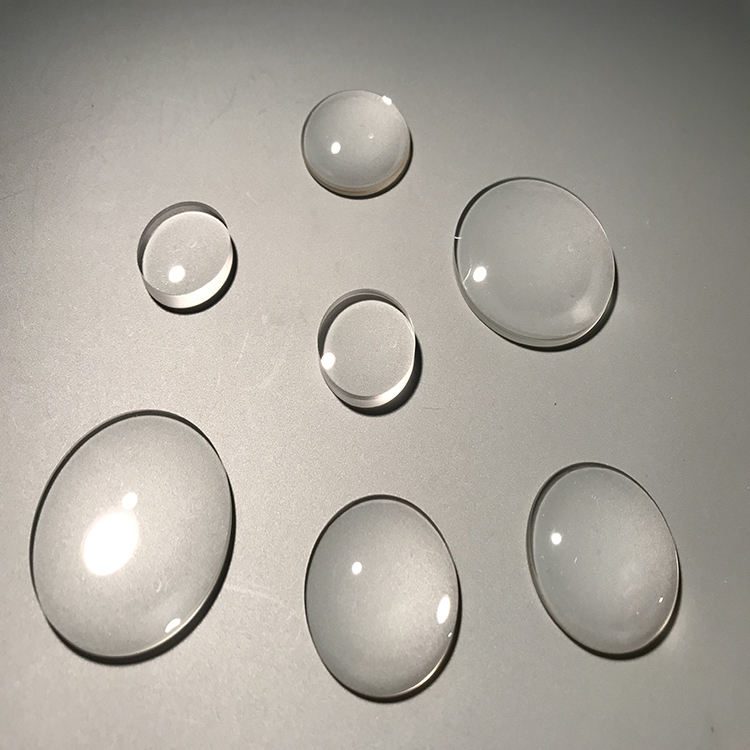

5 mm Optical Glass Convex Lens, AR Coated
Plano-convex lens for collimation, 400-700 nm, 94% transmittance, customizable sizes, and reliable optical performance.
Core attributes
- Material
- Optical Glass
- Shape
- Convex
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Transmittance
- 94%
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Convex
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Transmittance
- 94%
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
This plano-convex lens is designed for effective collimation in the 400-700 nm wavelength range, making it ideal for applications in optical systems requiring high transmittance and surface quality. With a diameter range of 5 to 300 mm, it accommodates various setups while ensuring a transmittance of 94% and surface quality rated at 60/40. The lens is manufactured in Jiangsu, ensuring reliability and consistency for your optical needs.
Key Features
- Diameter range: 5 to 300 mm for versatile application fit.
- 94% transmittance enhances light efficiency in optical systems.
- Surface quality rated at 60/40 ensures minimal distortion.
- Dimension tolerance of 0.0/-0.02 mm for precise integration.
- OEM and ODM customization options available for tailored solutions.
Applications
Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Convex |
| Diameter | 5 mm |
| Surface Quality | 60/40 |
| Transmittance | 94% |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5KG(1.10lb) |
| Color | Transparent |
| Dimension Tolerance | 0.0/-0.02mm |
| Packing | Carton |
| Transmittance | 94% |
| Flatness | 1/4lambda |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
Can I get custom sizes for this lens?
Yes, OEM and ODM customization options are available.
