1 / 6Optical Prisms

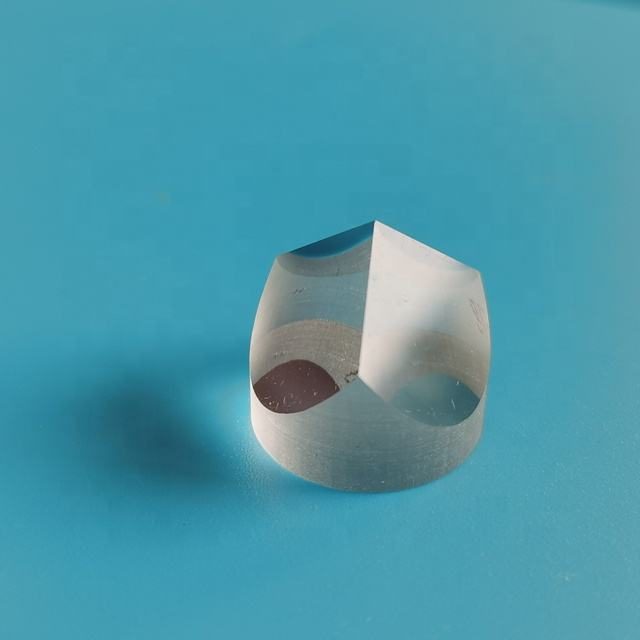

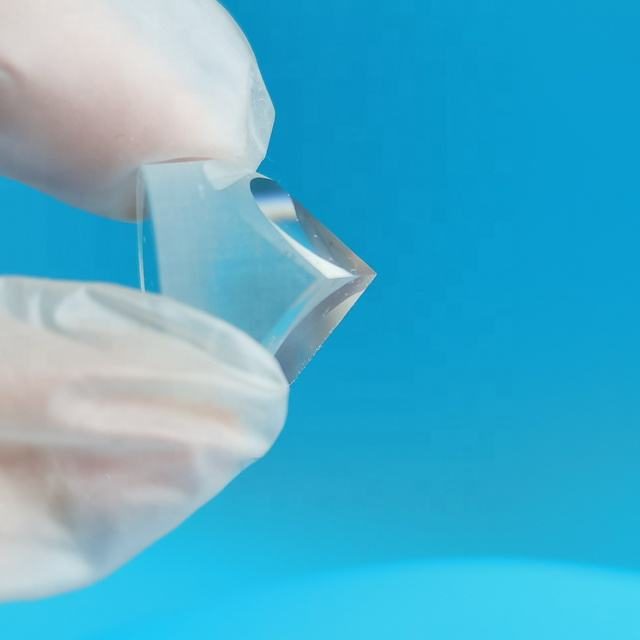

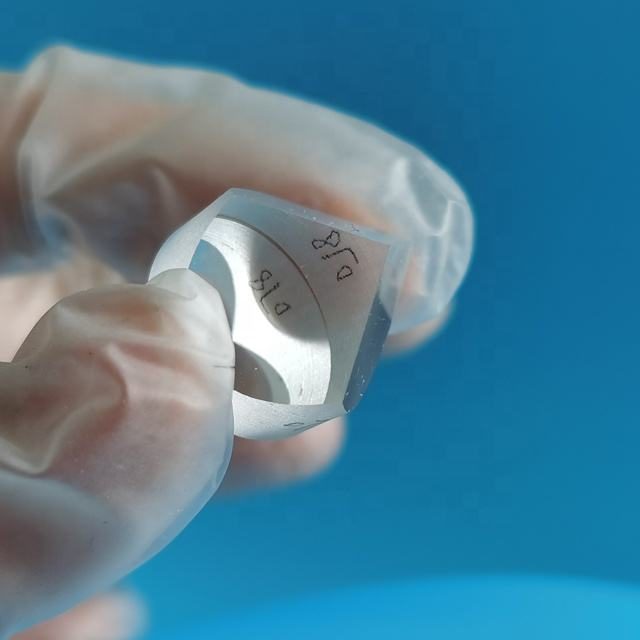

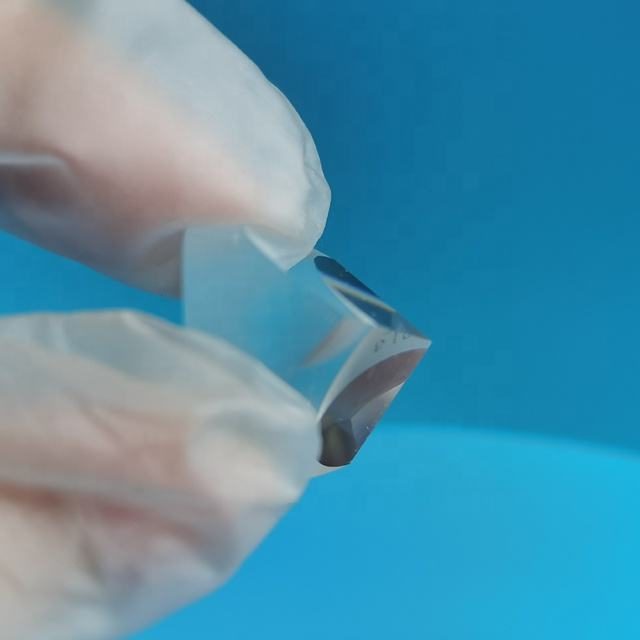

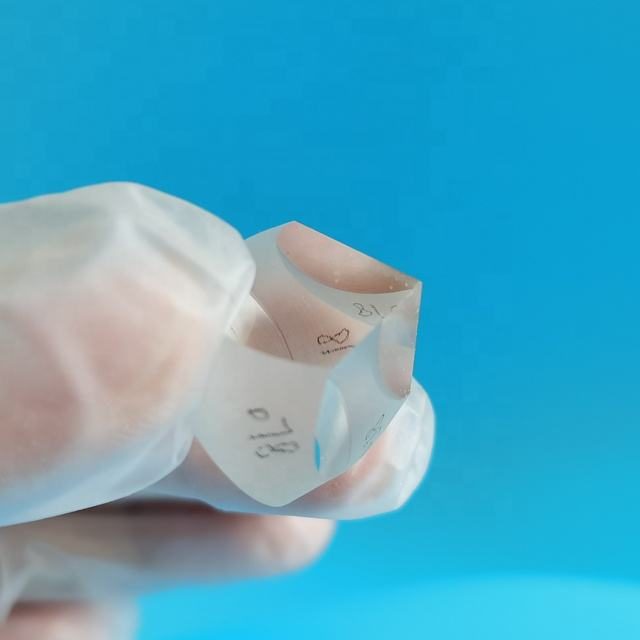

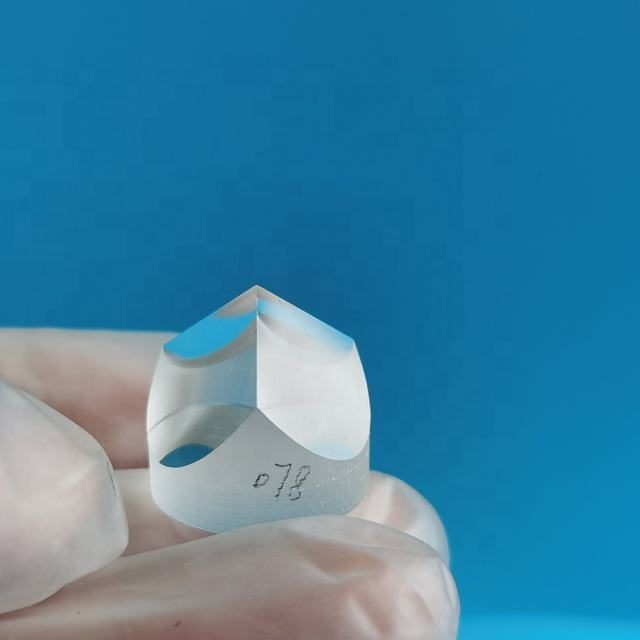

Custom Size Optical Glass Corner-cube Optical Prism
Corner-cube prisms for surveying with 60/40 surface quality and 3 arcminute angle tolerance.
Core attributes
- Material
- Optical Glass
- Shape
- Corner-cube
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Corner-cube
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
Product description
Corner-cube prisms are essential for surveying applications, providing precise angular reflection and reliable beam redirection. Their geometry ensures that incoming light is reflected back along the same path, making them ideal for accurate measurements in various surveying tasks. With a surface quality of 60/40 and an angle tolerance of 3 arcminutes, these prisms are designed to meet the rigorous demands of optical performance in the field.
Key Features
- Surface quality of 60/40 ensures minimal distortion for accurate measurements.
- Angle tolerance of 3 arcminutes guarantees reliable angular precision.
- Dimension tolerance of +/-0.1mm allows for consistent batch production.
- Flatness of 1/4 Lambda supports high wavefront integrity for critical applications.
Applications
Surveying
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Corner-cube |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM |
| Angle Tolerance | 3 Arcmin |
| Dimension Tolerance | +/-0.1mm |
| Flatness | 1/4 Lambda |
FAQ
Can I get custom sizes?
Custom sizing options are available with OEM support.
What is the angle tolerance?
The angle tolerance for this corner-cube prism is 3 arcminutes.
