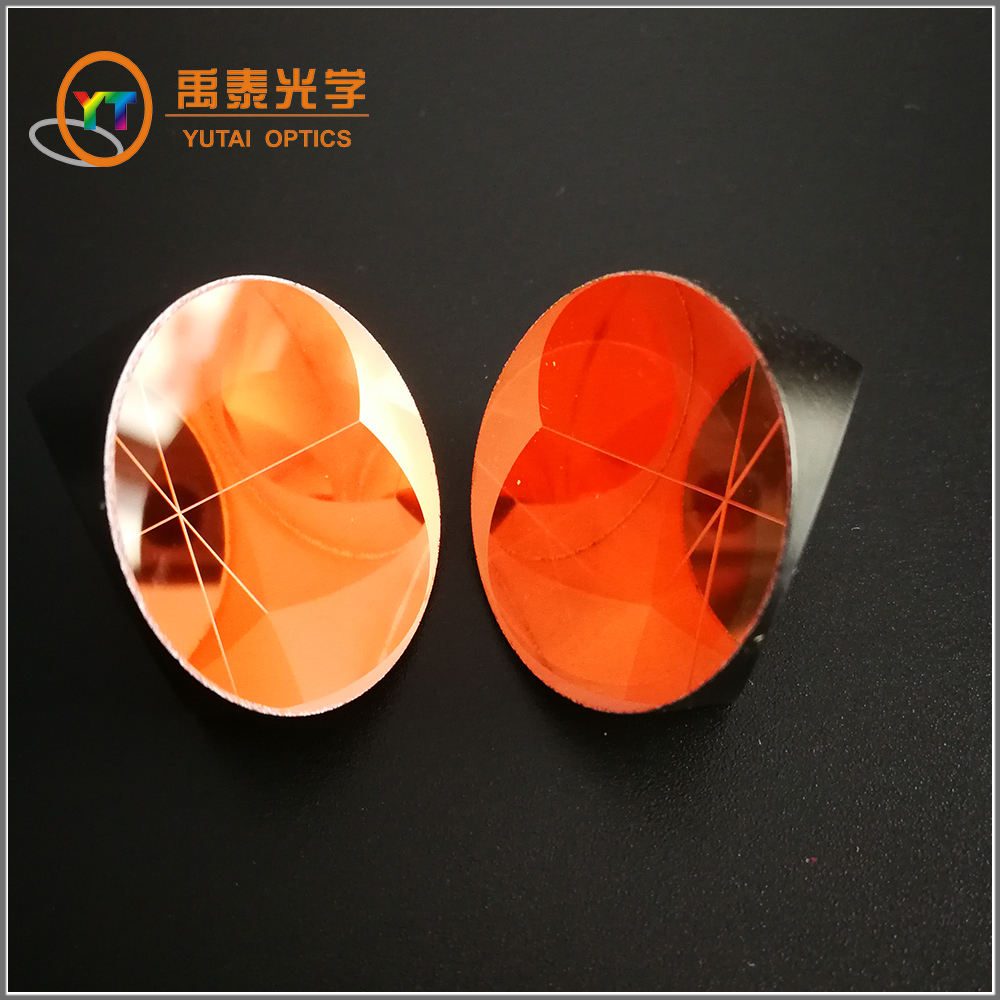

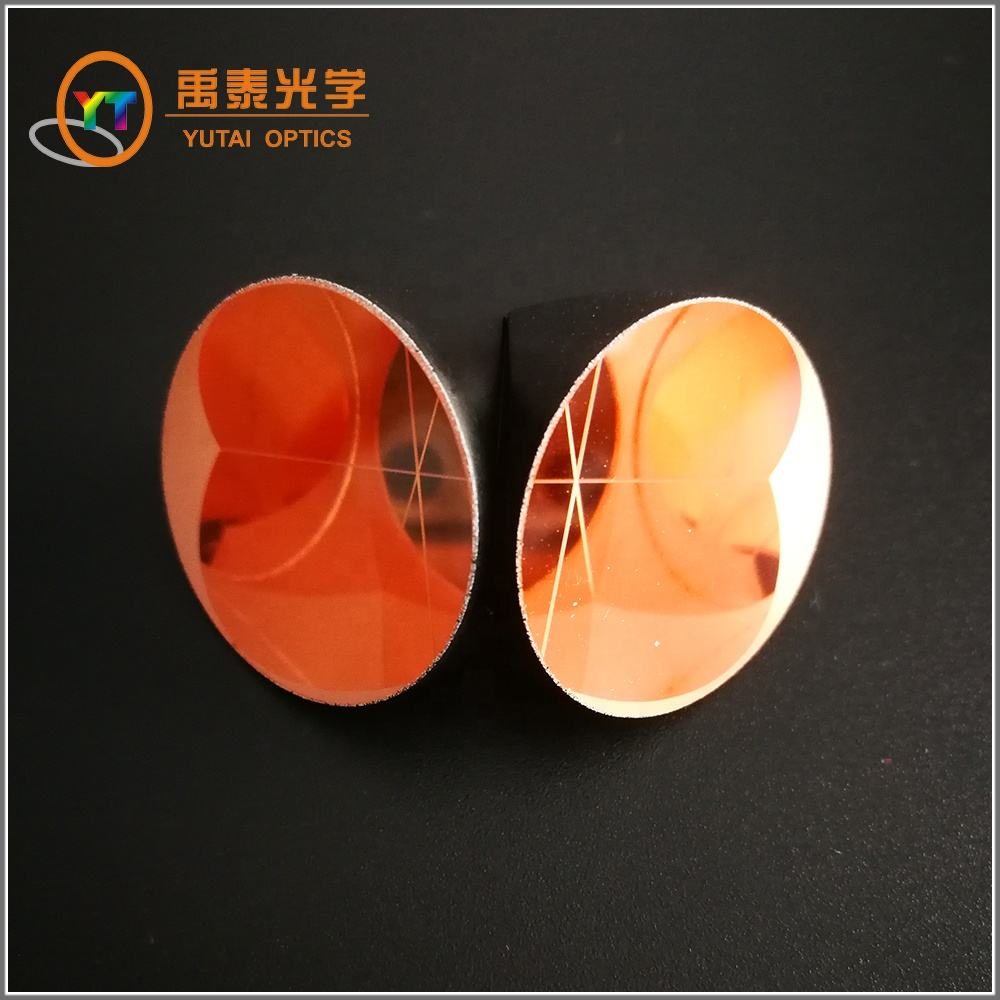

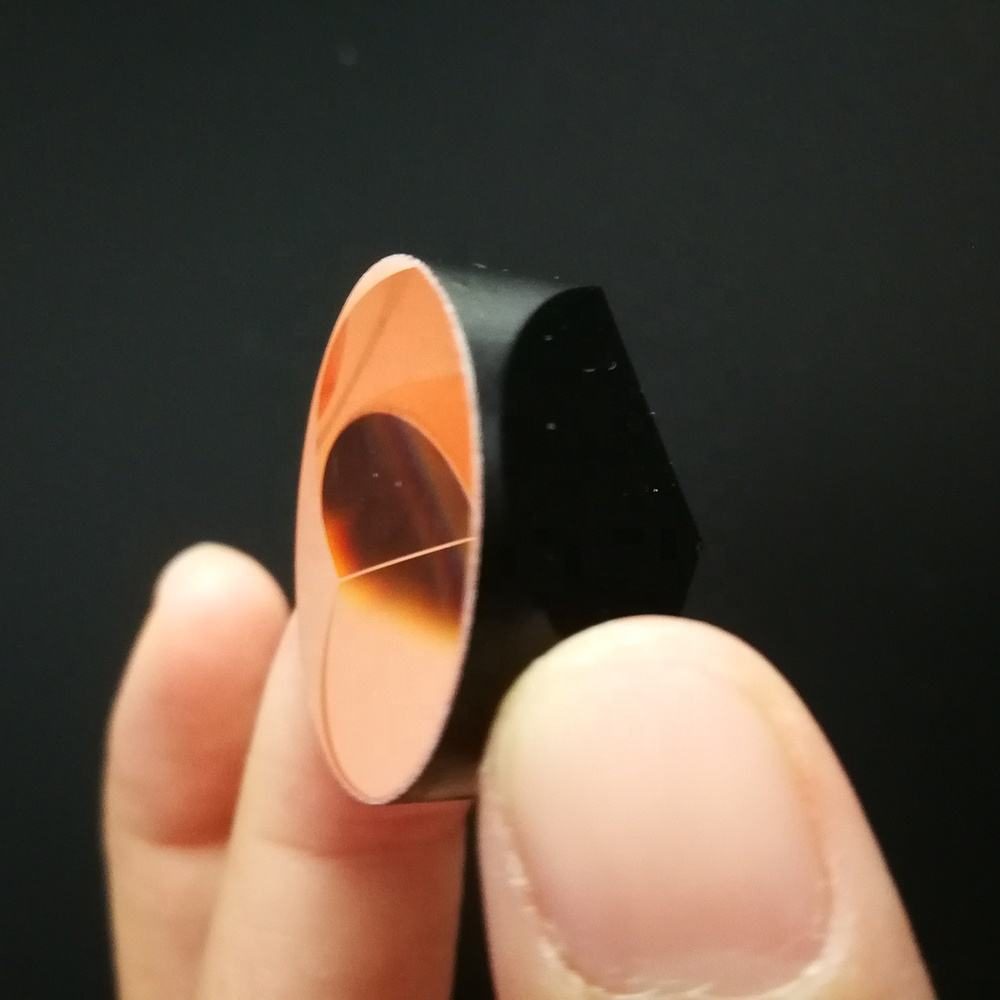

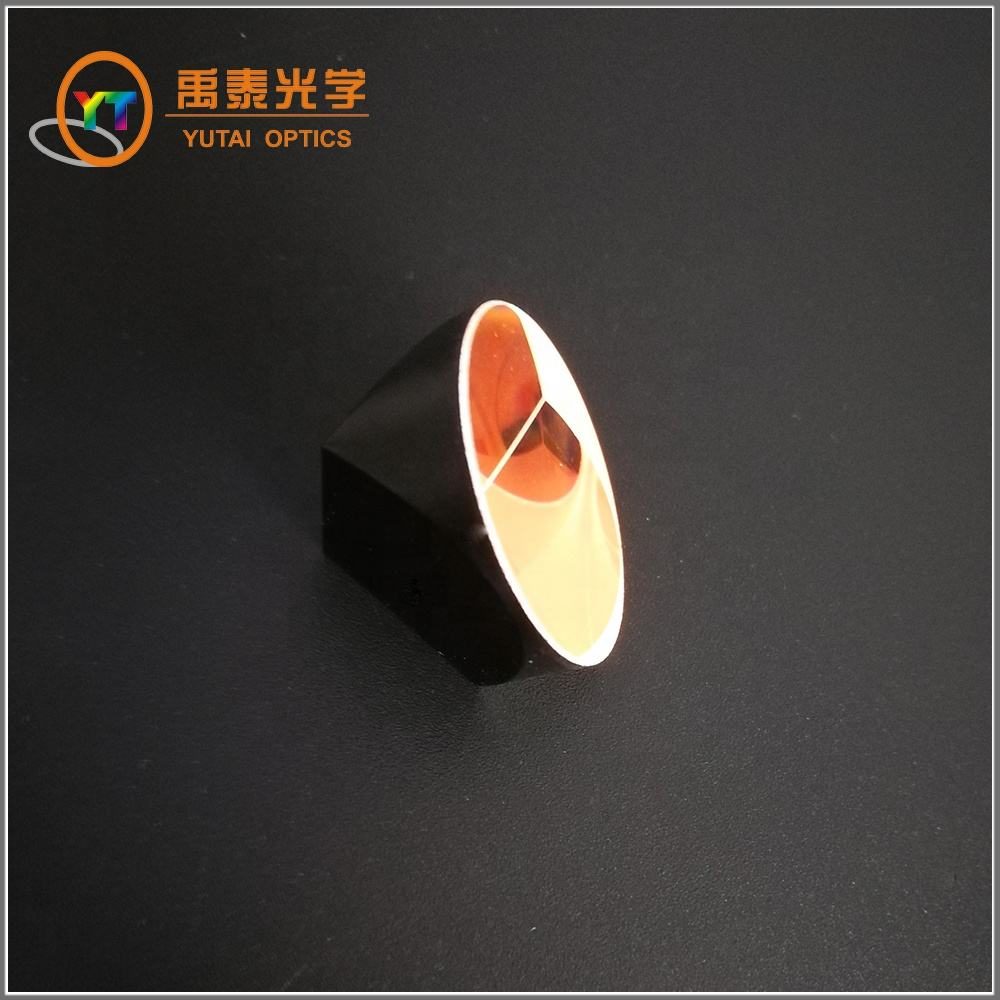

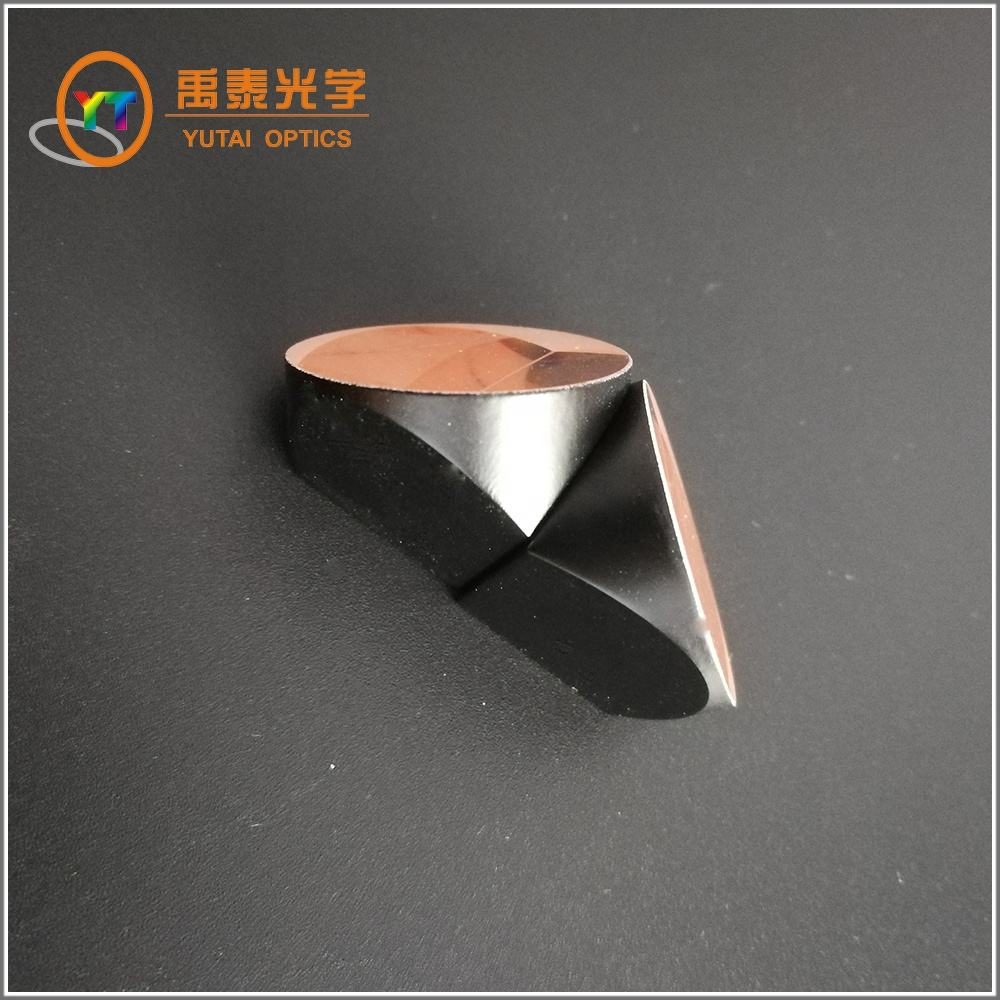

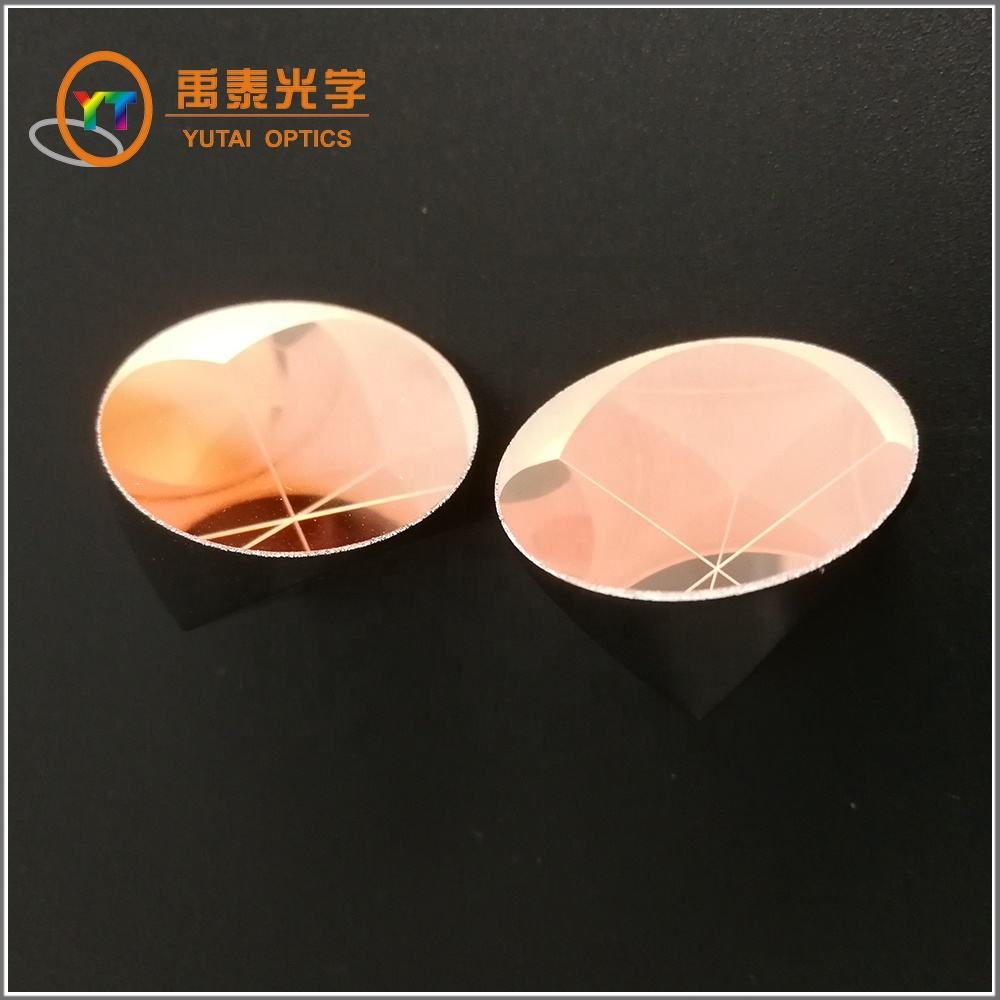

Custom Size Optical Glass Corner-cube Optical Prism

Product description

The Optical Glass Corner Cube Pyramid Prism is designed for applications requiring precise beam reflection and alignment. Its corner-cube geometry ensures that incoming light is reflected back parallel to the incoming beam, making it ideal for laser and surveying applications. With a surface quality of 40/20 and an angle tolerance of 3’-5’, this prism guarantees high performance in optical paths where accuracy is critical.

Key Features

Surface quality of 40/20 ensures minimal distortion for wavefront integrity.
Angle tolerance of 3’-5’ provides reliable beam deviation for precise applications.
Dimension tolerance of ±0.1 mm supports consistent batch production.
Standard chamfers and bevels enhance handling and installation ease.
OEM customization available for tailored optical solutions.

Specification Summary

Item	Value
Material	Optical Glass
Shape	Corner-cube
Size	Custom
Thickness	Custom
Surface Quality	40/20

Full Specifications

Parameter	Value
Prism Type	Corner Cube
Customized Support	OEM
Warranty	2 months
Name	Optical Glass Corner Cube Pyramid Prism
Materail	GLASS
Dimension Tolerance	+-0.1mm
Angle Tolerance	3’-5'
Flatness	L/4
Type	rectangular
Bevel	0.25 mm*45°
Chamfer	standard chamfers

FAQ

Can I get custom sizes?

OEM customization is available for tailored optical solutions.

What are the tolerances for this prism?

The prism has an angle tolerance of 3’-5’ and a dimension tolerance of ±0.1 mm.
