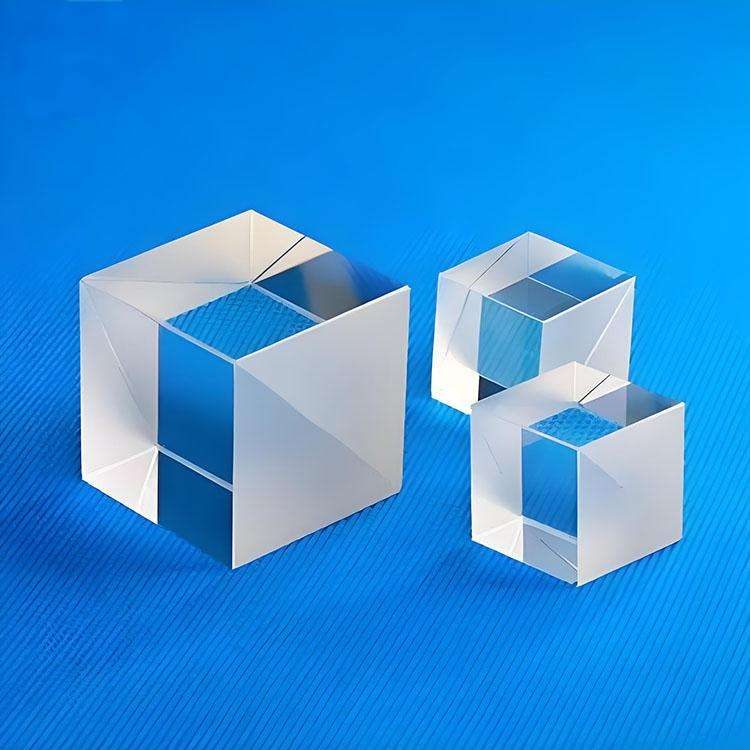

15 mm Optical Glass Cube Beamsplitter, AR Coated
Optical glass beamsplitter prism with 70R/30T splitting ratio and Lambda/10 flatness for precise light division.
Core attributes
- Material
- Optical Glass
- Shape
- Cube
- Size
- 15 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Cube
- Size
- 15 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product description
This optical glass beamsplitter prism is designed for applications requiring precise light division, such as in laser systems and optical setups. With a splitting ratio of 70R/30T, it effectively directs light while minimizing losses. Its high surface flatness of Lambda/10 ensures exceptional performance in critical optical applications, making it suitable for various research and development needs.
Key Features
- Splitting ratio of 70R/30T for optimal light division.
- Surface flatness of Lambda/10 for high precision applications.
- Made from H-K9L optical glass for excellent durability.
- Customizable support for OEM and ODM projects.
- Diameter tolerance of +/-0.2mm for consistent batch quality.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Cube |
| Size | 15 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | beamsplitter prism |
| Customized Support | OEM, odm |
| Warranty | 1 Year |
| Materail | H-K9L |
| Surface Flatness | Lambda/10 |
| Splitting Ratio | 70R/30T |
| Diameter Tolerance | +/-0.2mm |
FAQ
What are the available sizes for this beamsplitter?
The standard size for this beamsplitter is 15.0 mm x 15.0 mm.
Is custom sizing available?
Yes, this beamsplitter can be customized for OEM and ODM requirements.
