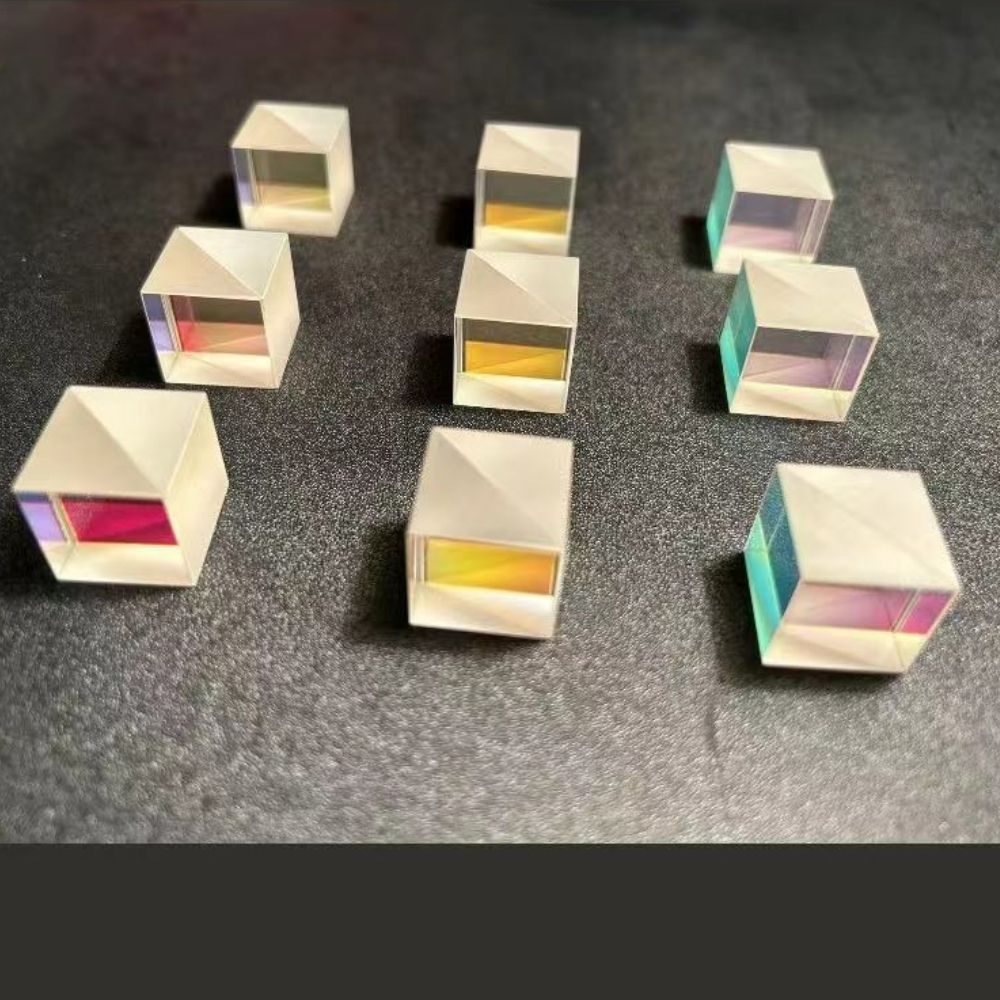

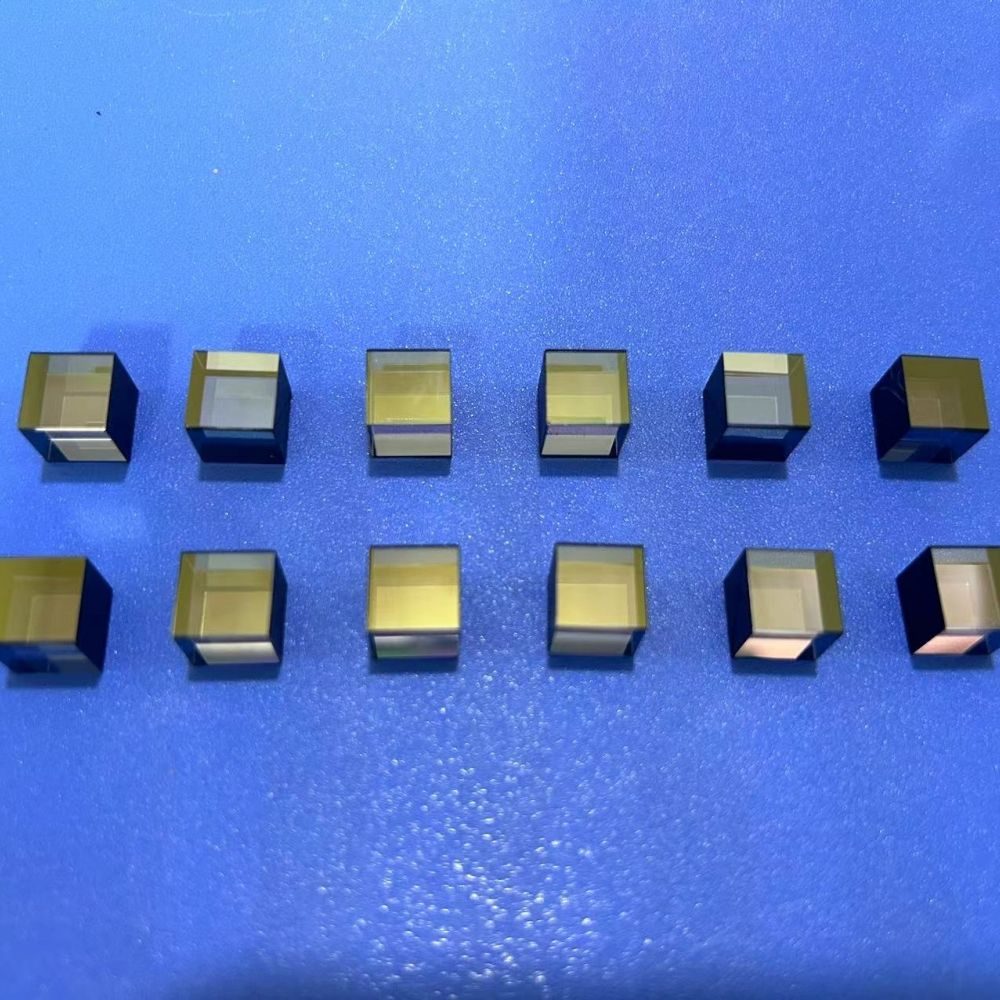

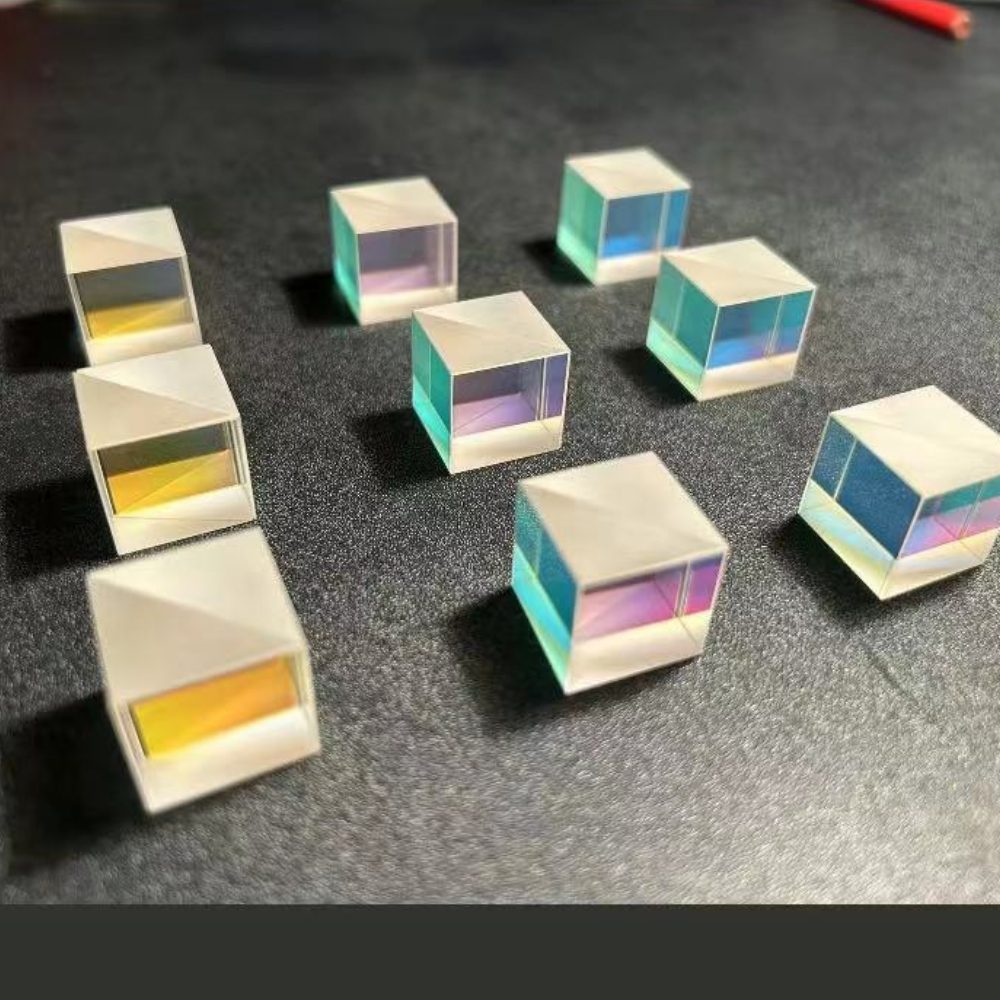

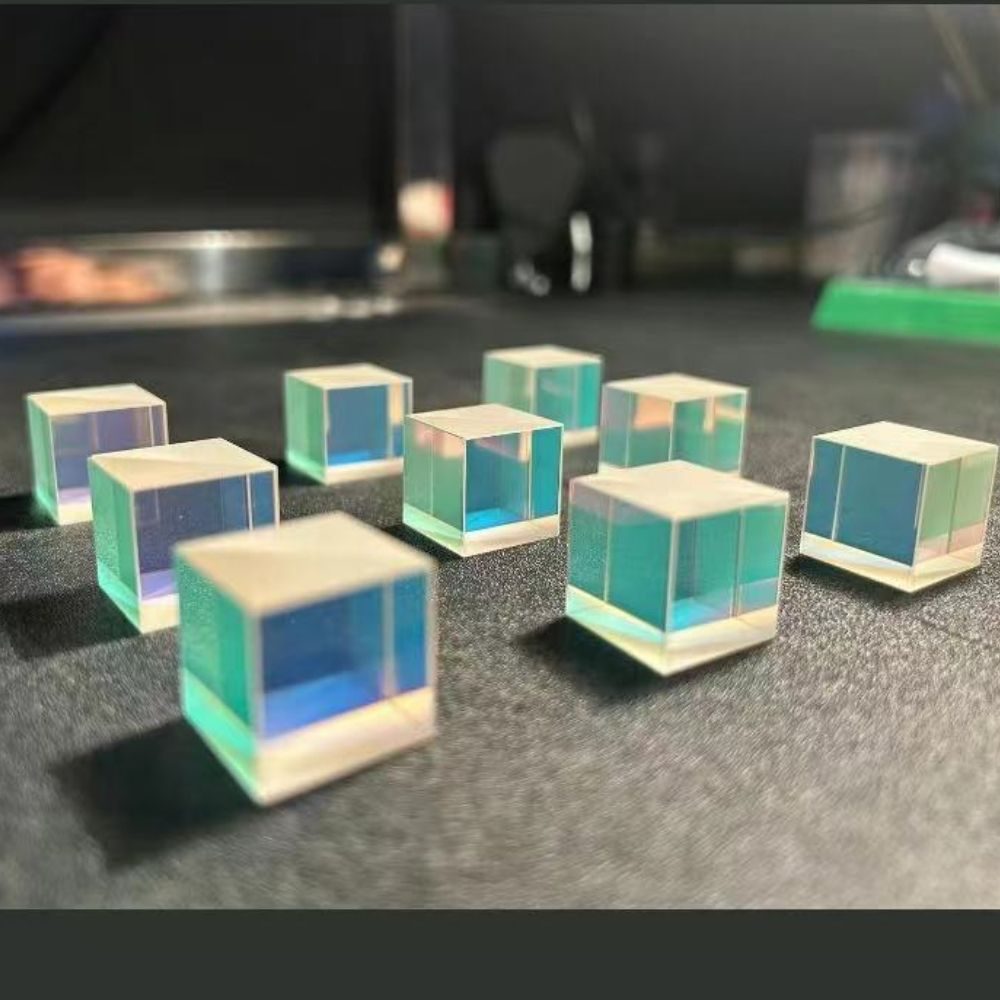

1 mm Optical Glass Cube Beamsplitter

Product description

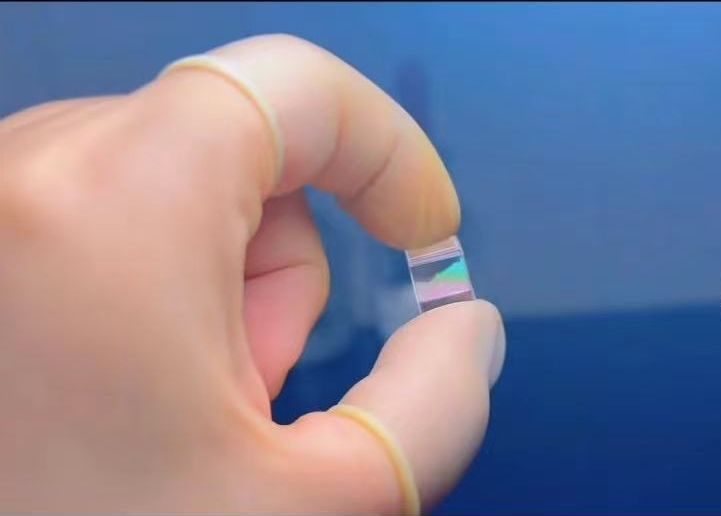

This optical glass beamsplitter is designed to effectively manage light in applications across the 0.7-1.7 μm and 400-700 nm wavelength ranges. Its precise surface quality of 1/4 ensures minimal distortion, making it suitable for high-performance optical systems in laser and machine vision applications. The compact size of 1.0 mm x 1.0 mm allows for integration into tight spaces, while the customizable dimensions from 1.0 mm to 200.0 mm provide flexibility for various projects.

Key Features

Surface quality of 1/4 ensures minimal optical distortion for enhanced performance.
Compatible with wavelengths from 0.7-1.7 μm and 400-700 nm for diverse applications.
Customizable dimensions from 1.0 mm to 200.0 mm to fit specific project needs.
Available in various prism types including right angle and corner cube for versatility.
OEM and ODM support for tailored solutions and prototypes.

Specification Summary

Item	Value
Material	Optical Glass
Shape	Cube
Size	1 mm
Thickness	Custom
Surface Quality	1/4
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value

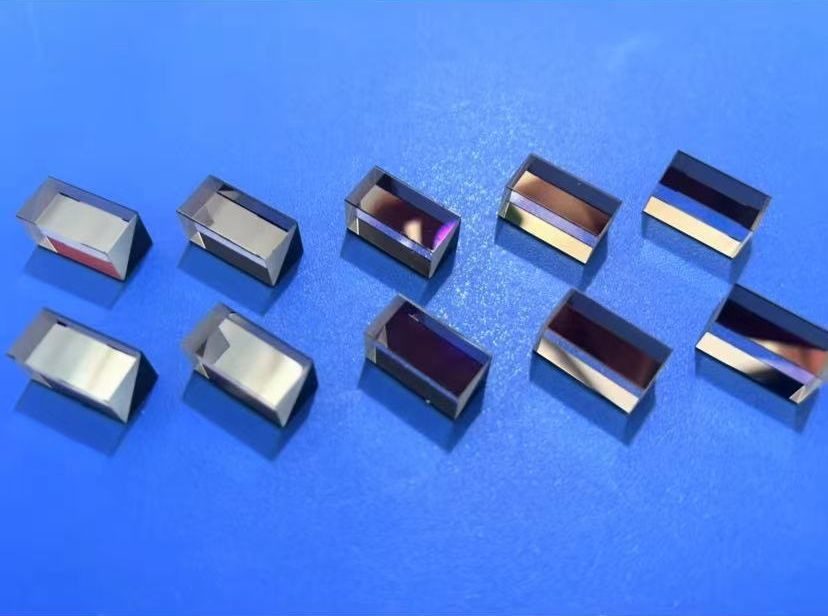

Prism Type	Right Angle Prism, Corner Cube, Surveyor’S Prisms, Penta Prism, Triangular Prism…
Customized Support	OEM, ODM
Warranty	3 monthes
Dimension	1.0mm-200.0 mm
Flatness	1/4

FAQ

What are the available sizes for this beamsplitter?

Sizes range from 1.0 mm to 200.0 mm, allowing for customization based on your application.

What is the surface quality specification?

The surface quality is specified as 1/4, ensuring high optical performance.
