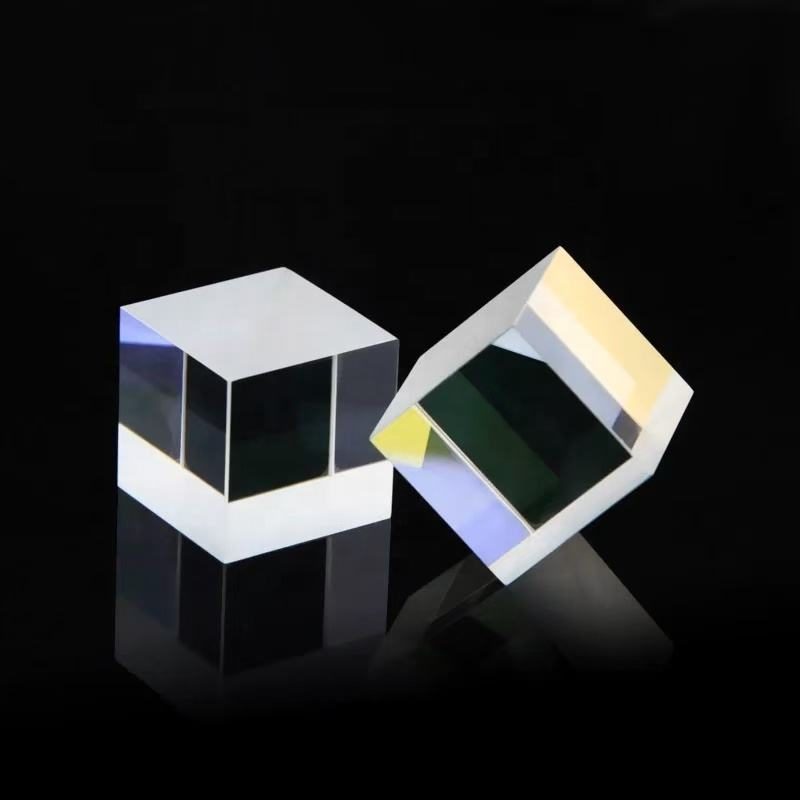

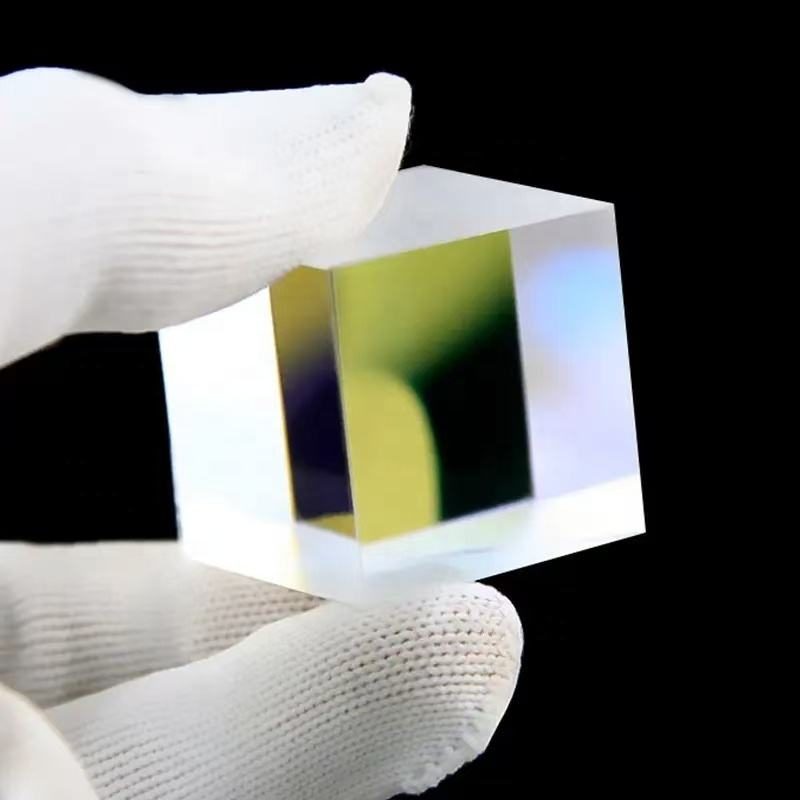

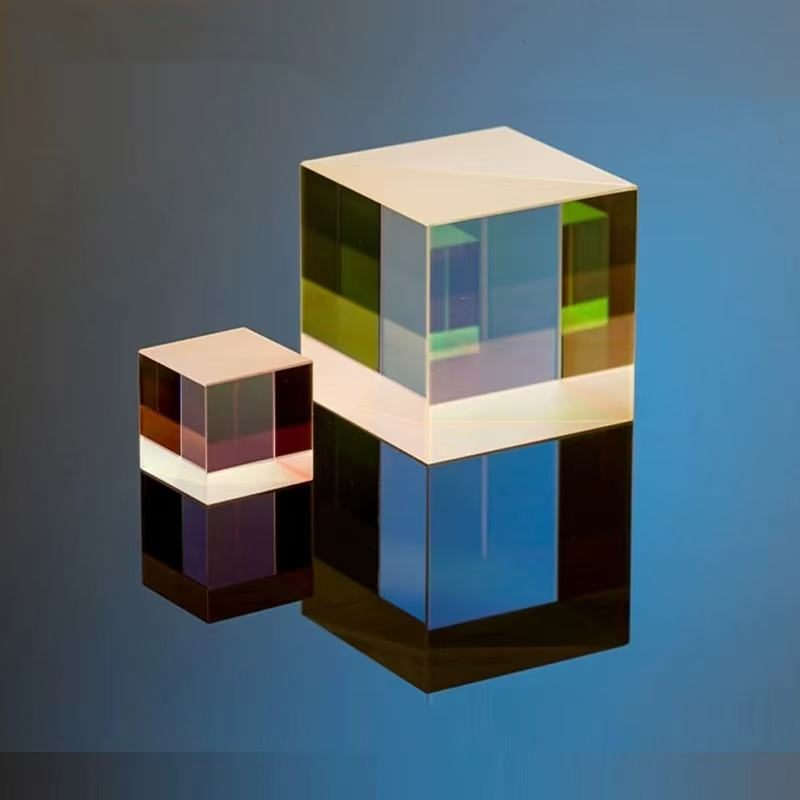

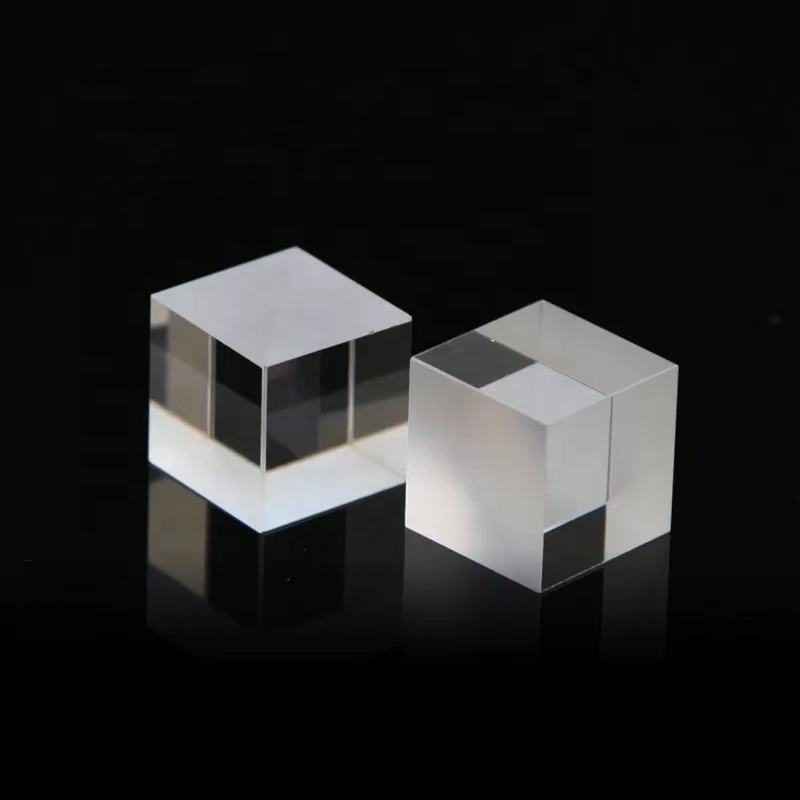

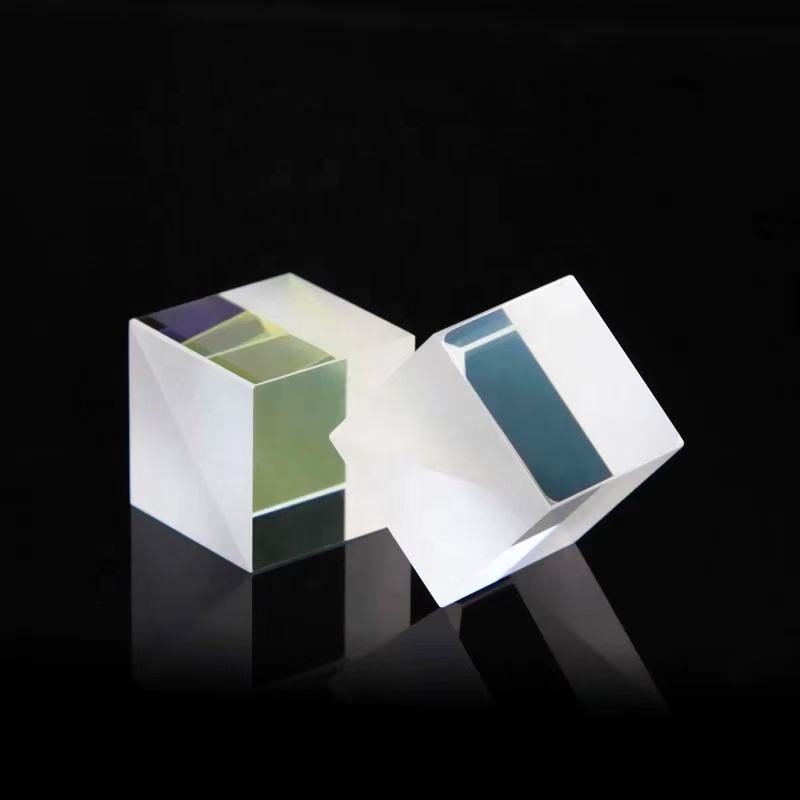

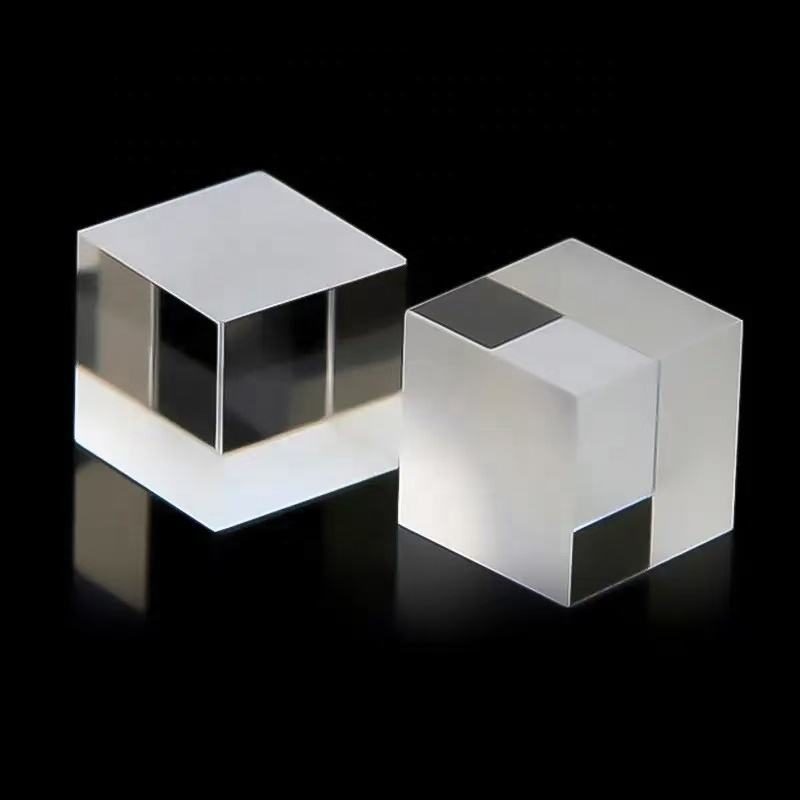

25.4 mm Optical Glass Cube Beamsplitter, AR Coated
Optical glass cube beamsplitter with AR coating, ideal for 400-700 nm and 0.7-1.7 μm applications.
Core attributes
- Material
- Optical Glass
- Shape
- Cube
- Size
- 25.4 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Cube
- Size
- 25.4 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This optical glass cube beamsplitter is designed for applications requiring precise light manipulation across a wide wavelength range of 400-700 nm and 0.7-1.7 μm. Its AR coating enhances performance by minimizing reflections, making it ideal for laser, machine vision, and biomedical applications. The 60/40 surface quality ensures adequate clarity, while the high extinction ratio of >1000:1 guarantees effective light separation.
Key Features
- Wavelength range of 400-700 nm and 0.7-1.7 μm for versatile applications.
- AR coating reduces reflection losses, enhancing transmittance.
- 60/40 surface quality for sufficient optical clarity.
- 1000:1 extinction ratio for superior light separation.
- Available in a standard size of 25.4 mm x 25.4 mm.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Cube |
| Size | 25.4 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | cube |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Wavelength | 400-700nm |
| Diameter Tolerance | +/-0.1 |
| Extinction Ratio | >1000:1 |
FAQ
Is custom sizing available?
Yes, customizable options are available, including OEM, ODM, and OBM support.
What is the diameter tolerance?
The diameter tolerance for this beamsplitter is +/-0.1 mm.
