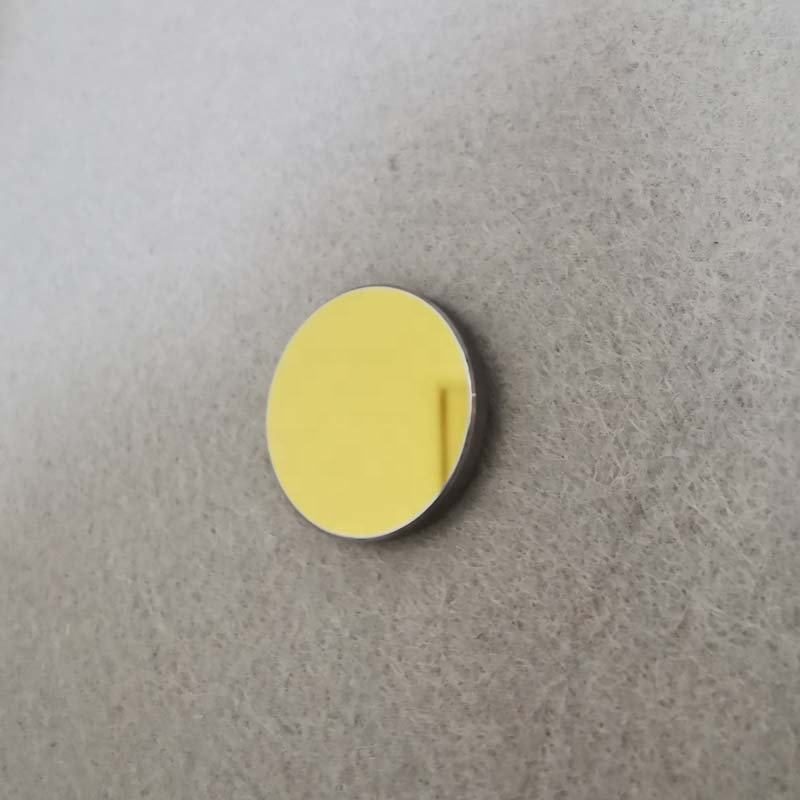

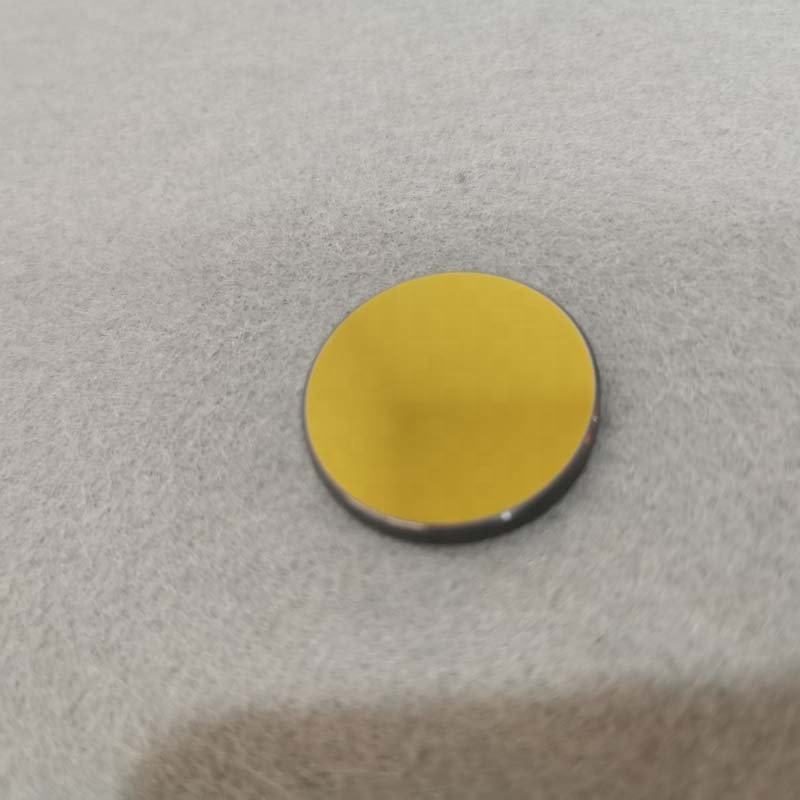

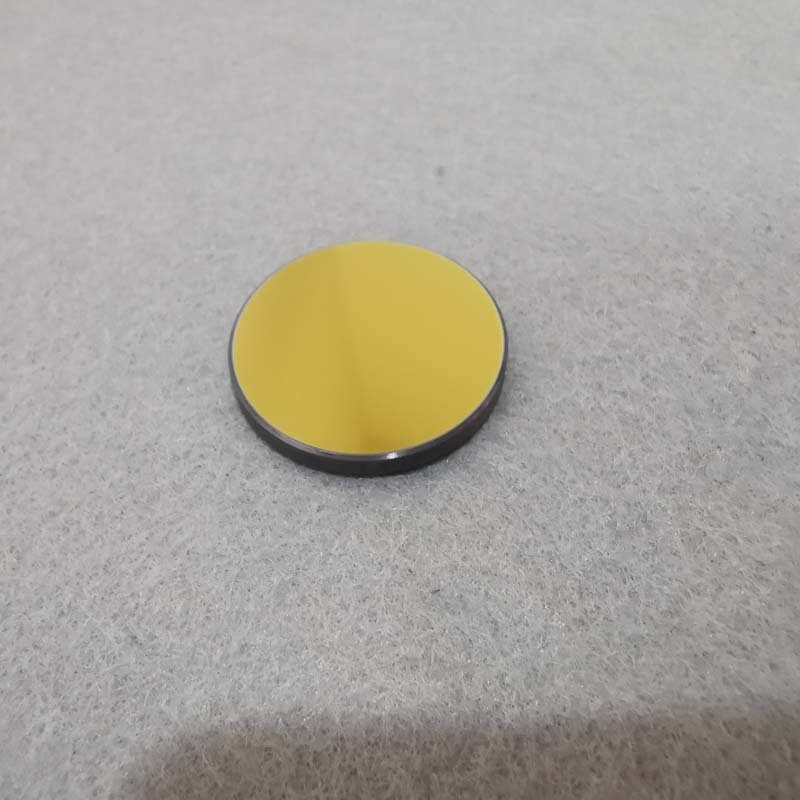

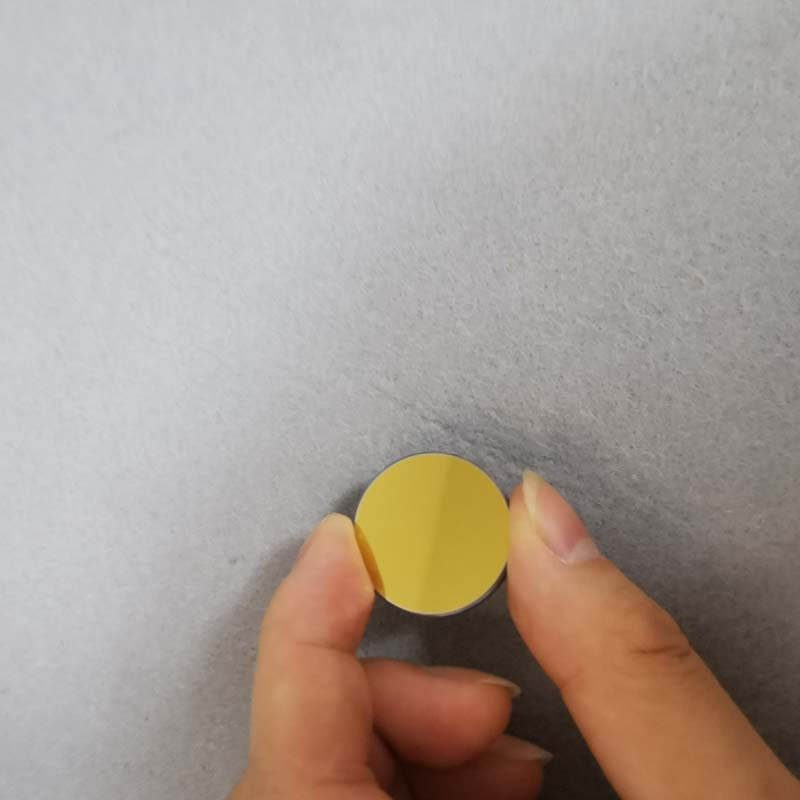

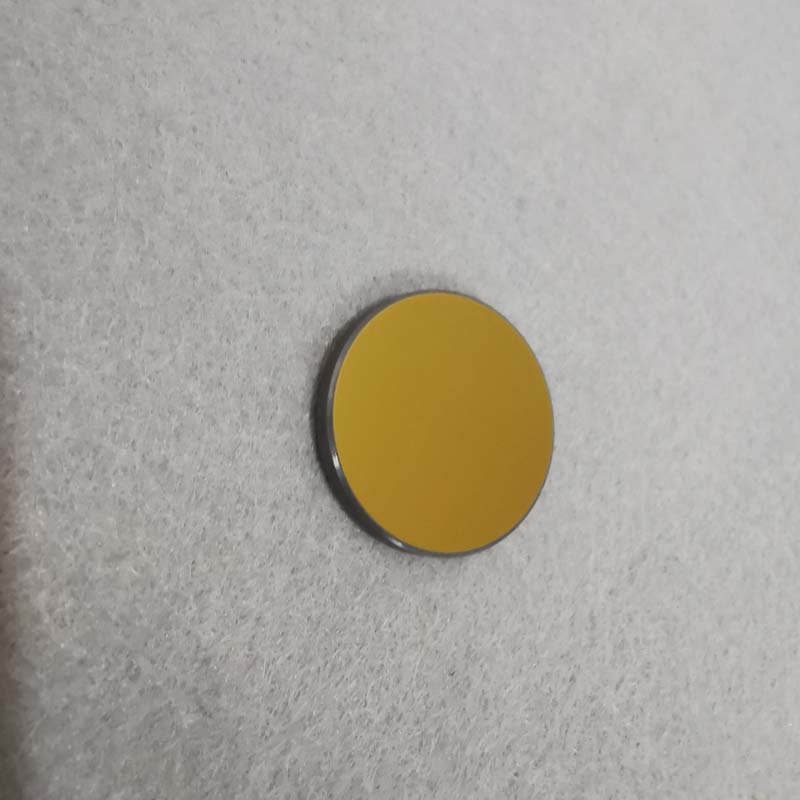

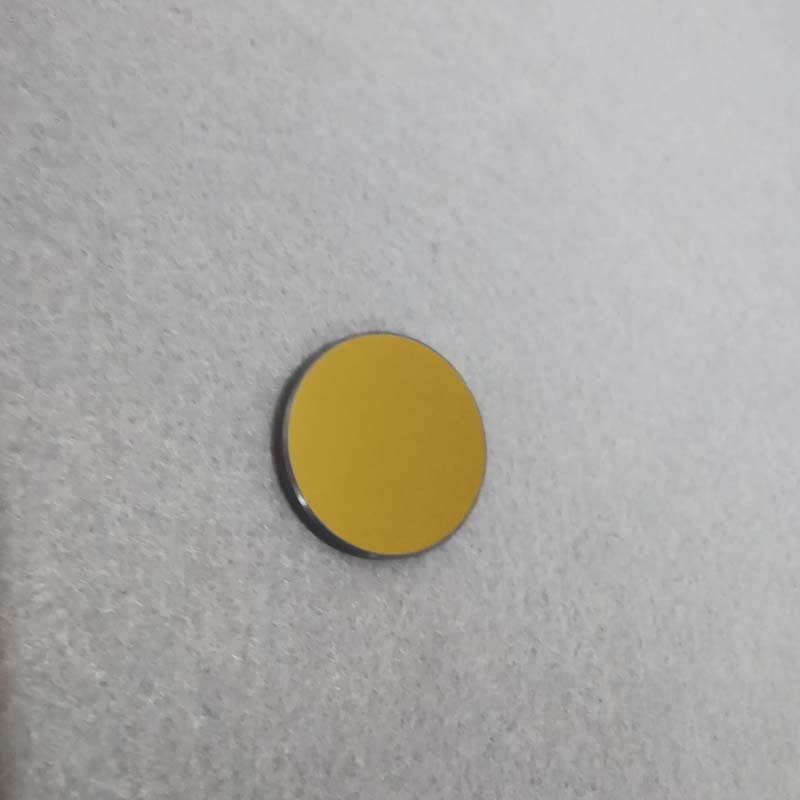

Custom Size Optical Glass Custom Optical Mirror
High-performance optical mirror with >95% reflectance for infrared applications, customizable sizes, and durable coatings.
Core attributes
- Material
- Optical Glass
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 20/10
- Reflectance
- 95%
- Coating
- protected gold, dielectric HR
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 20/10
- Reflectance
- 95%
- Coating
- protected gold, dielectric HR
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm)
Product description
This optical mirror is designed for high-performance applications in the infrared spectrum, specifically tailored for laser, spectroscopy, and research environments. With a reflectance of over 95% in the 3-14 μm range, it ensures efficient beam reflection for demanding optical systems. The mirror features a protected gold coating for enhanced durability and environmental resistance, making it ideal for long-term use. Custom sizes and shapes are available to meet specific application needs.
Key Features
- High reflectance of >95% for efficient infrared beam reflection.
- Protected gold coating enhances durability and environmental resistance.
- Surface quality of 20/10 ensures low scattering and high accuracy.
- Customizable dimensions and thicknesses to fit specific application requirements.
- Angle of incidence options at 0°, 45°, or custom for versatile integration.
Applications
Laser, Spectroscopy, Research
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Custom |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 20/10 |
| Reflectance | 95% |
| Coating | protected gold, dielectric HR |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Mirror |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Weight | 1 |
| Wavelength Range | 0.7 to 20 μm, customizable |
| Reflectivity | >95% average reflectivity in infrared range |
| Surface Flatness | 1/4 lamda@ 632.8nm |
| Dimension Tolerance | ±0.1mm or as requested |
| Angle Of Incidence | 0°, 45°, or custom |
FAQ
Can I get custom sizes for this mirror?
Yes, the mirror is available in various diameters, thicknesses, and shapes to meet specific application requirements.
What are the tolerances for dimensions?
Dimension tolerance is ±0.1mm or as requested, allowing for precise fitting in optical systems.
