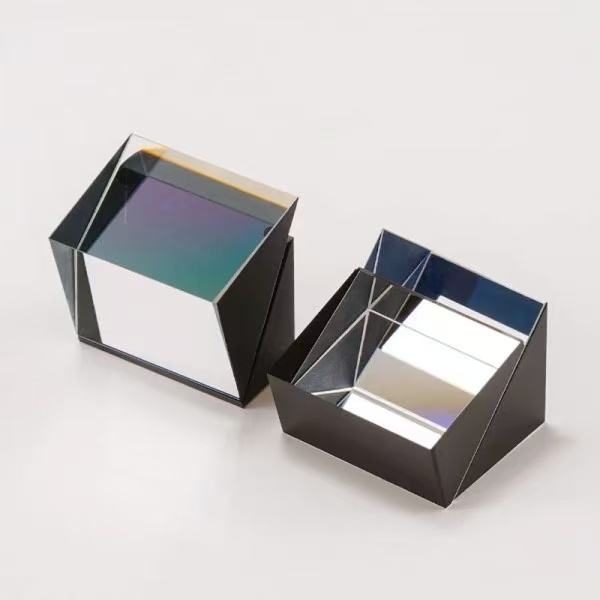

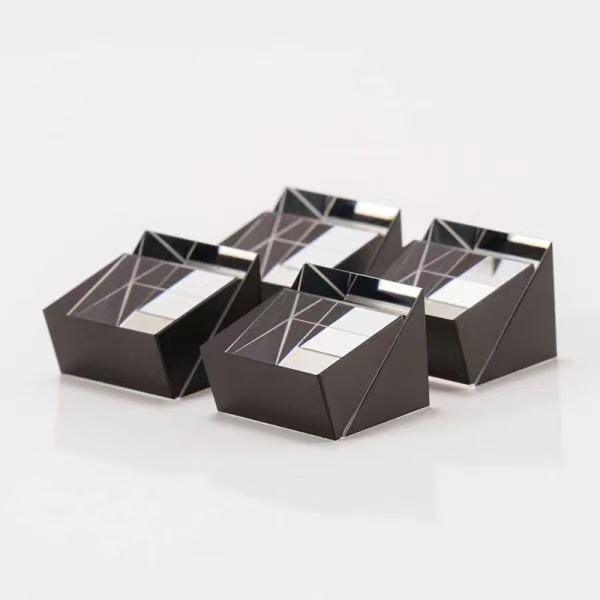

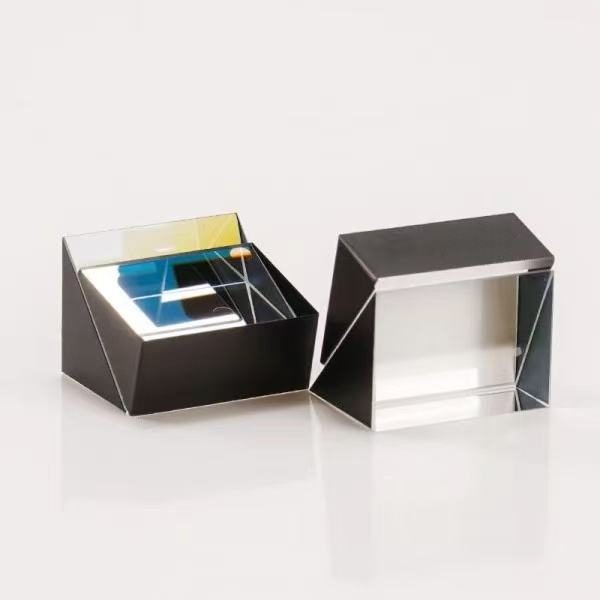

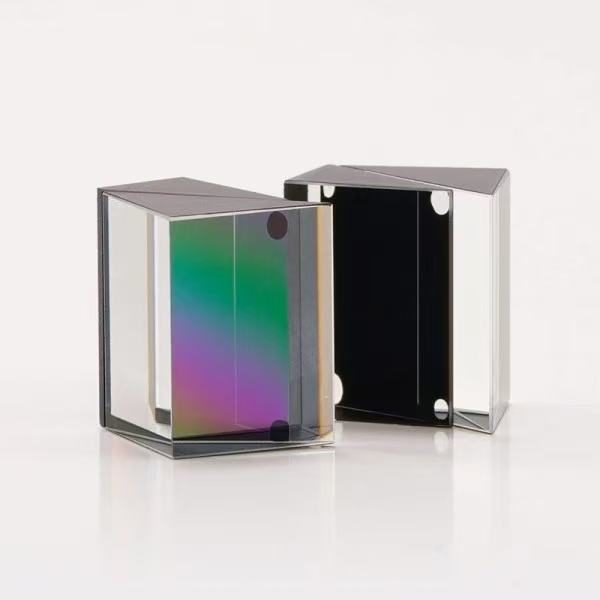

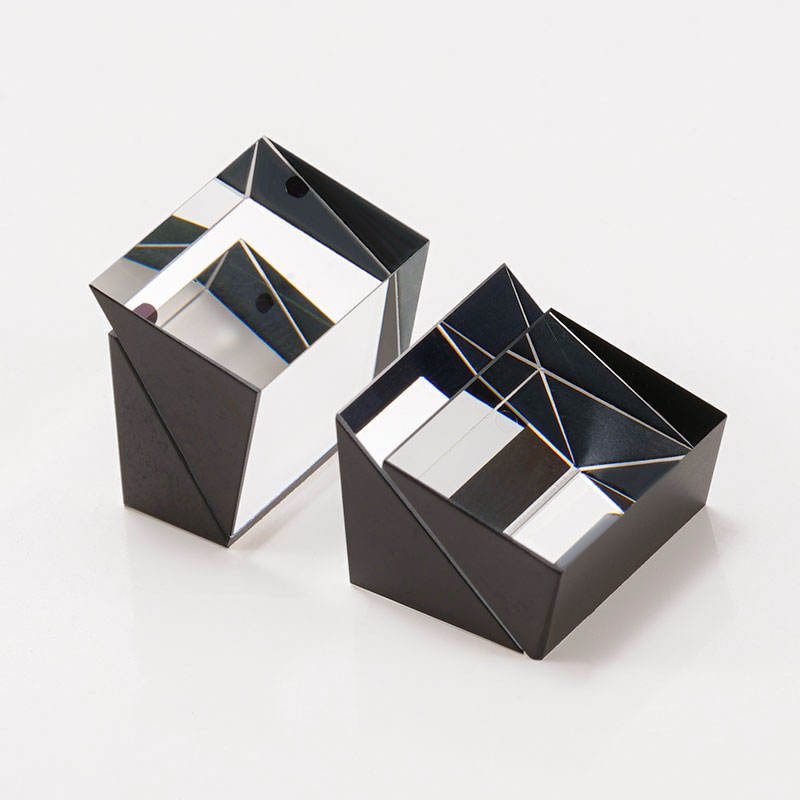

Custom Size Optical Glass Custom Optical Prism, AR Coated

Product description

The TIR Prism is designed to efficiently redirect light in applications requiring precise angle control and minimal loss. With customizable dimensions and coatings, this prism is ideal for various optical paths. Its angle tolerance of ±3"~~8" and dimension tolerance of ±0.03~~0.10mm ensure reliable performance in demanding environments. Suitable for integration in OEM and ODM projects, this prism meets the needs of R&D and engineering professionals.

Key Features

Angle tolerance of ±3"~8" for precise beam alignment.
Dimension tolerance of ±0.03~0.10mm for consistent batch quality.
Surface quality of 60/40 to maintain wavefront integrity.
Customizable sizes and coatings for specific application needs.
Flatness ranging from Lambda/2 to Lambda/10 for optimal performance.

Specification Summary

Item	Value
Material	Optical Glass
Shape	Custom
Size	Custom
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Prism Type	TIR Prism
Customized Support	OEM, ODM
Warranty	1 year
Angle Tolerance	±3"~8"
Dimension Tolerance	±0.03~0.10mm
Flatness	Lambda/2~lambda/10

FAQ

Can I get custom sizes for the TIR Prism?

Yes, the TIR Prism can be customized to meet specific size requirements.

What is the angle tolerance for this prism?

The angle tolerance for the TIR Prism is ±3"~8".
