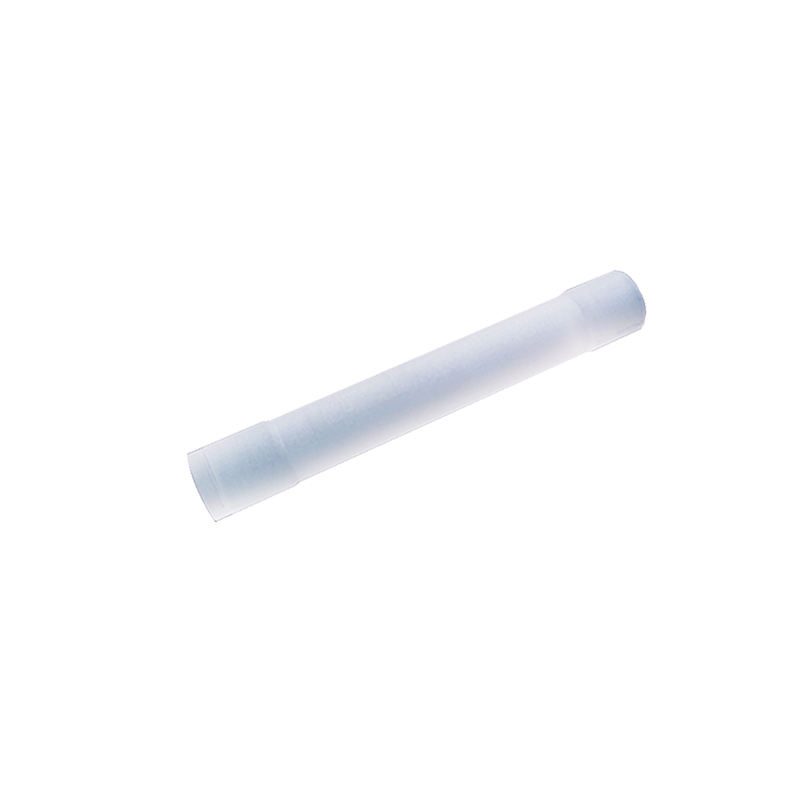

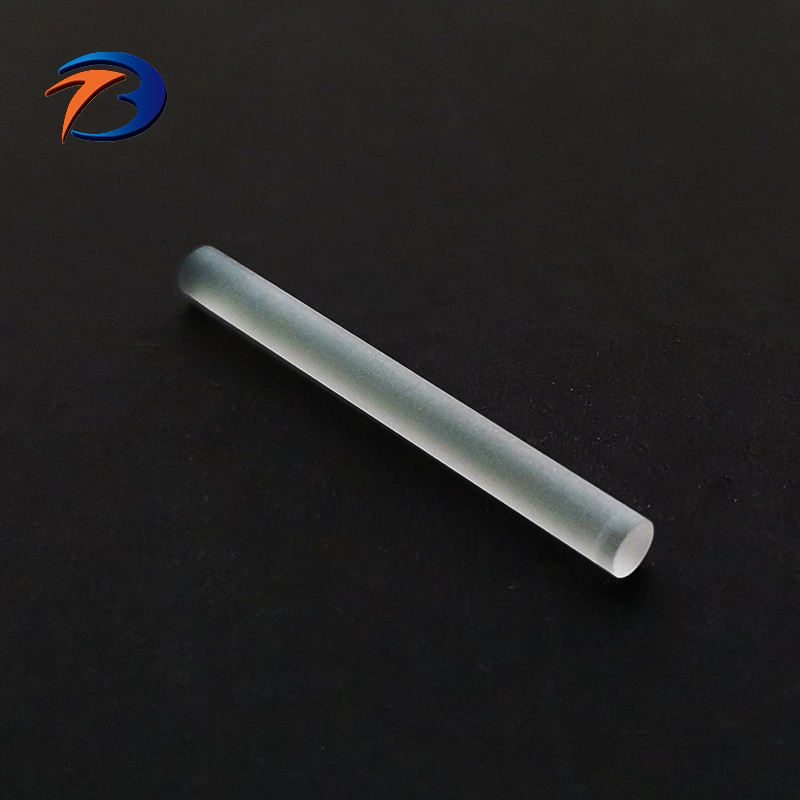

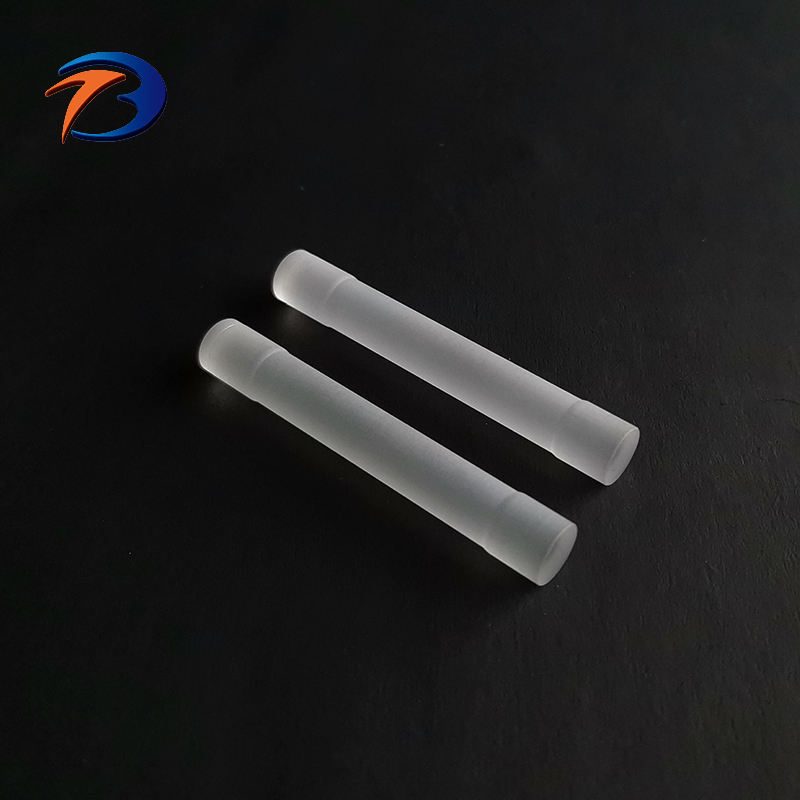

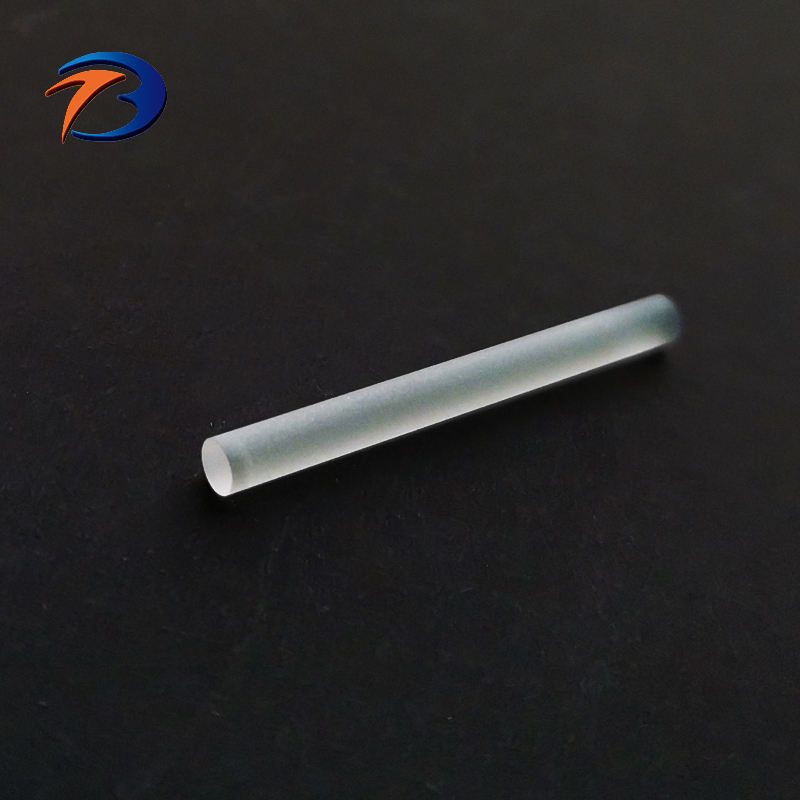

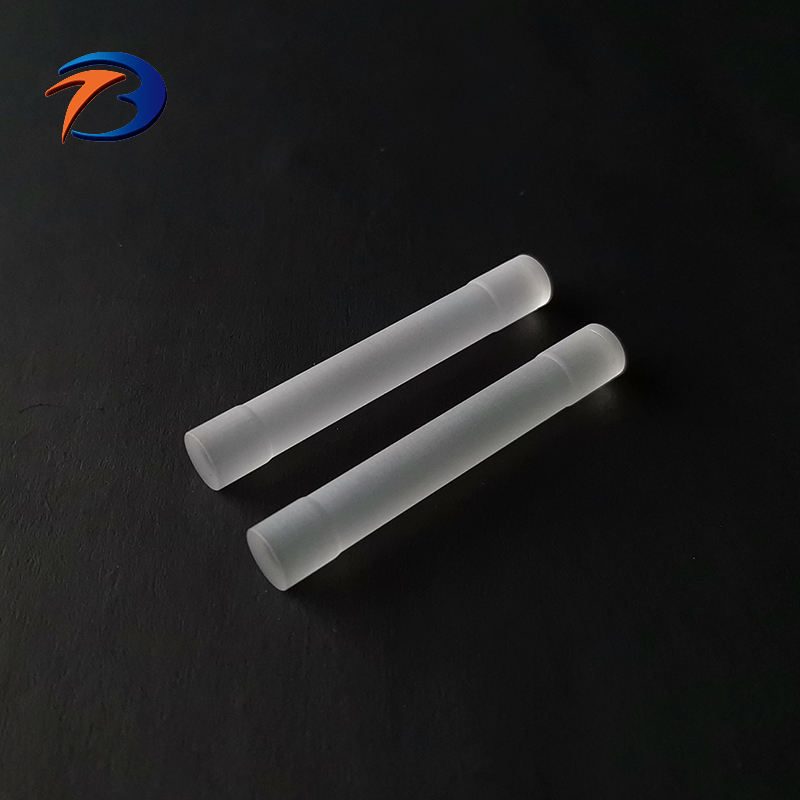

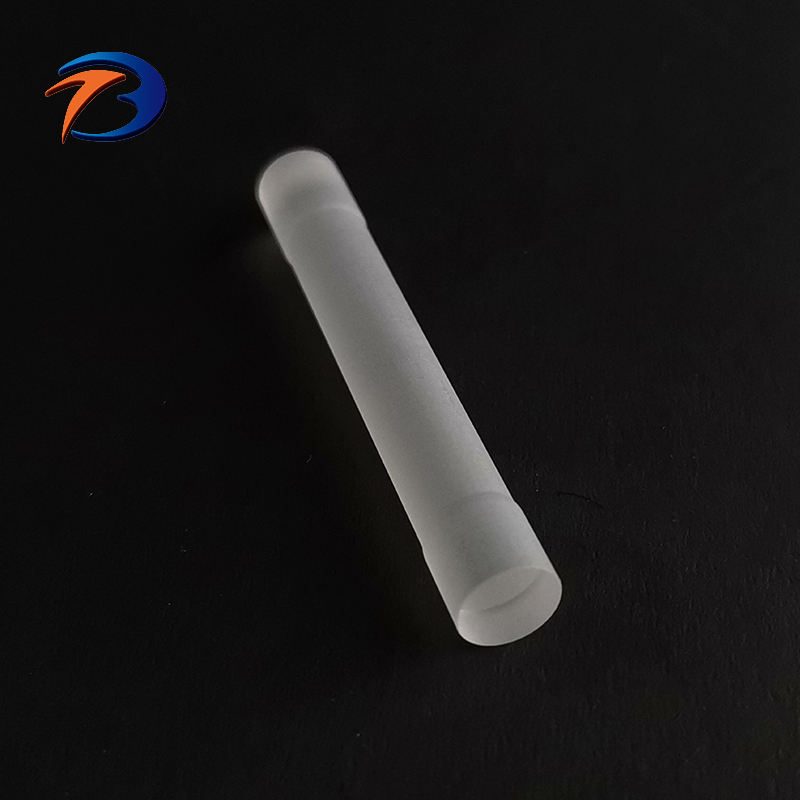

45 mm Optical Glass Cylindrical Lens

Product description

Rod lenses made from optical glass are essential components in medical and imaging applications, particularly in laser systems and endoscopes. These cylindrical lenses are designed for high precision and reliability, with a clear aperture greater than 90%. They can withstand sterilization at 134°C for 5 minutes, making them suitable for medical environments. Their customizable dimensions and robust performance ensure they meet various OEM requirements.

Key Features

Diameter of 45.0 mm with a dimension tolerance of +0.0/-0.1 mm for precise fitting.
Clear aperture greater than 90% ensures optimal light transmission.
Surface accuracy options of 60/40 or better for high-quality imaging.
Resistant to sterilization at 134°C for 5 minutes, ideal for medical applications.
Manufactured by a supplier with over 20 years of experience and ISO9001 certification.

Applications

Medical, Imaging

Specification Summary

Item	Value
Material	Optical Glass
Shape	Cylindrical
Diameter	45 mm

Full Specifications

Parameter	Value
Use	Rod lens, Optical
Dimension Tolerance	+0.0/-0.1mm
Thickness Tolerance	±0.2mm
Focal Length Tolerance	±1 %
Clear Aperture	>90%
Type	Optical Lenses
Structure	Other

FAQ

What are the tolerances for diameter and thickness?

Diameter tolerance is +0.0/-0.1 mm, and thickness tolerance is ±0.2 mm.

Can I get custom sizes for these rod lenses?

Yes, the supplier offers customization options to meet different requirements.
