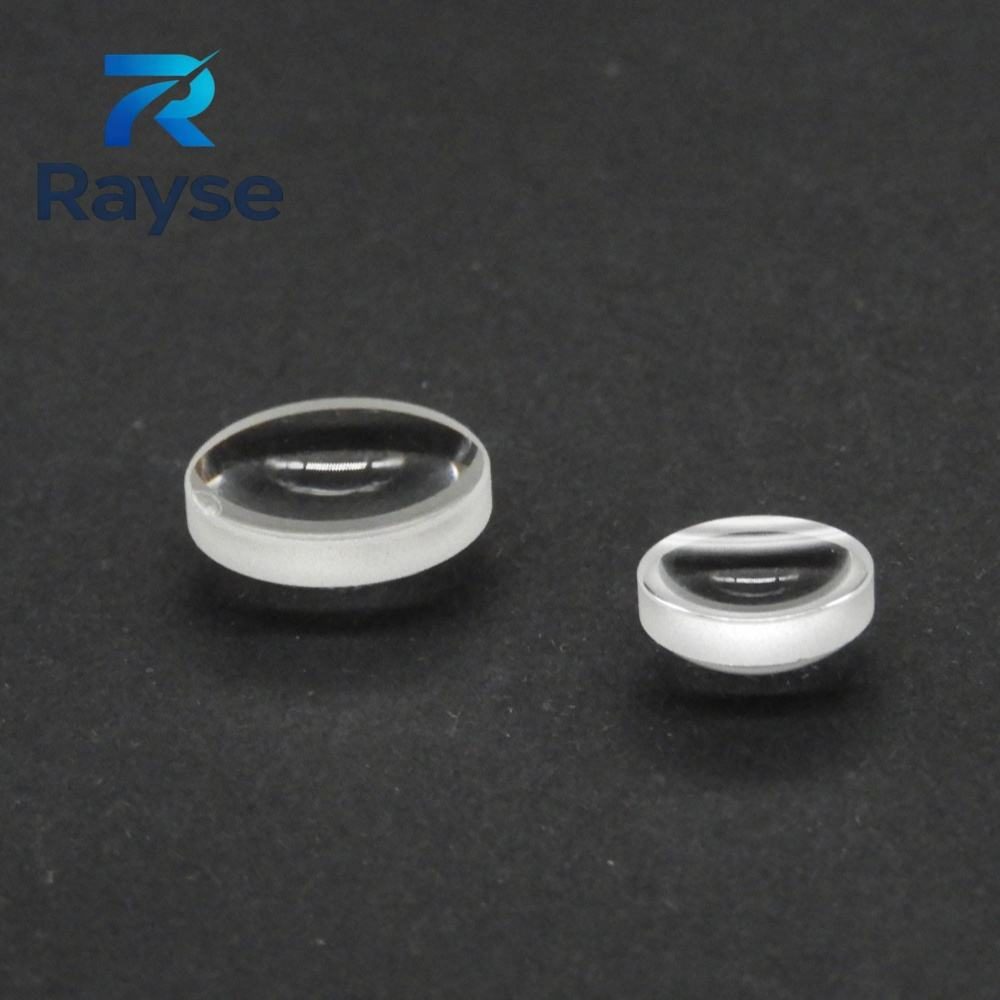

5 mm Optical Glass Dome Lens

Product description

This dome-shaped optical glass lens is engineered for projection applications, providing high clarity and a wide viewing angle. With diameters ranging from 5.0 mm to 200.0 mm and thicknesses from 0.1 mm to 100.0 mm, it is designed to meet diverse optical requirements. The lens achieves a clear aperture of 90%, ensuring vivid image quality. Its robust construction guarantees durability, making it suitable for professional use.

Key Features

Diameter range: 5.0 mm to 200.0 mm for versatile applications.
Thickness range: 0.1 mm to 100.0 mm allows for customization.
90% clear aperture delivers superior image clarity.
Surface quality of 20/10 ensures minimal distortion.
Available in OEM, ODM, and OBM for tailored solutions.

Applications

Projection

Specification Summary

Item	Value
Material	Optical Glass
Shape	Dome
Diameter	5 mm
Thickness	0.1 mm
Surface Quality	20/10

Full Specifications

Parameter	Value
Type	Spherical lens
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	custom
Clear Aperture	90%
Flatness	1/2Lambda~ 1/10 Lambda
Chamfer	0.1-0.5*45

FAQ

Can I get custom sizes?

Yes, the lens is available in various diameters up to 200.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing flexibility in sourcing.
