1 / 6Optical Filters

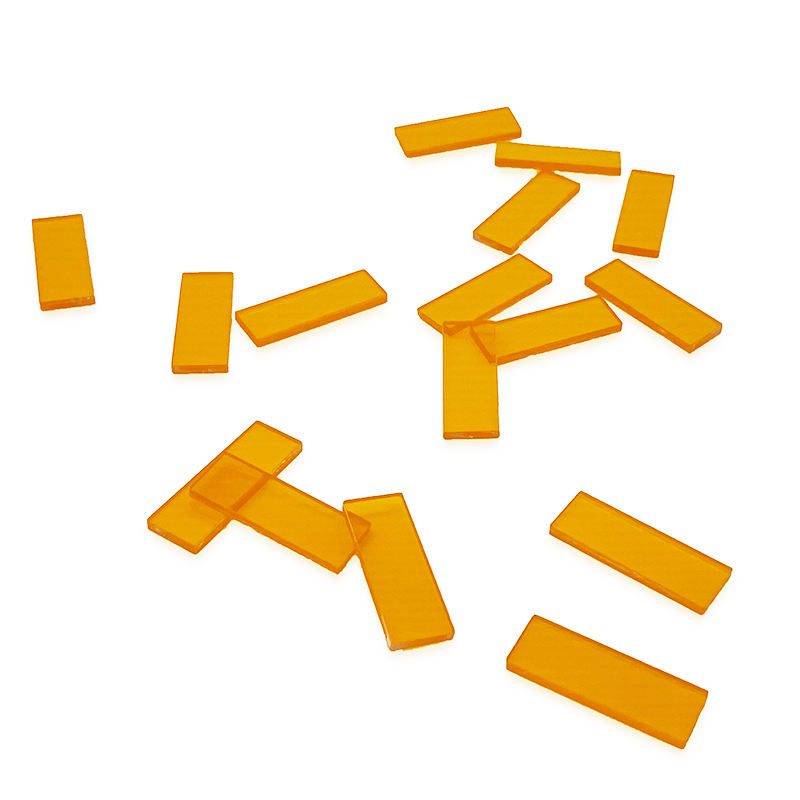

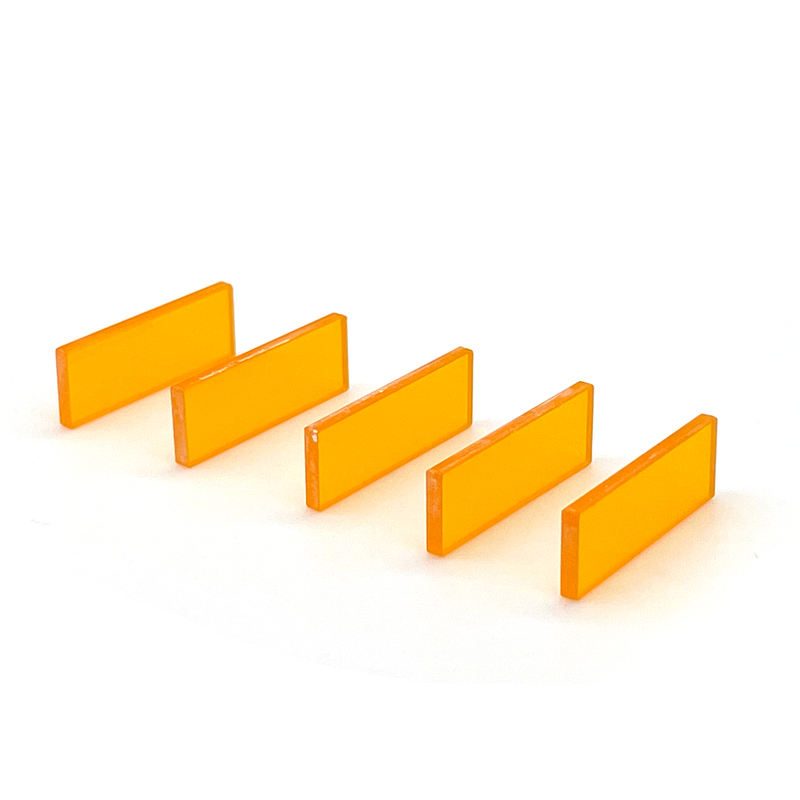

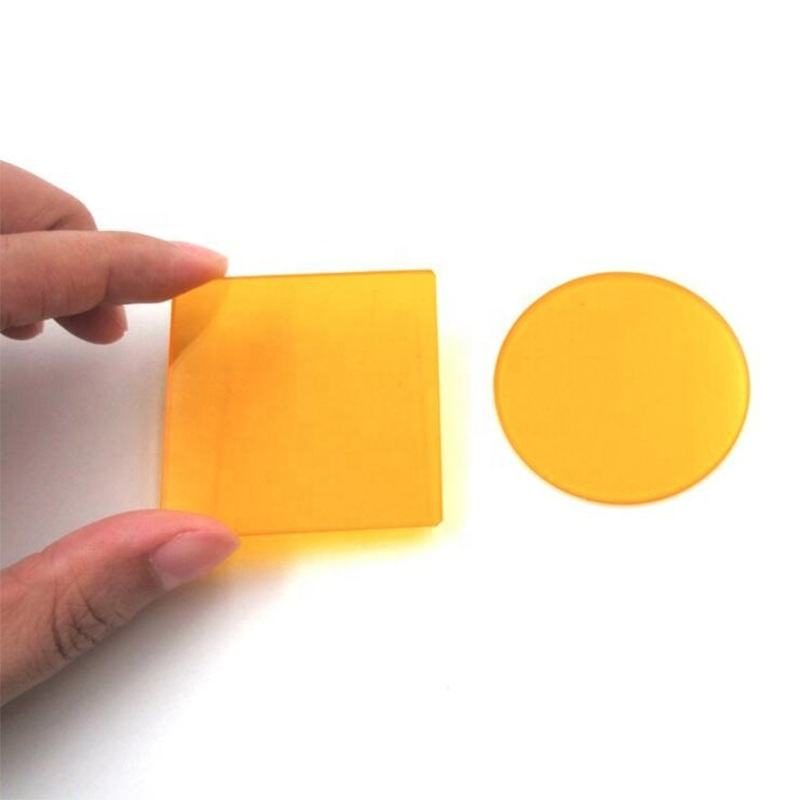

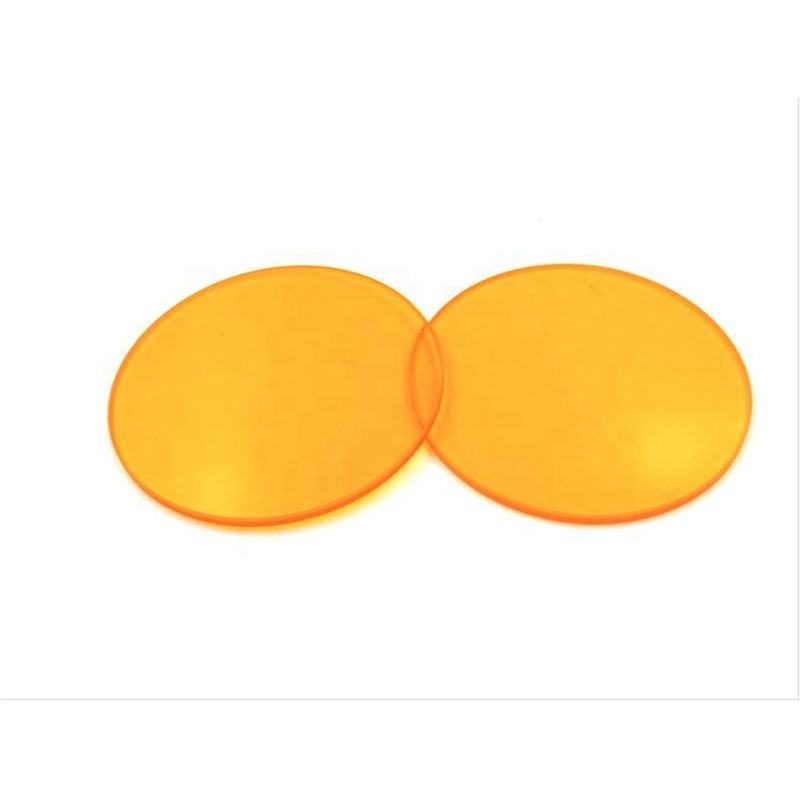

0.5 mm Optical Glass Optical Filter, AR Coated
High transmittance longpass filter for beauty IPL applications, customizable sizes, and low MOQ.
Core attributes
- Material
- Optical Glass
- Size
- 0.5 mm
- Thickness
- Custom
- Surface Quality
- 80/50
- Transmittance
- 90%
- Filter Type
- longpass
- Cwl
- 550nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 5pcs
Product facts
Key attributes
- Material
- Optical Glass
- Size
- 0.5 mm
- Thickness
- Custom
- Surface Quality
- 80/50
- Transmittance
- 90%
- Filter Type
- longpass
- Cwl
- 550nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 5pcs
Product description
This longpass filter is designed for applications in beauty IPL systems, effectively allowing wavelengths above 550 nm to pass while blocking shorter wavelengths. With a high transmittance of 90%, it ensures optimal light transmission for enhanced performance. The filter is made from optical glass and features anti-reflective coatings, making it suitable for demanding environments. Custom sizes and low minimum order quantities (MOQ) provide flexibility for various project needs.
Key Features
- High transmittance of 90% for optimal light passage
- Longpass filter type effectively blocks wavelengths below 550 nm
- Available in sizes from 0.45mm to 10mm for versatile applications
- Tolerance of +/-0.1mm ensures precise optical alignment
- Customizable options available for OEM, ODM, and OBM projects
Applications
Beauty Ipl
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | 0.5 mm |
| Thickness | Custom |
| Surface Quality | 80/50 |
| Transmittance | 90% |
| Filter Type | longpass |
| Cwl | 550nm |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
| MOQ | 5pcs |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Tolerance | +/-0.1mm in general |

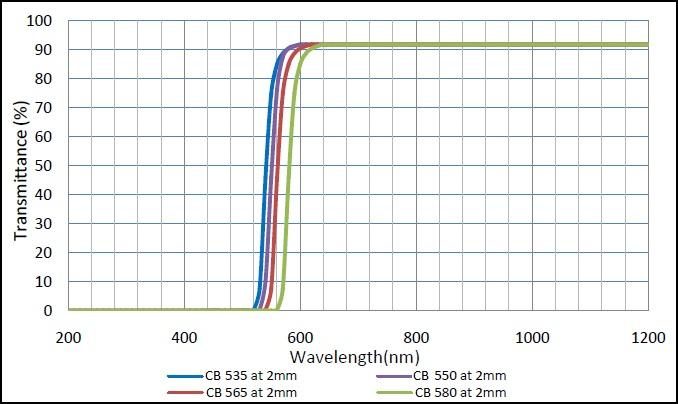

| Wavelength | As spectrum curve shows |
| Transmission | >90% |
| Moq | 5pcs |
FAQ
What is the minimum order quantity?
The minimum order quantity (MOQ) is 5 pieces.
Can I get custom sizes?
Yes, customizable sizes are available up to 400mm.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
