1 / 6Optical Filters

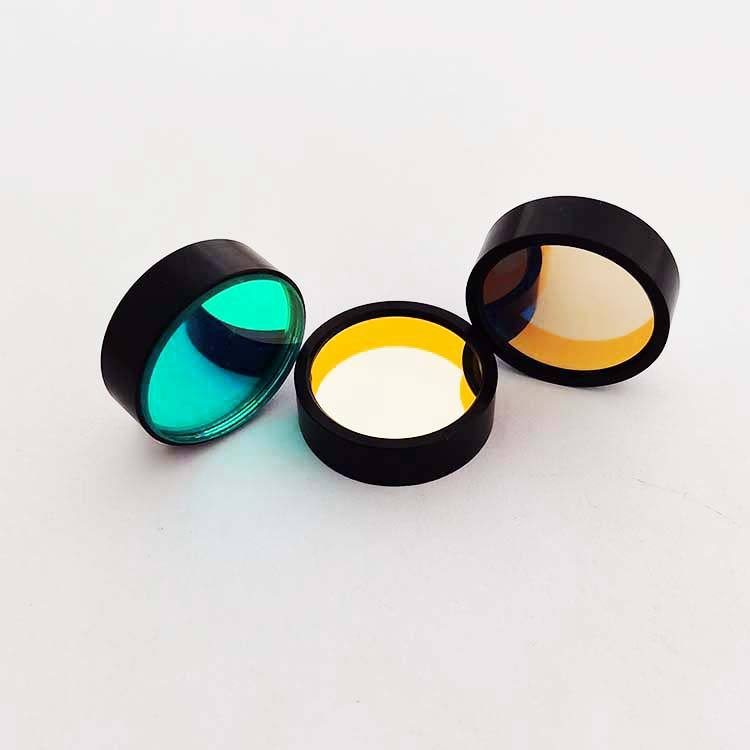

12 mm Optical Glass Optical Filter
High-performance bandpass filter for fluorescence applications, featuring 90% transmittance and durable hard-coat optical glass.
Core attributes
- Material
- Optical Glass
- Size
- 12 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- 12 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed for fluorescence applications, effectively transmitting light in the 450-490 nm range while blocking unwanted wavelengths from 200-750 nm. With a high transmittance of 90%, it ensures optimal performance in fluorescence detection systems. The hard-coated optical glass construction enhances durability, making it suitable for various environmental conditions. This filter is ideal for R&D and procurement engineers seeking reliable optical components for their applications.
Key Features
- High transmittance of 90% for enhanced signal clarity.
- Blocks wavelengths from 200-750 nm with OD4-6 for effective noise reduction.
- Center wavelength of 450-490 nm tailored for fluorescence detection.
- FWHM of 40±5 nm for precise spectral fitting.
- Hard-coated for improved environmental durability.
Applications
Fluorescence
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | 12 mm |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | bandpass |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 60% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Substrate | Optical glass |
| Center Wavelength | 450-490nm |
| Fwhm | 40±5 nm |
| Blocking | OD4-6@200-750 nm |
| Use | Fluorescence Detection |
FAQ
Can I get custom sizes?
Custom sizes are supported with OEM options available.
What is the minimum order quantity?
Minimum order quantity details are not specified.
