1 / 6Optical Filters

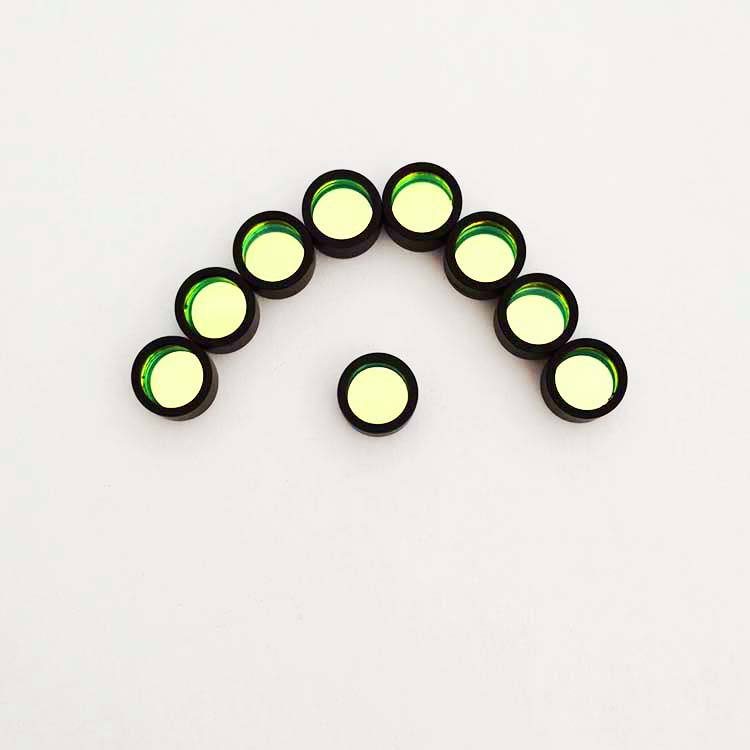

150 mm Optical Glass Optical Filter
High-performance 470 nm bandpass filter for fluorescence applications with 90% transmittance and OD5 blocking.
Core attributes
- Material
- Optical Glass
- Size
- 150 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 470nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- 150 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 470nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed specifically for fluorescence applications, providing optimal performance with a center wavelength of 470 nm and a full width at half maximum (FWHM) of 20 nm. With a high transmittance of 90%, it effectively allows desired wavelengths to pass while blocking unwanted light, ensuring accurate detection and imaging. The hard-coat finish enhances environmental durability, making it suitable for various laboratory conditions.
Key Features
- Center Wavelength: 470 nm for precise fluorescence detection.
- High Transmittance: 90% ensures maximum light throughput.
- Blocking Depth: OD5 from 200-1100 nm for superior unwanted light rejection.
- Durable Coating: Hard-coat finish for enhanced environmental resistance.
- Custom Sizing: OEM support available for tailored solutions.
Applications
Fluorescence
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | 150 mm |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 470nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 50 |
| Customized Support | OEM |
| Warranty | 3 Years |
| Substrate | Optical glass |
| Center Wavelength | 470nm |
| Fwhm | 20 nm |
| Blocking | OD5@200-1100 nm |
| Use | Fluorescence Detection |
FAQ
Can I get custom sizes?
Yes, OEM support is available for custom sizes.
What is the minimum order quantity?
The minimum order quantity is not specified.
