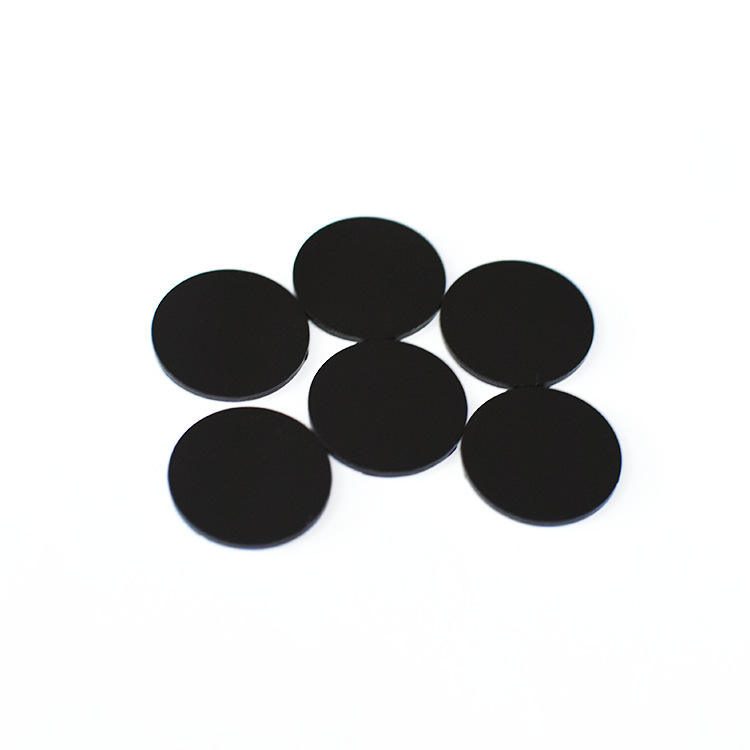

15x1 mm Optical Glass Optical Filter, AR Coated

Optical glass filter with 365 nm center wavelength and 80% transmittance, ideal for fluorescence microscopy and custom sizes available.

Core attributes

Material: Optical Glass
Size: 15 mm
Thickness: 1 mm
Surface Quality: 60/40
Transmittance: 80%
Cwl: 365nm
Coating: anti-reflective (AR)
Transmission bands: VIS (400-700 nm), UV (<400 nm)

Product description

This optical glass filter is designed for applications requiring high transmittance and precise wavelength selection. With a center wavelength of 365 nm, it effectively transmits light in the 400-700 nm range while blocking wavelengths below 400 nm. The filter’s 80% transmittance ensures optimal performance in fluorescence microscopy and other light-sensitive applications, making it an ideal choice for R&D and procurement engineers seeking reliable optical components.

Key Features

Center Wavelength: 365 nm for precise optical performance in targeted applications.
Transmittance: 80% ensures high light throughput for effective imaging.
Diameter Tolerance: +/-0.1 mm for consistent fit in various setups.
Thickness Tolerance: +/-0.05 mm for precise optical alignment.
Customizable Support: Available for OEM and ODM projects.

Available Sizes

Size x Thickness (mm)
15 x 1

Specification Summary

Item	Value
Material	Optical Glass
Size	15 mm
Thickness	1 mm
Surface Quality	60/40
Transmittance	80%
Cwl	365nm
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Transmittance	80%
Customized Support	OEM, ODM
Warranty	1 year
Diameter Tolerance	+/-0.1mm
Thickness Tolerance	+/-0.05mm
Center Wavelength	365nm

FAQ

Can I get custom sizes?

Yes, customizable sizes are available, including the variant size of 15.0 mm diameter and 1.0 mm thickness.

What is the MOQ for ordering?

Minimum order quantity (MOQ) details are not specified; please inquire for specific requirements.
