1 / 6Optical Filters

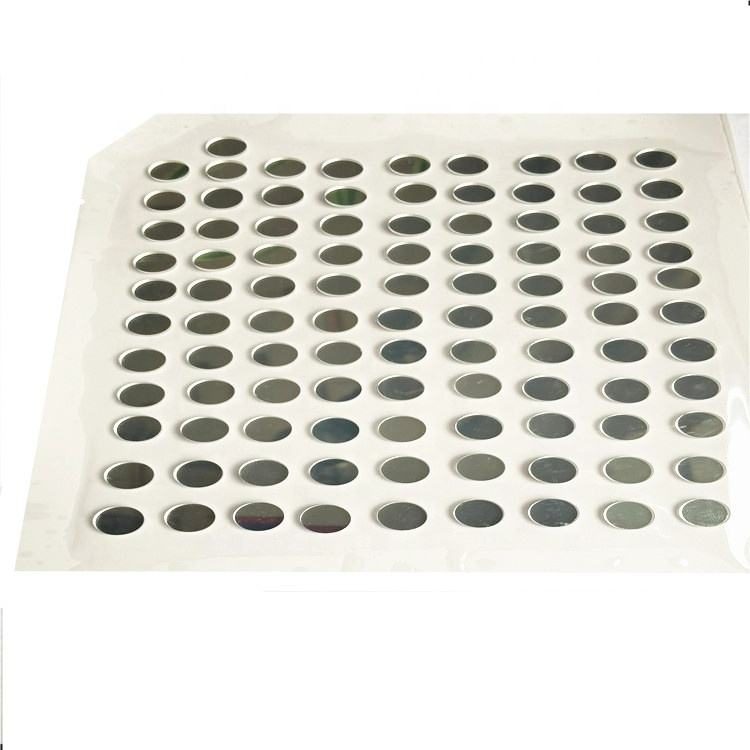

1x1 mm Optical Glass Optical Filter
High-performance 808nm bandpass filter with 92% transmittance, ideal for fluorescence microscopy and custom sizes available.
Core attributes
- Material
- Optical Glass
- Size
- 1 mm
- Thickness
- 1 mm
- Transmittance
- 92%
- Filter Type
- bandpass
- Cwl
- 808nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- 1 mm
- Thickness
- 1 mm
- Transmittance
- 92%
- Filter Type
- bandpass
- Cwl
- 808nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
The Optical Bandpass Filter at 808nm is designed to enhance the performance of fluorescence microscopy and other optical applications by allowing specific wavelengths to pass while blocking unwanted light. With a high transmittance of 92%, this filter ensures optimal light utilization, making it ideal for applications requiring precise wavelength selection in the 0.7-1.7 μm range.
Key Features
- High transmittance of 92% for effective light transmission.
- Center wavelength of 808nm tailored for specific applications.
- Custom sizes available to fit unique experimental setups.
- Durable optical glass material for reliable performance.
- OEM, ODM, and OBM support for tailored solutions.
Available Sizes
| Size x Thickness (mm) |
|---|
| 1 x 1 |
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | 1 mm |
| Thickness | 1 mm |
| Transmittance | 92% |
| Filter Type | bandpass |
| Cwl | 808nm |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | cut off; 92% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 2 years |
| Name | Optical multi coating 40nm FWHM narrow band pass filter 808nm |
| Cwl | 808nm |
| Od | 2~4 |
FAQ
What are the available sizes for this filter?
The filter is available in a standard size of 1.0 x 1.0 mm.
Is custom sizing available?
Yes, custom sizes can be accommodated.
