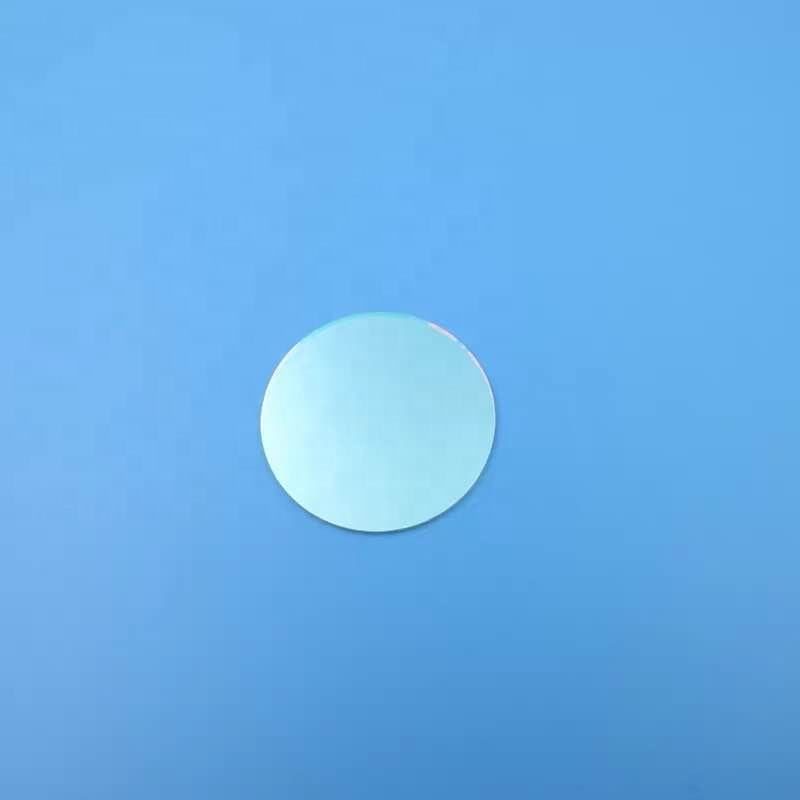

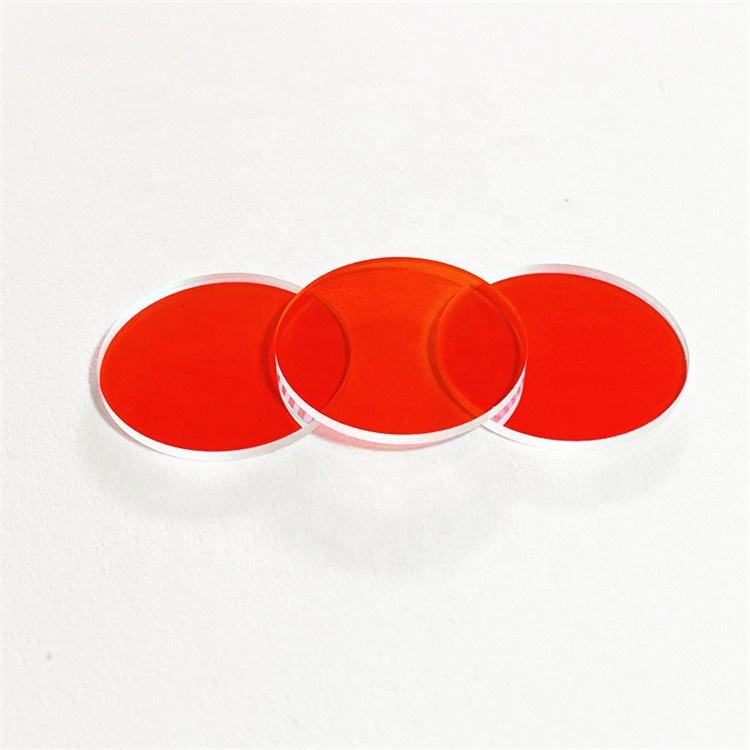

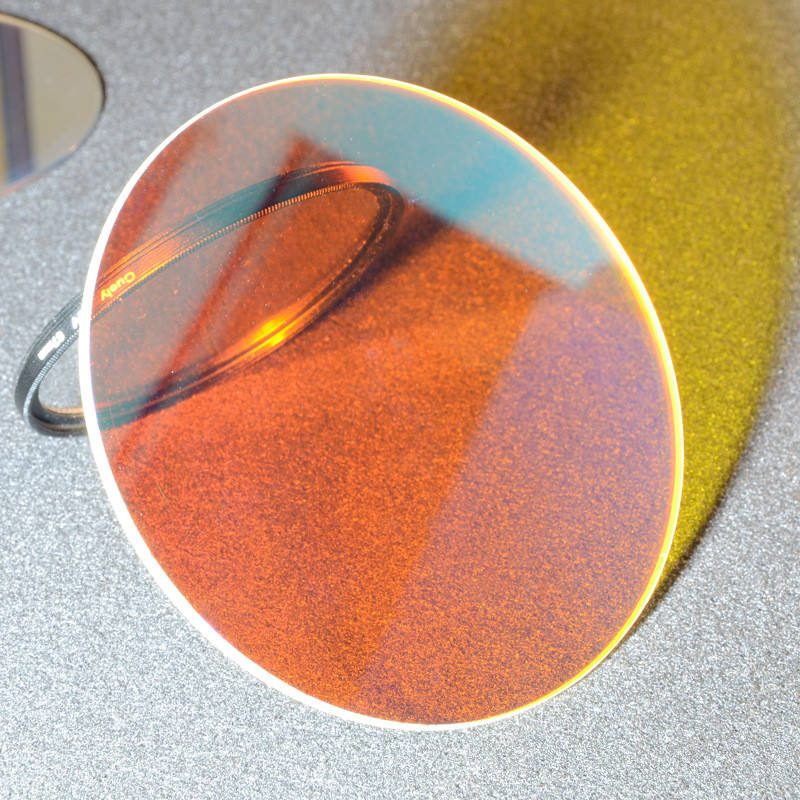

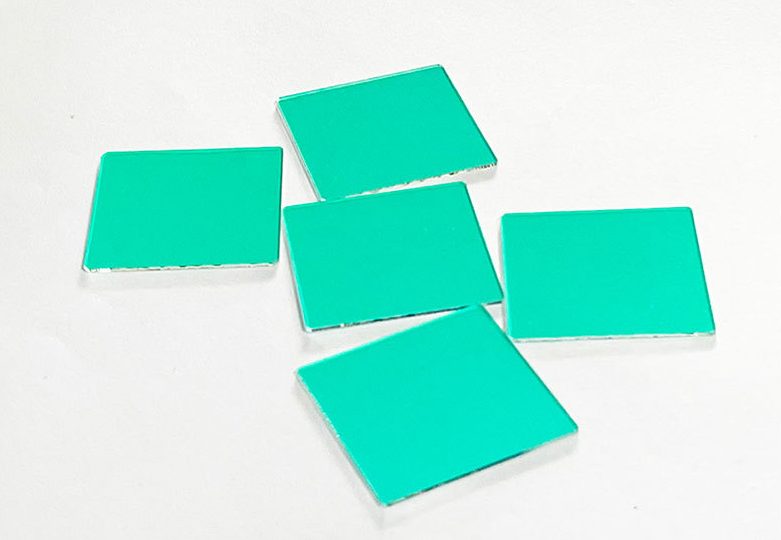

1 mm Optical Glass Optical Filter
High-performance bandpass filter with 92% transmittance, customizable for laser applications.
Core attributes
- Material
- Optical Glass
- Size
- 1 mm
- Thickness
- Custom
- Transmittance
- 92%
- Filter Type
- bandpass
- Fwhm
- 40nm
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- 1 mm
- Thickness
- Custom
- Transmittance
- 92%
- Filter Type
- bandpass
- Fwhm
- 40nm
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This bandpass filter is designed for laser applications, providing high transmittance of 92% across the 400-700 nm and 0.7-1.7 μm wavelength ranges. Its 40 nm FWHM ensures precise spectral fit for various light sources, making it ideal for fluorescence microscopy and other optical systems. With customizable options available, it meets specific project requirements while maintaining high performance and reliability.
Key Features
- High transmittance of 92% ensures optimal light passage for enhanced imaging.
- 40 nm FWHM provides precise spectral filtering for effective application in laser systems.
- Customizable support for OEM, ODM, and OBM allows tailored specifications.
- Tolerance of 0.1mm ±0.01mm ensures consistent batch quality.
- Available in green/silver color options for aesthetic and functional needs.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | 1 mm |
| Thickness | Custom |
| Transmittance | 92% |
| Filter Type | bandpass |
| Fwhm | 40nm |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | block; 92% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 years |
| Tolerance | 0.1mm ~ +/-0.01mm |
| Color | green/sliver |
| Transmission | 92% @CWL |
| Od | 2-3 |
FAQ
Can I get custom sizes for this filter?
Yes, the filter is customizable to fit specific project requirements.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
