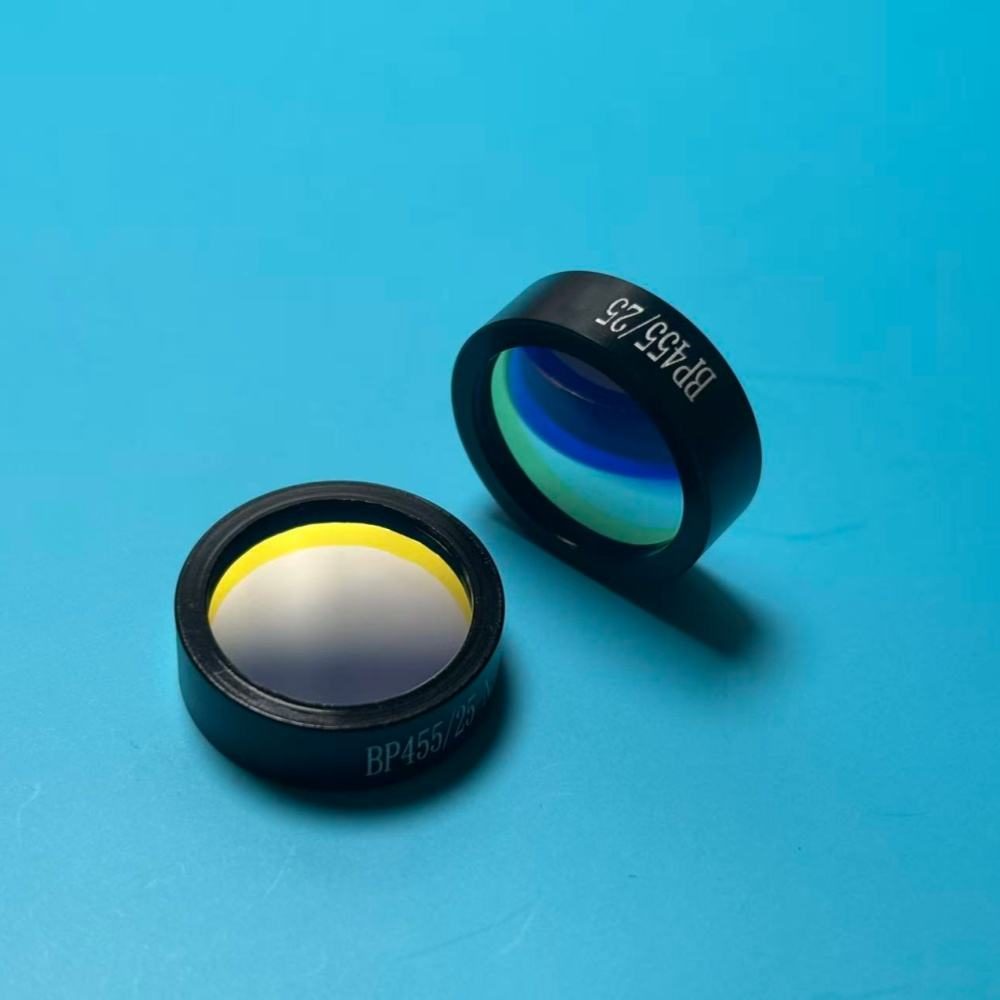

1 mm Optical Glass Optical Filter

Product description

This Optical Glass Bandpass Filter is designed for applications requiring precise light control within the 400-700 nm range. With a transmittance of 90%, it maximizes light efficiency while effectively blocking unwanted UV and IR wavelengths (OD4-OD6). Its narrow pass characteristics (FWHM of 8-40 nm) ensure optimal performance for fluorescence microscopy, machine vision, and other optical applications. The filter’s durability and customizable specifications make it suitable for various environments and specific project needs.

Key Features

90% transmittance ensures maximum light efficiency for enhanced imaging.
FWHM range of 8-40 nm allows for precise wavelength selection.
Blocking depth greater than OD4-OD6 effectively eliminates UV-IR interference.
Customizable support for OEM, ODM, and OBM solutions.
Available in sizes ranging from 1.0 mm to 80.0 mm.

Specification Summary

Item	Value
Material	Optical Glass
Size	1 mm
Thickness	Custom
Transmittance	90%
Filter Type	bandpass
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	90%
Customized Support	OBM, ODM, OEM
Warranty	6 Months
Fwhm	8-40nm
Cut Off Wavelength	200-2000nm
Blocking	>OD4-OD6 UV-IR

FAQ

Can I get custom sizes for this filter?

Yes, the filter is available in sizes ranging from 1.0 mm to 80.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible purchasing.
