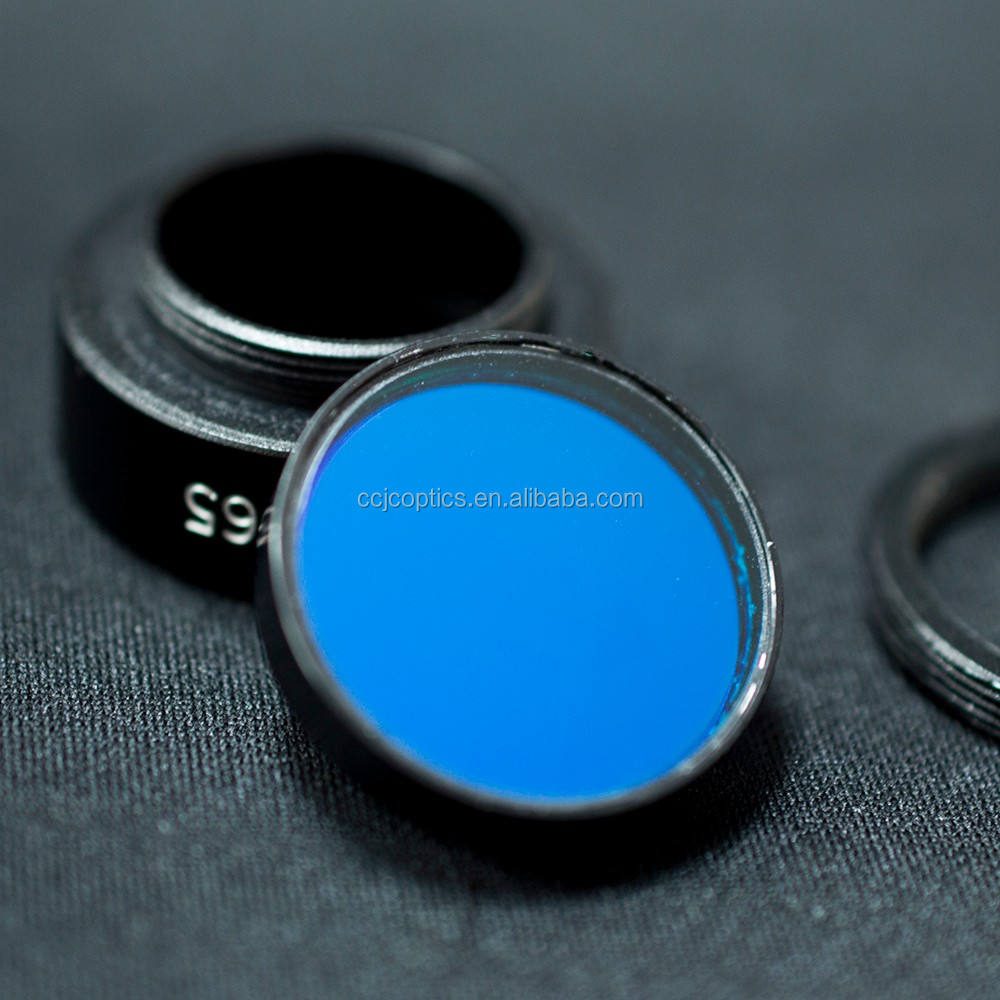

1 mm Optical Glass Optical Filter

Product description

This dichroic filter is designed for applications requiring precise wavelength separation, particularly in fluorescence microscopy and machine vision. With a center wavelength of 560 nm and a full width at half maximum (FWHM) of 8 nm, it effectively transmits visible light while blocking UV and IR wavelengths. The filter’s 90% transmittance ensures high optical efficiency, making it suitable for various scientific and industrial applications.

Key Features

Center Wavelength: 560 nm for targeted filtering in fluorescence applications.
FWHM: 8 nm for narrow bandpass performance, ensuring precise wavelength selection.
High Transmittance: 90% for optimal light efficiency and clarity.
Blocking Depth: >OD4-OD6 in UV-IR for superior protection against unwanted wavelengths.
Custom Sizes: Available in dimensions from 1.0 mm to 80.0 mm to fit specific application needs.

Specification Summary

Item	Value
Material	Optical Glass
Size	1 mm
Thickness	Custom
Transmittance	90%
Filter Type	dichroic
Cwl	560nm
Fwhm	8nm
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	90%
Customized Support	OBM, ODM, OEM
Warranty	3 Years
Fwhm	8-40nm
Cut Off Wavelength	200-5000nm
Blocking	>OD4-OD6 UV-IR

FAQ

Can I get custom sizes for this filter?

Yes, customizable sizes are available, ranging from 1.0 mm to 80.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement.
