1 / 6Optical Filters

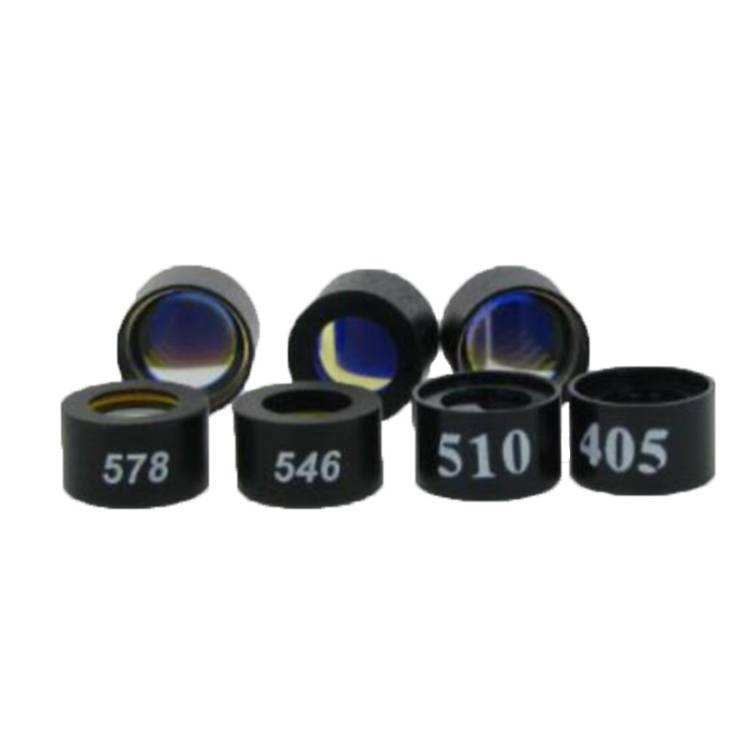

22 mm Optical Glass Optical Filter
Bandpass filter for fluorescence applications with 90% transmittance and 20 nm FWHM, available in 22.0 mm and 25.4 mm sizes.
Core attributes
- Material
- Optical Glass
- Size
- 22 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Fwhm
- 20nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- 22 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Fwhm
- 20nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed for fluorescence applications, providing precise spectral filtering with a center wavelength of 470 nm and a full width at half maximum (FWHM) of 20 nm. With a transmittance of 90%, it ensures high signal-to-noise ratios, making it ideal for accurate detection. The hard-coat enhances durability, ensuring long-lasting performance in various environments. Available in sizes of 22.0 mm and 25.4 mm, this filter meets the needs of R&D and procurement engineers looking for reliable optical components.
Key Features
- Center Wavelength: 470 nm for targeted fluorescence applications.
- FWHM: 20 nm for precise spectral filtering.
- Transmittance: 90% ensures high signal-to-noise ratio.
- Blocking: OD>5@200-1100 nm for effective light blocking.
- Durable hard coating for enhanced longevity.
Applications
Fluorescence
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | 22 mm |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | bandpass |
| Fwhm | 20nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; >90% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Substrate | Clear Optical Glass |
| Center Wavelength | 470nm |
| Blocking | OD>5@200-1100 nm |
FAQ
Can I get custom sizes?
Currently, the available sizes are 22.0 mm and 25.4 mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
