1 / 6Optical Filters

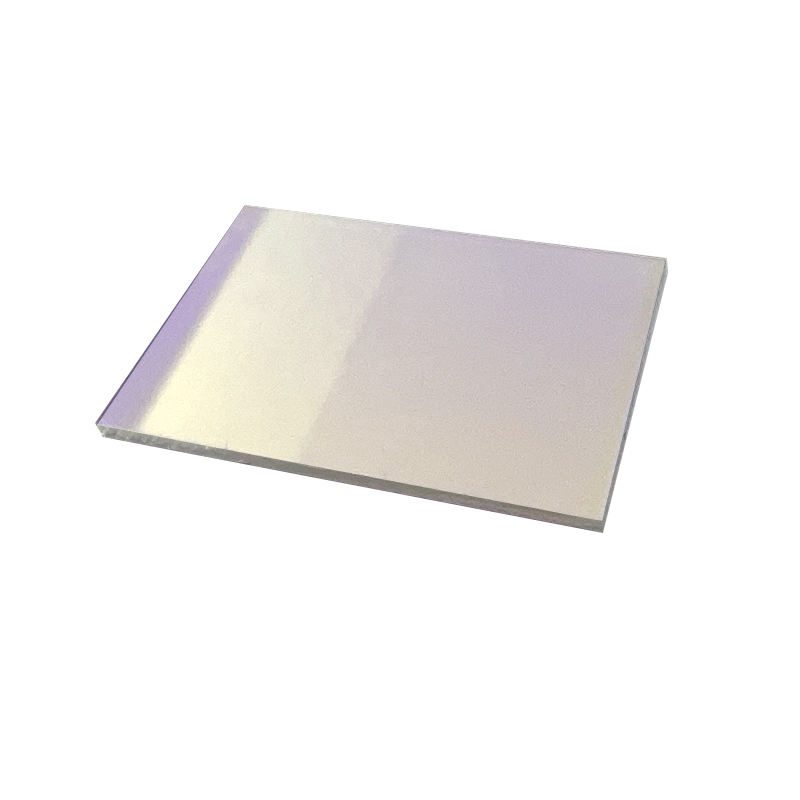

300 mm Optical Glass Optical Filter
532nm Notch Filter for spectroscopy with 90% transmittance and OD 4 blocking depth. Custom sizes available, MOQ 10 pcs.
Core attributes
- Material
- Optical Glass
- Size
- 300 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- notch
- Cwl
- 532nm
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 10pcs
Product facts
Key attributes
- Material
- Optical Glass
- Size
- 300 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- notch
- Cwl
- 532nm
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 10pcs
Product description
The 532nm Notch Filter is designed for applications in spectroscopy, effectively blocking unwanted wavelengths while allowing a high transmittance of 90%. This filter is ideal for systems requiring precise wavelength selection, ensuring optimal performance in fluorescence and other optical applications. With a center wavelength of 532nm and a blocking depth of OD 4, it provides reliable spectral performance. The filter is made from high-quality optical glass, ensuring durability and stability in various environments.
Key Features
- Transmittance of 90% for optimal light throughput.
- Center wavelength of 532nm, tailored for specific spectroscopy applications.
- OD 4 blocking depth to minimize unwanted light interference.
- Customized support available for OEM and ODM projects.
- Minimum order quantity of 10 pieces for flexible procurement.
Applications
Spectroscopy
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | 300 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 90% |
| Filter Type | notch |
| Cwl | 532nm |
| Transmission bands | VIS (400-700 nm) |
| MOQ | 10pcs |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 98% |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Moq | 10pcs |
| Tolerance | 0.1mm ~ +/-0.05mm |
| Wavelength | 532nm |
| Dimension | 300mm*3mm |
| Fwhm | 10-60nm |
| Angle Of Incidence | 0 degree |
| Od | 4 |
FAQ
What are the available custom sizes?
Currently, the filter is offered in a standard dimension of 300mm x 3mm.
What is the tolerance for this filter?
The tolerance for this filter is 0.1mm with a variation of +/-0.05mm.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
