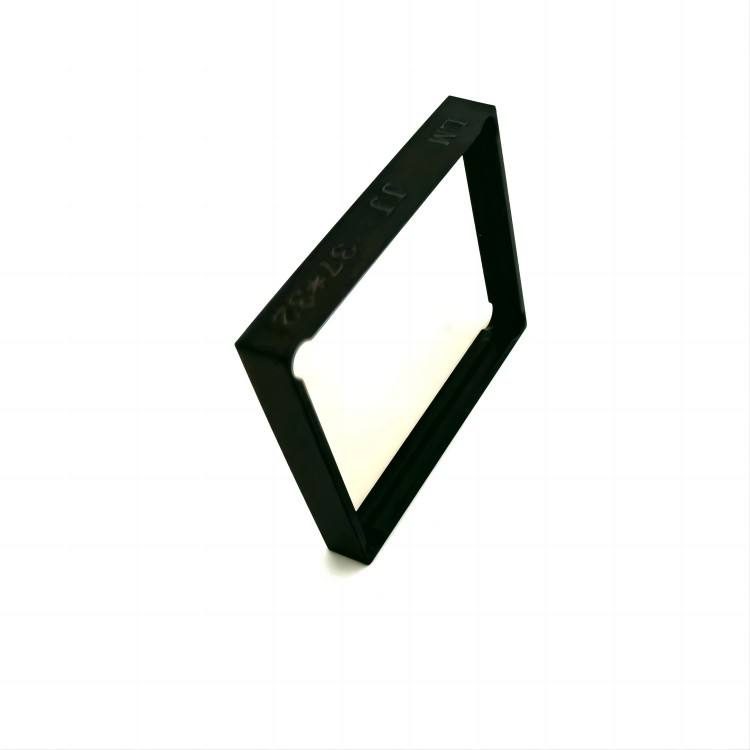

35 mm Optical Glass Optical Filter
Discover a 220nm bandpass filter with 90% transmittance, ideal for UV applications. Custom sizes available.
Core attributes
- Material
- Optical Glass
- Size
- 35 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 220nm
- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- 35 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 220nm
- Transmission bands
- UV (<400 nm)
Product description
This 220nm bandpass filter is designed for applications requiring high transmittance in the UV spectrum, specifically below 400 nm. With a transmittance of 90% and a blocking depth of OD≥4 from 200 to 1200 nm, this filter is ideal for fluorescence microscopy and other UV-sensitive applications. Its optical glass substrate ensures durability and reliability in various environments.
Key Features
- High transmittance of 90% for optimal light throughput.
- Effective blocking with OD≥4 from 200-1200 nm to minimize unwanted light.
- Center wavelength of 220 nm suitable for UV applications.
- Customizable support available for OEM projects.
- Durable optical glass substrate for enhanced environmental resilience.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | 35 mm |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 220nm |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 15% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Substrate | Optical galss |
| Center Wavelength | 220nm |
| Fwhm | 15nm |
| Blocking | OD≥4@200-1200nm |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM support.
What is the minimum order quantity?
Minimum order quantity details are not specified.
