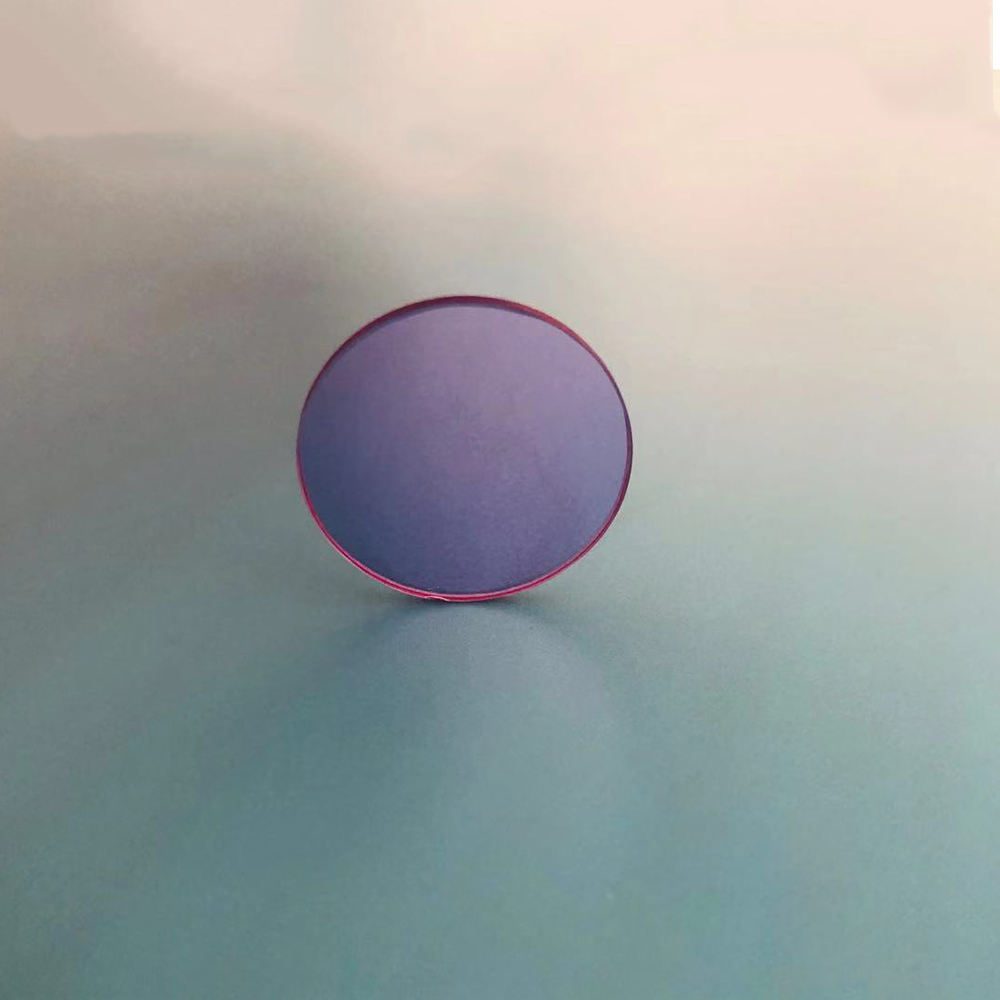

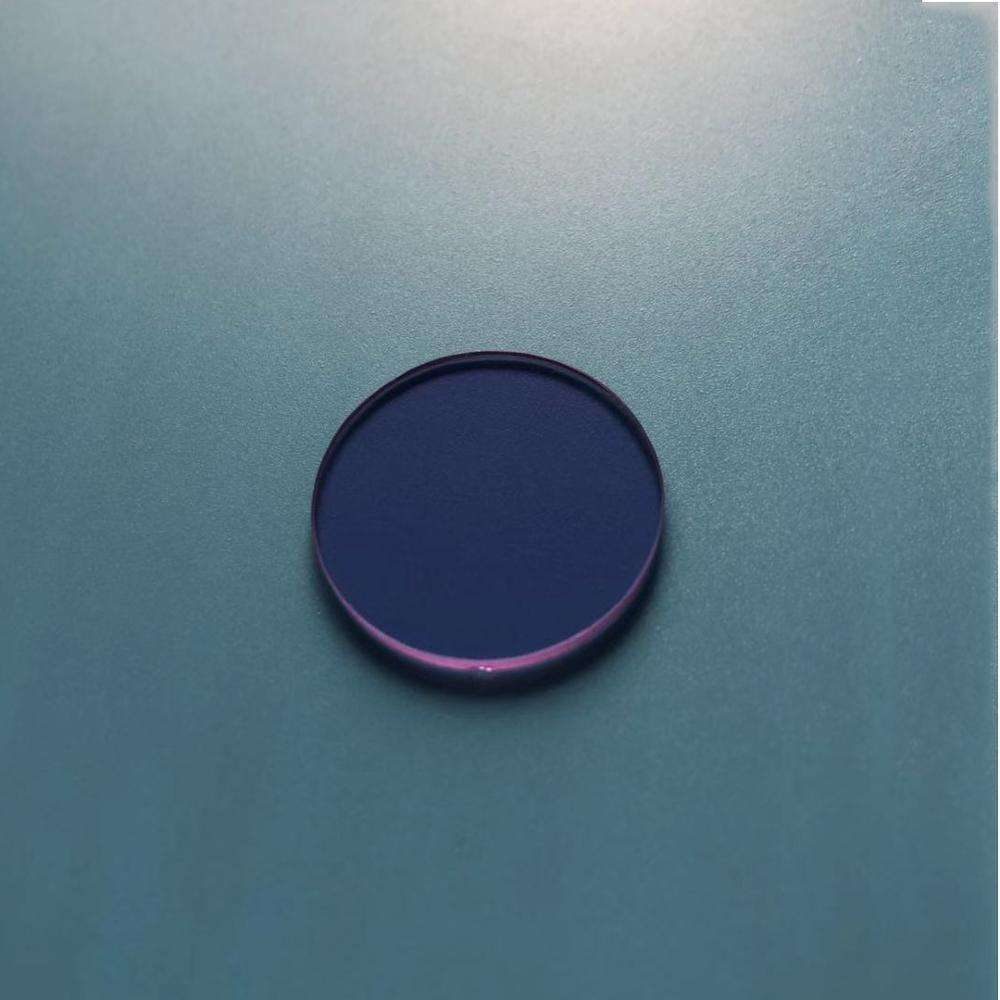

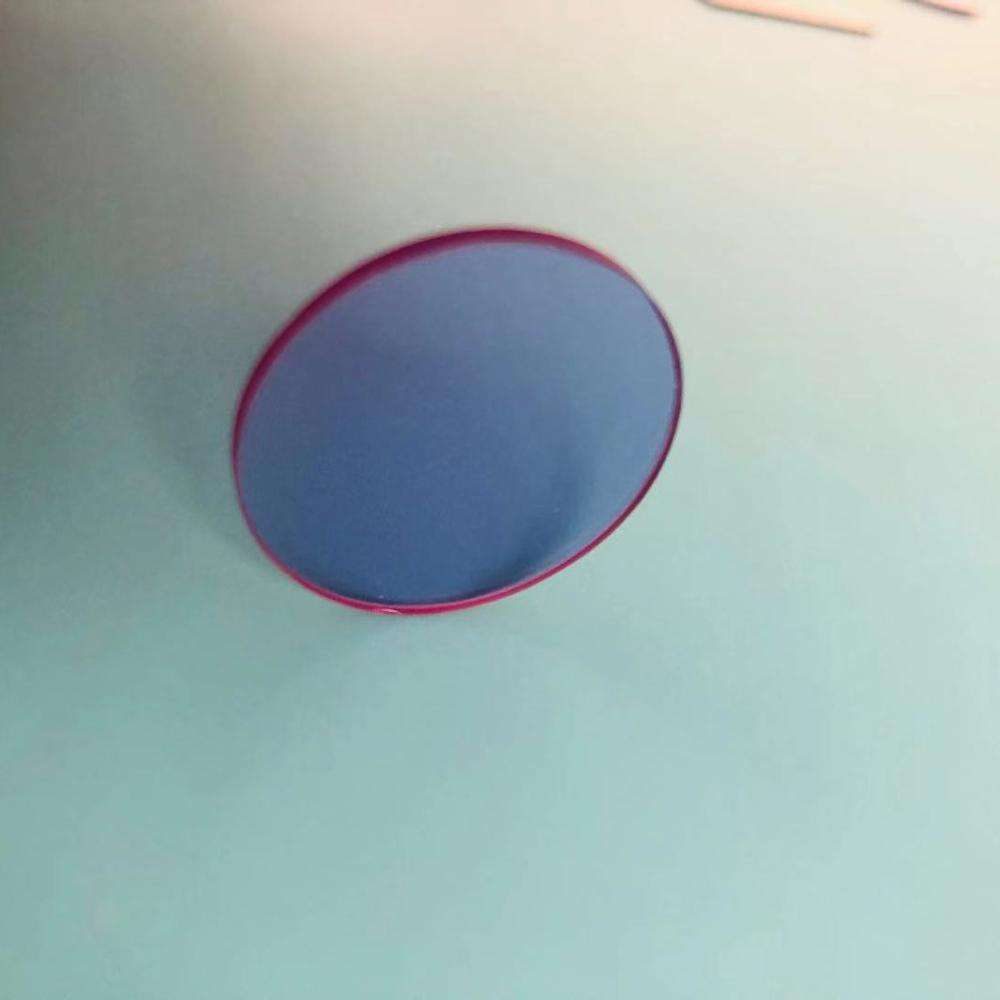

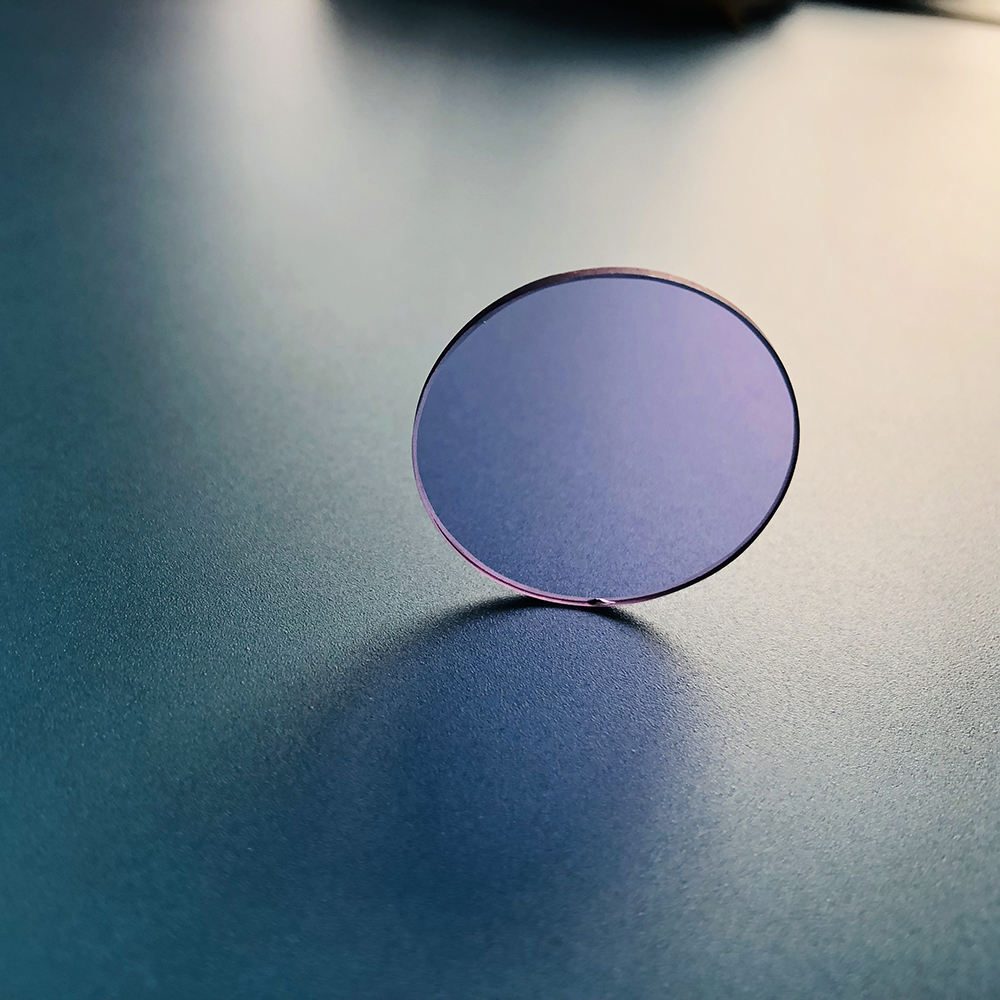

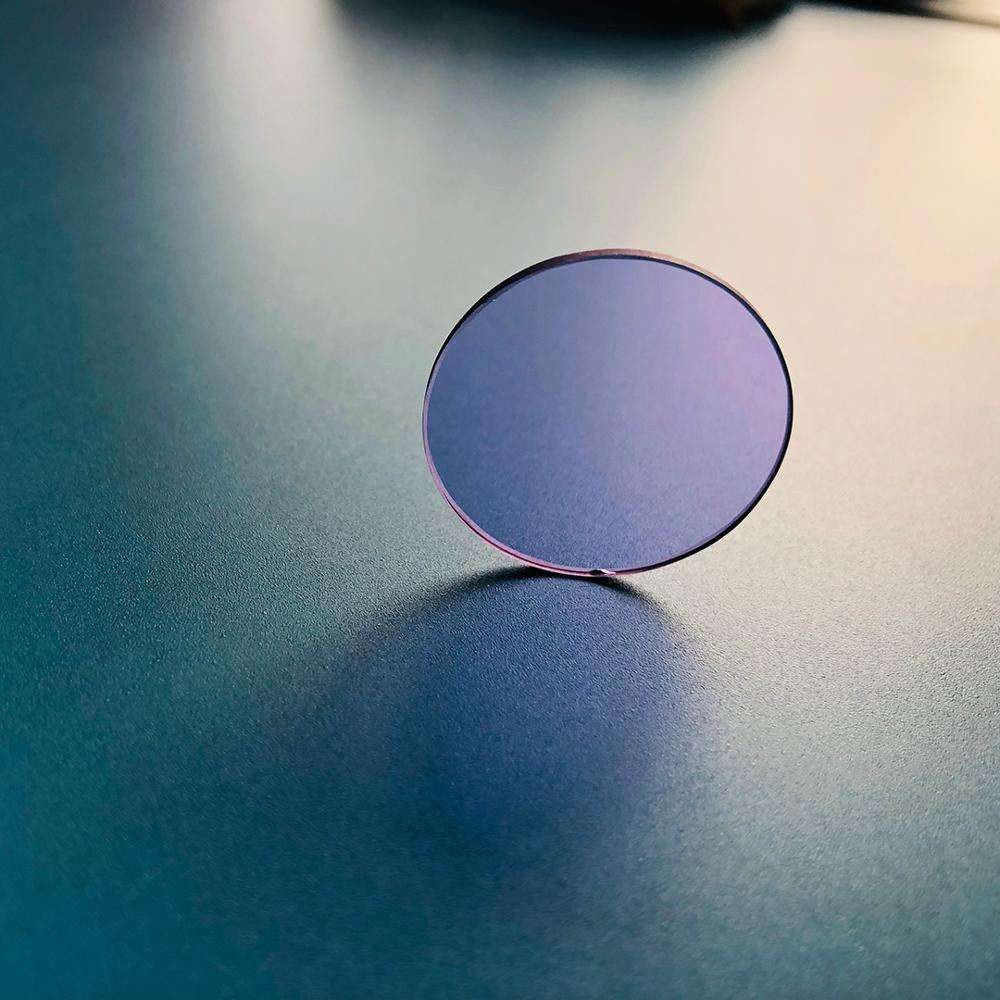

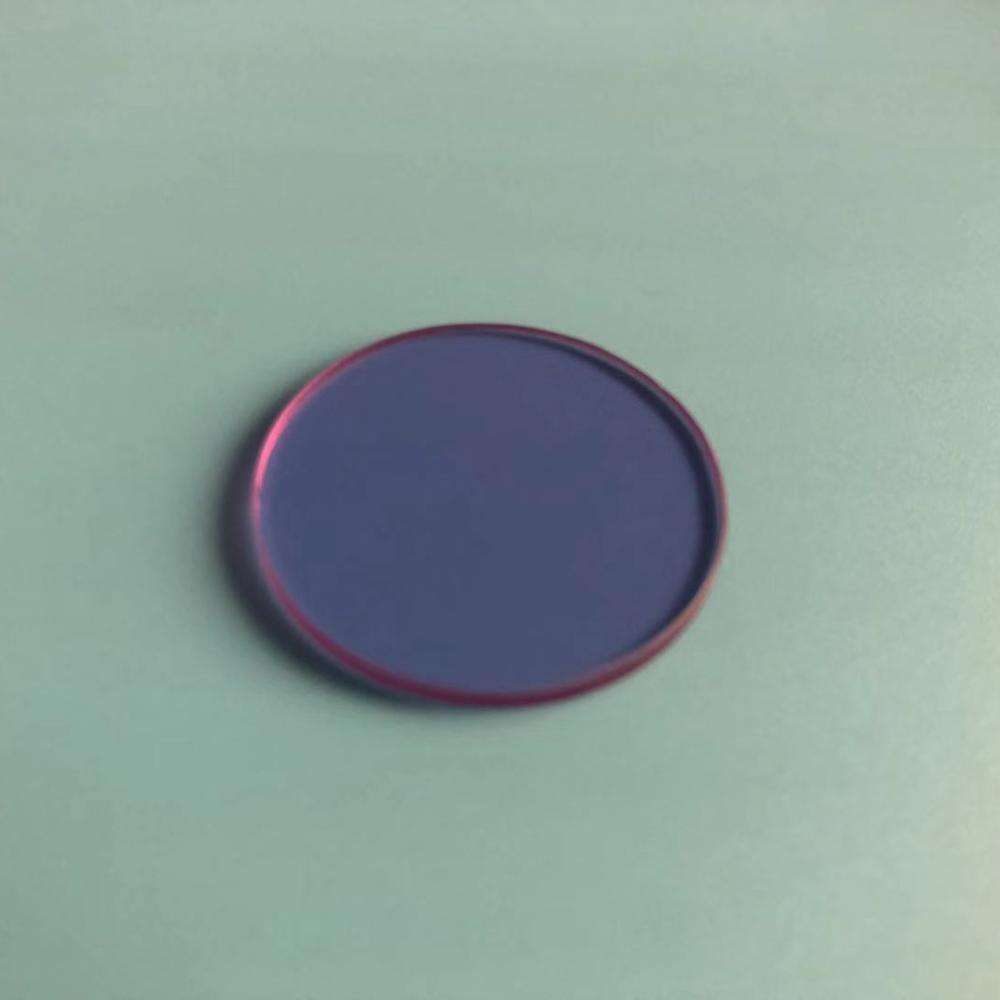

3x0.5 mm Optical Glass Optical Filter

Product description

This optical filter is designed for applications requiring precise spectral transmission in the 615 nm range, ideal for fluorescence microscopy and other optical applications. With a center wavelength of 615 nm, it effectively targets specific light sources while ensuring optimal performance. The filter is made from high-quality optical glass, featuring a surface quality of 60/40, and is available in various sizes and thicknesses to meet diverse application needs.

Key Features

Center wavelength at 615 nm for targeted applications.
Surface quality of 60/40 ensures minimal distortion.
Custom sizes available, with diameter tolerance of +/-0.1 mm.
Thickness options range from 0.5 mm to 20 mm, allowing for tailored solutions.
Durable optical glass construction suitable for demanding environments.

Available Sizes

Size x Thickness (mm)
126.5 x 10.2

Specification Summary

Item	Value
Material	Optical Glass
Size	3 mm
Thickness	0.5 mm
Surface Quality	60/40
Cwl	615nm
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Diameter Tolerance	+/-0.1mm
Thickness Tolerance	+0/-0.1mm
Bevel	within 0.3mm

FAQ

Can I get custom sizes?

Yes, custom sizes are available with specific diameter and thickness options.

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.1 mm and thickness tolerance is +0/-0.1 mm.
