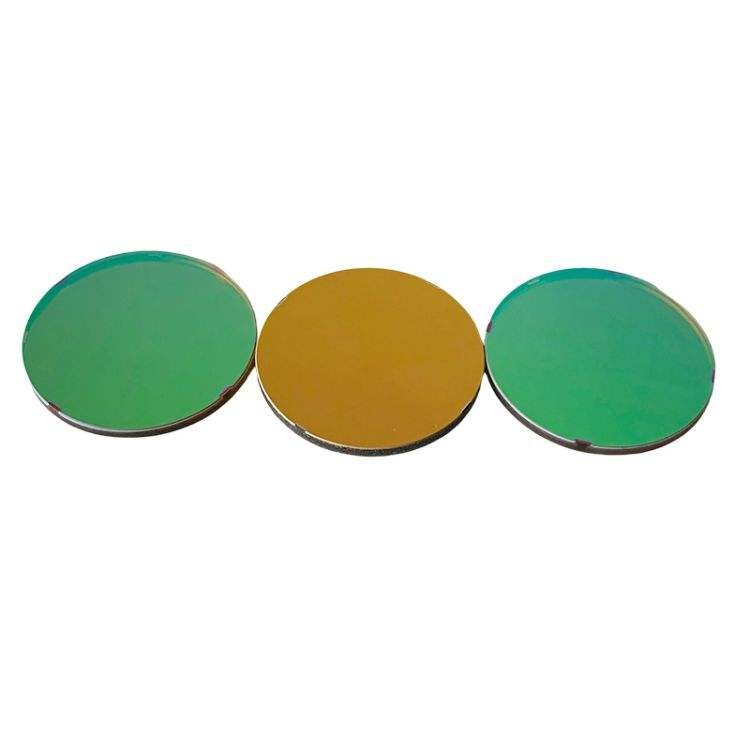

47 mm Optical Glass Optical Filter
Discover the 1570nm Bandpass Filter with 90% transmittance, ideal for optical communication applications.
Core attributes
- Material
- Optical Glass
- Size
- 47 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 1570nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- 47 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 1570nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
The 1570nm Bandpass Filter is designed for optical communication applications, providing high transmittance of 90% within the 0.7-1.7 μm wavelength range. This filter efficiently blocks unwanted wavelengths with an optical density of OD5 from 200-1700nm, ensuring optimal performance in fluorescence microscopy and other precision applications. Its robust design and customizable options cater to specific project needs.
Key Features
- Center Wavelength: 1570nm for precise optical communication.
- Transmittance: 90% ensures high signal clarity.
- Blocking: OD5 from 200-1700nm for effective wavelength isolation.
- FWHM: 15nm for narrow bandwidth selection.
- Customized Support: OEM options available for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | 47 mm |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 1570nm |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 85% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Center Wavelength | 1570nm |
| Fwhm | 15nm |
| Blocking | OD5 @200-1700nm |
| Use | Optical communication filter |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM support.
What is the minimum order quantity?
Minimum order quantity details are not specified.
